Equipment for Education, Engineering and Vocational Training - SMD Technology Trainer & Lab Kit - Surface Mount Technology (SMT) is method for constructing electronic circuits in which the components are mounted directly onto the surface of printed circuit boards (PCBs). Electronics devices so made are called Surface Mount Devices or MSDs. An SMD component is usually smaller then its leaded counterpart because it has no leads or smaller leads. It may have short pins or leads of various styles, flat contacts, a matrix of balls (BGAs), or terminations on the body of the component (passives), unlike discrete components, SMD components have a huge vareity of packages (size). SMD Technology will be the order of the day for the electronics industry in the coming years. SMD offers Small size, consequent High Packing Density, High Reliability & Improved High Frequency performance. SMD Technology Kit to keep you in pace with the technology revolution. The user is familiarized from components their packages to soldering practice.SMD Technology Kit Contains: SMD Identification Board The user is familiarized with different SMD Components -Resistors, Capacitors, Inductors, Diodes, Transistors & IC’s packages. Proto BOARDS Proto BOARDS are special PCB’s with readymade solder pads for various SMD components & IC’s, which makes the soldering much easy. It includes Through Hole, SO, SOP, Chip Scale package Proto BOARDS. SMD Soldering Jig SMD Soldering Iron AVariable Temperature Controlled Soldering Iron is supplied with lead. SMD components SMD components are supplied for Solder practice. Resistors , Capacitors, Diodes , Transistors Tweezers: Holding & placing of SMD components. List of Accessories : 1. SMD Identification Board with manual 1 no. 2. Proto BOARDS 2 nos each - Discrete Surface Mount -SOP -SO -Through Holes -Chip Scale SMD Soldering Jig 1 no. SMD Soldering Iron 1 no. SMD components Resistors , Capacitors, Diodes , Transistors 10 no. each Tweezers 2 no. Manual 1 no..

Equipment for Education, Engineering and Vocational Training - Bernoulli’s Theorem Trainer & Lab Training Kit - Bernoulli's Theorem Demonstrator facilitates the students and the industrial professionals to explore the fundamentals of “Bernoulli's Theorem” in Fluid Mechanics. It states that, in a steady flow the sum of all forms of mechanical energy (kinetic, potential and pressure energy) in a fluid along a streamline is the same at all points on that streamline. It consists of classical venture of clear acrylic. A series of wall tapping allows measurement of static pressure distribution of convergent duct, while a total head tube is provide at the centre of throat. These tapping are connected to a bank of manometer tube. This unit has been designed with Hydraulic Bench to study the characteristic flow through convergent and divergent section. During the experiment, the water fed to the venture and the flow rate can be control by the gate valve at the outlet of venture. The venture is used to demonstrate the flow rate measurement and to determine the co-efficient of discharge. Self contained system Simple representation of concept Direct measurement of static head Seven pressure tapings along with tubes Requires minimal installation Robust and transparent Venturimeter All tanks are rust proof Technical Specifications Test Section (Venture) : Throat Diameter - 12mm, : Upstream Diameter - 33 mm : Upstream Taper - 10° : Downstream Taper - 17° : MOC - Acrylic (Transparent) Manometer : 0 to 300 mm, Seven Tubes (Flexible & Transparent) Reservoir Tank : 503 ´ 300 310 mm, Capacity - 40 Liters Overhead Tank : 191 195 450 mm, Capacity - 16 Liters Measuring Tank : 290 300 251 mm, Capacity - 23 Liters Pump : 72 LPM, 0.5 HP, 230 V, 50 Hz Level Indicator : 20 cm (Body mounted type) Scope of Learning To verify Bernoulli's Theorem. To observe (visually) types of flow (laminar or turbulent) and calculation of Reynolds Number.

Equipment for Education, Engineering and Vocational Training - Spectrum Analyzer Trainer & Application Demonstration Kit - Spectrum Analyzer Application Demonstration Trainer has been specially designed for learning how to use a Spectrum Analyzer for Frequency and Level Measurements and Tracking Generator applications like HF Filters and Amplifier Response, Channel Modulation, Mixers, study of Mobile and Cordless signals and study of Harmonics in sine, square & triangular waves. TV & FM transmitted signals can be analyzed on Spectrum Analyzer using this Trainer and audio output can be heard on the speaker mounted inside the trainer. Technical Specifications Housing : All experiments are housed in a single attractive box which is self contained, ready to use having built- in DC power supplies. Experiments : The manual describes 18 experiments that can be performed with this trainer and Spectrum Analyzer. Application I Filter Responses : Four filters, very precisely designed for checking filter responses on Spectrum Analyzer. Types of filters are : 1. Low pass Filter (Cut off 115 MHz approx.) 2. High pass Filter (Cut off 100 MHz approx.) 3. Wide Band pass Filter (Cut off 25 MHz - 280 MHz approx.) 4. Notch Filter or narrow band reject filter (Cut off 95 MHz-160 MHz approx.) Application II DC Amplifier Frequency Response : A well designed DC Amplifier having 3 dB cut off bandwidth of approx. 130 MHz Application III Harmonic Display & Analysis : A Function Generator of frequency range approx. 40 KHz - 400 KHz (Low) and 200 KHz - 2 MHz (High) having sine, square,& triangular output with frequency variation and output level variation(Max.1 V ). Any one output can be given to Spectrum pp Analyzer for harmonic display. Application IV Cable TV application : Three channel modulator (channel 4, channel 8, & channel 12) & one mixer is cascaded. Channel modulations have Audio and Video inputs. The output of modulators and mixer can be seen on Spectrum Analyzer. Application V Live signal Application : Four types of signal can be seen on Spectrum Analyzer 1. Mobile phone forward and reverse link frequency 2. Cordless phone Transmitting and receiving frequencies 3. FM Radio Reception (Demodulated Audio output) 4. TV signal Reception (Demodulated Audio output) Demodulated output from Spectrum analyzer is given to the built- in speaker via Audio amplifier. A built in telescopic Antenna is provided with Spectrum Analyzer for catching signals Power Supply : 220 V ±10%, 50 Hz / 60 Hz on request Power Consumption : 2 VA(approx.) Weight : 4.5 Kg (approx.) Dimensions (mm) : W 440 × D 265 × H 155 Included accessories : Telescopic Antenna 1 No. Patch Cord BNC Cable 2 Nos. Phono jack connector Manual Mains Cord.

Equipment for Education, Engineering and Vocational Training - Digital Storage Oscilloscope Trainer & Lab Demonstration Kit - Digital Storage Oscilloscope (DSO) Applications Demonstration Trainer for studying the applications of a Digital Storage Oscilloscope. The applications demonstrated forms part of the electronics lab. All experiments are housed in a single attractive box which is self contained, ready to use having built- in DC power supplies. Single shot : Switching transient of a push to on switch is demonstrated Slow Motion: Charging and discharging of an electrolytic capacitor Medical : ECG Simulated wave with pulse rate adjustment Low repetition rate : Sine wave generator of low frequency Mechanical : Relay bouncing and turn ON time Audio : MIC Testing with variable gain audio amplifier Application I Single shot : Switching transient of a push to on switch is demonstrated. Application II SlowMotion : Charging and discharging of an electrolytic capacitor. Application III Medical : ECG Simulated wave with pulse rate adjustment Application IV Low repetition rate: Sine wave generator of low frequency. Application V Mechanical : Relay bouncing and turn ON time. Application VI Audio : MIC Testing with variable gain audio amplifier. Power Supply : 230 V ±10 %, 50 Hz / 60 Hz on request Power Consumption : 2 VA(approx.) Dimensions (mm) : W 340 × D 240 × D 105 Included accessories : 2mm Patch Cord 1 No. Micro phone , Manual and Mains Cord The manual describes 10 experiments that can be performed with this trainer and Digital Storage Oscilloscope..

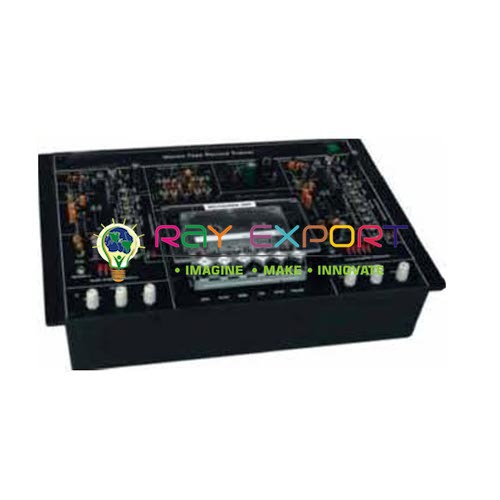

Equipment for Education, Engineering and Vocational Training - Stereo Tape Recorder Trainer & Lab Training Kit - Stereo Tape Recorder Trainer is ideal equipment to teach the operation of stereo recording and stereo cassette playing function. The comprehensive study of Tape record and Mechanism unit technique is described in the operating manual. One of the main features of this trainer is fault simulation. The fault created in the trainer in no way damages the trainer. Technical Specifications Amplifier Type : Class B amplifier Audio Power Output : 14 W (7 W × 2 channels ) Frequency Response : 100 Hz to 8 KHz Tape Speed : 4.75 cm / sec Erase Head : Fix magnet RP Head : YBBT 62 (Stereo) Mechanism : R X 39 Motor : CCW 12 V DC Circuit Block : Pre amplifier CH-L & CH-R Bass - Treble CH-L & CH-R Output amplifier CH-L & CH-R Equalization CH-L & CH-R Output level indicator section Power supply section Panel Control : Volume CH-L & CH-R Bass CH-L & CH-R Treble CH-L & CH-R Mechanism Control : Record, Play, Reverse, Forward, Stop, Pause Recording Facility : Condenser Mic and EP socket for feeding external signal PCB Size (mm) : 260 × 230 No. of faults : 15 No. of Test point : 42 Power Supply : 220 V ±10 %, 50 Hz / 60 Hz on request Power Consumption : 8.17 W (approx.) Compact design Fault creation and diagnosis 42 Test Points More than 15 faults can be demonstrated on this trainer No soldering and de-soldering is required to simulate faults The main IC's are provided on socket to provide a facility to check similar IC' and also to create the faults by inserting faulty IC's in the sockets Test points detail with typical voltage and wave forms are provided in the manual In built power supply Two identical mono channels clubbed together to obtain stereo effect through stereo head Both internal and external recording facility available Recording process understood through LED indicator present in equalization section 8P-2W R/P switch mechanism planed widely through 16 nos 1P-2W toggle switches Separate bass/treble section to understand the effect of low frequency as well as high frequency signal.

Equipment for Education, Engineering and Vocational Training - EPABX Trainer & Lab Training Kit - Telephone exchange an electronic boon to the mankind serving from decades for communication. Its one of the best combination of Analog, Digital & Mechanical circuits. The exchange technology has undergone many phase of changes ever since its existence. ST2657 Automatic Telephone Exchange Training / EPABX System forms the basic of telephone exchanges, EPABX technology study.Both manual and automatic switching can be performed. The functional blocks provides easy understanding of the working of the system. Visualizations of the switching and detections makes it unique. A DTMF Telephone Trainer is supplied for better understanding of Telephony. Technical Specifications Number of inputs : 2 Trunk / Direct Lines. Number of extension : 4 Lines. Technology : Cross Point Space Division (Microprocessor based) Standard Features : Tones such as Dial, Busy, Ring etc. Dialing - DTMF and Pulse (Ratio 10pps ) Program Memory : 64 Kb EEPROM Loop Resistance : Extension -600 Ohms, Co-line- 1200 Ohms. Cross Talk Attenuation : >70 dBm Test Points : More than 25 Nos. Power supply : 230 V ±10%, 50 Hz / 60 Hz on request Power Consumption : 40.25 VA (approx.) No. of switched faults : 8 No. of test points : 38 Features that can be set : Line Hunting, Direct Access to trunk line, Redial, Line Status Indication, Automatic call back, Do Not Disturb, Call Transfer, Call Pick Up, Direct Access Trunk Call Forwarding, Call parking, Conference, Hot line System, Extension Privacy, Call Transfer, Barge in. Included Accessories Telephone Instruments : 3 Nos. Telephone Trainer : 1 No. Extension line cords : 4 Nos. Software CD : 1 No. AC Adaptor : 1 No. Easy understanding of various units Use of functional blocks than traditional circuitry Study of various detection phenomena's Detailed circuit study LED visualizations Performing manual switching Study of switching Phenomena Study of traffic units Switched faults CD containing Working Presentation Supplied with DTMF Telephone Trainer Experiments that can be performed Generation of various Tones Dial, Tone, Busy Tone, Ring Back Tone. Measurement of Ring generation. Study & Analysis of Cross point Space Division switching. Study & Analysis of Manual switching. Analysis of Pulse / DTMF dialing from telephone (Extns). Measurement of Relay & Ring control signals. Study & analysis of ON / OFF hook, Ring detection. Study of power supply.
