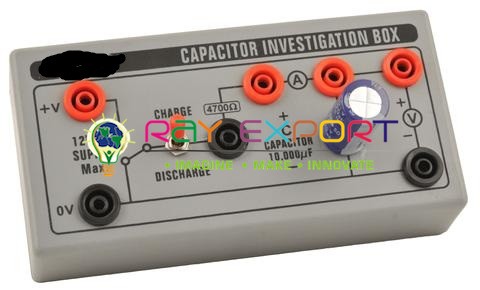

This is a highly useful demo board, it makes the student to understand the charging and discharging of the capacitors. Here the external + 12V DC supply is used for charging the capacitors through the current limiting resistors. The charging curve/time can be viewed on CRO. Once the capacitor is fully charged, it can be discharged with the help of toggle switch (turning towards discharge). Again the discharge curve/time can be viewed on CRO. This phenomenon can also be demonstrated using the current meter, only the polarity of the motor should be connected properly. Here three different combinations of C & R are provided for observing different waveforms.
