Osteology Models Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Osteology Models in India, The exclusive range of Human Osteology Models that we have to our name are life-size articulated besides being highly economical. We have many category of Human Skeletons like Small Human Skeleton, Human Muscular Skeleton, Human Skeleton on Stand, Simple Human Skeleton, Human Skull Artificial Economy, Human Skull Artificial 3 parts etc. These are made out of unbreakable PVR plastic and are washable being generally mounted on a robust metal base of 16 inches. Ray Export are leading in the Osteology Models, Osteology Models Manufacturer, Osteology Models Suppliers, Osteology Models India, Osteology, Osteology Models Exporter, Biology Lab Equipment, Human Osteology Anatomy Models, Educational Osteology Models.
Osteology Models

Binocular Research Microscope, Basic

M-0069
Body:45 degrees inclined binocular head rotatable through 360 degrees. Quadruple nose piece with accurate centering and positive click stops, revolves on high grade steel balls & dust proof carrier to ensure smooth rotation & maintain parfocality.
Stage:Mechanical stage of 120x140mm. Low co-axial drive controls for X-Y movement with fully graduated vernier scale for manipulation of specimen slide.
Focussing:Co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side.
Illumination:6V-20W halogen lamp or 3W LED white light illumination, operating on 220/110 Volts.
Condenser:Two lens Abbe condenser N.A. 1.25 with filter support, movable by rack & pinion arrangement.
Eyepiece:Two paired eyepiece sets, one is Wide Field 10X and the other is either Huygenian 5X or 15X.
Objective:Achromatic JIS Standard 36mm 4X, 10X, 40X SL and 100X SL oil immersion.
Box:Supplied in a plywood box with essential accessories namely eye guard, filters, immersion oil, vinyl cover, cleaning paper, cleaning brush, dust blower.
Osteology Models

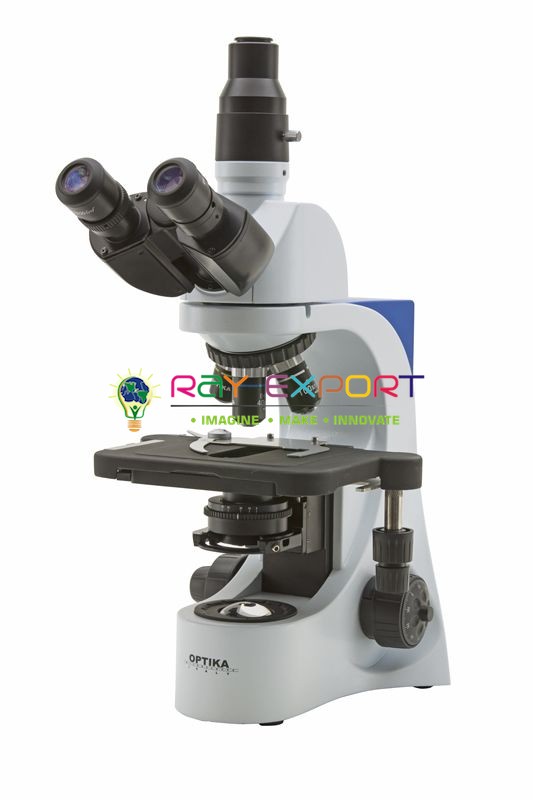

Senior Research Microscope (Plan Objectives)

M-0075
Body:Sidentopf type 30 degrees inclined binocular tube rotatable through 360 degrees with interpupillary distance 55-75 mm and quadruple nosepiece, reversed type
Stage:Rectangular 190x140 mm surface stage mounted on the main body, cross travel 90x55 mm using low-positioned X/Y coaxial control knob.
Illumination:6V-20W halogen lamp or 3W LED white light illumination, operating on 220/110 Volts.
Eyepiece:10X (F.O.V.: 20mm)
Objective:
  • Plan Achromat 4X N.A. 0.10
  • Plan Achromat 10X N.A. 0.25
  • Plan Achromat 40X N.A. 0.65
  • Plan Achromat 100X Oil N.A. 1.25
Condenser:Abbe condenser N.A. 1.25, leaf-type aperture diaphragm with position guide.
Optical System:Plan optical system, Parfocal.
Magnification:40X -1000X for observation.
Osteology Models

Senior Research Microscope (Infinity Plan Objectives)

M-0076
Body:30 degrees viewing angle tube rotatable through 360 degrees with adjustable interpupillary distance 48 mm-75 mm and 4X, inclined backwards nosepiece.
Stage:Right-hand Operational
Illumination:Modular illumination concept 6V/20W halogen bulb.
Eyepiece:Wide Field 10X/20X and All eyepieces anti-fungus treated
Objective:
  • Infinity Plan-Achromat 4X/0.1
  • Infinity Plan-Achromat 10X/0.25
  • Infinity Plan-Achromat 40X/0.65
  • Infinity Plan-Achromat 100X/1.25
Condenser:Abbe condenser 1.25
Optical System:Color-corrected infinity optics.
Magnification:40X to 1000X for visual observation
Osteology Models

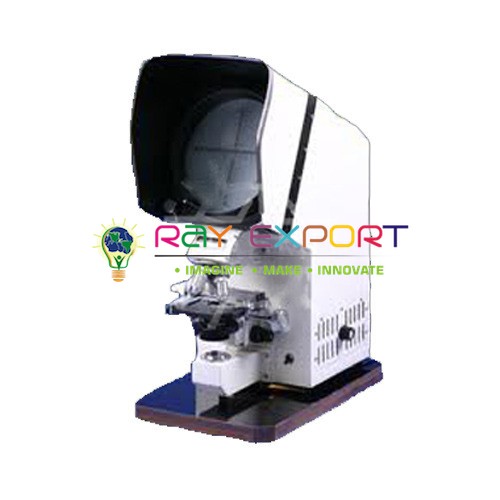

Senior Projection Microscope

M-0079
Body:Consist of 200mm diameter graduated screen 360 degree rotatable with quadruple revolving nose piece.
Stage:Built in mechanical stage having low co-axial drive controls for X-Y movement with fully graduated vernier scale for manipulation of specimen slide.
Focussing:Separate fine and coarse focussing using diagonally cut rack and pinion arrangement.
Illumination:Workable on 220 volts AC mains with with stage micrometer slide for measuring. Built-in 12V 100W halogen bulb illuminator having highly centered filament.
Eyepiece:Built in eyepiece 10X.
Objective:Achromatic objective 5X, 10X, 20X and 40X SL.
Box:Supplied in cardboard packing.
