Physics Sound & Waves Lab

Physics Sound & Waves Lab Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Physics Sound & Waves Lab in India,

Quick answer. For sound and wave apparatus the decision that matters is buying working sets, not single codes. A ripple tank (PSWB-0010) arrives unusable without its power supply (PSWB-0012), its accessory set (PSWB-0013) and a stroboscope (PSWB-0018 or PSWB-0019), and it only works if it can be levelled, because ripple speed depends on water depth. A sonometer needs spare wires, a pulley and a weight hanger with masses, which are routinely not supplied. Tuning fork sets need their frequencies listed and a rubber-ended hammer. Ask for each of these to be quoted and confirmed as a set.

Thirty-three sound and wave apparatus are listed here as PSWB-0001 to PSWB-0033, with ten further items appended under code formats belonging to other categories. The sound half is the classical bench: sonometers, tuning forks, resonance tubes, organ pipes, Kundt's tube and Melde's apparatus. The wave half is the ripple tank and its accessories. Two things matter more than any of the product names. A ripple tank is only as good as its water depth and its levelling, and it needs a stroboscope to be useful at all. And a stroboscope needs a warning given to the class before it is switched on, for the reason set out below.

The range, by topic

TopicCodesApparatus
Water wavesPSWB-0010 to PSWB-0013Ripple tank, dual-purpose ripple tank, its power supply and its accessory set
Freezing the patternPSWB-0018, PSWB-0019Digital stroboscope, hand stroboscope
Strings and the sonometerPSWB-0015, PSWB-0016Student and wooden sonometers
Standing waves on a stringPSWB-0022, PSWB-0028, PSWB-0020Electrically maintained tuning fork for Melde's experiment, electrical vibrator for the same, electrical tuning fork
Air columns and resonancePSWB-0003 to PSWB-0009Organ pipes closed, open and sliding; four resonance apparatus variants
Tuning forksPSWB-0021, PSWB-0023 to PSWB-0027Hammer, pair on box for beats, forks on resonance box, sets of four, eight and thirteen
Speed of sound in solidsPSWB-0002Kundt's tube apparatus
Wave propagation modelsPSWB-0029 to PSWB-0031, PSWB-0033Helical spring and slinky, wave motion apparatus, Powell wave machine
OtherPSWB-0001, PSWB-0014, PSWB-0017, PSWB-0032Buzzer in vacuum, Savart's toothed wheels, stethoscope, whirling table

The ripple tank: depth, level, and the three things sold separately

More ripple tank demonstrations fail for mechanical reasons than for any fault in the physics, and all of them are avoidable:

  • Water depth, and its uniformity. The tank runs with only a few millimetres of water, and the speed of a ripple depends on that depth, so if the tank is not level the depth varies across it, the wave speed varies with it and the pattern distorts in a way that looks like a result. Ask whether the tank has levelling screws and a means of checking level, and treat levelling as part of setting up rather than an optional refinement.
  • The power supply is a separate code (PSWB-0012). Ask whether the tank includes its supply or needs that unit, and what it drives: the lamp, the vibrator motor, or both. Ordering the tank without the supply is the commonest way this apparatus arrives unusable.
  • The accessories are a separate code (PSWB-0013). Ask exactly what the set contains. A tank with no dippers cannot make waves, and a tank with only a straight dipper cannot show point-source diffraction. The useful set has a point and a straight dipper, straight and curved barriers, an adjustable single and double slit, and a shallow-water insert for the refraction demonstration.
  • A stroboscope, which is also a separate code. Continuous ripples on a screen are a blur; a stroboscope at the right rate freezes the pattern so the wavelength can be measured. If you are buying a ripple tank, buy PSWB-0018 or PSWB-0019 with it.
  • Water and mains electricity in one apparatus. Ask whether the lamp and motor run at low voltage and, if any part is mains-fed, insist on a residual-current device on that bench. Ask also how the tank is drained and whether a stand with a screen or a sheet of white paper underneath is included, since the pattern is viewed as a shadow.

Stroboscopes: tell the class before you switch it on

A flashing light in a certain range of rates can provoke a seizure in a person with photosensitive epilepsy, who may not know they have it. This is a short, specific precaution rather than a reason to avoid the apparatus. Before a stroboscope demonstration, say what is about to happen, give anyone who prefers to the chance to leave or look away, keep the room lights on so the contrast is lower, avoid lingering in the most provocative range of flash rates, and work up to the rate you need rather than sweeping through. For the digital unit (PSWB-0018) ask the rate range and the display resolution, since the measurement depends on reading the rate accurately; the hand stroboscope (PSWB-0019) has no such hazard and is the safer choice for a class exercise, so ask how its slot count and speed are determined.

Tuning forks and the sonometer

Tuning forks. Ask whether the frequency is stamped on each fork and what the frequency tolerance is, because every calculation uses that number. For the sets, ask which frequencies the set of four, the set of eight and the set of thirteen contain, since a set that misses the frequency your experiment specifies is no use. Ask whether a rubber-ended hammer (PSWB-0021) is included with each set, and make it a rule that forks are struck only on the hammer or a rubber pad: striking a fork on a bench or a metal edge chips the prong, alters its frequency and makes the fork useless for measurement. Ask also what the resonance box (PSWB-0024) is tuned to, since a box only amplifies the fork it was made for.

Sonometers (PSWB-0015, PSWB-0016). Ask what comes with the instrument: the wire, and spare wires of the gauges the experiment needs, since wires break; the bridges; the pulley; and the weight hanger with its masses, which are what set the tension and are routinely not supplied. Ask the scale length and division along the bed. One safety point: a wire under tension can snap and whip, so do not tension beyond what the experiment asks, keep faces away from the line of the wire while loading, and specify eye protection for the tensioning step.

Resonance tubes, organ pipes and Kundt's tube

Four resonance apparatus codes (PSWB-0006 to PSWB-0009) and three organ pipe codes (PSWB-0003 to PSWB-0005) overlap considerably, so ask for the specification of each and buy one of each kind. For a resonance tube ask the tube length and bore, how the water level is raised and lowered, whether a reservoir and a scale are fitted, and whether the scale reads directly in centimetres from the tube mouth, which saves a conversion step for every reading. For the organ pipes ask the lengths and whether the sliding pipe (PSWB-0005) reads its length on a scale, and whether the set is intended to be blown by mouth or from a blower; if by mouth, that is one student per pipe and a hygiene consideration for a shared set.

For Kundt's tube (PSWB-0002), ask what the indicating powder is and whether it is supplied, how much of it a class gets through, and how the rod is excited. Keep the powder dry, do not blow it about, and avoid raising a cloud of it; sweep spills rather than brushing them into the air.

Two items that need a vacuum or a guard

PSWB-0001, buzzer in vacuum. This demonstrates that sound needs a medium, and it needs a vacuum pump and a bell jar, so ask whether the jar and base plate are supplied and whether a pump is included or must come from elsewhere. Evacuated glassware fails suddenly rather than cracking first, so ask what the jar is rated for, inspect it for chips before every use and specify eye protection while pumping down.

PSWB-0032, whirling table. This is circular-motion apparatus rather than wave apparatus, and it spins a mass on an arm. Ask the maximum speed, what guarding is provided, how the mass is secured and whether there is a brake, and keep the class outside the swept circle.

Ten items in this listing belong to other categories

Two thermometer codes appear at the end of this listing, a wide-range digital thermometer and a mercury thermometer, and they are the two codes missing from the sequence under Thermometers, so look for them there rather than here. Seven further items carry a quite different code format and are mechanics apparatus: an air-flow generator for an air track, a gravity laboratory set, an electronic timer with photogates, a constant-speed car, a dynamics car and inclined-track set, a measuring rulers set and a ball bearing, plus a mechanical box. They belong with Mechanics Physics Lab. The electronic timer with photogates is worth knowing about if you are buying mechanics apparatus, because it is the timing method those experiments need and it is not listed under mechanics at all.

Also worth confirming

Quote the code rather than the name. Apostrophes are missing from Kundt's, Savart's and Melde's, one name spells Melde's two different wrong ways across two codes that cover the same experiment, one has resonance misspelled, one is truncated mid-word, four resonance variants and five tuning-fork sets overlap, and ten appended items use code formats from other categories, one of them containing a slash. Ask also for dimensions and materials, the manual with the expected result, the quantity per student group, spare wires and powder, the supply voltage, frequency and plug type for your country, and the warranty. Any frequency or dimension quoted is confirmed in writing on the quotation; ask for its basis.

Related ranges on this site

Interference, diffraction and the stroboscope's optical cousins are under Optics Physics Lab. Pendulums, circular motion and the timing equipment these experiments assume are under Mechanics Physics Lab. The vacuum pump and evacuated glassware questions recur under Fluid Mechanics Physics Equipments, and supplies and meters under Electricity and Cell Lab. Parent range: Physics Lab Equipments.

Request a quote

If you are buying a ripple tank, ask for it as a working set rather than as a tank. For example Ripple Tank (PSWB-0010) with its power supply (PSWB-0012), the accessory set itemised (PSWB-0013) and a stroboscope (PSWB-0019), four sets, with the levelling arrangement and the low-voltage position confirmed in writing. For sound, Sonometer Student (PSWB-0015) with spare wires, hanger and masses, and a tuning fork set with the frequencies listed. Contact Ray Export for prices, frequencies and lead times.

Frequently asked questions

What do I need to order with a ripple tank?

The tank alone is the commonest way this apparatus arrives unusable. Order the power supply (PSWB-0012) unless the tank includes its own, and ask whether it drives the lamp, the vibrator motor or both. Order the accessory set (PSWB-0013) and ask exactly what it contains: a useful set has point and straight dippers, straight and curved barriers, an adjustable single and double slit, and a shallow-water insert for refraction. Add a stroboscope, PSWB-0018 or PSWB-0019, because continuous ripples are a blur. Ask about levelling screws, draining, and a stand with a screen underneath.

Why does a ripple tank pattern look distorted?

Usually because the tank is not level. It runs with only a few millimetres of water, and ripple speed depends on that depth, so an unlevel tank has a varying depth, a varying wave speed and a distorted pattern that looks like a result. Ask whether the tank has levelling screws and a means of checking level, and treat levelling as part of setting up. Water and mains electricity also meet in this apparatus: ask whether the lamp and motor run at low voltage, and if any part is mains-fed, insist on a residual-current device on that bench.

Is a stroboscope safe to use with a class?

Yes, with a short, specific precaution. A light flashing in a certain range of rates can provoke a seizure in a person with photosensitive epilepsy, who may not know they have it. Before the demonstration, say what is about to happen and give anyone who prefers the chance to leave or look away; keep the room lights on to lower the contrast; and work up to the rate you need rather than sweeping through. The hand stroboscope (PSWB-0019) has no such hazard and is the safer choice for a class exercise; for the digital unit (PSWB-0018), ask the rate range and display resolution.

What should I check on tuning forks and fork sets?

Ask whether the frequency is stamped on each fork and what the frequency tolerance is, because every calculation uses that number. For the sets of four, eight and thirteen, ask which frequencies each contains, since a set that misses the frequency your experiment specifies is no use. Ask whether a rubber-ended hammer (PSWB-0021) comes with each set, and make it a rule that forks are struck only on the hammer or a rubber pad - striking a bench or metal edge chips the prong and alters the frequency. Ask what the resonance box (PSWB-0024) is tuned to, since it only amplifies its own fork.

Which resonance tube and organ pipes should I buy?

Four resonance apparatus codes (PSWB-0006 to PSWB-0009) and three organ pipe codes (PSWB-0003 to PSWB-0005) overlap considerably, so ask for the specification of each and buy one of each kind. For a resonance tube, ask the tube length and bore, how the water level is raised and lowered, whether a reservoir and scale are fitted, and whether the scale reads directly from the tube mouth. For organ pipes, ask the lengths, whether the sliding pipe (PSWB-0005) has a scale, and whether the set is blown by mouth or from a blower - by mouth means one student per pipe and a hygiene consideration.

What safety points apply to the sonometer, Kundt's tube and buzzer in vacuum?

A sonometer wire under tension can snap and whip, so do not tension beyond what the experiment asks, keep faces away from the line of the wire while loading, and specify eye protection. For Kundt's tube (PSWB-0002), keep the indicating powder dry and avoid raising a cloud of it; sweep spills rather than brushing them into the air. The buzzer in vacuum (PSWB-0001) needs a bell jar and a vacuum pump - ask whether they are supplied - and evacuated glass fails suddenly, so check the jar's rating, inspect it for chips before every use and specify eye protection while pumping down.

Key takeaways

  • Buy the ripple tank as a working set - tank, power supply, itemised accessories and a stroboscope.
  • Level the tank before every demonstration - ripple speed depends on depth, and an unlevel tank distorts the pattern.
  • Warn the class before a stroboscope is switched on, or use the hand stroboscope PSWB-0019 for class work.
  • Fork frequencies must be stamped and listed, and forks struck only on a rubber hammer or pad.
  • Sonometers need wires, a hanger and masses, which are routinely left off a quotation.
  • Look elsewhere for misfiled items - the two thermometers belong under Thermometers, and the photogate timer and other mechanics items under Mechanics Physics Lab.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications - tank levelling and supply voltage, accessory contents, stroboscope rate range, fork frequencies and tolerance, tube and pipe dimensions, and the whirling table's maximum speed and guarding - are confirmed in writing on the quotation. For certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: apostrophes are missing from Kundt's, Savart's and Melde's; Melde's is spelled two different wrong ways across two codes for the same experiment; one name misspells resonance and one is truncated mid-word; the resonance variants and tuning fork sets overlap; the whirling table (PSWB-0032) is circular-motion rather than wave apparatus; and ten appended items use code formats from other categories, one containing a slash, including two thermometers that belong under Thermometers.

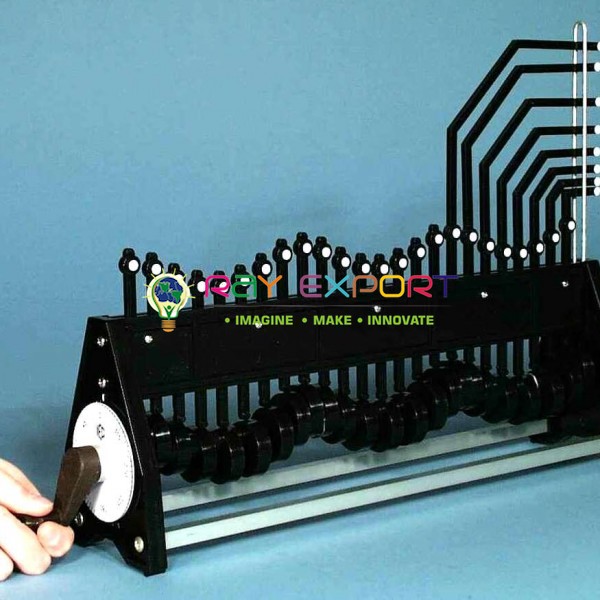

Wave Motion Apparatus For Physics Lab

PSWB-0031

This experiment is used to demonstrate longitudinal and transverse motion, comprising of a number of eccentric discs supporting a series of metal rods while revolving the handle, transverse waves are produced.

Whirling Table For Physics Lab

PSWB-0032

Its comes with stand of an overall height of 43 cm. for being utilized in vertical or horizontal position, fitted with hand wheel and wire helix belt drive to pulley. Appropriate to use with Savart’s wheel and disc and adopter to accommodate color discs.

Wave Machine Powell For Physics Lab

PSWB-0033

This experiment is done for the purpose For demonstrating the movement of progressive transverse waves, consisting of 22 small balls on wire rods, with eccentric motion joining, with driving handle and fixed on finished wooden base.

Digital Thermometer, Wide Range,-50°C to +200°C (-58°F to +392°F) - Hand Held with Probe

PLET-0005

Digital Thermometer, Wide Range,-50°C to +200°C (-58°F to +392°F) - Hand Held with Probe

Thermometers Mercury - White Backed, -10 to 110°C

PLET-0015

Thermometers Mercury - White Backed, -10 to 110°C

Ball Bearing

RE/SP26-15238


Description:

  • Single-row ball bearing
  • Inner diameter: 25mm
  • Material: Stainless steel
  • Used In: In Precision instruments, low noise motor, automobiles, motorcycle, machinery and other industries

ME3+ Mechanical Box

“RE: 111

Description:
  • Set of materials dedicated to the study of kinematics/dynamics/energy. Optimized selection of 20 experiments directly inspired by international curricula on this theme.
  • All equipment is stored in a case with a captive lid and built-in folding handle.
  • The lid closes with a patented bayonet locking system, enabling several boxes to be firmly joined together to form a stable stack that can be transported with just one hand.
  • To remove a box from the stack, simply lift the central locking system.
  • Inside the box, a foam insert with pre-formed cavities ensures long-lasting storage of components.
  • The set is accompanied by educational literature in the form of manuals with student and teacher books supplied in electronic form for easy reproduction.
List of 20 experiments that can be carried out in combination with the M2 Mechanics Set:
  • Time and distance (definition of the second)
  • Reaction time
  • Notion of reference frame
  • Uniform rectilinear motion (URM)
  • Instantaneous speed
  • Uniformly accelerated rectilinear motion (UARM)
  • Free fall
  • Parabolic motion
  • Acceleration and force
  • Acceleration and mass
  • Coil spring pendulum 1
  • Coil spring pendulum 2
  • Simple pendulum
  • Principle of conservation of mechanical energy
  • Kinetic energy
  • Non-harmonic oscillations
  • Conservation of momentum
  • Inelastic collision
  • Elastic collision 1
  • Elastic collision 2
Set contains:
  • Light barriers
  • Digital counter
  • Rail support
  • Cord, 100 cm, in case
  • Set of balls in case
  • Beam interception rod
  • Coil spring, 3 N/m
  • Coil spring, 10 N/m
  • Dynamic carriage
  • Pulley with hook
  • Rod with hook
  • Mounting spindle
  • Wooden pendulum ball with hook
  • Steel pendulum ball with hook
  • Release plate
  • Pulley support
  • Wire spool
  • Razor blade with handles
  • Jumper for light barrier
  • Support rod for light barrier
  • Spring bumper
Necessary accessories already available with ME2 (item 2.1)
  • Universal bracket
  • Universal rail, 1000 mm

Literature:

  • Exercise book ME3+ for students
  • Teacher's manual ME3+

Air-Flow Generator for Air Track

RE/SP26-14532

Description: -
  • It is suitable for generating a sufficiently strong airflow, which is necessary for conducting aerodynamics experiments.
  • It allows for the effective determination of lift and drag forces on bodies of different shapes.
  • The blower is also used in experiments involving air tracks
  • Blower/generator for air track
  • Power: 230 V, 50/60 Hz.
  • Hose length: 1.5 m
  • Power consumption: 350 W

Gravity Laboratory Set

RE/SP26-14540

Description:
  • Aluminum rod length 125 cm
  • Scale length 1.2 m with 1 mm divisions.
  • Steel ball diameter: 19.05 mm.
  • Triangular base: 260×260×8 mm.
  • Digital timer powered by DC 6 V (4×LR03 batteries).
  • 4½-digit LCD Display
  • Timing range: 0.0001–999.99 s
  • Timing resolution/accuracy: 0.1 ms
  • Includes 1 built-in photogate and 2 external photogates.
  • Memory for 5 measured time values.
  • Timer dimensions: 73×60×77.5 mm.

Electronic Timer with Photogates

RE/SP26-14545

Description:
  • A track assembly 480 mm high and 30 mm in diameter, combined with photogates and an electronic timer with data storage.
  • Include four optical sensors/photogates and an electronic timer with storage.
  • A stable base with graduated inclination angle and display able to show ball passage time at three intervals
  • Motion apparatus/cylinder with four optical sensors for recording motion on an inclined plane
  • One ball
  • Power supply
  • Complete with methodological/experimental guidance with real experiments.
Supply of Physics Sound & Waves Lab from India to Finland, France, Tanzania, Thailand, Sri Lanka, Congo, Costa Rica, Ivory Coast, Croatia, Cuba, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, United Arab Emirates (UAE, Dubai), United Kingdom (London), United States, Uruguay, Uzbekistan, Vanuatu, Belarus, Belgium, Belize, Benin, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgaria, Burkina Faso, Burma Myanmar, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia (Addis Ababa), Fiji, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Central African Republic, Chad, Chile, Colombia. Math Teaching Kit suppliers in Luxembourg, Macedonia, Madagascar, Malawi (Lilongwe), Malaysia (Kuala Lumpur), Maldives, Mali, Malta, Marshall Islands, Mauritania, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Comoros, Congo. Math Teaching Kit manufacturers in Dominican Republic, Gabon, Gambia, Georgia, Germany, Ghana, Greece, Grenada, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hungary, Iceland, Indonesia, Iran, Iraq, Niger, Nigeria (Abuja), Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines (Manila), Poland, Ireland, Israel, Italy, Jamaica, Japan, Jordan, Kazakhstan, Kenya (Nairobi), Kiribati, Korea, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Mauritius, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Portugal, Qatar, Romania, Russia, Rwanda (Kigali). Math Teaching Kit exportets to Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Sudan, Spain, Sudan, Suriname, Swaziland, Sweden, Switzerland, Syria, Tajikistan, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda (Kampala), Ukraine, Venezuela, Vietnam, Yemen , Zambia (Lusaka), Zimbabwe
