Lab Equipments Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Lab Equipments in India,

Quick answer. For lab hardware, the dimension decides the order, not the name. L-0001 to L-0240 is grouped by family - clamps and retort stands, measuring tools, tubing, hand tools and indicator papers - and most families hold close variants that look alike in a list. A retort stand comes in four base materials (L-0007 to L-0010) and still needs a rod length; rubber tubing comes in four grades and still needs a bore, a wall thickness and a service; a clamp needs a jaw opening the listing does not state. Send the code with the dimension, and the quotation will match what you actually fit.

This is Ray Export's general laboratory hardware range, catalogued in the L series from L-0001 to L-0240 across 24 pages. It holds the supporting equipment a lab buys alongside its instruments: clamps, boss heads and retort stands, measuring and gauging tools, tubing and rubber ware, hand tools, and indicator papers. It is not the pharmaceutical processing range, which is listed separately under Laboratory Equipments.

How the 24 pages are laid out

The range is grouped by item family rather than alphabetically, so it is worth knowing roughly where each family sits before you start paging through it.

FamilyCodes seenItems as listed
Clamps, boss heads and retort standsL-0001 to L-0010Four-pronged retort clamp in die cast aluminium and in zinc, three-pronged rubber-lined clamp, universal clamp, boss heads in aluminium and zinc, and retort stands in sheet metal, cast iron, pressure die casting and stainless steel
Measuring and gauging toolsL-0051 to L-0061Vernier caliper in plastic, a wooden demonstration caliper and a digital caliper, micrometer screw gauges including an engineering version, inside outside caliper, disc and double-disc spherometers, and ticker tape timers in AC and regular types
Tubing, rubber and silicone wareL-0115 to L-0124Silicone tubing and rubber tubing in orange, medium pressure and high pressure grades, rubber cone for a filtration flask, crucible sleeve set, silicone flask stand, three-way pipette filler and a chloroform bellow with atomiser bulb
Hand toolsL-0175 to L-0184Horn spatula, double ended open jaw, bihexagonal ring, four way wheel and angular wheel spanners, Stillson pattern pipe wrench, adjustable wrench, chain pipe wrench, combination and long nose pliers
Indicator and test papersL-0235 to L-0240Bromocresol green paper, neutral litmus paper, phenolphthalein paper in rolls and strips, silver estimator paper in rolls and strips, turmeric paper, Congo red paper in packs and rolls

Choosing between the close variants

DecisionWhat separates the codes
Retort stand base materialFour base materials are listed as separate codes: sheet metal (L-0007), cast iron (L-0008), pressure die casting (L-0009) and stainless steel (L-0010). Cast iron gives the most mass for tall assemblies; stainless steel is the one to specify where the bench is washed down or corrosive splashes are likely.
Clamp body: aluminium or zincThe four-pronged retort clamp and the boss head are each listed in pressure die cast aluminium and in zinc. Ask for the jaw opening as well, since the listing does not state it.
Caliper typeThree calipers serve different purposes: the plastic caliper (L-0051) for routine student use, the wooden demonstration caliper (L-0052) for teaching the vernier scale at the front of a class, and the digital caliper (L-0053) where a reading has to be recorded. Ask for the resolution of the digital version.
Tubing pressure gradeRubber tubing is listed in plain, orange, medium pressure and high pressure grades under separate codes. Give the bore, the wall thickness and the service: vacuum lines and gas lines are not interchangeable.
Indicator paper formatSeveral papers are offered as rolls, strips or packs. The format changes the price per test, so state which you want.
Code gaps and straysThe sequence is not continuous, for example there is no L-0056 in the listing, and the last page also carries a few items coded in other series, including two rheostats in the PL series and two Soxhlet extraction assemblies in the LG series. Quote the code exactly as it appears on the item page.

Not to be confused with

Two other listings on this site have similar names but different contents. Laboratory Equipments is the LE series and holds pharmaceutical processing machinery such as fluid bed coaters, ointment mixers and a tablet friability tester. Platinum Lab Equipments is a separate materials-specific range. If you are after school teaching apparatus listed alphabetically, see School Laboratory Equipments 1, School Laboratory Equipments 2 and School Laboratory Equipments 3.

Request a quote

For hardware, the size matters more than the name, so send the code with the dimension you need, for example Retort Stand Stainless Steel (L-0010) with the rod length, or Tubing Rubber High Pressure (L-0120) with the bore and wall thickness. Contact Ray Export for prices and sizes held. Parent range: Scientific Lab Equipments.

Frequently asked questions

Which retort stand base should I choose?

Four base materials are listed as separate codes: sheet metal (L-0007), cast iron (L-0008), pressure die casting (L-0009) and stainless steel (L-0010). Cast iron gives the most mass, so it is the steadier base for tall assemblies such as a burette or a distillation set-up. Stainless steel is the one to specify where the bench is washed down or corrosive splashes are likely. The sheet metal and die-cast bases are lighter, so ask for the base size if stability matters, and give the rod length you need with the code.

Should I choose the aluminium or the zinc clamp and boss head?

The four-pronged retort clamp and the boss head are each listed in pressure die cast aluminium and in zinc, as separate codes within L-0001 to L-0010. Zinc castings are denser, so the zinc versions are heavier for the same size; aluminium is lighter to handle and fit. More important than either is the jaw opening, which the listing does not state, so ask for it against the vessel or rod diameter you need to hold. A three-pronged rubber-lined clamp and a universal clamp are listed in the same family.

Which caliper is right for a school or college lab?

Three calipers serve different purposes. The plastic vernier caliper (L-0051) is for routine student use; the wooden demonstration caliper (L-0052) is for teaching the vernier scale at the front of a class, where everyone can see it; and the digital caliper (L-0053) is for work where a reading has to be recorded. Ask for the resolution of the digital version. The same family includes micrometer screw gauges, among them an engineering version, an inside outside caliper, disc and double-disc spherometers, and ticker tape timers.

Which grade of rubber tubing do I need?

Rubber tubing is listed in plain, orange, medium pressure and high pressure grades under separate codes, with silicone tubing alongside. The grade is not a matter of preference: vacuum lines and gas lines are not interchangeable, and a thin-walled tube that suits a gas tap can collapse under vacuum. Give the bore, the wall thickness and the service when you enquire, for example Tubing Rubber High Pressure (L-0120) with its bore and wall. The family also holds a rubber cone for a filtration flask and a three-way pipette filler.

Are the indicator papers sold as rolls or strips?

It depends on the paper. Phenolphthalein paper and silver estimator paper are listed in rolls and in strips, Congo red paper in packs and in rolls, and bromocresol green, neutral litmus and turmeric papers as single listings, all within L-0235 to L-0240. The format changes the cost per test, so state which you want: rolls suit a lab that tears off lengths as needed, while strips are ready to hand out to a class. Give the quantity in rolls, packs or strips rather than in tests.

Is this the same range as Laboratory Equipments?

No. This page is the general laboratory hardware range in the L series. Laboratory Equipments is the LE series and holds pharmaceutical processing machinery such as fluid bed coaters, ointment mixers and a tablet friability tester. Platinum Lab Equipments is a separate materials-specific range, and school teaching apparatus listed alphabetically sits in the three School Laboratory Equipments listings. Check the code prefix on the item page before you enquire, since the prefix tells you which range an item belongs to.

Key takeaways

  • L-0001 to L-0240, grouped by family - clamps and stands, measuring tools, tubing, hand tools and indicator papers, across 24 pages.
  • Cast iron for tall assemblies - L-0008; stainless steel (L-0010) where benches are washed down.
  • Ask for the jaw opening - the clamps and boss heads are listed without it.
  • Tubing by service, not colour - give the bore, the wall thickness and whether it carries gas or vacuum.
  • Three calipers, three jobs - plastic L-0051 for students, wooden L-0052 for demonstration, digital L-0053 for recorded readings.
  • Hand tools are here too - spanners, pipe wrenches, an adjustable wrench, pliers and a horn spatula sit within L-0175 to L-0184.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications, sizes and dimensions are confirmed in writing on the quotation. For certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: the L sequence is not continuous (there is no L-0056); the last page carries items coded in other series, including two rheostats in the PL series and two Soxhlet extraction assemblies in the LG series; and the clamps are listed without jaw openings.

Hand Protector, Silicon

L-0125

Silicon hand protector for holding flask and other items. Used for protecting skin against extreme temperatures.

Gas Tap, Heavy

L-0126

Made of brass with superior black powder coating.

Gas Tap, Regular

L-0127

Made of brass with superior black powder coating.

Gas Tap, Economy

L-0128

Made of brass with superior chrome plating.

T-Joint

L-0129

Flared, forged brass with three nuts.

Straight Joint

L-0130

Flared, forged brass with two nuts.

Control Tap

L-0131

Forged brass with two nuts.

Copper Pipe for Gas Fitting

L-0132

Available in various size and gauge.

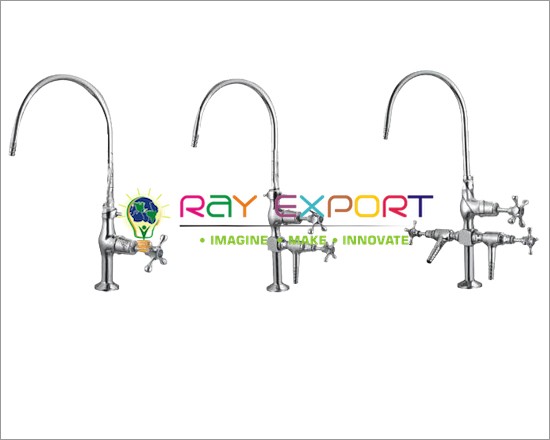

Water Tap, Swan Neck, Light

L-0133

Brass with chrome plated finish. 1/2 inches BSP threaded inlet. Mechanism to lock the neck at desired position. Bench mounting type.

Water Tap, Swan Neck, Heavy

L-0134

Heavy construction. Brass with chrome plated finish. 1/2 inches BSP threaded inlet. Mechanism to lock the neck at desired position. Bench mounting type.
