Fiber Optics Communication Trainers

Fiber Optics Communication Trainers Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Fiber Optics Communication Trainers in India,

Quick answer. The decision that shapes a fibre optics laboratory is visible source with plastic fibre, or infrared source with glass fibre. Visible red light with large-core plastic fibre lets students see the light path, spot a break or tight bend, and cut and terminate fibre with ordinary care. Infrared with glass fibre is what real systems use, but the light is invisible, the fibre is finer and more fragile, and the measuring equipment and safety regime change. The listing states neither the source nor the fibre for FOCT-0001 to FOCT-0004, so settle that first, then confirm an optical power meter is included.

Four trainers are listed here: FOCT-0001 Fiber Optics Trainer, FOCT-0002 Fiber Optics Trainer 660, FOCT-0003 Advanced Fiber Optics Trainer 660 and FOCT-0004 Laser Fiber Optics Trainer. Two things decide which you need, and the listing states neither: the source wavelength and type, which determines both what the experiments can show and what safety regime applies, and whether an optical power meter is included, without which the loss measurements that make up most of a fibre optics practical cannot be done at all.

What is in the range

CodeTrainerWhat to establish first
FOCT-0001Fiber Optics TrainerSource wavelength and type, fibre type and the experiment list
FOCT-0002Fiber Optics Trainer 660Whether the number is the source wavelength in nanometres, and how this differs from FOCT-0001
FOCT-0003Advanced Fiber Optics Trainer 660Which experiments the word "advanced" adds over FOCT-0002
FOCT-0004Laser Fiber Optics TrainerLaser class, wavelength and output power, plus the safety arrangements below

Visible source or infrared: the choice that shapes the laboratory

Two of these names carry the number 660, which in a fibre optics kit normally means a source at 660 nanometres. Ask the supplier to confirm it, because the consequences are large. A source in the visible red with plastic fibre is the easier teaching arrangement: the light path can be seen, a break or a tight bend shows itself, plastic fibre has a large core and is simple to cut and terminate, and students can work with ordinary care. A source in the infrared with glass fibre is what real systems use, so it is the more faithful laboratory, but the light is invisible, the fibre is finer and more fragile, and both the measurement equipment and the safety regime are different.

Decide which your syllabus intends, then ask for: the source type, light-emitting diode or laser, and its wavelength; the fibre type, plastic or glass and if glass whether multimode or single-mode, with the core diameter; the connector type; and what patch cords and fibre lengths are supplied.

Laser and fibre safety

FOCT-0004 is a laser trainer, and any infrared source needs the same discipline. Settle this before the equipment arrives, with your safety officer:

  • Ask for the laser class, the wavelength, the output power and the product labelling, and treat any figure as provisional until verified. The class determines what controls your institution requires.
  • Nobody looks into a fibre end, a connector or a source port while it is energised. With an infrared source there is nothing to see and no blink reflex to protect the eye, so the absence of visible light is not evidence that the source is off. This is the single rule that matters most in a fibre optics laboratory and it should be written into the practical sheet.
  • Check for light with an instrument, never with your eye , an optical power meter or an infrared viewing card. Ask whether one is supplied.
  • Keep connectors and unused ports capped, and ask whether dust caps and a cleaning kit are included.
  • Ask whether a key switch or interlock is fitted, and whether the source can be left on unattended.
  • Handle glass fibre offcuts as sharps. Cleaved ends and fragments are fine, hard and easily driven into skin, and are almost impossible to see. If the kit involves glass fibre, ask whether a sharps container and work mat are supplied, require eye protection while cleaving, and do not let students handle offcuts loose or eat and drink at the bench.

You cannot measure loss without a power meter

Most of a fibre optics practical is loss measurement, and loss is a ratio of optical powers. Ask directly whether an optical power meter is included, what wavelengths it is calibrated for and what range it reads. If it is not included, it has to be in the budget; nothing else substitutes. Then ask for the rest of what the standard experiments need:

  • Attenuation per unit length needs at least two different fibre lengths, so ask which lengths are supplied, or whether the kit supports the cut-back method and permits cutting the fibre.
  • Numerical aperture needs a screen and a scale at a measured distance from the fibre end, or a suitable jig. Ask whether one is provided.
  • Bending loss needs mandrels of known diameter. Ask whether a set is supplied, and ask for the fibre's minimum bend radius so students are not told to bend below it.
  • Connector and splice loss needs spare connectors and either a splice arrangement or a mechanical splice kit, and a termination or polishing kit with consumables. Ask what consumables the kit uses and what they cost to replace, because this is the recurring expense in a fibre laboratory.
  • Analogue and digital transmission, multiplexing and pulse dispersion need an oscilloscope, and for dispersion a reasonably fast one. Ask what bandwidth the experiments assume and whether a function generator is needed.

Three codes, one subject: ask for the experiment lists

FOCT-0001, FOCT-0002 and FOCT-0003 are all general fibre optics trainers and the listing does not say what separates them. Ask for the experiment list of each, side by side, and buy one. Ask specifically whether FOCT-0003 adds experiments, adds a second wavelength, or simply adds accessories to FOCT-0002, and whether FOCT-0004 is a complete trainer or the same platform with a laser source in place of a light-emitting diode. If the answer is the latter, ask whether a source can be bought separately later.

Also worth confirming

The experiment manual with expected readings; the quantity per student group; spare fibre, connectors and consumables with prices; the supply voltage, frequency and plug type for your country; and the warranty, including whether it covers fibre broken by a student. Any performance figure or laser classification quoted is confirmed in writing on the quotation; ask for its basis and for the labelling before the equipment is put into service.

Related ranges on this site

The modulation, multiplexing and coding experiments that precede fibre work are under Communication and RF Trainers, Digital Communication Trainers and Advance Communication Trainers. Optical detectors and sources as transducers are under Instrumentation Trainers, device foundations under Basic Electronics Trainers, and measuring instruments under Testing and Measuring Lab Trainers. Parent range: Electronics Lab Trainer Kits.

Request a quote

Ask for a quote that states the source type and wavelength, the fibre type and core diameter, and whether an optical power meter is included, against each code. For example Fiber Optics Trainer 660 (FOCT-0002), six benches, with the power meter, fibre lengths and bending mandrels confirmed in writing, and for the laser trainer the class and labelling stated. Contact Ray Export for prices, manuals and lead times.

Frequently asked questions

What does the 660 in FOCT-0002 and FOCT-0003 mean?

In a fibre optics kit the number normally means a source at 660 nanometres, which is visible red. The listing does not say so, so ask the supplier to confirm it. The answer matters: a visible source with plastic fibre is the easier teaching arrangement, while an infrared source with glass fibre changes the measuring equipment and the safety regime. Ask also how FOCT-0002 differs from FOCT-0001, which carries no number, since the source wavelength may be the only difference or may not be.

Should a teaching laboratory choose visible-light plastic fibre or infrared glass fibre?

Decide what your syllabus intends. Visible red with plastic fibre lets students see the light path and spot a break or tight bend, and plastic fibre has a large core that is simple to cut and terminate. Infrared with glass fibre is the more faithful laboratory, because real systems use it, but the light is invisible and the fibre fragile. Then ask for the source type (light-emitting diode or laser) and wavelength, the fibre type and, for glass, multimode or single-mode with the core diameter, the connector type, and the patch cords and lengths supplied.

Is an optical power meter included with these trainers?

Ask directly, because the listing does not say and nothing else substitutes for it. Most of a fibre optics practical is loss measurement, and loss is a ratio of optical powers, so without a meter attenuation, bending, connector and splice loss cannot be measured at all. Ask what wavelengths the meter is calibrated for and what range it reads. If it is not included, it has to be in the budget. A meter also gives a safe way to check whether a source is on, which matters with an infrared source.

What safety arrangements does the laser trainer FOCT-0004 need?

Settle them with your safety officer before it arrives. Ask for the laser class, wavelength, output power and product labelling, and treat any figure as unconfirmed until it is in writing, because the class determines what controls your institution requires. Nobody looks into a fibre end, connector or source port while energised; with infrared there is no blink reflex and no visible light, so check with a power meter or infrared viewing card, never the eye. Ask whether a key switch or interlock is fitted, and whether dust caps and a cleaning kit are included.

What accessories do the standard fibre optics experiments need?

Attenuation per unit length needs at least two fibre lengths, or a kit that permits the cut-back method. Numerical aperture needs a screen and scale at a measured distance, or a jig. Bending loss needs mandrels of known diameter, and you should know the fibre's minimum bend radius. Connector and splice loss needs spare connectors, a splice arrangement and a termination or polishing kit, whose consumables are the recurring expense. Transmission, multiplexing and dispersion experiments need an oscilloscope; ask what bandwidth they assume and whether a function generator is needed.

How do FOCT-0001, FOCT-0002 and FOCT-0003 differ?

The listing does not say. All three are general fibre optics trainers, so ask for the experiment list of each, side by side, and buy one rather than several. Ask specifically whether FOCT-0003, the advanced version, adds experiments, adds a second wavelength, or simply adds accessories to FOCT-0002. Ask likewise whether FOCT-0004 is a complete trainer or the same platform with a laser in place of a light-emitting diode, and if it is the latter, whether a laser source can be bought separately later.

Key takeaways

  • Source and fibre first: visible red with plastic fibre is easier to teach; infrared with glass fibre is more realistic but changes equipment and safety.
  • Confirm the 660: it normally means a 660 nanometre source, but the listing does not state it for FOCT-0002 or FOCT-0003.
  • No power meter, no loss measurement: ask whether one is included, its calibrated wavelengths and its range.
  • Never check for light with the eye: use a power meter or infrared viewing card, and get the laser class and labelling for FOCT-0004 in writing.
  • Glass offcuts are sharps: ask for a sharps container and work mat, and require eye protection while cleaving.
  • Compare experiment lists: FOCT-0001 to FOCT-0003 are not differentiated in the listing, so request them side by side and buy one.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications for FOCT-0001 to FOCT-0004, including source type and wavelength, fibre type and core diameter, laser class and the accessories supplied, are confirmed in writing on the quotation. For certificates, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: the product names use the spelling Fiber while the page text uses fibre; the 660 in two names is not explained; and the listing gives no information that distinguishes FOCT-0001, FOCT-0002 and FOCT-0003.

Fiber Optics Trainer For Fiber Optics Communication Teaching Labs

FOCT-0001

Fiber Optics Trainer - One 660 nm FO LED Transmitter and One FO photo detector Receivers. On-board Sine wave generator 1Hz to 10Khz. Analog & Digital Transmission & Reception. 350 KHz Analog and 2.5 KHz Digital Band Width. RS-232 communication with PC. Voice Link using microphone &speaker

Fiber Optics Trainer 660 For Fiber Optics Communication Teaching Labs

FOCT-0002

Fiber Optics Trainer One 660 NM & 950 NM FO LED Transmitter and Two FO photo detector Receivers. On-board Sine wave generator 1Hz to 10Khz. Analog & Digital Transmission & Reception. 350 KHz Analog and 2.5 KHz Digital Band Width. 350 KHz Analog and 2.5 KHz Digital Band Width. AM, FM, PWM, PPM modulation & demodulation Voice Link using microphone &speaker.

Advanced Fiber Optics Trainer 660 For Fiber Optics Communication Teaching Labs

FOCT-0003

Advanced Fiber Optics Trainer One 660 nm FO LED transmitter and Two FO photo detector Receivers. On-board Sine wave generator 1Hz to 10Khz. Analog & digital transmission & reception. 350 KHz Analog and 5 KHz Digital Band Width. 6 channel TDM Modulation Techniques using PCM CODEC Chip RS-232 communication with PC CODEC Link using Two Telephone Hand set provided.

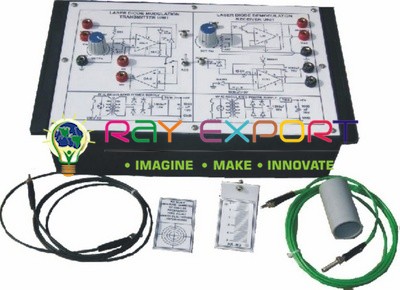

Laser Fiber Optics Trainer For Fiber Optics Communication Teaching Labs

FOCT-0004

Laser Fiber Optics Trainer - 660nm laser diode transmitter and photo detector receiver On-board sine wave generator 1Hz to 10Khz. GI/MM glass fiber cable of 2M Analog & digital transmission & reception. RS-232 communication with PC
