Quick answer. This is a small listing - three trainers, AET-0001 to AET-0003: an Anderson bridge, an RF L-C oscillators board covering the Hartley, Colpitts and Clapp circuits, and a series and parallel resonance board. What is interesting is that all three attack the same physical quantity - reactance - by three different principles: a null, a resonance, and an oscillation. Taken together they are a complete short course in how an inductance or a frequency is pinned down without simply trusting a meter. Our broader analogue range is in basic electronics trainers and electronics lab trainers; this listing is the reactance and oscillator corner of it.
A bridge does not measure a value. It compares the unknown against known components and detects the condition where the detector reads nothing. That is the source of its accuracy: a null detector needs sensitivity, not calibration, so the precision of the result comes from the known components rather than from any meter.
The Anderson bridge measures inductance against a standard capacitor, with an extra arm that makes balance achievable for coils that the simpler bridges struggle with. Three practical points decide whether the experiment works in a teaching laboratory:
The resonance board gives both forms, and the contrast is the lesson: at resonance a series L-C-R circuit has minimum impedance and maximum current; a parallel circuit has maximum impedance and minimum line current. Same resonant frequency, opposite behaviour, and every filter and tuned amplifier a student meets later is one of these two.
The measurement worth the session is Q from the bandwidth: find the resonant frequency, find the two frequencies at which the response has fallen to the half-power points, and Q is the resonant frequency divided by the difference between them. It turns Q from a symbol into something measured.
And the trap that catches almost every class, which we would rather print here than leave in a footnote: the instruments change the circuit. A signal generator with a low output impedance damps a parallel resonant circuit, and a meter or oscilloscope probe across the circuit loads it further. Both reduce the measured Q below the circuit's own Q, and the result is a perfectly careful measurement of the circuit plus the instruments. The remedies are to use a high-impedance probe, to couple the generator loosely rather than directly, and - best of all - to repeat the measurement with the probe moved and watch the number change, which teaches more about measurement than the resonance curve itself.
All three circuits on AET-0002 satisfy the same condition - round the loop, the gain is unity and the phase shift is zero - and all three differ only in how the feedback is tapped off the tuned circuit:
The experiment that uses the board properly: measure each oscillator's frequency, compare it with the value calculated from the components, then warm the transistor gently - a finger will do - and watch which circuit's frequency moves least. That single comparison justifies the board.
These three trainers are passive and active circuit boards. The instruments around them are the larger part of the real cost, and a quotation for the boards alone is not a quotation for a working laboratory. You will need:
Tell us what you already own and we will quote the gap rather than the catalogue.
Related ranges: basic electronics trainers and electronics lab trainers for the main analogue range, digital and analog trainer kits, digital electronics lab trainers for the digital half of the syllabus, and power electronics lab trainers. The full training kits and electronics lab trainer kits categories list the rest.
Usually the coil, not the bridge. The sharpness of a null depends on the Q of the inductor being measured, and a resistive, low-Q coil gives a broad and shallow balance point - that is the correct behaviour, not a fault. After that, check the detector's sensitivity and bandwidth, and check that the source frequency is stable, because balance is frequency-dependent and a drifting generator moves the null while you are looking for it.
Because the instruments are part of the circuit. A low-impedance signal generator damps a parallel resonant circuit, and a probe across it loads it further, so what you measured is the circuit plus the instruments. Use a high-impedance probe, couple the generator loosely rather than directly, and demonstrate the effect deliberately by moving the probe and watching the number change. That demonstration is worth more than the resonance curve.
Only how the feedback is tapped from the tuned circuit. Hartley taps the inductor; Colpitts splits the capacitance and taps the junction; the Clapp is a Colpitts with an extra, smaller capacitor in series with the inductor, which dominates the frequency and therefore reduces the influence of the transistor's own capacitances. The Clapp is the stable one, and the point of having all three on a board is that a student can measure that rather than read it.
Measure each oscillator's frequency, then warm the transistor slightly - a fingertip is enough - and measure again. The circuit whose frequency moves least is the one whose frequency is set by components rather than by the device, which is the Clapp. Keep the heating gentle and consistent between circuits, and record the frequency with a counter rather than by eye on a timebase.
Ask per item and get it in writing. For boards like these the procedure, the theory, the observation table and a worked example are a substantial part of the value, and they are what determine whether the board is still in use after the member of staff who understood it moves on. If no manual is supplied, budget staff time to write one.
No - this category holds three, and we have said so rather than implying otherwise. The main analogue range is in the basic electronics trainers and electronics lab trainers categories linked above, with a wider set of amplifier, oscillator, filter and power supply experiments. If you send us your full analogue syllabus we will quote across all the categories in one reply.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
This page is deliberately short because the category holds three records; padding it to the length of our larger category pages would serve nobody. Notes published rather than hidden: the product names carry the padding phrase "- Analog Electronics Lab Trainer For Vocational Training And Didactic...", which is keyword padding rather than product information and has truncated the names; we are removing it. One record's name reads "Hartley s, Colpitt s, Clapp" because apostrophes were stripped on import - the circuits are properly the Hartley, Colpitts and Clapp oscillators, and we print the correct forms here because those are the words a specifier searches for. A three-product category named "analog electronics trainers" understates the range, and we have recommended it be merged with the main analogue categories. All specifications are confirmed in writing on the quotation; for certificates and standards, contact us for the latest copies of the relevant certificates before tender submission.
Anderson Bridge Equipment for Education, Engineering and Vocational Training -Experimental Training Board has been designed specifically for the measurement of inductance of a coil by Anderson Bridge. It includes audio amplifier with speaker for null detection (Instead of head phone) and one KHz sine wave oscillator instead of externally used decade audio frequency generator The board is absolutely self contained and requires no other apparatus.
Practical experience on these boards carries great educative value for Science and Engineering Students.
Object:
To measure the inductance of a given Coil by Anderson Bridge method.
Features:
The board consists of the following built-in parts :
01. Anderson Bridge circuit with arms values.
02. Potentiometer for varying one arm.
03. Three different value inductances.
04. Potentiometer with calibrated dial.
05. Five capacitors selected by a band switch.
06. Auio Amplifier with its IC regulated Power Supply.
07. One KHz Sine Wave Oscillator with its IC regulated Power Supply.
08. Speaker.
09. Mains ON/OFF switch, Fuse and Jewel light.
- Adequate no. of patch cords stackable from rear both ends 4/ 2mm spring loaded plug length ½ metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
- The unit is operative on 230V ±10% at 50Hz A.C. Mains..
Equipment for Education, Engineering and Vocational Training - RF (l-C) Oscillators (Hartley's, Colpitt's, Clapp's) - Experiment Training Board has been designed specifically for the study of Transistor RF Oscillators such as (i) Hartley’s (ii) Colpitt’s and (iii) Clapp’s Oscillators using L-C.
Object:
To study the following transistor RF oscillators using L-C :
01. Hartley’s Oscillator.
02. Colpitt’s Oscillator.
03. Clapp’s Oscillator.
Features:
The board consists of the following built-in parts :
01. -9V DC at 50mA, IC regulated Power Supply internally connected.
02. PNP transistor.
03. Variable gang condenser.
- Adequate no. of other electronic components.
- Mains ON/OFF switch, Fuse and Jewel light.
- The unit is operative on 230V ±10% at 50Hz A.C. Mains.
- Adequate no. of patch cords stackable from rear both ends 4mm spring loaded plug length ½ metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book
- Other Apparatus Required: Absorption Wave Meter

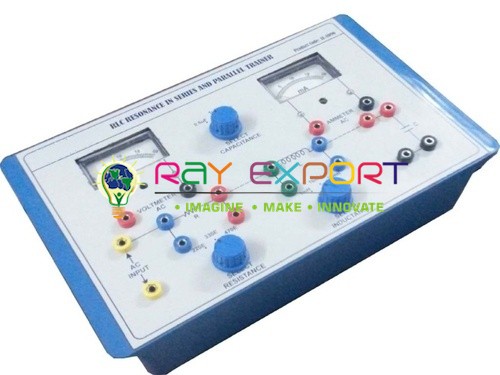

Equipment for Education, Engineering and Vocational Training - Series and Parallel Resonance - Experimental Training Board has been designed specifically for study of Series and Parallel Resonance in LCR Circuits, measurement of Q and dielectric constant of a liquid.Practical experience on these boards carries great educative value for Science and Engineering Students.
Object:
- To study the following :
01. Series resonance for different values of resistances, capacitances, inductances and plotting of resonance curves.
02. Parallel resonance for different values of resistances,capacitances, inductances and plotting of resonance curves.
03. Measurement of Q for both series and parallel resonances.
04. Measurement of dielectric constant relative permitivity of a liquid.
Features:
- The board consists of the following built-in parts :
01. Three inductances made on ferrite cores, selectable by a switch.
02. Three capacitances with low loss factor, selectable by a switch.
03. Three resistances , selectable by a switch.
- Adequate no. of patch cords stackable from rear both ends 4/ 2mm spring loaded plug length ½ metre.
- Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms.
- Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
Other Apparatus Required:
- Decade Audio Frequency Generator
- A.C. Millivoltmeter
- A.F. Millivoltmeter
