Involute Gear Profile and Tool Dynamometers

Measure the reaction, not the output

There is a habit of mind that separates an engineer who can instrument a machine from one who can only read a display, and these seven items teach it between them. In each case the quantity you want is not available directly, and the measurement is made by finding what the machine pushes back against.

• In an epicyclic gear train, the member that is held is the one that tells you the most. Input torque and output torque are visible; the holding torque on the stationary member is the third term that makes the three sum to zero, and measuring it is the only way a student sees that a gear train is a torque-balancing device rather than a ratio.
• In a dead weight pressure gauge tester, pressure is not measured at all. A known weight is balanced against it, and the pressure is deduced from the mass and the effective area of the piston. That is what makes it a standard rather than an instrument.
• In a tool dynamometer, the cutting force is found from the reaction on the tool holder, resolved into components, because nothing can be placed in the cut itself.
• In the gear profile apparatus, the tooth form is not drawn from a formula; it appears as the envelope of the successive positions of the cutting rack - the geometry is generated rather than calculated, which is also how the real gear is made.

If a laboratory teaches that one idea properly, its students will instrument machines correctly for the rest of their careers. It is the reason this small group of apparatus is worth more to a syllabus than its size suggests.

The involute, interference and undercutting

Why the involute is used at all is the question the apparatus answers, and it is worth stating plainly because most textbooks assert it rather than explain it. Any pair of curves that maintains conjugate action gives a constant velocity ratio; the involute is chosen because it also has a property no other practical curve has: the velocity ratio is unaffected by a change in centre distance. A gearbox whose bearings are a fraction of a millimetre out of position, or which wears, still transmits a constant ratio. That tolerance is why the involute is used on virtually every gear made.

Interference and undercutting are the limits of that geometry, and they are the subject of GIGT-0001. Interference occurs when the tip of a tooth on one gear fouls the non-involute part of the root of the mating tooth. When the gear is cut by a generating process, the cutter removes that material instead, and the result is a tooth undercut at its root - thinner, weaker and with less of its working profile intact.

What the apparatus makes visible, and a diagram does not:

• Undercutting gets worse as tooth numbers fall, which is why there is a minimum practical number of teeth for a pinion rather than an arbitrary convention.
• A larger pressure angle reduces it, which is one of the reasons the standard pressure angle moved from the older value to the one in general use today.
• Addendum modification, or profile shift, avoids it - the cutter is moved radially so that the undercut material is never reached. Students who have generated a profile by hand understand profile shift immediately; students who have only read about it generally do not.

When specifying this apparatus, ask for the range of tooth numbers and pressure angles that can be set up, because the teaching value is entirely in the comparison between cases - a single fixed configuration demonstrates nothing that a printed figure does not.

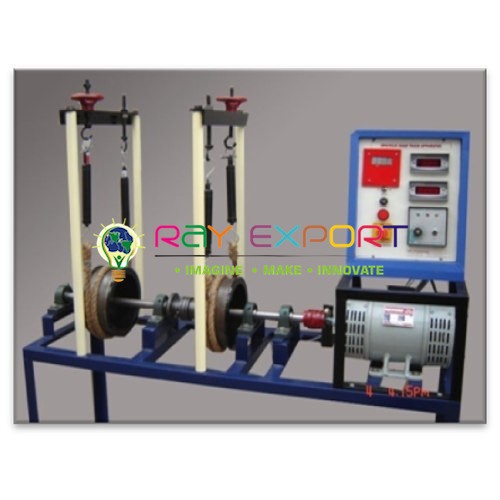

The epicyclic holding torque apparatus

An epicyclic train has three connections - sun, carrier and annulus - and it does nothing useful until one of them is restrained. GIGT-0002 measures the torque on the restrained member, and that single measurement carries the whole subject:

• The three torques sum to zero (ignoring losses), so the holding torque equals the sum of the input and output torques, opposite in sign. Measuring all three and demonstrating the balance is the experiment.
• Which member is held determines the ratio, and holding a different member turns the same hardware into a different gearbox. This is exactly how an automatic transmission works - clutches and brakes hold different members to obtain different ratios - and it is the point at which the subject stops being abstract. Our sectioned cutaway models of automatic transmissions make the same point in metal.
• The reaction has to go somewhere. Students who have measured a holding torque understand why a gearbox casing needs mounting bolts sized for it, which is a design consideration they will meet in practice.

Specify how the holding torque is measured - a lever arm with dead weights or a spring balance is visible and self-checking - and whether more than one member can be held, since that is what turns one rig into several experiments.

The dead weight pressure gauge tester: a standard, not a gauge

This instrument is the reason a laboratory can trust any pressure reading it takes. It generates a known pressure by balancing a stack of calibrated weights on a piston of known effective area, and a gauge under test is compared against it. Four things decide whether it does its job:

• Local gravity. The pressure produced is the weight force divided by the area, and weight force depends on local gravitational acceleration. Weights are made for a nominal value of g, and g varies by roughly half a per cent between the equator and the poles, with a further variation with altitude - which is larger than the accuracy such an instrument is usually credited with. Ask whether the weights were manufactured for a specified gravity value, and what correction applies at your location. Most laboratories have never asked, and it is the first question a calibration assessor will.
• Effective area of the piston-cylinder assembly, stated on the certificate, with its uncertainty. This is the number the calculation uses, not the nominal diameter.
• Rotation of the piston during measurement. The piston is rotated so that it floats on the fluid film rather than touching the cylinder; a piston that has stopped spinning is reading friction as well as pressure.
• Its own traceability. A standard without a current traceable certificate for the weights and the effective area is a well-made object of unknown accuracy. If you are buying this to support a quality system, raise the certification requirement at the enquiry stage, because it affects both cost and lead time.

Tool dynamometers: stiffness decides whether the reading means anything

A tool dynamometer measures the force the workpiece exerts on the tool, resolved into components - typically the main cutting force, the feed force and the radial force - and the lathe, milling and grinding tools in this listing are the cutting elements used with it. What it is for: specific cutting energy, the effect of speed, feed and depth of cut, machinability comparison between materials, and tool wear studies.

Two specifications matter far more than capacity:

• Resolution across your working range. As everywhere in measurement, a dynamometer sized for a headline force will not resolve the forces a teaching laboratory actually generates on small workpieces.
• Natural frequency, and therefore stiffness. This is the specification that catches people. Cutting is not a steady process - in milling, the force rises and falls as each tooth enters and leaves the cut. If the dynamometer's natural frequency is not well above the tooth-passing frequency, what the trace shows is the dynamometer ringing rather than the cutting force. Ask for the natural frequency and compare it with the highest tooth-passing frequency you intend to use; a stiff, low-sensitivity dynamometer is often the better instrument.

Ask also how it is calibrated. A dynamometer calibrated statically with dead weights, in each of its axes, with the cross-sensitivity between axes recorded, is an instrument; one calibrated only by its maker's claim is a transducer with a scale on it. Machine tool work around a running spindle brings the usual requirements - guarding, eye protection, swarf control and no reaching into the cut - and these rigs are used on machines in our machines range.

What to tell us when you enquire

• For the gear apparatus: the tooth numbers and pressure angles your syllabus requires, and whether profile shift has to be demonstrated.
• For the epicyclic rig: whether more than one member must be restrainable, and how the torque is to be measured.
• For the dead weight tester: the pressure range, the gauges you need to calibrate, your location (for the gravity correction) and whether a traceable certificate is required.
• For the dynamometer: the machine it will be used on, the materials, the force range and the highest spindle speed and tooth count you intend to run.
• Supply voltage and frequency where applicable, and destination country.

Related ranges: engineering gear models for gear type and multi-stage models, models - theory of machines which includes a gear tooth profile model of its own, engineering training models for mechanisms and linkages, theory of machines lab for the instrumented dynamics rigs, S.O.M. lab for strength of materials, and the full mechanical lab equipments category.

Frequently asked questions

Why is the involute used for gear teeth?

Because it maintains a constant velocity ratio, and because that ratio is unaffected by a change in centre distance. Other curves can give conjugate action, but the involute tolerates the small positional errors and wear that any real gearbox has, which makes it manufacturable and durable. The practical consequence for a laboratory is that generating the profile by hand - watching the curve appear as the envelope of successive rack positions - explains in a few minutes what a page of algebra does not.

What is undercutting, and why does it matter?

When a gear with few teeth is cut by a generating process, the cutter removes material from the root below the useful involute, leaving the tooth thinner and weaker at its root with less working profile. It matters because it sets a practical minimum tooth number for a pinion, and because the remedies - a larger pressure angle, or addendum modification, which shifts the cutter radially - are standard design decisions that students otherwise meet only as formulae.

Why measure the holding torque on an epicyclic train?

Because it closes the torque balance. Input and output torque are easy to observe, but it is the reaction on the held member that shows the three torques summing to zero and demonstrates that holding a different member gives a different ratio from the same hardware. That is precisely the principle of an automatic transmission, and it is also the reason a gearbox casing must be bolted down to carry a reaction that students usually never think about.

Does local gravity really affect a dead weight tester?

Yes, and by more than the accuracy usually claimed for the instrument. The pressure generated is the weight force divided by the effective area, and the weight force depends on local gravitational acceleration, which varies by around half a per cent between the equator and the poles, with a further variation with altitude. Weights are manufactured for a nominal gravity value; if yours differs, a correction applies. Ask which value your weights assume and what the correction is at your site.

What capacity of tool dynamometer should we buy?

Probably less than you expect, and you should ask about stiffness before capacity. Resolution across the forces your laboratory actually generates matters more than a high maximum, and the natural frequency has to be well above the tooth-passing frequency of your intended cutting conditions, or the trace records the instrument oscillating rather than the cutting force. Tell us the machine, the materials and the highest speed and tooth count you will use.

Why are these seven products in a category named after one experiment?

Because the category was created around a single apparatus and other products were added to it. We have said so rather than writing copy that implies otherwise, and we have recommended that it be split into a gear geometry category and a cutting force measurement category, with this address redirected. The products themselves are unaffected; if you tell us which of them you are interested in we will quote it directly.

Key takeaways

• The involute is used because the velocity ratio survives a change in centre distance - the property that makes real gearboxes work.
• Undercutting sets the minimum tooth number, and profile shift is the standard remedy. Specify a range of tooth numbers and pressure angles, or the apparatus demonstrates nothing a diagram cannot.
• The holding torque is the third term that makes an epicyclic train intelligible - and it is the principle of every automatic transmission.
• A dead weight tester is a standard, and local gravity is part of its result. Ask which gravity value the weights assume, and keep the piston rotating during measurement.
• For a tool dynamometer, stiffness beats capacity. If its natural frequency is not well above the tooth-passing frequency, the trace is the instrument ringing.
• Calibrate in every axis with dead weights and record the cross-sensitivity, or you have a transducer with a scale rather than an instrument.
