Quick answer. The decision that shapes everything else on this page is the width of the tilting flow channel, and it is really a specification of your building rather than of the equipment. A 50 mm channel is a bench demonstration; a 600 mm channel is a room-scale civil engineering installation with a substantial pump, a return circuit, a sump and a floor that can take it, and the same catalogue line covers both. Buy the width your experiments need, measure the access route, confirm water supply, drainage and floor loading, and spend the difference on instrumentation rather than scale.
Twenty-six items in the FM series, and they are really four different purchases sharing one listing. There are closed-pipe rigs: piping loss test sets and apparatus in small and large sizes, a pipe network apparatus, a water hammer test set, a cavitation test set and a flow measurement test set. There are open-channel flumes: tilting flow channels in 50, 75, 100, 150, 300 and 600 mm widths, two sediment flow channels and a set of channel accessories and models. There is seepage and soil-water work: a ground water flow apparatus and a permeability apparatus. And there are two particle and sedimentation items: particle drag coefficients and a liquid sedimentation apparatus.
Read the width of a flume as a specification of your building, not of the equipment. A 50 mm channel is a bench demonstration. A 600 mm channel is a room-scale civil engineering installation with a substantial pump, a return circuit, a sump and a floor that can take it. The same catalogue line covers both, and the difference in what you must provide is an order of magnitude.
Five questions, in this order, before a channel width is chosen. Each one has turned into a problem on real installations.
| Question | Why it comes first |
|---|---|
| What length and width does the syllabus actually need? | Width sets cost, floor area, pump size and water volume. Buy the width the experiments need and spend the difference on instrumentation, not on scale |
| Where will it stand, and how will it get there? | A channel arrives long and often in sections. Measure the door, the corridor, the turn and the lift. Ask whether it ships in sections and who aligns and levels the joints on site, because a step or a twist at a joint ruins every slope measurement taken afterwards |
| Water supply, recirculation and drainage | A recirculating channel needs a sump, a pump and a filter; a once-through one needs a supply and a drain able to take the full flow. Both need somewhere for the water to go when the channel is emptied |
| Floor loading and levelling | A filled channel is heavy and must be level in both directions before slope means anything. Ask for the filled mass, the bearing points and the levelling arrangement |
| How the slope is set and read | The slope is the independent variable in most open-channel experiments. Ask how it is adjusted - screw jack or hydraulic - what range is available and how the slope is read, because a scale a student cannot read repeatably makes the whole experiment qualitative |
Then ask about what goes in the channel: glass or acrylic side panels for observation, inlet calming to kill the disturbance from the feed, an adjustable outlet weir or gate, a point gauge carriage with a readable datum, and which models the accessories set contains - weirs, gates, spillway, culvert, bridge piers and venturi flume are the usual list, and the models are what the exercises are actually built around.
Two sediment channels and a sediment bed and flow visualisation tank are listed here, and sediment changes the laboratory. Sand finds pump seals, blocks valves and settles in every low point in the return circuit, and a channel run with sediment and no settling provision will have a clogged pump within a term.
So specify three things with the channel: a settling tank or sediment trap in the return, a filter on the pump suction and a plan for recovering and re-using the sediment. And settle the discharge question with your own estate department before delivery - sediment-laden water should not be put into a building drain, and in many places doing so breaches the site drainage consent. The practical answer is almost always to settle it out and dispose of the solids separately, with only clear water discharged.
Ask also what grading of sediment the exercises assume. A channel supplied without the sand it was designed around will not reproduce the published results, and sand of the wrong grading is the commonest reason a sediment transport experiment does not work.
The piping loss sets, the pipe network apparatus and the flow measurement test set are the core teaching rigs for friction, fittings, flow division and flow metering. Ask for the pipe diameters and materials, the number of parallel circuits, the manometer type and whether differential pressure is read on manometers or transducers, and whether the rig is bench-mounted or free-standing, since that decides whether it needs a hydraulics bench underneath it.
The water hammer test set. Water hammer is a transient: shutting a valve quickly sends a pressure wave along the pipe and the peak pressure can be several times the steady supply pressure. Two consequences for the purchase. First, safety - ask what the rig is rated to, whether it has a relief device and what the recommended maximum operating pressure is for teaching. Second, instrumentation - a pressure transient that lasts milliseconds cannot be read on a dial gauge, so ask what the rig measures with and how the trace is captured. A water hammer rig without fast pressure measurement and a means of recording the trace demonstrates a bang rather than a phenomenon.
The cavitation test set. As with the cavitation panel on the bench range, this one demonstrates a process that erodes the equipment demonstrating it. Ask for the recommended duty and run time, what the sacrificial parts are and what they cost, and expect noise.
The ground water flow apparatus and the permeability apparatus both run water through a granular medium, and both will give confidently wrong answers if the sample is prepared carelessly. Two points belong in the worksheet. Trapped air in the medium invalidates a permeability measurement, so saturation from below, slowly, with time allowed, is part of the method and not a nicety. And the result depends on how densely the sample is packed, which means the packing procedure has to be specified and followed identically each time or results cannot be compared between groups - which is itself a good lesson about soil testing.
Ask what medium is supplied and whether it is replaceable locally; ask for the sample dimensions and the range of permeability the apparatus can measure, since a constant-head arrangement suits coarse material and a falling-head one suits fine material; and ask about filters, because fine material migrating into the circuit is what wears pumps out in this part of the laboratory.
Six records are near-identical in name. In the small size there is a piping loss test set, a piping loss apparatus and a compact piping loss test set; the same three names appear in the large size. The differences are real - typically pipe sizes, the number of circuits and whether the rig is self-contained - but they are not visible in the listing. Ask for the three specification sheets side by side and compare on pipe diameters, circuits and footprint before choosing.
And two data faults we would rather flag than leave you to discover. One code in this range is written with three digits where every other code has four, so a code search may not find it; and one item belonging to this range, a 150 mm tilting flow channel, is currently filed in the electrical and electronics workshop listing instead of here. Both can be quoted normally. Every product name in this listing is also in capital letters, which is a presentation fault on our side. As always, quote the code and the full product name together and have both confirmed on the proforma invoice.
For channels: width, length, slope range and how slope is read, side panel material, inlet and outlet arrangement, point gauge and carriage, the models included, whether the pump and sump are included, filled mass, footprint, packed dimensions, whether it ships in sections and who commissions it on site. For pipe rigs: pipe diameters and materials, circuits, differential pressure measurement method, and whether a hydraulics bench is required underneath. For seepage work: medium supplied, sample size, head arrangement and permeability range. For everything: pump motor voltage, frequency, phase and plug pattern; water supply and drainage requirement; consumables and spares with prices, which here means seals, manometer fluid, dye, sand, filter elements and pump parts; and the warranty and local service position. For any certification stated here, contact us for the latest copies of the relevant certificates before you tender on it.
Related ranges: the hydraulics bench workshop for bench-scale fluid mechanics modules, the pump test set workshop and turbine test set workshop for turbomachinery, mechanical engineering trainers for machines and mechanisms, and the test and measurement workshop for instruments. The full set is listed under workshop training equipment. For a quotation, tell us the destination country, the room dimensions and access route, the water and drainage available and the syllabus or tender specification you are working to.
Choose the width the syllabus experiments actually need. Channels are listed in 50, 75, 100, 150, 300 and 600 mm widths, and width sets cost, floor area, pump size and water volume. Then settle the slope: it is the independent variable in most open-channel experiments, so ask whether it is adjusted by screw jack or hydraulically, what range is available and how it is read, because a scale a student cannot read repeatably makes the experiment qualitative. Finally ask which models the accessories set contains - weirs, gates, spillway, culvert, bridge piers and venturi flume - since the exercises are built around them.
Four things. An access route: a channel arrives long and often in sections, so measure the door, corridor, turn and lift, and ask who aligns and levels the joints on site, because a step or twist at a joint ruins every slope measurement. Water: a recirculating channel needs a sump, pump and filter, a once-through one needs a supply and a drain that can take the full flow. A floor that can bear the filled mass, with stated bearing points. And levelling in both directions before any slope reading means anything.
Plan the dirty water before the channel arrives. Sand finds pump seals, blocks valves and settles in every low point of the return circuit, so specify a settling tank or sediment trap in the return, a filter on the pump suction and a way to recover and re-use the sediment. Agree discharge with your estate department too: sediment-laden water should not go into a building drain, so settle it out, dispose of the solids separately and discharge only clear water. And ask what sediment grading the exercises assume, because sand of the wrong grading is the commonest reason the experiment fails.
Two things, because water hammer is a transient: closing a valve quickly sends a pressure wave along the pipe, and the peak can be several times the steady supply pressure. First, safety - ask what the rig is rated to, whether it has a relief device, and the recommended maximum operating pressure for teaching. Second, measurement - a pressure transient lasting milliseconds cannot be read on a dial gauge, so ask what the rig measures with and how the trace is captured. Without fast pressure measurement and a recorded trace, the rig demonstrates a bang rather than a phenomenon.
Specify the technique, because both pass water through a granular medium and give confidently wrong answers from a careless sample. Trapped air invalidates a permeability measurement, so saturate the sample slowly from below and allow time. The result also depends on packing density, so the packing procedure must be written down and followed identically by every group. Ask what medium is supplied and whether it can be replaced locally, the sample dimensions and measurable permeability range - constant-head suits coarse material, falling-head suits fine - and what filters stop fine material migrating into the circuit and wearing the pump.
Ask for the specification sheets side by side. In each size there is a piping loss test set, a piping loss apparatus and a compact piping loss test set, so six records share near-identical names. The differences are real - typically pipe sizes, the number of circuits and whether the rig is self-contained - but they are not visible in the listing. Compare on pipe diameters and materials, number of parallel circuits, footprint, whether differential pressure is read on manometers or transducers, and whether the rig is free-standing or needs a hydraulics bench underneath it.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for each item - channel width, length, slope range, side panels, pump and sump, filled mass, packed dimensions, pipe diameters, circuits, pressure rating and permeability range - are confirmed in writing on the quotation. For certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing note: six piping loss records share near-identical names across two sizes; one code in the FM series is written with three digits where the others have four; a 150 mm tilting flow channel belonging to this range is filed in the electrical and electronics workshop listing; and every product name is in capital letters. Quote the code and full product name together.

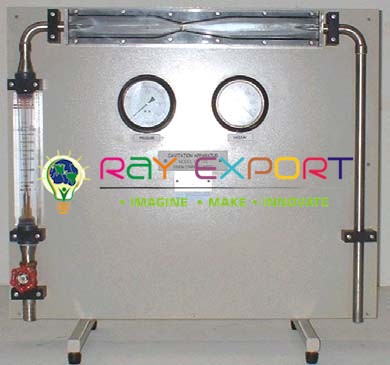

CAVITATION TEST SET.
A self contained box ,Transparent Venturi tube, pressure gauges, pump, storage tank and variable area flow meter.

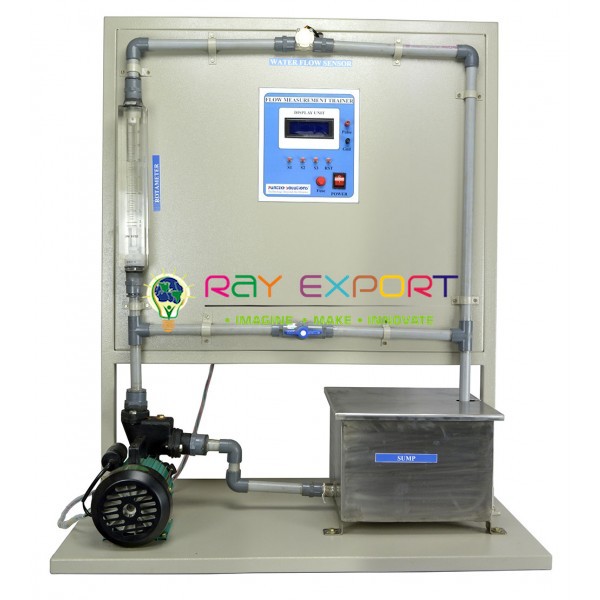

FLOW MEASUREMENT TEST SET.
A self contained set for flow measurement by Venturi meter, orifice
meter, Pitot tube, variable area flow meter, water meter, measuring tank
and manometer. Storage tank and pump

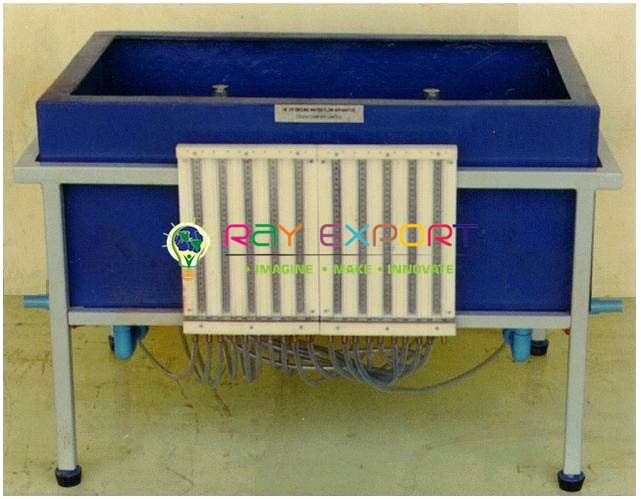

GROUND WATER FLOW APPARATUS.
Fiber glass tank. Two inlet pipes and two outlet wells. Manometer, sand and models

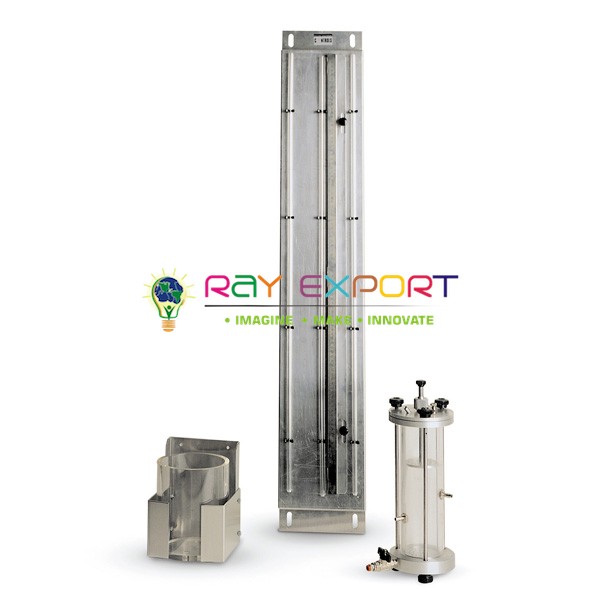

PERMEABILITY APPARATUS.
Stainless steel tank with glass front, weight tapping focuses and manometers, over stream channels, finish with pump, tank, color infusion, end puzzles, sand and models
SEDIMENT BED AND FLOW VISUALIZATION TANK.
Large working section with sand bed. Head tank, storage tank with sand
trap and adjustable overshot weir, circulating pump, ripples measuring
devices, sand and various accessories
SEDIMENT FLOW CHANNEL.
Bench top channel 7.5 cm wide x 15 cm high x 200 cm long , 0 to +10%
tilting with pump, feed tank, storage tank, accessories and sand

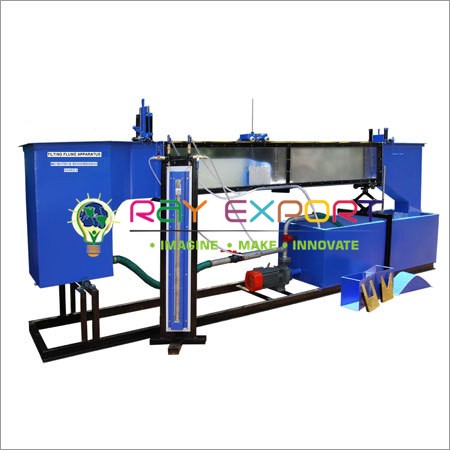

TILTING FLOW CHANNEL, 50 mm wide.
