Mechanical Engineering Trainers Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Mechanical Engineering Trainers in India,

Quick answer. Before choosing between these three items, settle what will supply the water. The Bernoulli theorem demonstrator (MET-0001) and the Reynolds number demonstrator (MET-0003) both depend on a steady, measurable flow, normally from a hydraulic bench with a pump, a sump tank and a means of measuring flow rate. If you do not already have a bench, it can cost more than the demonstrator it feeds, so ask whether each unit is self-contained, needs a bench, or needs neither, and put any bench in the same quotation. For the refrigeration training setup (MET-0002), the equivalent question is whether its instruments let students calculate the coefficient of performance.

Three items are listed here: a Bernoulli theorem demonstrator (MET-0001), a refrigeration training setup (MET-0002) and a Reynolds number demonstrator (MET-0003). Two are fluid mechanics apparatus and one is a thermal engineering rig. Each raises a question the listing does not answer, and in the case of the two fluid demonstrators it is the same question: what supplies the water.

What is in the range

CodeItemSubject
MET-0001Bernoulli Theorem DemonstratorFluid mechanics: conservation of energy along a streamline
MET-0003Reynolds Number DemonstratorFluid mechanics: laminar, transitional and turbulent flow
MET-0002Refrigeration Training SetupThermal engineering: the vapour compression cycle

The water supply decides whether the fluid apparatus works

Apparatus of this kind is normally mounted on, or fed from, a hydraulic bench that provides a pump, a sump tank, a steady supply and a means of measuring flow rate. If you do not already have one, the bench can cost more than the demonstrator it feeds. Establish before ordering:

  • Is a hydraulic bench supplied, required, or not needed? If the apparatus is self-contained, ask what pump and tank it carries. If it needs a bench, ask which bench it is designed to sit on and get that into the same quotation.
  • How is the flow rate measured? A measuring tank with a sight glass and a stopwatch is the usual teaching method and is perfectly sound; a rotameter is quicker and less instructive. Ask which, and its range and accuracy, because every calculation in both experiments depends on the flow reading.
  • What are the services at the bench? Water supply, a drain of adequate capacity, and a single-phase electrical point for the pump. Ask for the drain flow rate the apparatus produces, since an undersized drain floods a laboratory floor.
  • Materials and transparency. Ask whether the working section is transparent, because in both experiments seeing the flow is the point, and ask what it is made of and how it is cleaned.

MET-0001, Bernoulli theorem demonstrator

The apparatus is a duct that converges and then diverges, with pressure tappings along it feeding a bank of manometer tubes, so that students can see the static pressure fall where the section narrows and the velocity rises. Ask for:

  • the number of pressure tappings and the cross-sectional area at each one, since without the areas the velocity cannot be calculated and the experiment collapses into a demonstration;
  • the manometer bank: how many tubes, the range in millimetres of water, and whether a common manifold and air bleed are provided, because trapped air is the usual reason the readings make no sense;
  • whether a total-head or pitot probe is included and traversable, which is what lets students distinguish static from total head rather than take it on trust;
  • whether the duct can be run in both directions, so the effect of a gradual against an abrupt change of section can be compared.

MET-0003, Reynolds number demonstrator

A dye filament is injected into flow through a transparent tube, and the flow rate is raised until the filament breaks up. Two points decide whether the experiment actually demonstrates anything:

  • Steadiness of the supply. Laminar flow cannot be shown if the supply pulsates. Ask what stilling arrangement is provided, whether there is a constant-head tank with an overflow, and whether the inlet is bell-mouthed, and ask how finely the control valve can be adjusted at low flow, which is where the laminar case lives.
  • Temperature measurement. The Reynolds number depends on kinematic viscosity, and the viscosity of water changes appreciably with temperature, so a thermometer in the flow is not an accessory but part of the experiment. Ask whether one is fitted and where.

Also ask the tube bore and length, whether spare tubes of other bores are available so the critical velocity can be compared, what dye is recommended and whether a dye reservoir with a needle valve is supplied, and how the tube is cleaned when the dye stains it.

MET-0002, refrigeration training setup

For a refrigeration rig the instrumentation is what separates a teaching setup from an appliance on a frame. Ask whether the rig provides enough readings to calculate the coefficient of performance: pressure gauges on the suction and discharge sides, temperature measurement at the compressor inlet and outlet, at the condenser outlet and at the evaporator inlet and outlet, and an energy meter or wattmeter on the compressor. Without those the cycle cannot be plotted and the experiment is a demonstration only. Ask also whether components are cut away or transparent, whether the expansion device is a capillary or a thermostatic expansion valve, and whether the device can be changed so the two can be compared.

Two further questions matter for the life of the rig. Which refrigerant is charged, and what is the charge quantity? Refrigerants are subject to international phase-out and phase-down schedules, so a rig charged with a refrigerant being withdrawn may become difficult to service; ask what is in it, what the alternative would be, and whether the system is supplied with service ports, a gauge manifold and a leak test certificate. Confirm also what qualification your technicians need to handle refrigerant under your national rules, and that the electrical side carries the usual protection: an earthed frame, earth-leakage protection and a guarded compressor drive.

A note on where this range sits

These are mechanical and thermal engineering apparatus, and they are listed within an electronics trainer range, so if you are equipping a mechanical department look also at Mechanical Lab Trainers and Other Engineering Lab Trainers, since related apparatus is split across more than one listing on this site. The code series here runs to MET-0004, a robotic arm, which at the time of writing appears in the Power Electronics Trainers listing rather than this one; quote the code if you want it.

Also worth confirming

The experiment manual with a worked example and expected results; the quantity per student group; the bench or floor space and whether the frame is on castors; the supply voltage, frequency and plug type for your country; spares, in particular manometer tubes, seals and dye; and the warranty. Any performance figure quoted is confirmed in writing on the quotation; ask for its basis.

Request a quote

Tell the supplier whether you already have a hydraulic bench, and ask for a quote that states the flow measurement method and the instrumentation supplied with each item. For example Bernoulli Theorem Demonstrator (MET-0001) and Reynolds Number Demonstrator (MET-0003), two sets, with the bench requirement and the manometer range confirmed in writing. Contact Ray Export for prices, manuals and lead times.

Frequently asked questions

Do the Bernoulli and Reynolds number demonstrators need a hydraulic bench?

Usually, and it is the first thing to settle. Apparatus of this kind is normally mounted on, or fed from, a hydraulic bench that provides a pump, a sump tank, a steady supply and a means of measuring flow rate, and a bench can cost more than the demonstrator it feeds. Ask whether a bench is supplied, required or not needed for MET-0001 and MET-0003. If a unit is self-contained, ask what pump and tank it carries; if it needs a bench, ask which one it is designed to sit on and put that in the same quotation.

How is the flow rate measured, and why does it matter?

The usual teaching method is a measuring tank with a sight glass and a stopwatch, which is perfectly sound and makes students work for the reading. A rotameter is quicker but less instructive. Whichever is offered, ask for its range and accuracy, because every calculation in both the Bernoulli and the Reynolds number experiment depends on the flow reading. A vague flow measurement gives results that cannot be checked against theory, so state the method you want when you ask for a quotation.

What should I check before ordering the Bernoulli theorem demonstrator MET-0001?

Ask for the number of pressure tappings along the converging-diverging duct and the cross-sectional area at each one; without the areas, velocity cannot be calculated and the experiment becomes a demonstration only. For the manometer bank, ask how many tubes, the range in millimetres of water, and whether a common manifold and air bleed are provided, since trapped air is the usual reason readings make no sense. Also ask whether a traversable total-head or pitot probe is included, and whether the duct can be run in both directions to compare a gradual and an abrupt change of section.

Why might the Reynolds number demonstrator MET-0003 fail to show laminar flow?

Usually because the supply pulsates. The laminar case lives at low flow, so ask what stilling arrangement is provided, whether there is a constant-head tank with an overflow, whether the inlet is bell-mouthed, and how finely the control valve adjusts at low flow. Temperature matters too: the Reynolds number depends on kinematic viscosity, which changes appreciably with water temperature, so a thermometer in the flow is part of the experiment. Ask also the tube bore and length, whether spare tubes of other bores are available, whether a dye reservoir with a needle valve is supplied, and how a dye-stained tube is cleaned.

What instrumentation should the refrigeration training setup MET-0002 have?

Enough to calculate the coefficient of performance and plot the vapour compression cycle. That means pressure gauges on the suction and discharge sides; temperature measurement at the compressor inlet and outlet, the condenser outlet, and the evaporator inlet and outlet; and an energy meter or wattmeter on the compressor. Without those readings the rig is an appliance on a frame. Ask also whether components are cut away or transparent, and whether the expansion device is a capillary or a thermostatic expansion valve, and whether it can be changed so students can compare the two.

Which refrigerant is in MET-0002, and what else affects its service life?

Ask which refrigerant is charged and the charge quantity. Refrigerants are subject to international phase-out and phase-down schedules, so a rig charged with one being withdrawn may become difficult to service; ask what the alternative would be, whether service ports and a gauge manifold are supplied, and how the system was leak tested. Confirm what qualification your technicians need to handle refrigerant under your national rules, and check the electrical side: an earthed frame, earth-leakage protection and a guarded compressor drive.

Key takeaways

  • Water supply first: MET-0001 and MET-0003 normally run from a hydraulic bench, so confirm whether one is supplied, required or not needed.
  • The flow reading drives every result: ask whether flow is measured by tank and stopwatch or by rotameter, and its range and accuracy.
  • Areas at the tappings: without the cross-sectional area at each tapping on MET-0001, velocity cannot be calculated.
  • Steady flow and a thermometer: MET-0003 needs a stilled, constant-head supply and a temperature reading, because viscosity varies with temperature.
  • Enough instruments for the COP: MET-0002 needs suction and discharge pressures, temperatures around the cycle and a compressor energy meter or wattmeter.
  • Plan the services: water supply, a drain sized for the apparatus flow, and a single-phase point for the pump, plus the refrigerant and charge for MET-0002.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications for MET-0001, MET-0002 and MET-0003, including manometer range, flow measurement method, refrigerant and instrumentation, are confirmed in writing on the quotation. For certificates, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: these mechanical and thermal engineering items sit within an electronics trainer range; the code series runs to MET-0004, a robotic arm, which currently appears in the Power Electronics Trainers listing rather than here; and the table lists MET-0003 before MET-0002.

Bernoulli's Theorem Demonstratorfor Mechanical Teaching Labs

MET-0001

Bernoulli\'s Theorem Demonstrator facilitates the students and the industrial professionals to explore the fundamentals of Bernoulli\'s Theorem in Fluid Mechanics, which consists of classical Venturimeter of clear acrylic.

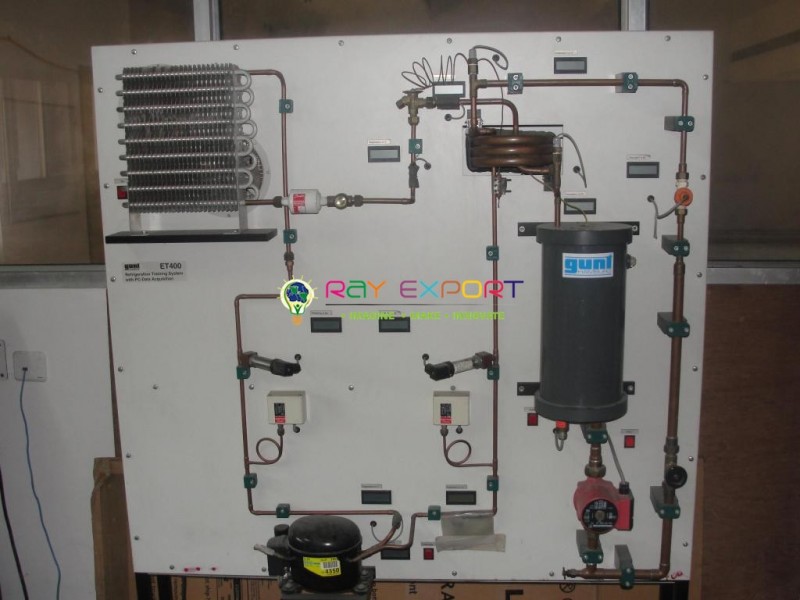

Refrigeration Training Setupfor Mechanical Teaching Labs

MET-0002

Refrigeration Training Setup - Compact and Self-contained
Mounted on trolley for mobility

Reynolds Number Demonstratorfor Mechanical Teaching Labs

MET-0003

Reynolds Number Demonstrator - Self Contained unit
Easy Operation. Study and verification of Reynolds Number, Study of different patterns of fluid flow, Study of drag force in fluid.
