Power Electronics Trainers Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Power Electronics Trainers in India,

Quick answer. Before choosing among PET-0001 to PET-0025, decide how the device waveforms will be measured safely. In a mains-referenced converter there is usually no node at earth potential, and an ordinary oscilloscope probe has its screen tied to protective earth, so clipping it into the circuit creates a fault path that can burn out the lead, destroy the instrument and injure the person holding it. The answer is to isolate the circuit through a suitable isolation transformer, or to measure differentially with isolated outputs or differential probes, never to float the oscilloscope. Settle which, and get it into the quotation, then match loads and meters to the experiments.

Twenty-five trainers are catalogued here, PET-0001 to PET-0025, and between them they cover a standard power electronics syllabus: the switching devices and how to trigger them, then the four converter families, then drives. Before any of it, read the measurement and safety section below. Power electronics is the one undergraduate laboratory where the usual way of connecting an oscilloscope is dangerous, and nothing in this listing warns a buyer about it.

The range, by syllabus block

BlockCodesTrainers
Devices and triggeringPET-0002, PET-0003, PET-0004, PET-0005, PET-0017Insulated gate bipolar transistor trainer; SCR triggering circuits; SCR triggering techniques; triggering of SCR using an integrated circuit; SCR commutation circuits
Simple thyristor applicationsPET-0006, PET-0007, PET-0011Lamp flasher using SCR; SCR alarm circuit; lamp dimmer
Controlled rectifiers and firing schemesPET-0009, PET-0010, PET-0016Single-phase controlled rectifier with ramp comparator firing; with cosine firing; microcontroller-based firing circuit
Inverters, direct current to alternatingPET-0008, PET-0018, PET-0020Series inverter; Bedford and parallel inverter; single-phase bridge inverter
Choppers, direct current to direct currentPET-0019, PET-0021, PET-0023, PET-0024Step-up chopper; step-down chopper; MOSFET, IGBT, transistor and SCR based step-down chopper; the same comparison for step-up
Alternating current control and drivesPET-0013, PET-0014, PET-0015, PET-0022Single-phase cycloconverter; speed control of a universal motor using SCR; speed control of an AC motor using a TRIAC; AC chopper
Multi-experiment laboratory systemsPET-0001, PET-0012, PET-0025High voltage power electronics lab trainer; power electronics lab trainer; multi-experiment model

Measuring these circuits safely

In a mains-referenced converter there is usually no node at earth potential. An ordinary oscilloscope probe has its screen connected to the instrument's protective earth, so clipping that screen to a point in the circuit that is not at earth potential places a fault current path through the probe lead. The lead can burn out, the instrument can be destroyed and the person holding it can be injured. Three things follow, and they should be settled with the supplier before the order is placed:

  • Never defeat the earth pin on the oscilloscope to float it. It is the wrong solution to the right problem and it puts mains potential on the instrument case.
  • Isolate the circuit, not the instrument. Ask whether each trainer is fed through an isolation transformer, whether one is supplied, and whether its rating suits the experiment.
  • Or measure differentially. Ask whether the trainers provide isolated measurement outputs or built-in isolation amplifiers for the device waveforms, or whether differential probes are needed, and get those probes into the quotation if they are. For gate-to-source and device voltage waveforms this is the only clean way to work.

Also confirm for every trainer: earth-leakage protection on the bench, an earthed chassis, shrouded terminals, guarding on any high-voltage section and an accessible emergency stop. PET-0001 is described as a high voltage trainer, so ask what voltage it actually reaches and what guarding and interlocks come with it; that answer should be in writing.

Instruments and loads the experiments assume

Two omissions make power electronics trainers arrive unusable more often than any other fault.

Loads. A rectifier, chopper or inverter experiment does nothing without something to drive. Ask what load each trainer needs, whether a resistive and inductive load bank is supplied or must be bought, and what its rating is. The drive experiments PET-0014 and PET-0015 need an actual motor; ask whether the motor is included, what its rating is, and whether a mechanical loading arrangement and a tachometer come with it.

Meters. Phase-controlled and chopped waveforms are not sinusoidal, and an average-responding meter calibrated for sine waves will read them wrongly. Specify true root-mean-square meters for this laboratory. If the syllabus covers power factor, displacement factor or harmonics, a power analyser is needed and no multimeter will substitute. Ask also for the oscilloscope bandwidth and channel count each experiment assumes, since comparing a gate pulse against the device voltage needs two channels at once.

Choosing between the near-identical codes

Several pairs in this listing cover the same ground under different names, and the differences are not stated:

  • PET-0003 and PET-0004, SCR triggering circuits and SCR triggering techniques. Ask for both experiment lists and buy one. For PET-0005, ask which device actually generates the gate pulse and confirm the part number, because the trigger device determines what the experiment demonstrates.
  • PET-0009 and PET-0010, ramp comparator firing against cosine firing. These two are genuinely worth having together, because the teaching point is that the cosine scheme linearises the relation between the control voltage and the rectifier output while the ramp comparator scheme does not. If the budget allows only one, ask which the syllabus names.
  • PET-0023 and PET-0024, the device-comparison choppers. The value here is comparing gate drive requirements, switching losses and the highest switching frequency each device will manage in the same topology. Ask whether all four devices are fitted on one board and selectable, and whether the switching frequency is adjustable, since that is where the comparison becomes visible.
  • PET-0001, PET-0012 and PET-0025, three multi-experiment laboratory systems. Ask for the experiment list of each and what distinguishes them, and whether a modular system plus modules would cover your whole practical sheet for less than a set of single-experiment boards. Note that a modular system means one group works at a time and one fault stops several practicals, while single-experiment boards let a whole class run the same experiment together.

Points of terminology, so the order is unambiguous

PET-0022, listed as an AC chopper, is what most syllabuses call an alternating current voltage controller or regulator; confirm which circuit is supplied. PET-0024 is labelled "II" with no corresponding first version in the listing, so quote the code and ask what the designation means. PET-0018 names the Bedford inverter, a classical thyristor topology, so ask whether its commutation capacitors and inductors are supplied, whether they are replaceable, and what happens if commutation fails during a student experiment.

Also worth confirming

The experiment manual with expected waveforms and readings; the quantity per student group; a spares kit, because devices in this laboratory are consumed by student error, and whether devices are socketed or soldered; the supply voltage, frequency and plug type for your country; and whether the warranty covers a device destroyed by a wiring mistake. Every product name in this range ends with "for Power Electronics Teaching Labs", which is a naming convention on this site rather than a specification. Any performance figure quoted is confirmed in writing on the quotation; ask for its basis.

Related ranges on this site

Machines, transformers and measurement at mains level are under Electrical Engineering Trainers and Power and Instrumentation Lab. Device and circuit foundations are under Basic Electronics Trainers. Sensors, transducers and control loops are under Instrumentation Trainers, instruments under Testing and Measuring Lab Trainers, and appliance-level inverter, SMPS and UPS servicing under Vocational College Trainers. Parent range: Electronics Lab Trainer Kits.

Request a quote

Send your power electronics practical list and ask for a quote that states, against each code, the load supplied, the isolation arrangement and how the device waveforms are to be measured. For example Single Phase Controlled Rectifier with Cosine Firing Scheme (PET-0010) and Step Down Chopper (PET-0021), six benches, load bank and isolation confirmed in writing. Contact Ray Export for prices, manuals and lead times.

Frequently asked questions

How do we connect an oscilloscope to these trainers safely?

Never defeat the earth pin on the oscilloscope to float it; that puts mains potential on the instrument case. Isolate the circuit instead: ask whether each trainer is fed through an isolation transformer, whether one is supplied and whether its rating suits the experiment. Or measure differentially: ask whether the trainers provide isolated measurement outputs or built-in isolation amplifiers, or whether differential probes are needed, and include them in the quotation. Confirm too an earthed chassis, earth-leakage protection on the bench, shrouded terminals, guarding on high-voltage sections and an accessible emergency stop.

What loads and motors do the experiments need?

A rectifier, chopper or inverter experiment does nothing without something to drive, and missing loads are one of the two omissions that most often leave power electronics trainers unusable on arrival. Ask what load each trainer needs, whether a resistive and inductive load bank is supplied or must be bought, and its rating. The drive experiments PET-0014 (universal motor speed control using SCR) and PET-0015 (AC motor speed control using a TRIAC) need an actual motor, so ask whether it is included, its rating, and whether a mechanical loading arrangement and a tachometer come with it.

Which meters and oscilloscope does this laboratory need?

True root-mean-square meters. Phase-controlled and chopped waveforms are not sinusoidal, and an average-responding meter calibrated for sine waves reads them wrongly. If the syllabus covers power factor, displacement factor or harmonics, a power analyser is needed, and no multimeter will substitute. Ask for the oscilloscope bandwidth and channel count each experiment assumes: comparing a gate pulse against the device voltage needs two channels at once, and the measurement must still be isolated or differential as described above.

Are PET-0003 and PET-0004 the same, and do we need both PET-0009 and PET-0010?

PET-0003 (SCR triggering circuits) and PET-0004 (SCR triggering techniques) appear to cover the same ground and the difference is not stated, so ask for both experiment lists and buy one. For PET-0005, confirm the part number of the device that generates the gate pulse, since it determines what the experiment shows. PET-0009 (ramp comparator firing) and PET-0010 (cosine firing) are genuinely worth having together, because the teaching point is that cosine firing linearises the relation between control voltage and rectifier output while ramp comparator firing does not.

What should we check on the choppers PET-0023 and PET-0024 and the Bedford inverter PET-0018?

The device-comparison choppers are valuable for comparing gate drive requirements, switching losses and the highest switching frequency MOSFET, IGBT, transistor and SCR devices manage in the same topology. Ask whether all four devices are fitted on one board and selectable, and whether switching frequency is adjustable, since that is where the comparison becomes visible. PET-0024 is labelled II with no first version listed, so ask what that means. For PET-0018, a classical thyristor topology, ask whether commutation capacitors and inductors are supplied and replaceable, and what happens if commutation fails.

Modular multi-experiment system or single-experiment boards?

PET-0001, PET-0012 and PET-0025 are multi-experiment laboratory systems; ask for each experiment list, what distinguishes them, and whether a modular system plus modules would cover your whole practical sheet more economically than single boards. The trade-off is organisational: with a modular system one group works at a time and one fault stops several practicals, while single-experiment boards let a whole class run the same experiment together. PET-0001 is described as high voltage, so ask in writing what voltage it reaches and what guarding and interlocks come with it.

Key takeaways

  • Never float the oscilloscope: isolate the circuit or measure differentially, and put the isolation or probes in the quotation.
  • No load, no experiment: confirm a resistive and inductive load bank, and the motor, loading arrangement and tachometer for PET-0014 and PET-0015.
  • True RMS meters only: chopped and phase-controlled waveforms fool average-responding meters; harmonics need a power analyser.
  • Buy one of PET-0003 and PET-0004: the listing states no difference, so compare experiment lists.
  • Ramp and cosine firing teach together: PET-0009 and PET-0010 show why cosine firing linearises the output.
  • Plan for consumed devices: ask for a spares kit and whether devices are socketed or soldered.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications for PET-0001 to PET-0025, including isolation arrangement, load bank rating, motor rating, device part numbers and maximum voltage, are confirmed in writing on the quotation. For certificates, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: PET-0003 and PET-0004 are not differentiated; PET-0024 is labelled II with no first version listed; PET-0022 is listed as an AC chopper, which most syllabuses call an AC voltage controller; the three multi-experiment systems are not distinguished; and every name ends with for Power Electronics Teaching Labs, a naming convention rather than a specification.

High Voltage Power Electronics Lab Trainer for Power Electronics Teaching Labs

PET-0001

High Voltage Power Electronics Lab - High Voltage Power Electronics Lab with table. MCB is given Three Phase AC supply for wellbeing reason. MCB gave at front board to Single Phase Supply..

Insulated Gate Bipolar Transistor Trainer For Power Electronics Teaching Labs

PET-0002

Insulated Gate Bipolar Transistor - This coach utilizes UJT unwinding supply so it can be utilized as independent unit, IGBT is a minimal, prepared to utilize control hardware exploratory board.

SCR Triggering Circuits Trainer For Power Electronics Teaching Labs

PET-0003

SCR Triggering Circuits - Three firing circuits on single board.
Gradual firing angle control. Test points for observe output of different circuits.

SCR Triggering Techniques Trainer For Power Electronics Teaching Labs

PET-0004

SCR Triggering Techniques - Two triggering circuits on single board. Test points for observe output pulses. Sockets to make different connections.

Triggering Of SCR Using 7421IC Trainer For Power Electronics Teaching Labs

PET-0005

Triggering of SCR using 7421IC - Test points for observe output pulse. Sockets to make different connections. On board DC supply of +5V and 12V.

Lamp Flasher Using SCR Trainer For Power Electronics Teaching Labs

PET-0006

Lamp Flasher Using SCR - This Trainer uses UJT relaxation.
Oscillator for triggering of SCRs. Test points for observe output at different points.

SCR Alarm Circuit Trainer For Power Electronics Teaching Labs

PET-0007

SCR Alarm Circuit - SCR Alarm Circuit is a compact. Ready to use power electronics experiment board. Inbuilt System Power supply.

Series Inverter Trainer For Power Electronics Teaching Labs

PET-0008

Series Inverter - On board triggering circuit. Gradual variation of frequency. Test points to observe output at different points.

Single Phase Controlled Rectifier With RAMP Comparator Firing Scheme Trainer For Power Electronics Teaching Labs

PET-0009

Single Phase Controlled Rectifier with RAMP Comparator Firing Scheme - With Ramp Comparator terminating plan. Test focuses for watch yield of various squares. On board AC wellsprings of 15 V and 18 V Socket gave to make diverse associations.

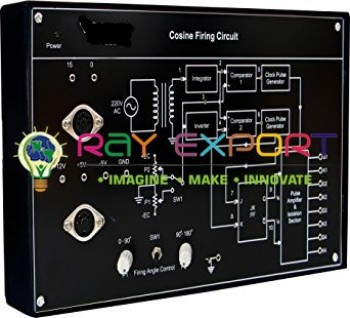

Single Phase Controlled Rectifier With Cosine Firing Scheme Trainer For Power Electronics Teaching Labs

PET-0010

Single Phase Controlled Rectifier with Cosine Firing Scheme - Gradual terminating edge control upto 180 degree. Test focuses for watch yield of various squares. On board for 15 V and 18 Volt AC Source, Contains Rectifier part and Load.
