Quick answer. Ask of every code whether zero and span can be adjusted, and against what reference. Calibrating an instrument means setting its reading at a known low input and a known high input, then checking the points between for linearity and hysteresis. Without accessible zero and span adjustment, students can read the sensor but cannot calibrate it, and calibration is the skill the practical exists to teach. Equally, a trainer with no known input to calibrate against teaches nothing about accuracy, so ask what reference is supplied with each transducer and whether that reference is itself calibrated and traceable.

Eight trainers are listed here, PIL-0001 to PIL-0008. Despite the category name they are all transducer and measurement trainers, not power apparatus: load cell and strain gauge, linear variable differential transducer, pressure, resistance thermometer, thermocouple, magnetic pickup, sample and hold, and photoelectric speed measurement. Six of the eight also have counterparts in the Instrumentation Trainers listing under a different code series, so compare the two before ordering and ask the supplier which code is current.

What is in the range

CodeTrainerMeasured quantity
PIL-0001Load cell and strain gaugeForce and weight, by resistance change in a bonded gauge
PIL-0002Linear variable differential transducerLinear displacement, by inductive coupling
PIL-0003Pressure measurementPressure, usually by a diaphragm with gauges or a piezoresistive sensor
PIL-0004Resistance temperature detectorTemperature, by resistance change in a metal element
PIL-0005ThermocoupleTemperature, by thermoelectric voltage across a junction pair
PIL-0006Magnetic pickupProximity or gap, and often rotational speed by tooth counting
PIL-0008Photoelectric pickupRotational speed, by interrupting or reflecting a light beam
PIL-0007Sample and holdNot a transducer: the circuit that freezes a value for conversion

Ask whether zero and span can be adjusted

This is the question that separates a measurement trainer from a display. Calibrating an instrument means setting its reading at a known low input, the zero, and at a known high input, the span, and then checking the points between for linearity and hysteresis. If the trainer has no accessible zero and span adjustment, students can read the sensor but cannot calibrate it, and calibration is the skill the practical is for. Ask, for each code, whether both adjustments are provided and brought out to the panel.

Then ask what known input is supplied to calibrate against, because a trainer without a reference teaches nothing about accuracy: a set of masses or a dead-weight tester for PIL-0001, a micrometer or slip gauges for PIL-0002, a hand pump with a reference gauge for PIL-0003, a temperature bath or reference thermometer for PIL-0004 and PIL-0005, and a verified speed reference for PIL-0008. Ask whether the reference itself is calibrated and traceable.

The signal conditioning should be visible

In every one of these trainers the sensor is the small part; the teaching content is the chain that turns its output into a usable signal. Ask whether that chain is accessible at test points or sealed inside the instrument, and whether a block diagram is printed on the panel. Specifically:

  • PIL-0001. The bridge configuration and whether quarter, half and full bridge can each be tried; the excitation voltage; the amplifier gain; whether a shunt calibration facility is provided; the load cell capacity and its overload limit; and whether spare gauges are available, since an overloaded gauge cannot be repaired.
  • PIL-0002. The stroke range and linearity; whether the excitation oscillator and the phase-sensitive demodulator are accessible, since direction sensing is the whole point of the phase-sensitive stage; and whether the core can be driven by a micrometer.
  • PIL-0003. The sensor type and pressure range, whether the reading is gauge or absolute, how pressure is applied in the experiment, and the proof pressure beyond which the sensor is damaged.
  • PIL-0004. Whether two, three and four-wire connection can all be demonstrated, because lead resistance is the central difficulty with a resistance thermometer, and whether self-heating can be shown by changing the excitation current.
  • PIL-0005. Which thermocouple types are supplied, and whether cold junction compensation is provided and visible: a thermocouple experiment that ignores the reference junction gives wrong readings, and seeing why is part of the lesson.
  • PIL-0007. The acquisition time, the droop rate during hold and whether the hold time is adjustable, since the experiment is about what the circuit loses while holding.

The two pickup trainers need the most care

PIL-0006, magnetic pickup. A magnetic or variable-reluctance pickup responds to a ferrous target moving past it, which has two consequences worth confirming. First, it will not respond to a non-ferrous target, so ask what target is supplied and of what material. Second, its output depends on speed as well as gap, so ask whether this trainer is intended for distance or gap measurement, for speed by counting passing teeth, or for both, and over what range it is linear. Ask also for the output type, since a raw coil output needs conditioning before it can be counted.

PIL-0008, photoelectric pickup for speed. Ask the obvious question first: is a variable-speed drive supplied? A speed measurement trainer with nothing to rotate, or with a fixed-speed motor, cannot be calibrated or plotted. Then ask the speed range, the number of pulses per revolution and whether the disc or reflective target is supplied, whether the method is interruption or reflection, and what independent reference is provided to verify the reading. Where a motor is included, ask the rating, the guarding over the rotating disc and shaft, and whether there is an accessible stop.

Overlaps to resolve before ordering

The following subjects appear both here and in the Instrumentation Trainers range: strain gauge and load measurement, displacement by linear variable differential transducer, pressure, resistance thermometer, thermocouple, and sample and hold, the last of which also overlaps the sampling kit in Digital Communication Trainers. Only the magnetic and photoelectric pickups appear to be unique to this listing. Ask the supplier to put the overlapping codes side by side and to quote once for each subject you need.

Also worth confirming

The experiment manual with expected readings and a worked calibration; the quantity per student group; which meters and whether an oscilloscope are assumed; spares, in particular gauges, lamps and sensors; the supply voltage, frequency and plug type for your country; and the warranty, including whether it covers a sensor damaged by overload. Any performance figure quoted is confirmed in writing on the quotation; ask for its basis.

Related ranges on this site

The wider instrumentation and control range, including programmable logic controllers and control system trainers, is under Instrumentation Trainers. Machines, transformers and mains-level metering are under Electrical Engineering Trainers, and converter circuits under Power Electronics Trainers. Amplifier and filter foundations are under Basic Electronics Trainers, conversion under Digital and Analog Trainers and Kits, and the instruments these experiments need under Testing and Measuring Lab Trainers. Parent range: Electronics Lab Trainer Kits.

Request a quote

Send your measurement practical list and ask for a quote stating, against each code, the reference standard supplied for calibration and whether zero and span adjustments are accessible. For example RTD Temperature Measurement Trainer (PIL-0004) and Thermocouple Temperature Measurement Trainer (PIL-0005), eight benches, with the reference thermometer and the cold junction arrangement confirmed in writing. Contact Ray Export for prices, manuals and lead times.

Frequently asked questions

Are these power trainers, and how do they differ from the Instrumentation Trainers range?

Despite the category name, all eight are transducer and measurement trainers, not power apparatus; machines, transformers and mains-level metering are under Electrical Engineering Trainers, and converter circuits under Power Electronics Trainers. Six of the eight - strain gauge, LVDT, pressure, resistance thermometer, thermocouple, and sample and hold - also appear in the Instrumentation Trainers range under a different code series, and sample and hold overlaps the sampling kit in Digital Communication Trainers too. Only the magnetic and photoelectric pickups appear unique to this listing. Ask the supplier to put overlapping codes side by side and quote once per subject.

What calibration reference should come with each trainer?

Ask for each code, because the listing does not say. The natural references are a set of masses or a dead-weight tester for the load cell and strain gauge trainer (PIL-0001), a micrometer or slip gauges for the LVDT (PIL-0002), a hand pump with a reference gauge for pressure (PIL-0003), a temperature bath or reference thermometer for the resistance thermometer and thermocouple (PIL-0004, PIL-0005), and a verified speed reference for the photoelectric pickup (PIL-0008). Ask whether the reference is itself calibrated and traceable, and whether zero and span adjustments are brought out to the panel.

What should I check on the strain gauge and LVDT trainers?

For PIL-0001, ask the bridge configuration and whether quarter, half and full bridge can each be tried, the excitation voltage, the amplifier gain, whether a shunt calibration facility is provided, the load cell capacity and its overload limit, and whether spare gauges are available, since an overloaded gauge cannot be repaired. For PIL-0002, ask the stroke range and linearity, whether the excitation oscillator and the phase-sensitive demodulator are accessible - direction sensing is the whole point of the phase-sensitive stage - and whether the core can be driven by a micrometer.

What should a temperature measurement trainer let students demonstrate?

For the resistance thermometer trainer, PIL-0004, ask whether two, three and four-wire connection can all be demonstrated, because lead resistance is the central difficulty with a resistance thermometer, and whether self-heating can be shown by changing the excitation current. For the thermocouple trainer, PIL-0005, ask which thermocouple types are supplied and whether cold junction compensation is provided and visible: an experiment that ignores the reference junction gives wrong readings, and seeing why is part of the lesson. For both, ask whether the signal conditioning is reachable at test points.

What should I confirm about the magnetic pickup trainer?

A magnetic or variable-reluctance pickup, as in PIL-0006, responds only to a ferrous target moving past it, so it will not respond to a non-ferrous target; ask what target is supplied and of what material. Its output depends on speed as well as gap, so ask whether this trainer is intended for distance or gap measurement, for speed by counting passing teeth, or for both, and over what range it is linear. Ask for the output type too, because a raw coil output needs conditioning before it can be counted.

Does the photoelectric speed trainer come with a motor to measure?

Ask that first. A speed measurement trainer with nothing to rotate, or with a fixed-speed motor, cannot be calibrated or plotted, so confirm whether PIL-0008 is supplied with a variable-speed drive. Then ask the speed range, the number of pulses per revolution, whether the disc or reflective target is supplied, whether the method is interruption or reflection, and what independent reference is provided to verify the reading. Where a motor is included, ask its rating, the guarding over the rotating disc and shaft, and whether there is an accessible stop.

Key takeaways

  • Zero and span decide it: without accessible adjustment, students can read a sensor but cannot calibrate it.
  • No reference, no accuracy lesson: confirm the masses, gauges, bath or speed reference supplied for each code.
  • Keep the conditioning chain visible: ask for test points and a printed block diagram rather than a sealed instrument.
  • Pressure and hold specifics: for PIL-0003 ask the range, gauge or absolute and proof pressure; for PIL-0007 ask acquisition time and droop rate.
  • Speed needs something to spin: PIL-0008 cannot be calibrated without a variable-speed drive and an independent reference.
  • Quote once per subject: six of the eight trainers overlap the Instrumentation Trainers range under other codes.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Every specification, including the reference supplied for calibration and the accessibility of zero and span, is confirmed in writing on the quotation; ask for the basis of any performance figure. For calibration certificates for any reference, contact us for the latest copies of the relevant certificates. No price is quoted here. Listing defects noticed: despite the category name, none of the eight items is power apparatus; six of them (strain gauge, LVDT, pressure, resistance thermometer, thermocouple, and sample and hold) have counterparts in the Instrumentation Trainers range under a different code series; and the sample and hold trainer also overlaps the sampling kit in Digital Communication Trainers.

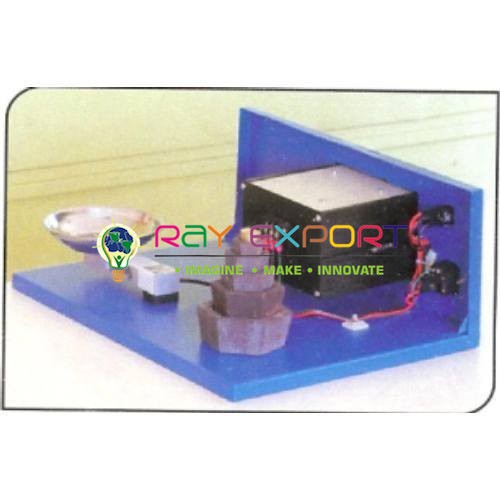

Load Cell (Strain Guage) Trainer

PIL-0001

Details:


· It can be utilized to gauge stack 0-2 kg.


· Built in DC controlled power supply(IC) is accommodated cut off


· LED sign for supply ON.


· 4 strain checks connect mounted on an extraordinarily amalgam materials write stack cell.


· Excitation voltage for the bridge,3.5 digit seven section show for coordinate perusing stain in Kg and exceedingly touchy flag intensifier every one of these highlights are inherent. Diverse burdens given to working up of load.


· Patch lines and direction manual can likewise be given.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacture  in Ambala, India.


LVDT Displacement Measurement Trainer

PIL-0002

Particulars:


· AC excitation source 2.5 kHz


· Linear variable differential transformer in nonmetallic structure


· Micrometer connected with mechanical relocation framework


· Displacement go 10 mm/+5mm to - 5mm


· Sockets accessibility to watch/measure the signs


· Balanced demodulator (IC based)


· 3.5 digit DPM as removal pointer


· Detailed direction Manual


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment  in Ambala, India.


Pressure Measurement Trainer

PIL-0003

Details :


· Range 300mm


· Pressure Cell


· Sockets are given to watch/measure the signs


· 3.5 digit DPM sign of Pressure


· 220V, IC controlled power supply


· Pressure generator utilizing show dial.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.


RTD Temperature Measurement Trainer

PIL-0004

Details :


· RTD ( PT - 100 ) test with insurance cover is accessible


· 3.5 digit DPM temperature pointer


· Bridge circuit for transducer


· Differential intensifier with input


· Lead pay framework


· For observing and controlling, O/P terminals gave on test focuses.


· Heater and Glass thermometer for reference


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturer, engineering lab equipment supplier, mechanical engineering lab equipment suppliers in india, civil engineering lab equipment suppliers, civil engineering lab equipments manufacturers, engineering equipment supplier
 in Ambala, India.


Thermocouple Temperature measurement Trainer

PIL-0005

Details:


· Thermocouple with computerized board


· O/P gave on test focuses to controlling and observing purposes


· Test pins to screen at all stages


· Mercury thermometer and radiator( 10 watts)


· 220 V, IC controlled power supply


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.


Magnetic Pickup Distance Measurement Trainer

PIL-0006

Details :


· Distance estimation utilizing engine and wheel


· Electromagnetic get


· Signal conditioner hardware utilizing Op amps


· Excitation voltage for get


· computerized counter(4 digit)


· Rotation and separation from 0 to 999.9 cm.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab instruments supplier, engineering lab equipments exporter, civil engineering lab equipments supplier, engineering lab equipment manufacturers, engineering lab equipment manufacturer, engineering lab instruments manufacturer in Ambala, India.

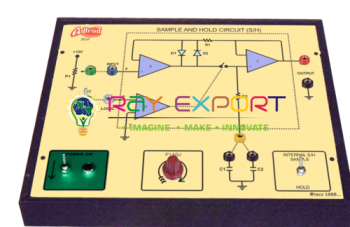

Sample & Hold Trainer

PIL-0007

Determinations:


· ADC 0809 and DAC 0800 (Onboard).


· Digital yield show on LED.


· Sample and Hold can be chosen utilizing flip switch.


· Conversion time 100ms.


· Onboard variable DC flag (0-5V).


· 220 V,IC directed power supply


· Detailed guideline manual went with


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.

Photoelectric Pick Up Speed Measurement Train

PIL-0008

Details:


· Speed estimation utilizing photograph electric pickup transducer should be possible utilizing this pack.


· On-board RPM meter for estimation of speed


· On-board potentiometer for shifting pace


· On-board photograph electric sensor and DC engine with shaft


· On-board push catch to reset the tally


· On-board flag molding circuit


· Test focuses are given at different stages to watch the signs and waveforms


· Interconnection: 2/4mm banana attachments


· DC Supply: Built-in (IC) DC directed power supplies


· 220V ±10%, 50Hz mains worked


· Enclosed in an alluring ABS plastic bureau with cover


· User's Manual with fix ropes can likewise be given.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturers, engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.
