science lab equipment manufacturer

Microscopes and Slides

Microscopes and Slides Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Microscopes and Slides in India,

Lab Microscopes & Slides - Ray Export are manufacturers of wide range of Educational Laboratory Microscopes which includes Stereo Binocular Microscope, Zoom Stereo Trinocular Microscope, we are also leading supplier & exporter of Educational Laboratory Microscopes. Student Microscopes, Medical Microscope, Metallurgical Microscope, Binocular Microscope, Microscope Spares, Inclined Pathological Microscope, Medical Pathological Microscope, Multi Viewing Microscope, Monocular Dissecting Microscope, Professional Gem Microscope, Projection Microscope, Series Polarizing Microscope, Student Microscope, Stereo Binocular Microscope, Stereo Zoom Binocular Microscope. Ray Export are leading in the Microscope and Slides, Microscope and Slides Manufacturer, Microscope and Slides Suppliers, Microscope and Slides India, Microscope and Slides Exporter, Biology Lab Equipments, Microscope Slide, Biology Microscope Slides

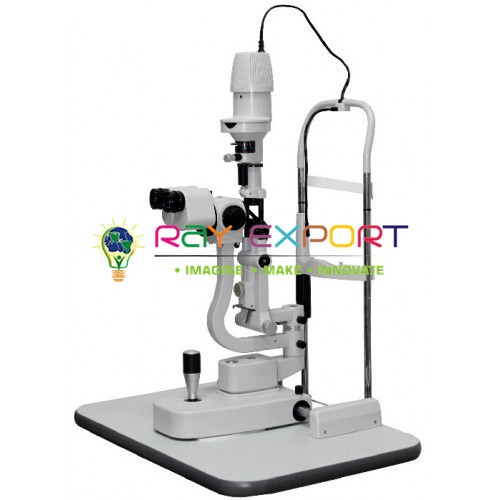

Slit Lamp Microscope

M-0106

With standard features

Dual Viewing Microscope

M-0107
Body:2 piece binocular head inclined at 45° and rotatable at 360° having quadruple nosepiece.
Stage:Low position coaxial mechanical stage 130x140mm with moving range 75x50mm.
Focussing:Standard co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side.
Illumination:6V 20W Halogen lamp, adjustable brightness illumination.
Eyepiece:Wide Field 10X (2 Paired), 20mm.
Objective:Achromatic 4X,10X, 40X and 100X oil immersion.
Condenser:Abbe N.A 1.25 condenser with iris diaphragm & filter.
Box:Supplied in thermocol packing.
Accessories:
  • Spare halogen lamp.
  • Immersion oil
  • Dust cover
  • User manual
  • Blue ground glass filter
Optional Accessories:
  • Can be supplied with semi plan or plan objective.

Penta Head Multi Viewing Microscope

M-0108
Body:Equipped with four binocular head and one trinocular observation head, 0° inclined at 45° for comfortable viewing, having quadruple nosepiece.
Stage:Single layer mechanical stage 140x140mm.
Focussing:Standard co-axial coarse and fine focussing with fine division upto 0.002mm.
Illumination:Kohler external illumination, halogen lamp 12V/50W.
Eyepiece:Wide Field 10X, 5 Pairs.
Objective:Plan objective (infinity corrected) PL 4X, PL 10X, PL 40X and PL 100X.
Condenser:Condenser N.A.1.25 with iris diaphragm and filter.
Pointer:The built in LED green light pointer, with adjustable brightness can be moved in the field of view during group discussion.
Box:Supplied in thermocol packing.

Penta Head Multi Viewing Microscope, Research

M-0109
  • Multi-viewing Microscope allows people observation at the same time.
  • With the features of infinite optical system, effective illumination, LED pointer and images.
  • Coherence, it is widely used in clinic, scientific research and teaching demonstration.
Body:Consist of compensation free 1 piece trinocular head and 4 pieces binocular heads, inclined at 30°, rotatable at 360°, interpupilary distance 48-75mm with inverse quintuple nosepiece.
Stage:Double layers mechanical stage 185x142mm, with moving range 75x55mm.
Focussing:Standard co-axial coarse and fine focussing with fine division upto 0.002mm.
Illumination:Kohler external illumination, halogen lamp 12V/50W.
Eyepiece:Extra wide field eyepiece EW10X/20.
Objective:Infinite plan achromatic objective 4X,10X, 40X and 100X.
Condenser:Swing condenser.
Pointer:Green LED pointer, brightness adjustable.
Box:Supplied in thermocol packing.

Tissue Culture Microscope Binocular/Trinocular

M-0110
Body:Binocular/Trinocular head with strong robust body.
Illumination:Halogen lamp illumination operating on 220/110V, 50Hz
Eyepiece:Wide Field 10X
Objective:Four objective LWD 4X, LWD 10X, LWD 20X, LWD 40X
Box:Supplied in thermocol packing.

Inverted Tissue Culture Microscope

M-0111
Body:Binocular/Trinocular head
Stage:Triple layer co-axial mechanical stage for X-Y movement with fully graduated vernier scale for manipulation of specimen slide.
Focussing:Co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side.
Illumination:12V/50W incident lamp with variable light control arrangement.
Eyepiece:Wide Field 10X (Paired).
Objective:Long working distance objectives 5X, 10X, 20X, 40X SL.
Box:Supplied in wooden packing.

Inverted Tissue Culture Microscope, Superior

M-0112
Body:The binocular observation tube assembled from coated prisms is 30 degree inclined, with eyepiece position 280mm raised above the desk surface for greater comfort to the observer with qadruple revolving turret nosepiece with positive click stops.
Stage:
  • Oversize plain stage 180x150mm with two extension plates 150mm x 65mm for large bottles & microsoft work. Two stage clips are provided in drilled holes to accommodate specimen upto 40mm. A removable central insert gives 65 mm dia stage aperture.
  • Co-axial, cross movement mechanical stage 180x150mm.
  • Low positioned co-axial mechanical stage 180x50mm with three different aperture plates.
Focussing

Coarse Focussing:
  • Two large focus knobs located low down at a convenient position assure accurate focusing. The back- lash free rack & pinion mechanism has 18mm range.
Fine Focussing:
  • Highly sensitive based on screw-lever mechanism reading to 0.002mm.
Illumination:Based on Koehler system is provided by a post-mounted high intensity high intensity 6 volts 20 watts Halogen illuminator, powered from base built in variable intensity controlled transformer. The lamp house incorporating a focusable condenser lens with iris diaphragm & filter-carrier is mounted on a pole on which it can be positioned up or down to accommodate any type of culture vessel in a vertical range of 140 mm working distance lens is 20mm
Eyepiece:HWF 10X (paired) with eye-guards, for genuine wide-field observation.
Objective:Achromatic 5X, 10X, LWD 20X & LWD 40X. Phase contrast specially designed perfect flat-field objectives with long working distance corrected for bottom thickness of bottles, flasks or chambers
Box:Supplied in thermocol box.

Laboratory Metallurgical Microscope

M-0113
Body:Monocular inclined body.
Stage:125x125mm
Focussing:Separate fine and coarse focussing using diagonally cut rack and pinion arrangement.
Illumination:6V 20Watt halogen illumination, operating on 220/110V, 50 Hz
Eyepiece:Huygenian Eyepieces 5X, 10X with micrometer and 15X.
Objective:M 4X/5X, M 10X, M 45X/40X
Filter:Day light blue filter.
Box:Supplied in thermocol packing.

Metallurgical Microscope Monocular/Binocular

M-0114
Body:Rigid and stable body fitted with in monocular/binocular head inclined at 45 degree.
Stage:125x125mm.
Focussing:Separate fine and coarse focussing using diagonally cut rack and pinion arrangement.
Illumination:Bright field incident light through epi-illuminator with up & down movement.
Filter:Day light blue filter.
Eyepiece:Huygenian Eyepieces 5X, 10X with micrometer and 15X.
Objective:Achromatic objective M 5X, M 10X, M 45X SL/40X SL.
Magnification:25X to 675X
Box:Supplied in thermocol packing.

Binocular Metallurgical Microscope with Coaxial Focussing

M-0115
Body:Rigid and stable body fitted with in binocular head inclined at 45 degree.
Stage:125x125mm.
Focussing:Standard co-axial coarse and fine focussing for easy manipulation based on four stage reduction gear system & travelling on ball bearing guide ways with virtually no wear, tear and free from backlash. Tension adjustment ring on one side and fine division upto 0.002mm
Illumination:Bright field incident light through epi-illuminator with up & down movement.
Filter:Day light blue filter.
Eyepiece:Huygenian Eyepieces 5X, 10X with micrometer and 15X.
Objective:Achromatic objective M 5X, M 10X, M 45X SL/40X SL.
Magnification:25X to 675X
Box:Supplied in thermocol packing.
