Lab Microscopes & Slides - Ray Export are manufacturers of wide range of Educational Laboratory Microscopes which includes Stereo Binocular Microscope, Zoom Stereo Trinocular Microscope, we are also leading supplier & exporter of Educational Laboratory Microscopes. Student Microscopes, Medical Microscope, Metallurgical Microscope, Binocular Microscope, Microscope Spares, Inclined Pathological Microscope, Medical Pathological Microscope, Multi Viewing Microscope, Monocular Dissecting Microscope, Professional Gem Microscope, Projection Microscope, Series Polarizing Microscope, Student Microscope, Stereo Binocular Microscope, Stereo Zoom Binocular Microscope. Ray Export are leading in the Microscope and Slides, Microscope and Slides Manufacturer, Microscope and Slides Suppliers, Microscope and Slides India, Microscope and Slides Exporter, Biology Lab Equipments, Microscope Slide, Biology Microscope Slides
The equipment can be operated on 220 volt operation without the danger of electric shock. The Quartz Halogen lamps are particularly suited to machine and inspection applications in demanding environments. The articulate arm of the lamp provides vibration resistant performance.
Gooseneck Arm Quartz Halogen Lamp contains an engineering plastic shade and the base provides complete insulation for maximum safety of the operator. The articulate arm provides vibration resistant performance. It operates on 20 watt or 50 watt, 220 volt AC.
This fibre lamp is suitable for use in medical treatment, laboratory, precision instrument inspections and work benches. The unit constitutes a flexible fibre optic cable which can be taken flexibly to any part to illuminate the sample under inspection.
Specimen Polishing Machine can be used for coarse & fine grinding, rough polishing & fine polishing. It is the perfect matallographic specimen machine for samples preparation.
Specimen cutting is the first step during sample prepration. It adopts high speed rotating thin grinding wheel to cut specimen. It is equipped with cooling system to prevent the heat damage during cutting.
Specification | |
Mould Diameter | 22mm, 130mm, 145mm |
Input Voltage | 220V/50Hz, 110V/60Hz. |
Power | Max.650 W |
Dimensions | 340x260x430 mm (Approx.) |
Weight | 33 Kg (Approx.) |

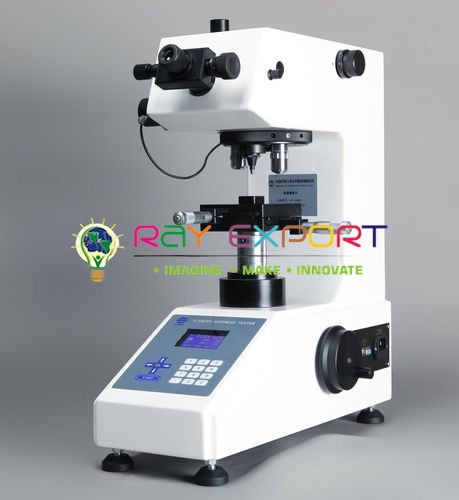

The principle of the instrument is based on pressing a diamond indentor into the sample under test with a certain load in gms and consequently measuring linear value (d) of the diagonal of the indentor print obtained.
Specification | |
Testing Forces: | 10, 25, 50, 100, 200, 300, 500 and 1000 gf |
Turret: | Automatic (Loading / Dwell / Unloading) |
Magnification of the microscope: | 200X and 400X |
Dwell time of the test force: | 5 - 60 Seconds |
Min. Graduation value of the testing drum wheel: | 0.0625 micro meters |
Testing Range: | 1 HV to 2967 HV |
Dimensions of the XY anvil: | 100x100mm |
Travel of the XY anvil: | 25x25mm |
Max. height of the specimen: | 70mm |
Instrument throat: | 95mm |
Light source: | Halogen Light source |
Power supply: | 220V / 60Hz |
Dimension: | 425x245x490mm |
Weight: | 30Kg. |
These machines are used for determining the hardness of ferrous and non-ferrous metals with high reliability and accuracy. | |
