Microprocessor Trainers & Kits

Microprocessor Trainers & Kits Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Microprocessor Trainers & Kits in India,

Quick answer. The decision that settles everything else is which processor your syllabus specifies. A microprocessor trainer is bought to teach one instruction set, and the board, manual, experiments and student notes all follow from it: an 8085 board will not run an 8086 practical, and a microcontroller board will not teach bus timing. Of the eight codes MTK-0001 to MTK-0008, only MTK-0002 names its processor (8085), so state your device on the enquiry and ask which device each code carries. Then settle keypad or PC-hosted working, and have the interface cards itemised, because they are normally separate line items.

Eight microprocessor and microcontroller trainers are catalogued in the MTK series, MTK-0001 to MTK-0008. Only one of the eight names the processor it is built around, and six of the remaining names are effectively identical to each other, so the listing cannot be used to choose between them. On a microprocessor trainer the processor and the interface cards are the entire purchase, so this page sets out the specification to request instead.

What the listing says

CodeAs listed
MTK-0001Microprocessor and microcontroller trainers. A microprocessor and a microcontroller are different devices, so ask which this covers, or whether it is a combined platform
MTK-00028085 microprocessor trainer. The only code that names a processor
MTK-0003, MTK-0004, MTK-0005All listed simply as microprocessor trainer, the third with a trailing 1. Nothing in the names distinguishes them
MTK-0006, MTK-0007, MTK-0008All listed as advanced microprocessor trainer, the third with a trailing 12. Again nothing distinguishes them

Quote the code with the specification you have been given in writing, not the product name, because the names are not unique.

The question that decides everything: which processor

A microprocessor trainer is bought to teach one instruction set. The board, the manual, the experiments and the students' notes all follow from that choice, so it has to match your syllabus exactly. Ask which device each code carries, and state yours on the enquiry. The families normally taught are:

  • 8085, an 8-bit processor still widely specified for teaching assembly language and bus timing. MTK-0002 is the code that states it.
  • 8086, 16-bit, for segmented addressing and the step up from 8085.
  • 8051, a microcontroller rather than a processor: memory, timers and ports are on the chip, so the experiments are about embedded control rather than bus architecture.
  • Modern architectures such as ARM, PIC or AVR, where a course has moved on from the classic families.

An 8085 board will not run an 8086 practical and a microcontroller board will not teach bus timing. There is no substituting here, so confirm the device before anything else.

Keypad trainer or PC-hosted

TypeHow students work on it
Classic keypad and display trainerA hex keypad and a seven-segment or LCD display, with an on-board monitor program. Students enter machine code or mnemonics directly and single-step through execution, watching registers change. Needs no computer, which makes it robust in a shared lab, and it teaches the machine at the level the syllabus usually asks about.
PC-hosted trainerConnected over serial or USB to an assembler and debugger on a PC. Faster to write and edit longer programs, and closer to real development practice, but it ties each board to a working computer and to software that has to install on your lab machines.

Ask which arrangement each code uses, and if it is PC-hosted, ask what the software is, which operating systems it supports, whether the licence is per seat or per board, and whether it is still supported.

Interface cards: the usual gap in the quotation

Most of the experiments in a microprocessor syllabus are not done on the bare trainer. They are done by connecting an interface card to it, and those cards are normally separate line items. A trainer quoted without them will arrive and then sit unused for the practicals you bought it for. So list the experiments you need to run and ask explicitly which cards are included and which are extra. The ones commonly required are:

  • Programmable peripheral interface, for parallel input and output experiments
  • Programmable interval timer and interrupt controller cards
  • ADC and DAC cards, for data acquisition and waveform generation
  • Stepper motor controller, and a DC motor speed control card
  • Traffic light, elevator or similar application modules
  • Keyboard and display interface card

Ask also whether the trainer has a standard expansion connector that accepts cards from other suppliers, or a proprietary one that locks you to this supplier for every future card.

The rest of the specification

  • Memory. RAM and ROM fitted, and whether it can be expanded. The monitor program lives in ROM, so ask whether it can be updated.
  • Manual with worked programs. Ask for the experiment manual and a listing of the sample programs. A trainer whose manual gives the code, the expected register contents and the explanation will teach; one that gives a block diagram will not. This is the best pre-purchase test available.
  • Socketed devices and spares. The processor and the support chips should be in sockets so a failed device can be swapped without soldering. Ask for a spares kit and for the device part numbers.
  • Power supply. Whether it is integral or a separate unit, and the supply voltage, frequency and plug type for your country.
  • Quantity. Microprocessor practicals are usually run one board per two students, so decide the group size before quoting quantities, and ask about set pricing.

Related ranges on this site

Microcontroller and embedded work is under Embedded System Trainers; digital logic foundations under Digital Analog Trainers and Kits and Basic Electronics Trainers; signal processing under DSP Trainers and Kits; and hardware design under VLSI Design Training Systems. Device programming and testing equipment is under EPROM Programmer and Programmer Tester and IC Tester and Digital IC Tester. Loose devices are under Electronic Components. Parent range: Electronics Lab Trainer Kits.

Request a quote

State the processor family your syllabus specifies, whether you want keypad or PC-hosted working, the experiments you must run, and the number of student groups. Ask for the interface cards to be itemised. For example an 8085 trainer (MTK-0002), twelve units, with the PPI, ADC/DAC and stepper motor cards listed separately, plus the manual and a spares kit. Contact Ray Export for prices, manuals and lead times.

Frequently asked questions

Which processor does each MTK trainer use?

Only one code says. MTK-0002 is listed as an 8085 microprocessor trainer. MTK-0001 is listed as microprocessor and microcontroller trainers, which could mean either device or a combined platform, so ask which. MTK-0003 to MTK-0008 do not name a processor at all. Because a trainer is bought to teach one instruction set, and the board, manual, experiments and student notes all follow from that, state the device your syllabus specifies on the enquiry and ask which device each code carries.

Can an 8085 trainer be used for 8086 or 8051 practicals?

No. An 8085 board will not run an 8086 practical, and a microcontroller board will not teach bus timing. The 8085 is an 8-bit processor used for teaching assembly language and bus timing; the 8086 is 16-bit, for segmented addressing and the step up from 8085; the 8051 is a microcontroller, with memory, timers and ports on the chip, so its experiments are about embedded control. Courses that have moved on use ARM, PIC or AVR. Microcontroller work is also listed under Embedded System Trainers.

Should we choose a keypad trainer or a PC-hosted trainer?

A keypad and display trainer has a hex keypad, a seven-segment or LCD display and an on-board monitor program, so students enter code directly and single-step through execution, watching registers change. It needs no computer, which makes it robust in a shared lab. A PC-hosted trainer connects over serial or USB to an assembler and debugger, which is faster for longer programs but ties each board to a working computer. If PC-hosted, ask what the software is, which operating systems it supports, and whether the licence is per seat or per board.

Which interface cards do we need with the trainer?

Most microprocessor practicals are done by connecting an interface card, and those cards are normally separate line items. Commonly required are a programmable peripheral interface for parallel input and output, programmable interval timer and interrupt controller cards, ADC and DAC cards, a stepper motor controller and a DC motor speed control card, application modules such as traffic light or elevator, and a keyboard and display interface card. List the experiments you must run, ask which cards are included and which are extra, and ask whether the expansion connector is standard or proprietary.

How do MTK-0003 to MTK-0008 differ from each other?

The names do not tell you. MTK-0003, MTK-0004 and MTK-0005 are all listed simply as microprocessor trainer, one with a trailing 1, and MTK-0006, MTK-0007 and MTK-0008 are all listed as advanced microprocessor trainer, one with a trailing 12. Ask for the specification of each code in writing - processor, memory, keypad or PC-hosted working, and cards included - and quote the code together with that written specification rather than the product name, because the names are not unique.

How many trainers do we need, and how do we judge one before buying?

Microprocessor practicals are usually run one board per two students, so decide the group size before quoting quantities. To judge a trainer, ask for the experiment manual and a listing of the sample programs: a manual that gives the code, the expected register contents and the explanation will teach, while one that gives only a block diagram will not. Ask also for the RAM and ROM fitted and whether the monitor program can be updated, whether devices are socketed with a spares kit, and whether the power supply is integral or separate.

Key takeaways

  • Eight trainers, MTK-0001 to MTK-0008 - only MTK-0002 names its processor, the 8085.
  • The processor is the purchase - an 8085 board will not run an 8086 practical.
  • Interface cards are usually extra - ask for them to be itemised against your experiment list.
  • Keypad for robustness, PC-hosted for longer programs - and check the software licence for the latter.
  • The manual is the pre-purchase test - worked code with expected register contents, not a block diagram.
  • One board per two students - decide the group size before quoting quantities.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications, processor, memory and included cards are confirmed in writing on the quotation. For certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: only MTK-0002 names its processor; MTK-0001 does not say whether it is a microprocessor or a microcontroller trainer; and MTK-0003 to MTK-0005 share one name (one with a trailing 1) while MTK-0006 to MTK-0008 share another (one with a trailing 12), so the names alone cannot distinguish them.

Microprocessor & Microcontroller Trainersfor Microprocessor Teaching Labs

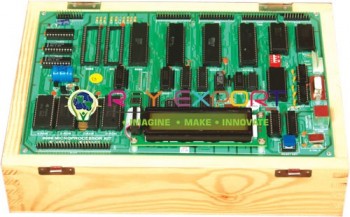

MTK-0001

Microprocessor & Microcontroller Trainers - We are leading manufacturers and exporters of 8085, 8086 microprocessor trainers. Available in different models these microprocessors have in-built modules that help in performing various applications. More have firmware that helps in building user-friendly interfaces. Development & Training System; Microcontroller Trainer; Microprocessor Applications Board; Microprocessor Trainer; Microprocessor Trainers & Applications.

01-8085-Microprocessor Trainerfor Microprocessor Teaching Labs

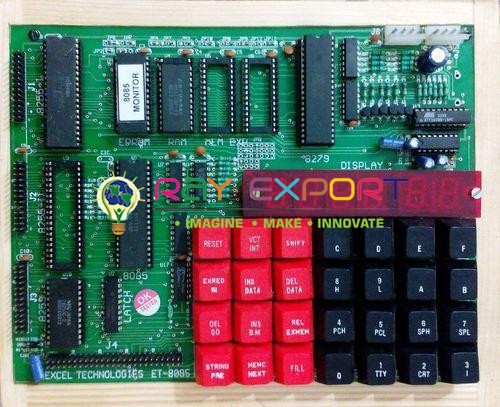

MTK-0002

Based on 8085 CPU operating at 6.144 MHz. 88KB of RAM with Battery Backup, 8K Monitor EPROM Peripheral like 8255,8253, RS-232 using SID/SOD lines 28 keys keyboard with six 7- segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA

Microprocessor Trainerfor Microprocessor Teaching Labs

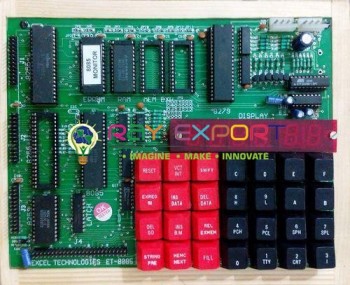

MTK-0003

Based on 8085 CPU operating at 6.144 MHz. 88KB of RAM with battery backup, 8K Monitor EPROM Peripheral like 8255,8253, RS-232 using SID/SOD lines 28 keys keyboard with six 7- segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA

Microprocessor Trainer for Microprocessor Teaching Labs

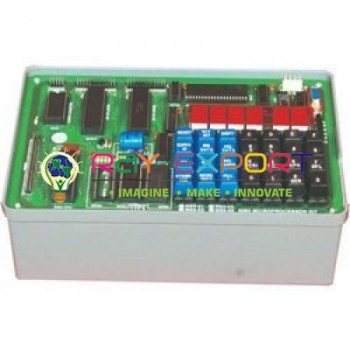

MTK-0004

Based on 8085 CPU operating at 6.144 MHz. 88KB of RAM with battery backup, 8K Monitor EPROM Peripheral like 8255, 8253, RS-232 using SID/SOD lines 28 keys keyboard with six 7- segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA

Microprocessor Trainer for Microprocessor Teaching Labs 1

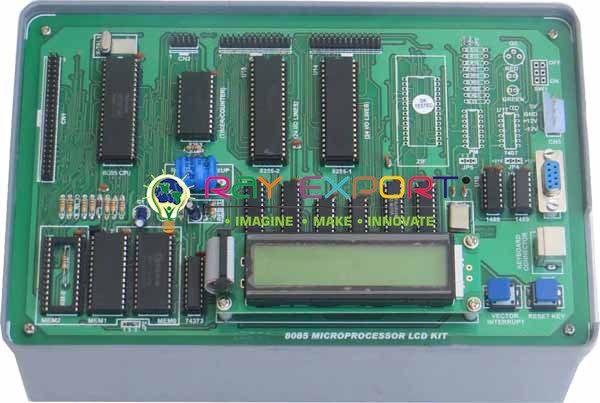

MTK-0005

Based on 8085 CPU operating at 6.144 MHz. 8KB of RAM with battery backup, 8K Monitor EPROM Peripheral like 2X 8255,8253, RS-232 using SID/SOD lines 20x2 Alphanumeric LCD Display with Backlite with 101 ASCII Keyboard On board Single Line Assembler / Disassembler In-Built Power Supply of +5V/1.5A, ±12V/250mA

ADV-Microprocessor Trainerfor Microprocessor Teaching Labs

MTK-0006
Based on 8085 CPU operating at 6.144 MHz. 8KB of RAM with battery backup, 8K Monitor EPROM Peripheral like 2X 8255, 8253, 8259, 8251, RS-232 using SID/SOD lines On-board Eprom Programmer, ADC0809, DAC0800, Relay, OPTO, Printer interface 20x2 Alphanumeric LCD Display with Backlite with 101 ASCII Keyboard On board Single Line Assembler / Disassembler In-Built Power Supply of +5V/1.5A, ±12V/250mA.

ADV-Microprocessor Trainer for Microprocessor Teaching Labs

MTK-0007

Based on 8086/8088 CPU operating at 2.5/5MHz 16KB of RAM with battery backup, 16K Monitor EPROM Peripheral like 3x 8255, 8253, 8259, 8251 RS-232 interface 28 keys keyboard with six 7- segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA 28 keys keyboard with six 7- segment display using 8279 In-Built Power Supply of +5V/1.5A, ±12V/250mA

ADV-Microprocessor Trainer for Microprocessor Teaching Labs12

MTK-0008

Based on 8086/8088 CPU operating at 2.5/5MHz 16KB of RAM with Battery Backup, 16K Monitor EPROM Peripheral like 3x 8255, 8253, 8259, 8251 RS-232 interface 20x2 Alphanumeric LCD Display with Back lite with 101 ASCII Keyboard In-Built Power Supply of +5V/1.5A, ±12V/250mA
