Quick answer. This short range is three separate buying decisions. For the specula, the pattern and the sizes: SLE-0001 holds the Sims and Auvard patterns, SLE-0003 the Cusco and Graves, and the four are not interchangeable in use. For the cautery units (SLE-0006 at 400 W, SLE-0007 at 250 W), the electrode arrangement and safety features matter more than the wattage. For the microscopes, whether you need continuous zoom (SLE-0009) or fixed steps (SLE-0008). All of these are regulated medical devices, so verify the registration each item holds with your own regulator before ordering.
Nine surgical items are catalogued in the SLE series, SLE-0001 to SLE-0009: two speculum sets, surgical blades, two blood lancet types, electrosurgical cautery units at two power ratings, and two surgical microscopes. The decisions that matter here are the speculum pattern, the cautery power and electrode arrangement, and whether the microscope offers continuous zoom.
| Code | Item | Notes |
|---|---|---|
| SLE-0001 | Sims and Auvard Speculum | Two patterns together. The Sims is a double-ended duck-bill blade used with the patient in the lateral position and normally needs an assistant or a retractor to hold it; the Auvard is weighted so it retains itself. |
| SLE-0003 | Cusco and Graves Speculum | Both bivalve, self-retaining patterns for examination. The Graves blade is the wider and longer of the two; the Cusco is narrower. Which one suits depends on the patient, so most clinics hold a range of sizes rather than one. |
| SLE-0002 | Surgical Blades | Blade numbers determine the shape and the handle they fit. Specify the blade numbers you use. |
| SLE-0004, SLE-0005 | Plastic blood lancet, and a second branded lancet | Two lancet lines. Ask for the gauge and the penetration depth for each. |
| SLE-0006, SLE-0007 | Surgical Cautery 400 W and 250 W | Electrosurgical units at two power ratings. See the section below. |
| SLE-0008, SLE-0009 | Surgical Microscopes, and a continuous zoom model | Fixed magnification steps against continuous zoom. See the section below. |
The two codes cover four patterns and they are not interchangeable in use. The weighted Auvard holds itself and frees the operator's hands, which is why it is the one usually specified for procedures; the Sims is the examination and assisted-retraction instrument. Cusco and Graves are both self-retaining bivalves for office examination, with Graves the larger. On any speculum enquiry, state the pattern and the sizes you need in each, and ask for:
Power rating is not simply a bigger-is-better specification. A higher output covers a wider range of tissue and vessel sizes, and matters for general surgery; a lower output is sufficient and more controllable for minor procedures, dermatology and office gynaecology. More important than the headline wattage is what comes with the unit and what safety features it has, so ask for all of the following in writing:
SLE-0009 is listed as continuous zoom and SLE-0008 is not. Continuous zoom lets the surgeon change magnification without losing the field or refocusing, which matters during a procedure; stepped magnification is cheaper and adequate where the working magnification is set once. Whichever you choose, the figures to obtain are the magnification range, the working distance, whether the illumination is coaxial, the depth of field, and the stand type, because a floor stand, a ceiling mount and a table clamp suit very different rooms. Ask also whether an assistant scope, a beam splitter or a camera port is available, and what the lamp life and replacement lamp cost are.
These are regulated medical devices. Confirm the device registration or clearance each item holds in your country of use, since requirements differ between markets, and verify it with your own regulator rather than relying on a product page. For single-use items such as blades and lancets, confirm the sterilisation method, the pack size, the shelf life and whether a certificate of conformity comes with each lot. Note also that one lancet line carries a brand name in its product title; ask the sales team to confirm in writing who manufactures it and exactly what is supplied against that code. Ray Export supplies the goods and holds no approval on your behalf.
Operating theatre equipment and examination lights are under OT Equipments and Examination Lights; obstetric and gynaecological instruments under Gynecological Products; sterilisers under Autoclaves and Sterilizers; and dressings, gloves and single-use items under Hospital Disposables. Diagnostic instruments are under Diagnostic Equipment, and dissection instruments for teaching under Dissecting Lab Tools. Parent range: Medical Apparatus.
Give the pattern and sizes for specula, the blade numbers for blades, and for the cautery the monopolar or bipolar requirement with the accessories you need, for example Surgical Cautery 250 W (SLE-0007) with bipolar forceps and a footswitch. Contact Ray Export for prices, documentation and lead times.
The page describes the four. The Sims is a double-ended duck-bill blade used with the patient in the lateral position, and normally needs an assistant or a retractor to hold it. The Auvard is weighted so it retains itself and frees the operator's hands, which is why it is usually specified for procedures. Cusco and Graves are both self-retaining bivalve patterns for office examination, the Graves wider and longer. Most clinics hold a range of patterns and sizes rather than one.
State the pattern and the sizes you need in each, then ask for four things in writing. The stainless steel grade and finish, since these instruments are cleaned and autoclaved constantly. The size range, with blade length and width for each size, not just small, medium and large. Whether the lock or ratchet is adjustable and how it is released one-handed. And whether the instrument is supplied sterile or non-sterile, with the permitted sterilisation method and cycle count.
The page warns that power rating is not simply bigger-is-better. A higher output, as on SLE-0006 at 400 W, covers a wider range of tissue and vessel sizes and matters for general surgery; a lower output, as on SLE-0007 at 250 W, is described as sufficient and more controllable for minor procedures, dermatology and office gynaecology. More important than the wattage is the arrangement: monopolar, bipolar or both, the output modes such as cut, coagulate and blend, and whether output adjusts in steps or continuously.
Ask in writing for return-electrode monitoring or a contact-quality alarm, and an audible activation tone; the page identifies these as what protects the patient from a return-pad burn. Monopolar work needs a patient return electrode, while bipolar confines the current between the forceps tips. Confirm the accessories: handpiece, electrodes and their shapes, footswitch, return plate and bipolar forceps if required, and which are consumable. Ask for the supply voltage, the electrical safety standard the unit is tested to and its registration, and verify that with your own regulator.
SLE-0009 is listed as continuous zoom and SLE-0008 is not. Continuous zoom lets the surgeon change magnification without losing the field or refocusing, which matters during a procedure; stepped magnification is adequate where the working magnification is set once. Either way, obtain the magnification range, working distance, whether illumination is coaxial, the depth of field and the stand type, since a floor stand, ceiling mount and table clamp suit very different rooms. Ask about an assistant scope, beam splitter or camera port, and lamp life.
For blades, SLE-0002, specify the blade numbers you use, because the number determines both the shape and the handle the blade fits. For the two lancet lines, SLE-0004 and SLE-0005, ask for the gauge and the penetration depth of each. As single-use items, confirm the sterilisation method, pack size and shelf life, and whether a certificate of conformity comes with each lot. One of the lancet lines carries a brand name in its title, so ask us to confirm in writing who manufactures it and what is supplied.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for SLE-0001 to SLE-0009, including sizes, steel grade, sterility, power, electrodes, accessories and optics, are confirmed in writing on the quotation. For registration, approvals or certificates of conformity, contact us for the latest copies of the relevant certificates and verify the position with your own regulator; nothing on this page is a claim of regulatory approval or clinical suitability. No price is quoted on this page. Listing notes: SLE-0001 and SLE-0003 each combine two speculum patterns under one code; no speculum size range is listed; and one of the two lancet lines carries a brand name in its product title, so ask us to confirm in writing who manufactures it and what is supplied against that code.
Sims and Auvard Speculum Made of hardened steel; Available in all sizes
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.
We convey to you top notch MCP Surgical Blades in Carbon Steel. Every edge is indivisually stuffed in aluminum thwarted and pressed in a crate pressing of 100 cutting edges.; Good quality and practical value makes the item extremely famous world over..
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.

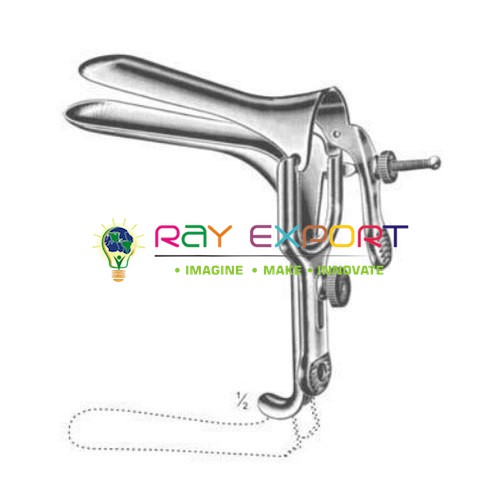

Cusco and Graves Speculum Made of tempered steel Available in all sizes.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.
Details How to utilize Twist off the defensive top After utilize, dispose of lancet in a cut safe holder Warning Do not utilize spear if defensive top has been beforehand expelled. Don't re-utilize lancets. Try not to store lancets in spearing gadgets.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.

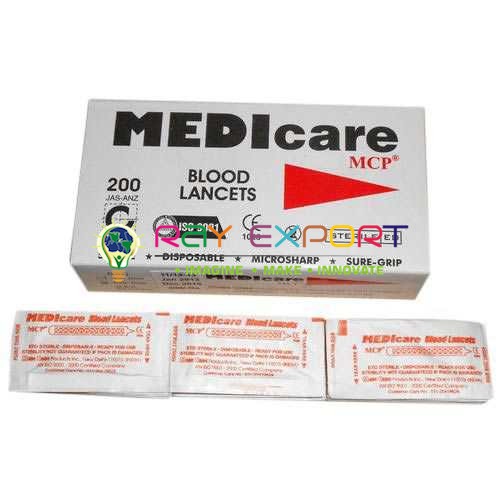

Finest quality Blood Lancets for taking fingertip blood tests. Medicare Blood Lancets are Sterile, Disposable, independently wrapped. Produced using the finest quality rigidized chrome treated steel, Medicare Blood Lancets are deliberately assessed for the most extreme sharpness, consistency, and total sterility. Ultra-Keen point decreases from all sides for least torment. "Beyond any doubt Grip" knurls avoid slipping and control infiltration. Additional length makes taking care of simple. Depiction Medicare Blood Lancets, S/S, Box of 200.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.

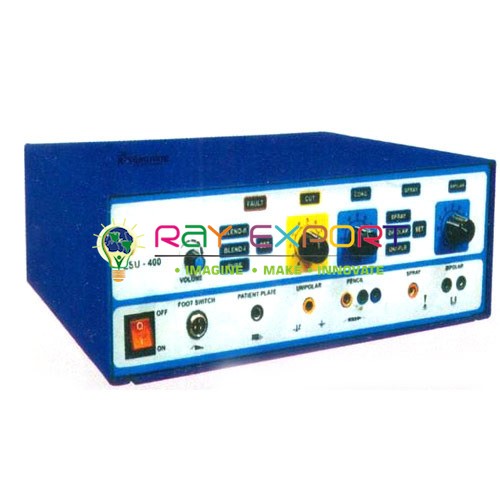

Quill contact mode choice. Conveys exact control of energy with different sorts of current yields. Accomplishes amazing outcomes in greasy tissue or submerged cut. Varying media alert for partitioned mode. Varying media quiet plate blame alert. MOSFET innovation for higher effectiveness. Autonomous initiation of hand switch or foot switch. Monopolar cutting, Coagulation, shower coagulation ; mixed yield. TUR. Bipolar coagulation/Bipolar cutting. Isolate Generators for Monopolar Bipolar. Specialized Specification Monopolar Generator Frequency : 500 + - 25 Khz Cut Control (Pure) : 400 Watts 500 Ohm Load Cut Control (Blend-I) : 225 Watts 500 Ohm Load Cut Control (Blend-II) : 225 Watts 500 Ohm Load Coagulation Control : 160 Watts 500 Ohm Load Spray Coagulation : 100 Watts 125 Ohm Load Bipolar Generator Frequency : 500 + - 25 Khz Bipolar Coagulation : 100 Watts 125 Ohm Load Dimension : W 390mm X D 340mm X H 130mm Gross Weight : 27 ibs (approx) Voltage Required : 220V AC 50 Hz. Power Consumption : 750 VA . Standard Accessories Double pedal foot switch Patient plate with string Unipolar handle with rope Hand pencil switch (Disposable) Bipolar forcep with string Electrode set : 5 No. Fundamental Line string
Strong state incorporated circuit Monopolar cutting, coagulation, mixed yield. Bipolar cutting/Bipolar coagulation. Autonomous initiation of hand switch of foot switch. Varying media alert for particular mode. Extraordinary PVC foot pedal for higher erosion obstruction. Specialized Specification Monopolar Generator Frequency : 400+ - 25 Khz Cut Control (Pure) : 250 Watts 500 Ohm Load Cut Control (Blend : 175 Watts 500 Ohm Load Coagulation Control : 160 Watts 500 Ohm Load Bipolar Generator Frequency : 650 + - 25 Khz Bipolar Coagulation : 80 Watts 125 Ohm Load Dimensions : W 285mm XD 295mm XH120mm Power Consumption : 750 VA Gross Weight : 20 lbs (approx) Voltage Required : 220V AV 50 Hz..
Careful magnifying instruments is given indigenous optical head and consolidated with warm channel. Much the same as our other careful working magnifying instrument, it can be given shaft splitter with ccd camera connector, ccd camera and table cinch connection.
Microscope Section
Specifications | SM-01 | SM-02 |
Eye Piece | 12.5x/10x/16mm (Dipptric adjustment) | 12.5x/10x/16mm (Dipptric adjustment) |
Total Magnification | 5x, 7.5x, 12.5x, 20x, 30x to 25x | 7.5x, 12.5x, 20x |
Field of View | 59 / 37.8 / 23.5 / 14.5 / 9.5mm | 37.8 / 23.5 / 14.5mm |
Objective Lens | F=200 | F=200 |
Working Distance | 200mm | 200mm |
Interpupillary Distance Adj. | 55mm to 75mm | 55mm to 75mm |
ILLUMINATION UNIT
Type | By optical light-guide system |
Light Source | 15V/150Watts Halogen lamp |
Illumination Control | Continuous adjustment |
Field of illumination | 70mm |
Filter | Cobalt blue, red-free, heat absorbing |
Careful magnifying instrument constant zoom
amplification is comprising of a high force light source that can be engaged to
sparkle as an opening. It is utilized as a part of conjunction with a
bimicroscope. The light encourages an examination which takes a gander at
foremost section, or frontal structures and back portion, of the human eye,
which incorporates the eyelid, sclera, conjunctiva, iris, common crystalline
focal point, and cornea. Much the same as our other careful working magnifying
lens it can be given pillar splitter with ccd camera connector, ccd camera and
table brace connection.
Microscope Section
|
Eye Piece |
12.5x/10x/16mm (Dipptric adjustment) |
|
Total Magnification |
5x to 25x |
|
Field of View |
9.5mm to 59mm |
|
Objective Lens |
F=200 |
|
Working Distance |
200mm |
|
Interpupillary Distance Adj. |
55mm to 75mm |
Illumination Unit
|
Type |
By optical light-guide system |
|
Light Source |
15V/150Watts Halogen lamp |
|
Illumination Control |
Continuous adjustment |
|
Field of illumination |
70mm |
|
Filter |
Cobalt blue, red-free, heat absorbing |
STAND SECTION:
|
Arm |
Counter balanced
pantographic arm with 320 degree rotation. |
|
Vertical Range of
Counter Balanced Arm |
400 mm |
|
Floor Stand |
Mobile floor stand
on caster wheels for easy handling and absolute stability. |
|
Base |
600 mm x 500 mm
(Approx) |
|
Weight |
50 Kg |
|
Height |
1550mm |
|
Electrical Power |
AC 220V, 240V, 50/60 Hz |
|
Power Consumption |
220 VA / 110VA |
