Quick answer. The decision that shapes this laboratory is to use the simulator, not a student, as the signal source. The 12-lead ECG simulator, BMT-0002, gives a repeatable waveform of known amplitude and rate, so experiments are reproducible, results can be marked against a known input, and nobody is connected to laboratory equipment. These fifteen trainers are teaching instruments, not medical devices, and must not be used on a patient or for any clinical measurement. Before ordering, establish whether each item is a simulator, a teaching instrument with accessible circuitry, or a demonstration model.
Fifteen trainers are catalogued here, BMT-0001 to BMT-0015, for a biomedical instrumentation course. These are teaching instruments. They are not diagnostic or therapeutic medical devices, and nothing in this range should be used on a patient, used to take a clinical measurement or used to inform any clinical decision. Several of the names, the pacemaker, anaesthesia machine and ultrasound trainers in particular, read like the clinical equipment they teach about, so the first thing to establish with the supplier is which of three things each item actually is: a simulator, a teaching instrument with accessible circuitry, or a demonstration or cut-away model.
| Group | Codes | Trainers |
|---|---|---|
| Signal source | BMT-0002 | 12-lead ECG simulator |
| Cardiac | BMT-0001, BMT-0007, BMT-0009, BMT-0010, BMT-0012 | Heart rate monitor and ECG trainer, heart and pulse rate measurement, single-channel ECG telemetry, 12-lead real-time ECG, arrhythmia monitor |
| Other bioelectric signals | BMT-0004, BMT-0005 | Electromyograph trainer, electroencephalograph trainer |
| Respiratory and acoustic | BMT-0003, BMT-0006 | Respiration rate monitor, phonocardiograph |
| Pressure | BMT-0008 | Oscillometric blood pressure measurement |
| Equipment taught about | BMT-0011, BMT-0013, BMT-0014 | Pacemaker trainer, anaesthesia machine trainer, medical ultrasound machine trainer |
| Integrated monitoring | BMT-0015 | Multi-parameter monitor trainer |
This is the most important decision in setting up a biomedical instrumentation laboratory. A twelve-lead ECG simulator (BMT-0002) produces a repeatable waveform of known amplitude and rate, which means experiments are reproducible, results can be marked against a known input, and nobody is connected to laboratory equipment. Driving the ECG, arrhythmia and monitor trainers from a simulator is both better teaching and the safer arrangement, and it is how most departments should run the practical.
If any part of your course does connect electrodes to a person, treat that as a separate decision with its own requirements, and settle all of the following first:
The teaching value is in the signal chain being visible, not in the number on the display. For BMT-0001, BMT-0004, BMT-0005, BMT-0006 and BMT-0010 ask:
Several of these trainers, and BMT-0015 in particular, come with computer software for display and recording. Ask which parameters BMT-0015 actually covers and which are simulated, whether the software licence is included and for how many seats, which operating system and version it requires, whether recordings can be exported in an open format for students to process, and how the unit connects. If the course records anything from a human subject, that recording is personal data and your institution's rules on consent, storage and retention apply.
The experiment manual with expected waveforms and readings; the quantity per student group; calibration, and whether any figure printed on the panel has a traceable basis; consumables and spares; the supply voltage, frequency and plug type for your country; and the warranty. Specifications quoted are confirmed in writing on the quotation; for any certification, contact us for the latest copies of the relevant certificates before it is relied on or repeated in your own documentation.
Sensors, transducers, signal conditioning and control loops in general are under Instrumentation Trainers. Amplifier and filter foundations are under Basic Electronics Trainers, and digital filtering of recorded signals under DSP Trainers and Kits. Microcontroller-based instrument design is under Embedded System Trainers, telemetry under Communication and RF Trainers, and measuring instruments under Testing and Measuring Lab Trainers. Parent range: Electronics Lab Trainer Kits.
Send your biomedical instrumentation practical list and ask for a quote that states, against each code, whether the item is a simulator or a teaching instrument, whether it is intended for connection to a human subject, and what test points are provided. For example 12 Lead ECG Simulator (BMT-0002) with Heart Rate Monitor cum ECG Trainer (BMT-0001), six benches, test points and isolation position confirmed in writing. Contact Ray Export for prices, manuals and lead times.
No. BMT-0001 to BMT-0015 are teaching instruments for a biomedical instrumentation course, not diagnostic or therapeutic medical devices, and nothing in this range should be used on a patient, to take a clinical measurement or to inform a clinical decision. Any reading the oscillometric blood pressure trainer, BMT-0008, produces is a teaching output. Several names - the pacemaker, anaesthesia machine and ultrasound trainers - read like clinical equipment, so ask in writing what each item actually is, and verify any regulatory point with your own regulator.
Treat it as a separate decision. First ask in writing whether the trainer is intended for connection to a human subject at all; many teaching trainers are not. If it is, ask for the applied-part classification, the isolation arrangement and the patient leakage current figures with the supporting test report, and contact us for the latest copies of the relevant certificates. Ask whether the unit is battery powered. Consent, ethical approval and supervision for students acting as subjects are your institution's obligations, not the supplier's.
Visibility of the signal chain, not the number on the display. For BMT-0001, BMT-0004, BMT-0005, BMT-0006 and BMT-0010, ask whether the stages are brought out to test points from the electrode input through the instrumentation amplifier, the high-pass and low-pass filters and the mains notch filter to the output; the gain, input impedance, common-mode rejection and bandwidth of each stage; and whether gain and filter settings are adjustable. For the EEG and EMG trainers, ask about the noise floor and whether a simulated source is supplied.
Ask first whether any compressed gas is involved in BMT-0013. If it is, the purchase brings facility obligations: cylinder storage and restraint, ventilation, and oxygen-clean fittings handled without oil or grease. Ask whether the vaporiser is a dummy, and confirm that no anaesthetic agent is supplied or required, since agents are controlled substances and have no place in a teaching electronics laboratory. If the item is a simulator with no gas path, ask for that to be stated in writing on the quotation.
For BMT-0011, ask whether it is a pulse-generator simulator with adjustable rate, amplitude, pulse width and pacing mode, and whether it drives a heart simulator; it should have no clinical function. For BMT-0014, ask whether it transmits ultrasound at all and, if so, the frequency and acoustic output, and whether a tissue-mimicking phantom is supplied, since scanning should be taught on a phantom rather than on people. For BMT-0009, ask the radio frequency, power and range, and confirm with your spectrum authority that the band is licence-exempt.
Several trainers, and BMT-0015 in particular, come with computer software for display and recording. Ask which parameters BMT-0015 actually covers and which are simulated, whether the software licence is included and for how many seats, which operating system it requires, whether recordings export in an open format, and how the unit connects. Remember that an oscilloscope is needed for all the bioelectric trainers, and a signal generator if the frequency response of the amplifier chain is to be measured.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for every code, including test points, stage gains, bandwidths and whether each item is a simulator or a teaching instrument, are confirmed in writing on the quotation. These are teaching instruments; for test reports and other documents, contact us for the latest copies of the relevant certificates, and verify any regulatory point with your own regulator. No price is quoted on this page. Listing notes: several product names (pacemaker, anaesthesia machine, medical ultrasound machine) read like clinical equipment, and the listing does not state for any code whether it is a simulator, a teaching instrument or a model, or whether it is intended for connection to a human subject.
Heart Rate Monitor cum ECG Trainer - 3 Digit Digital display of heartbeats/minute, Separate test points to observe ECG waveforms after each block.
12 Lead ECG Simulator - Provides amplified ECG output with P, Q, R, S, T waves.Compatible with Heart Rate Monitor cum ECG Trainer
Respiration-Rate Monitor - 3½ Digit Digital display of breaths/minute. User selectable buzzer for abnormality indication.
Electro-Myograph Trainer - Separate test-points to observe waveforms after each block. Provides amplified real time EMG output. Provides information about 10 simulated EMG outputs.

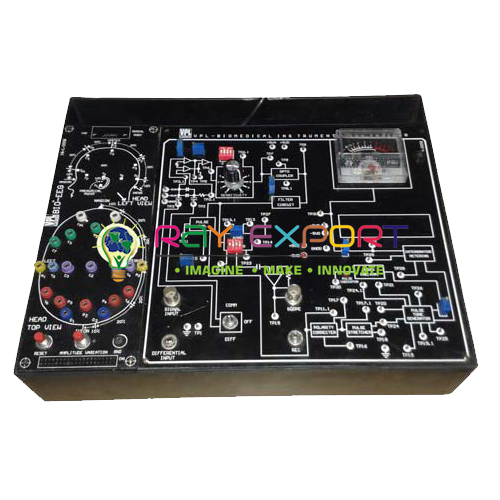

Electro-Encephalograph Trainer - With Inbuilt EEG Simulator.Buffer stage for oscilloscope display.
Phonocardiograph Trainer - Provides amplified Phonocardiogram output. Real time PCG acquisition software.
Heart/Pulse Rate Measurement Trainer - Provide accurate value of systolic and diastolic pressure. Oscilloscope can be used to observe the waveform.
Blood Pressure Measurement (Oscillometric) - Provide accurate value of systolic and diastolic pressure. Separate test points to observe the waveform after each block.
Single Channel ECG Telemetry Trainer - Provides amplified ECG output with P, Q, R, S, T, U waves. Inbuilt ECG Simulator and Real Time ECG Measurement System.
12 Lead Real Time ECG Trainer - Provides all 12 leads amplified ECG output. Provides in-depth study of Standard Unipolar and Bipolar Leads Configuration for ECG measurement in real time.
