Civil Engineering Lab Equipments Lab Equipment Manufacturer, Supplier and Exporter in India

Tensile Strength Tester We are Leading Supplier of Tensile Strength Tester in India. We also bulk supply Tensile Strength Tester for laboratory tensors. Technical Specifications : tension power : 500 N Resolution of beam displacement : 0.01 mm Beam speed : adjustable from 0.1 to 500 mm/min Valid testing space : 800 mm Working environment : Temperature : 10 ~ 30, humidity less than 80% Technical Specifications: Capacity of Tester with accuracy of 100g : 250 Kgf. and 500 Kgf. Capacity of Tester with an accuracy of 10g: 20 Kgf, 50 Kgf, and 100 Kgf S Type Load Cell fixed with Top Grip Traverse Speed:  300 & 100mm /min. Grip Separation: 1000 mm Grip Separation: 25 mm Top Grip is fixed and Bottom Grip is Movable Type. Elongation measurement by Steel Scale and Digital Counter Meter Both. Digital Display of Load and Elongation. Peak value of the last test can be read. User-friendly key panel with a switch of zero setting and peak value of last test Motor: 1/2 HP single phase 220V 50 Hz. ( for Capacity up to 100 Kgf ) Motor: 1 HP single phase 220 V 50 Hz ( for Capacity up to 500 Kgf) Power:  220 VAC 50 Hz. Safety device by the limit switch to protect from over traverse.  .

Sieve Shaker We are Leading Supplier of Sieve Shaker in India. We also bulk supply Sieve Shaker for laboratory tensors. Application The high-frequency sieve shaker is used for graded analysis of non-cohesive and dry grain substance. Technical Specifications of the High-Frequency Sieve Shaker Shaking frequency: 2500/min. Shaking method: up and down Shaking amplitude: 1.5mm Time setting: 0–60min. selectable Motor power: 25W Sieve size: Ø200 x 50mm (9pieces) or Ø300 x 75mm (7pieces) sieve opening: 20–0.75mm Power supply: 220V 50Hz  .

Concrete Vibrator Machine With Nozzle We are Leading Supplier of Concrete Vibrator Machine With Nozzle in India. We also bulk supply Concrete Vibrator Machine With Nozzle for laboratory tensers. Technical Specifications : Cylinder Mould : ( Ø150 x 300 mm),  ( Ø100 x 200mm )  and ( Ø150 x 150 mm ) capacity Split cube mould : 15 kg Quarter cube mould : 150 x 150 x 150 mm of 16 kg Concrete cube mould : 150 x 150 x 150 mm of 16 kg Cement Mortar Mould : 70.7 x 70.7 x 70.7 mm (cast iron), 50 x 50 x 50 mm ( steel production )  .

Vicat Apparatus We are Leading Supplier of Vicat Apparatus in India. We also bulk supply Vicat Apparatus for laboratory tensors. Features For determination of normal consistency of hydraulic cement, gypsum plaster and lime Setting time of cement, gypsum plaster and gypsum concrete Specifications The apparatus consists of the following: A frame with a vertically moving bearing rod Mould in the form of the frustum of a cone 70 mm bottom dia. 60 mm top dia. and 40 mm high with base plate NeePlunger 10 mm Dia. x 50 mm long Plunger 19 mm Dia. x 44.4 mm long Plunger 12.5 mm Dia. x 25 mm long One brass weight  .

Concrete Mixer Machine We are Leading Supplier of Concrete Mixer Machine in India. We also bulk supply Concrete Mixer Machine for laboratory tensors. Features :             The machine is motorized system, effective & good closing to clean & less dust for easy maintenance. The essential facility is mixing of fresh concrete for laboratory test samples are through & consistent. Must be easy To operate by front pedal Technical Specifications: Input volume: 96 L Mix Yield: 60 L Mixing time: 45 sec. Speed of the mixing shaft: 45 RPM Motor power: 3.2KW This facilitates mixing and discharge. Blades are provided inside the vessel to mix the material thoroughly. The large pulley wheel facilitates manual rotation of the drum during the power failure. The drum, pulley wheel, and motor, etc, are mounted on a steel frame in these laboratory concrete mixer.The concrete mixer is fitted with ½ HP motor. Suitable for Operation on 220V, Single Phase, 50Hz, AC Supply.    .

Cement Mortar Mixer We are Leading Supplier of Cement Mortar Mixer in India. We also bulk supply Cement Mortar Mixer for laboratory tensors. Technical Specifications: The equipment of Cement Mortar strength fit the standard ISO 679: 1989 cement strength test way. It’s construct also Rotation of low speed : 140 ±5 rotate/min High speed : 285 ±10 rotate / min Revolution low speed : 62 ± 5 rotate / min High speed : 125 ±10 rotate / min Voltage : AC 380 V Power of motor : 0.370 / 0.55 KW 8/4P Specification: The apparatus consists of an epicyclic type stainless steel paddle imparting both planetary and revolving motion, by means of gears. It has two speeds of 140 + 5 r.p.m. and 285 + 10 r.p.m. with planetary motions of approximately 62 r.p.m. + 5 r.p.m. and 125 r.p.m.+/-10 r.p.m. respectively. The stand of the mixer has the arrangement to raise or lower the bowl. Complete with stainless steel bowl of about six liters capacity. Suitable for operation on 230 volts, 50 cycles, single phase, A.C. supply  .

Features:

             Triplex Consolidation Apparatus (Middle pressure) Used for compression test of soil, to determine the relationship between deformation and compression of the soil, to calculate the unit settlement, compression index, resilient index as well as consolidation coefficient of the soil and etc. Technical Specifications : Size of specimen : Ø61.8 x 40 mm Axial load : 5 ~ 7 KN Side pressure : 0 KPa ~ 1200 KPa Axial displacement : 0-12 mm Working temperature : 20±5ºC – 30±5ºC Relative moisture : <85% Relative Error of the proving ring : <1% Relative Error of the height : ±2%  .

Direct Shear Test Machine We are Leading Supplier of Direct Shear Test Machine in India. We also bulk supply Direct Shear Test Machine for laboratory tensors. Direct Shear Test Machine Features :             The Equipment is designed to test resisting shear strength of soil specimen. The facility of the machine to test four specimen under different vertical pressure The electric strain direct shear testing apparatus is used to test the resisting shear strength of soil specimen. Technical Specifications : Area of soil sample : 30 cm2 Lever ratio : 1:12 Vertical loading : 50, 100, 200, 300, 400 KPa Horizontal loading : 1.2 KN Shear rate : 5, 2.4, 1.5, 1, 0.8, 0.02, 0.01 mm/min Specimen size : 30cm2 The working table is made of : Stainless steel Pushing mechanism : Stepping Motor High Precision & Low Noise Control system : MCU Speed : Variable Display system : LCD / LED Power Supply : 220 ~ 240 VAC, 50~60 Hz  .

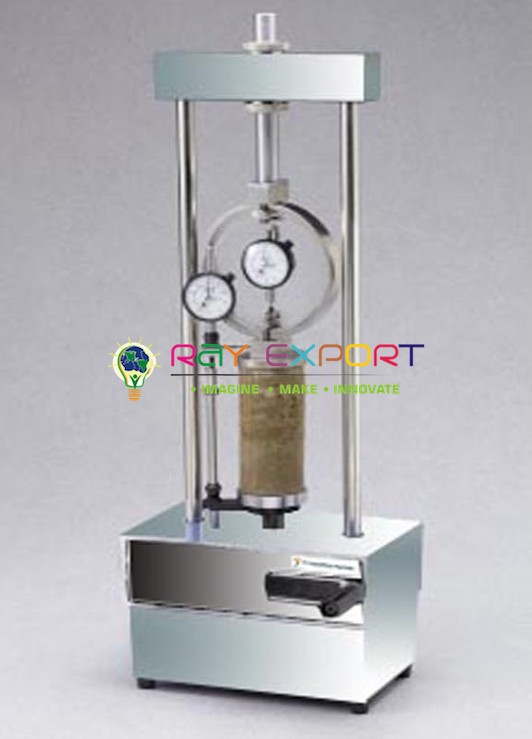

Unconfined Compression Test Machine We are Leading Supplier of Unconfined Compression Test Machine in India. We also bulk supply Unconfined Compression Test Machine for laboratory tensors. Unconfined Compression Test Machine Features :             The electric strain unconfined compression tester is used to determine un-confined compression strength of cohesive and semi-cohesive soils. The test is used to supply information needed for the design and construction of civil engineering structures. Technical Specifications of the Electric Strain Unconfined Compression Tester Lift plate journey per revolution of the wheel : 0.2 mm stroke of the lift plate : 30 mm Lifting speed : 1.8mm/min ±15% axial load : 0.6 KN Diameter of the cylinder : Ф39.1  .

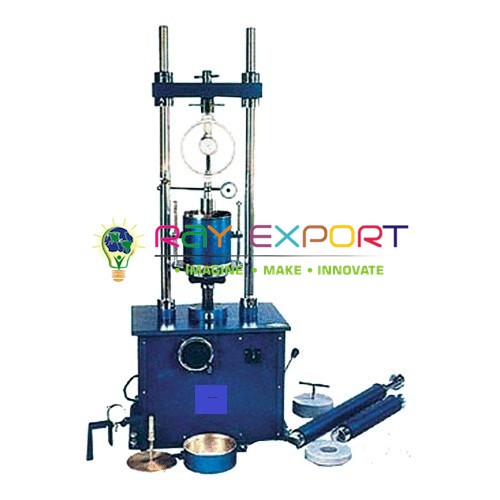

Triaxial Compression Test Machine We are Leading Supplier of Triaxial Compression Test Machine in India. We also bulk supply Triaxial Compression Test Machine for laboratory tensers. Technical Specifications : Capacity : 40 ~ 100 KN Type : Triaxial System Application : Measuring soil strength, analyzing soil stability and providing data for construction projects. Perform UU, CU and CD Triaxial tests Specimen size : φ61.8 x 125, Ф 101 x 220 mm axial load : 70 ~ 100 KN Lift speed range (mm/min) : 0.003, 0.006, 0.008, 0.012, 0.020, 0.030, 0.040, 0.050, 0.060, 0.070, 0.080, 0.090, 00, 0.400, 0.500, 0.600, 0.700, 0.800, 0.900, 1.000 Stroke : 45 ~ 55 mm confining pressure : 2 – 3 Mpa back pressure : 0.6 – 1.5 MPa Pore Water pressure : 0 – 2 MPa Volume change range : 0 – 50 ml Minimum division : 0.1 ml Axial displacement range : 0 – 30  .
