Theory of Machines Lab

Theory of Machines Lab Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Theory of Machines Lab in India,

Theory of Machines Lab

Quick answer. This is the experiment range for a dynamics of machines laboratory - motorised, instrumented rigs on which a student varies something and measures the result: gyroscope, governors, journal and tilting pad bearings, whirling of shaft, universal vibration, cam analysis, static and dynamic balancing, slip and creep. Codes run TML-0001 upwards across about 110 records. It is not the same range as our demonstration models, which are coded TOM- and listed under models - theory of machines; those show a mechanism moving, these produce a graph. The test to apply to any rig on this page is the one in the next section: what can you vary, and what can you measure while you vary it?

What the rig must let you vary

A dynamics apparatus that can only be switched on gives a class one observation. The same apparatus with an independent variable and a measurement chain gives them a graph, a gradient and a comparison with theory - which is the whole point of the laboratory. So before capacity, finish or price, ask what the rig lets you change and what it lets you read. For every experiment in this range there is a specific answer:

ApparatusWhat you varyWhat you measureThe result the experiment exists for
Motorised gyroscope (TML-0001)Applied couple, and spin speedRate of precession, spin speedThat precession rate is proportional to the applied couple and inversely proportional to spin - verified, not asserted
Universal and motorised governor (TML-0007, TML-0010)Speed, and sleeve load or spring rateSleeve lift against speedThe characteristic curve of each governor type, and the difference between them on one frame
Journal bearing (TML-0002)Load, speed, oil grade and temperaturePressure at tappings around and along the bearingThe pressure distribution that hydrodynamic theory predicts, and how it collapses as speed falls
Michell tilting pad bearing (TML-0008)Load and speedPad tilt and film pressureWhy a pad that is free to tilt forms a converging film at any speed
Whirling of shaft (TML-0003)Speed, shaft diameter and length, end fixingAmplitude against speedCritical speed, and how end conditions move it
Universal vibration (TML-0004)Exciting frequency, mass, stiffness, dampingAmplitude and phase against frequencyResonance, and the effect of damping on the peak - the most transferable result in the subject
Cam analysis (TML-0005)Cam angle, cam and follower type, spring loadFollower displacement, and jump speedThe displacement diagram measured rather than drawn, and the speed at which the follower leaves the cam
Static and dynamic balancing (TML-0006)Mass, radius and angular position of each weightResidual vibration or reaction at the bearingsThat static balance does not imply dynamic balance - the result students remember
Slip and creep (TML-0009)Belt tension and loadDriver and follower speedsThe distinction between slip and creep, which a formula alone never makes clear

We put this table first because it is the fastest way to tell a well-specified rig from a cheap one. Two rigs can look identical in a photograph and differ entirely in whether the independent variable is adjustable and calibrated. A governor with a fixed spring teaches one curve; a governor with interchangeable springs and a scale on the sleeve teaches the family of curves, which is the syllabus.

The measurement chain is where these experiments are won or lost

Almost every experiment above reduces to one of three measurements, and each has a characteristic failure.

Speed

Speed appears in nearly every result on this page, and in the gyroscope and whirling experiments it appears squared or cubed, so an error in speed is magnified in the answer. Specify how speed is measured and insist on a second, independent means of checking it. A contact or optical tachometer reading the shaft directly, cross-checked against the drive setting, is the minimum. Where a stroboscope is used, it must be used with discipline, and a laboratory that owns only a stroboscope and no second instrument will eventually publish a speed that is a simple multiple of the truth.

Amplitude

In the vibration and whirling experiments the quantity of interest is a small displacement of a moving part. Ask what measures it: a dial gauge is useless on a vibrating member, a mechanical drum recorder gives a trace a class can see and measure, and a transducer with a logger gives frequency and phase as well as amplitude. The answer determines which experiments the rig can actually support - phase against frequency, which is where the physics of resonance lives, needs a transducer.

Force, couple and reaction

In the gyroscope, balancing and bearing experiments the measured quantity is a force or a reaction. Dead weights on a known arm are simple, honest and visible, and for teaching they are often better than a load cell because the student can see what is applying the couple. Where a load cell is used, ask how it is calibrated and whether a dead-weight check is possible, because an uncalibrated electronic reading is the easiest thing in a laboratory to believe and the hardest to check.

Guarding, anchoring and the stop button

These are motorised rigs with exposed rotating masses, and several of them are deliberately run into a condition the rest of engineering avoids. Three requirements apply to the whole range and should be on the order, not negotiated after delivery:

  • A guard that is in place when the rig runs, over any rotating mass, belt or flywheel. On the balancing rig this matters more than it looks: the rig is run deliberately out of balance, and an out-of-balance rotor throws anything that is loose.
  • A fixing to the floor or a bench of sufficient mass. An unanchored rig with an out-of-balance rotor walks across the floor, and the walking itself corrupts the reading, because the frame is then part of the vibrating system.
  • An emergency stop within reach of the operator, and a stated maximum speed with the drive limited to it. On the whirling rig the limit is not advisory.

One practical point about the bearing rigs that nobody mentions until the first session: they leak. Oil on a laboratory floor is the most likely injury in this range. Ask for a drip tray with the rig, decide where waste oil goes before the first experiment, and keep absorbent granules in the room.

Specifying the governors, because this is where syllabuses differ

Governors are the experiment most often bought wrongly, because the catalogue word "universal" covers several arrangements and a syllabus usually names specific ones. The arrangements a mechanical engineering course normally requires are the simple pendulum type, the loaded type with a central weight, and the spring-loaded type, and what the student is asked to produce is a curve of sleeve lift against speed for each, compared with each other.

So ask three questions: which arrangements can be set up on the frame supplied; is the change-over a conversion the laboratory can do inside a practical session, or a rebuild; and is there a scale on the sleeve, since a lift that has to be estimated by eye produces a scatter plot rather than a curve. For the spring-loaded arrangement, ask whether more than one spring rate is supplied, because the effect of spring stiffness on the governor characteristic is a standard exercise and it cannot be done with one spring.

What to tell us when you enquire

  • Your experiment list as the syllabus words it. These rigs map onto named experiments, and we would rather match the list than guess from a category.
  • Group size and session length. A rig that takes most of a practical to set up suits a demonstration, not a rotation of six groups.
  • What instrumentation the laboratory already owns - tachometer, transducers, logger, stroboscope - because the sensible purchase is often a rig specified to accept what you have.
  • Floor or bench mounting, and whether the room can take an anchored rig.
  • Supply voltage and frequency, destination country, and whether a drip tray and oil are to be supplied.

Related ranges: models - theory of machines for the demonstration models that accompany these experiments, engineering training models for mechanism and linkage models, S.O.M. lab for strength of materials, structural mechanics lab, engineering gear models, and hydraulics and fluid mechanics trainers. The full mechanical lab equipments category lists the rest of this branch.

Frequently asked questions

How is this range different from your theory of machines models?

The models, coded TOM-, show a mechanism moving so that a student can see how it works. The apparatus on this page, coded TML-, is instrumented so that a student can vary a quantity and measure the consequence. A laboratory teaching the subject properly wants both: the model makes the mechanism intelligible, and the rig turns it into a measurement. If your budget covers only one, buy according to what your assessment requires - a laboratory report needs data, a lecture needs a model.

Why does the balancing experiment matter so much?

Because it produces the result students find least intuitive: an assembly can be perfectly balanced at rest and shake violently when it rotates. Static balance requires the resultant force to vanish; dynamic balance also requires the resultant couple to vanish, and two equal masses set at opposite ends of a shaft and 180 degrees apart satisfy the first and fail the second. Measuring the bearing reaction makes that unavoidable, which is why it belongs in a laboratory rather than a lecture.

What makes the whirling of shaft experiment different from the others?

It is the one experiment in the laboratory where the machine is deliberately run at its own critical speed, so the amplitude grows while the student watches. That is exactly why it teaches well, and exactly why the guard, the anchorage, the stated maximum speed and a drive limited to it are not optional. Ask us for the maximum speed in writing and make it part of the standing instruction for that rig.

Can we run the journal bearing experiment without a heater or oil temperature measurement?

You can take readings, but they will not be comparable from one session to the next. Oil viscosity falls steeply with temperature and viscosity is in the theory, so the oil grade and the oil temperature are part of the result and belong on the report form. If the rig has no temperature measurement, add one; if the laboratory is hot in the afternoons, expect the morning and afternoon groups to disagree until the temperature is recorded.

Do these rigs come with experiment manuals?

Ask per item and get the answer in writing before ordering. For a teaching laboratory the manual - the procedure, the theory, the observation table and a worked example - is a substantial part of the value, and it is the thing most often missing. If a manual is not supplied, budget staff time to write one, because a rig without a procedure tends to sit unused after the member of staff who understood it moves on.

Can one rig cover several experiments?

Sometimes, and it can be a false economy. A universal vibration frame genuinely supports many experiments and is good value. A single frame that must be rebuilt between experiments costs session time every week for the life of the rig, and in a laboratory with six groups rotating it becomes the bottleneck. Tell us your session length and group count and we will say which combination is sensible rather than which is cheapest.

Key takeaways

  • Buy the variable, not the rig. Ask what each apparatus lets you change and what it lets you read; a rig with a fixed parameter teaches one point instead of a curve.
  • Speed errors are magnified. Speed appears squared or cubed in several results here, so specify how it is measured and keep a second independent instrument to check it.
  • Amplitude measurement decides which experiments are possible. Phase against frequency needs a transducer; a dial gauge cannot do it.
  • Guard, anchor, and limit the speed. These rigs run exposed rotating masses, and the balancing rig is run deliberately out of balance.
  • Bearing rigs leak. Specify a drip tray and decide where waste oil goes before the first session.
  • Governors need more than one spring and a scale on the sleeve, or the standard exercises cannot be run.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Notes on this listing, published rather than hidden: the tilting pad bearing is named after A.G.M. Michell and the record spells it "Michel" - we are correcting it, and we print the correct spelling here because it is the word a specifier will search for. One record ("Cam Analysis Apparatus-") carries a stray trailing hyphen in its name. This category covers the same subject as our TOM- coded models range under a different parent; the two hold different products with different codes, and we have recommended that the relationship between them be made explicit in the site structure rather than left for a visitor to work out. Specifications are confirmed in writing on the quotation; for certificates and standards, contact us for the latest copies of the relevant certificates before tender submission.

Whirling Of Shaft Demonstrator 2

TML-0041

Spinning Of Shaft Demonstrator Our organization holds ability in offering ideal quality Whirling Of Shaft Demonstrator to our regarded clients. The mechanical assembly offered by us is correctly built from ideal quality stainless steel, which is obtained from surely understood sellers. The offered mechanical assembly is generally utilized for concentrate the marvel of spinning of shafts. Particular: A dimmer condition of 240v, 2amp, and 50 cycles is utilized to control speed of the turning shaft The driving engine is 230V DC 1/16 H.P: 6500 RPM

Michell Tilting Pad Bearing Apparatus

TML-0042

Michell Tilting Pad Bearing Apparatus Leveraging on the tremendous business encounter, we have possessed the capacity to offer the customers Michell Tilting Pad Bearing Apparatus.. These are composed with most extreme accuracy by our accomplished experts utilizing ultra-present day machines and hardware. Prior to the last conveyance, these items are stringently inspected on different grounds by our quality analyzers to guarantee their faultlessness. Highlights: Easy to watch and work Low support Reliable execution Durable Theory of Machine Lab Apparatus lab hardware manufacturers,exporters and Theory of Machine Lab Apparatus Lab providers

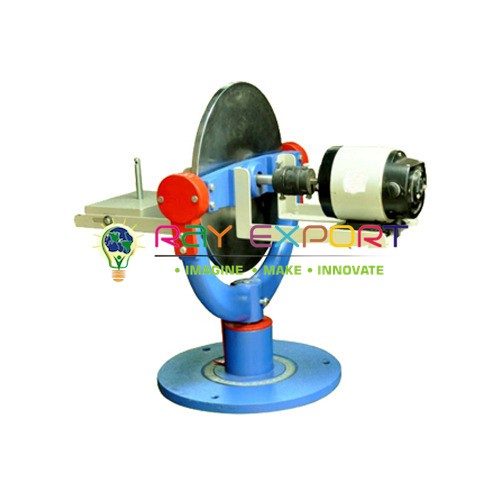

Gyroscope 2

TML-0043

Whirligig - Engineering Lab Training Systems This gyrator was first created in 1917 under the name of 'Chandler gyroscope'. It has remained moderately unaltered and has been a great instructive toy for ages. It keeps on intriguing youthful and old alike with its puzzling power that appears to challenge gravity. Regardless of whether you simply need to have a great time with it similarly as a toy or whether you need to take in more about material science/study of whirligigs..

Flywheel Apparatus

TML-0044

Highlights Low cost, compelling showing Self-contained Wall mounted Demonstrates: a) Second Law of Motion b) Energy stockpiling Three year guarantee Range of Experiments To check the second law of movement connected to a flywheel, ie the connection amongst torque and rakish accerleration To look at exploratory and computed snapshots of idleness of a circle To contemplate the vitality changes and to exhibit that a flywheel can be utilized to store vitality Description A steel plate 250 mm measurement and 30 mm thick is mounted on a pole running in metal balls housed on a considerable divider section. A blemish on the flywheel and a pointer on the section empower the upsets to be checked and coordinated with the stop watch provided. A rope, stack holder and set of weights are given. This hardware is a piece of a range intended to both exhibit and tentatively affirm essential designing standards. Extraordinary care has been given to every thing in order to give wide test scope without unduly entangling or trading off the outline. Each bit of contraption is independent and smaller. Setting up time is insignificant, and all estimations are made with the most straightforward conceivable instrumentation, so the understudy contribution is simply with the designing standards being instructed. A total guideline manual is given portraying the mechanical assembly, its application, trial strategy and run of the mill test comes about..

Oscillating Cylinder Apparatus 2

TML-0045

Highlights Low cost, compelling educating. Independent. Seat mounted. Estimation of wrench edge and slider position. Speed and increasing speed by graphical separation. Wrench component with oscillatory slider. Variable wrench length. Three year guarantee. Scope of Experiments To decide the connection between wrench point and stroke. To ponder the impact of changing the wrench span. To examine by graphical separation the connection amongst precise and direct speeds and increasing velocities of the component. To build speed and increasing speed outlines for the system. Examination of trial comes about with hypothetical expectations. Depiction The mechanical assembly demonstrates the connection between wrench shaft turn and cylinder relocation, for a swaying barrel. The wrench length is customizable. Crankshaft revolution is estimated by a pivoting protractor scale and cylinder dislodging is appeared on a sliding scale. The gear might be mounted vertically for show purposes, or level on the seat for exploratory utilize. This gear is a piece of a range intended to both exhibit and tentatively affirm essential building standards. Extraordinary care has been given to every thing in order to give wide test scope without unduly convoluting or trading off the outline. Each bit of mechanical assembly is independent and conservative. Setting up time is insignificant, and all estimations are made with the least difficult conceivable instrumentation, so the understudy association is absolutely with the building standards being educated. An entire direction manual is given depicting the mechanical assembly, its application, exploratory method and run of the mill test comes about..

Epicyclic Gear Train Apparatus

TML-0046

Epicyclic Gear Train Apparatus The coach comprises of an Epcyclic equip box coupled to a variable speed electric engine. Opposite end of the apparatus prepare is coupled to a brake drum for estimation of transmitted torque. One all the more spring balance is utilized to quantify holding torque of the epicyclic apparatus prepare. Estimating instruments are given to estimation of Power provided to the engine, torque transmitted & speed. Test Capabilities: • To exhibit activity of Epicyclic Gear Train. • To quantify holding torque & transmitted torque of Epicyclic Gear Train. Specialized Specifications: • Variable Speed Motor: Capacity 0.5 hp @ 15400 RPM with speed controller • Epicyclic Gear Train: Capacity 100 N-m, Speed Ration 4:1 • Brake Drum Pulley • Spring Balance – 2 Nos. • Voltmeter & Ammeter for Power utilization of Motor. • Tachometer for Speed Measurement • Base Frame: MOC – M. S. Square pipes & Angles, Powder Coated • Electric Switches & Wiring.

Governor Apparatus

TML-0047

Senator Apparatus-Engineering Lab Training Systems Thisbenchtop unit is utilized to exhibit the rule of activity of different divergent power governors. The drive with an electronically managed engine is fitted in the lodging. The speed is persistently balanced utilizing a 10-turn potentiometer and showed carefully. The senator is put in a toss on the drive. The divergent masses and sleeve powers can be changed utilizing the embellishments included. The stroke can be estimated utilizing the imprints on the senator shaft. At the point when in activity, a straightforward defensive top covers the pivoting radiating senator. The unit must be set in activity if the cover is effectively fitted. The unit is essentially put on a table in the research facility for activity. It just requires a supply of energy..

Castor, Camber And King Pin Inclination

TML-0048

Highlights Low cost, compelling instructing. Independent. Seat mounted. Variable castor, camber, boss slant. Dished street wheels. Variable wheel balance. Exhibits focus point controlling. Moving street empowers investigation of wheel strength. Reenactment of auto weight and estimation of directing powers. Three year guarantee. Scope of Experiments To indicate how castor, camber and boss slant are set up. To indicate how the guiding linkage is identified with toe-in. To show the impact of wheel balance. To watch the dynamic soundness of the wheel under running conditions. To quantify the powers on the directing connection. To indicate how the heaviness of the auto influences self focusing. Depiction Students frequently encounter trouble in understanding the standards of front wheel set-up on street vehicles, since the geometry includes points in three measurements. This contraption speaks to a half to third scale model of the wishbone and boss course of action of a front wheel suspension finish with a 250mm wheel on a flexible stub hub. The boss gathering incorporates a guiding connect to show how a genuine auto functions. The essential adaptation of the mechanical assembly, HTM21, demonstrates decisively how castor, camber and boss sign are set up and how focus point controlling is accomplished. A dished haggle of adjusting the balance are incorporated so everything influencing focus point controlling can be fluctuated. Vernier scales measure the castor edges and boss slant, while toe in and camber points are estimated from a longitudinal and vertical datum in the manner by which they would be resolved on a genuine vehicle. A hand driven pivoting turntable reenacts a moving street, and might be turned at an ease sufficiently back speed to think about wheel soundness under running conditions. This hardware is a piece of a range intended to both exhibit and tentatively affirm fundamental building standards. Incredible care has been given to every thing in order to give wide test scope without unduly confounding or trading off the outline. Each bit of mechanical assembly is independent and reduced. Setting up time is insignificant, and all estimations are made with the easiest conceivable instrumentation, so the understudy inclusion is simply with the building standards being instructed. An entire direction manual is given portraying the mechanical assembly, its application, test technique and average test outcomes..

Wheel And Axle

TML-0049

Highlights Low cost, powerful educating. Independent. Divider mounted. Prologue to basic machines. . Assurance of speed proportion mechanical preferred standpoint and effectiveness. Three year guarantee. Scope of Experiments Experimental assurance of speed proportion and examination with ascertained esteem. Assurance of variety with heap of exertion productivity Description The PVC double distance across wheel has a hub upheld on straightforward rotates in a durable divider mounting section. Ropes twisted round the peripheries of the wheels convey stack holders for the heap and exertion. An arrangement of weights is given. This hardware is a piece of a range intended to both show and tentatively affirm essential designing standards. Extraordinary care has been given to every thing in order to give wide trial scope without unduly muddling or bargaining the plan. Each bit of mechanical assembly is independent and reduced. Setting up time is negligible, and all estimations are made with the easiest conceivable instrumentation, so the understudy inclusion is absolutely with the designing standards being instructed. An entire direction manual is given depicting the device, its application, exploratory strategy and run of the mill test comes about.

Simple Screw Jack 2

TML-0050

Highlights Low cost, successful showing Self-contained Bench mounted Introduction to straightforward machines Determination of speed proportion mechanical favorable position and proficiency Overhauling Three year guarantee Range of Experiments Experimental assurance of speed proportion and examination with figured esteem Determination of variety with heap of: exertion contact effectiveness Limiting productivity of the machine Description This basic screw jack is a 220 mm measurement turntable fitted with a 30 mm x 6 mm contribute screw is upheld a substantial solid metal base. The mechanical assembly is remained on a firm seat and a rope and weight holder are twisted round the edge of the turntable and hung over the pulley. The pulley keeps running on metal rollers to decrease grating to a base. This gear is a piece of a range intended to both show and tentatively affirm fundamental designing standards. Incredible care has been given to every thing in order to give wide test scope without unduly confusing or trading off the outline. Each bit of device is independent and reduced. Setting up time is insignificant, and all estimations are made with the least complex conceivable instrumentation, so the understudy contribution is absolutely with the building standards being educated. An entire guideline manual is given depicting the device, its application, test methodology and ordinary test outcomes..
