Miscellaneous Equipments Of Engineering Lab

Miscellaneous Equipments Of Engineering Lab

Miscellaneous Products,Miscellaneous Equipments,Engineering lab products

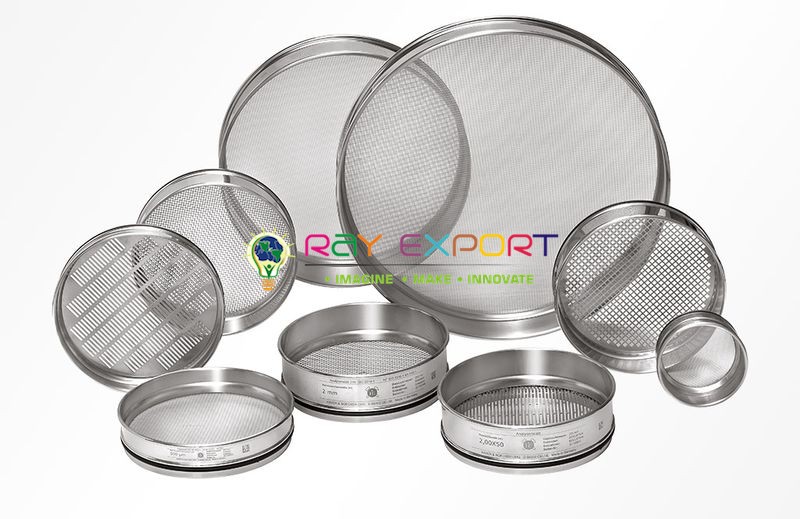

Test Sieves

ME-0001

8" (20 cm.) diameter, brass frame, without joint and with a stainless steel cloth.
    Test Sieves 4 , Width of Aperture 4.75 mm
    Test Sieves 5, Width of Aperture 4.00 mm
    Test Sieves 6, Width of Aperture 3.35 mm
    Test Sieves 7, Width of Aperture 2.80 mm
    Test Sieves 8, Width of Aperture 2.36 mm
    Test Sieves 10, Width of Aperture 1.70 mm 2.00 mm
    Test Sieves 12, Width of Aperture 1.70 mm
    Test Sieves 14 , Width of Aperture 1.40 mm
    Test Sieves 16, Width of Aperture 1.18 mm
    Test Sieves 18, Width of Aperture 1.00 mm
    Test Sieves 20, Width of Aperture 850 microns
    Test Sieves 25,Width of Aperture 710 microns
    Test Sieves 30, Width of Aperture 600 microns
    Test Sieves 35,Width of Aperture 500 microns
    Test Sieves 40, Width of Aperture 425 microns
    Test Sieves 45,Width of Aperture 355 microns
    Test Sieves 50, Width of Aperture 300 microns
    Test Sieves 60, Width of Aperture 250 microns
    Test Sieves 70, Width of Aperture 212 microns
    Test Sieves 80, Width of Aperture 180 microns
    Test Sieves 100, Width of Aperture 150 microns
    Test Sieves 120, Width of Aperture 125 microns
    Test Sieves 140, Width of Aperture 106 microns
    Test Sieves 170, Width of Aperture 90 microns
    Test Sieves 200, Width of Aperture 75 microns
    Test Sieves 230, Width of Aperture 63 microns
    Test Sieves 270, Width of Aperture 53 microns
    Test Sieves 300, Width of Aperture 45 microns
    Test Sieves 325, Width of Aperture 44 microns
    Test Sieves 380, Width of Aperture 40 microns
    Lid and Pan Set for above Test Seives

Coarse Sieves

ME-0002

12" dia., (30 cm.), G.I. sheet frame with steel sheet square punching.
     Coarse Sieves, 125 mm
     Coarse Sieves, 106 mm
     Coarse Sieves, 100 mm
     Coarse Sieves, 90 mm
     Coarse Sieves, 80 mm
     Coarse Sieves, 75 mm
     Coarse Sieves, 63 mm
     Coarse Sieves, 53 mm
     Coarse Sieves, 50 mm
     Coarse Sieves, 45 mm
     Coarse Sieves, 40 mm
     Coarse Sieves, 37.5 mm
     Coarse Sieves, 31.5 mm
     Coarse Sieves, 26.5 mm
     Coarse Sieves, 25 mm
     Coarse Sieves, 22.4 mm
     Coarse Sieves, 20 mm
     Coarse Sieves, 16 mm
     Coarse Sieves, 13.2 mm
     Coarse Sieves, 12.5 mm
     Coarse Sieves, 11.2 mm
     Coarse Sieves, 10 mm
     Coarse Sieves, 8 mm
     Coarse Sieves, 6.7 mm
     Coarse Sieves, 6.3 mm
     Coarse Sieves, 5.6 mm
     Coarse Sieves, 4.75 mm
     Lid And Pan Set Made of G.I. sheet for above Coarse Sieves

Sieve Shaker, Gyratory Type

ME-0003

It is driven by a 0.25 H.P. motor, 220 volt A.C. through a reduction gear and is suitable to carry up to 7 sieves of 6" or 8" Dia. When clamped the sieve table does not rotate but is inclined from the vertical axis and the direction of inclination changes progressively in the clockwise direction. In addition to the gyratory motion of the shaker, there is an upward and downward movement at a frequency of 270 r.p.m.

Sieve Shaker, Gyratory Type
Timer Switch

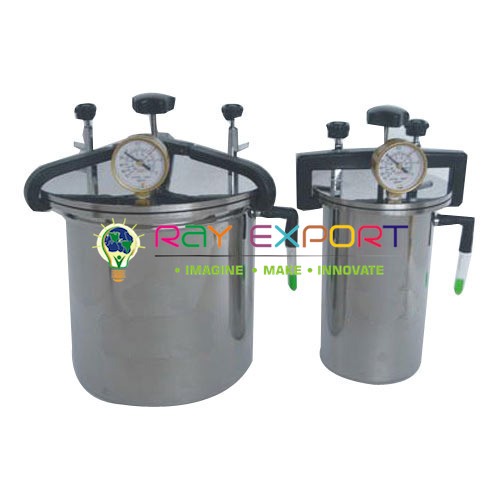

Culture Jar Anaerobic

ME-0006

Modified MCINTOSH and glides pattern, for the safe growth of anaerobes by utilizing a catalyst which is active above tightening 0° C. The heavy polycarbonate jar 23 cm, high x15cm. diameter has a top surface ground flat and the metal cover fitted with a toroidal sealing ring is held in place by hand tightening only. The cover is fitted with two needle valves for evacuation and filling and a sachet containing the catalyst With Pressure Gauge.

Culture Jar Anaerobic

Sieve Shaker, Hand Operated

ME-0004

For 20 cm. diameter sieves. The portable sieve shaker is a hand operated a lightweight unit designed for easy handling and transportation. The apparatus can be used both in field and laboratory.

Sieve Shaker, Hand Operated

Anaerobic Culture Jar 3.5 Litre with Vaccum cum Pressure Gauge

ME-0007

Transparent anaerobic culture jar of 3.5-liter capacity which is made of polycarbonate. The lid of the jar is made of aluminum pressure die casting fitted with the pressure valve, vacuum valve, safety valve & compound pressure cum vacuum gauge, three finger aluminum clamp and sealing O ring and air/gas chuck. This is recommended where inside condition of air of jar is removed thru vacuum pump and CO2 is filled in the jar thru CO2 gas cylinder to generate anaerobic conducting in the jar. Also supplied with plain aluminum pressure die casted lid which can be fitted when readymade gas packs are used to generate the anaerobic conditions inside the jar.

    Supply completed with following accessories :
  • Petri plate carrier, stainless steel, for 10 Petri dishes.
  • Test tube carrier, stainless steel


Auto Karl Fisher Titrimeter Digital

ME-0008

Technical Specification


Display: Array of 10 LED in line
Sample Size: 1- 50 mg of water
K.F. Dispensing Resolution: 0.05 ml
Indication: RUN ADDEND Display in auto mode
Detection: Current sensing by electronic control
K.F. Flow: Highly sensitive solenoid control.
wolve for automatic control of K.F. reagent.
Measuring Electrode: Dual platinum electrode
Titration Cell: Airtight 200ml glass vessel
End Point Delay: 30 seconds
Buzzer: Yes
Timer: Adjustable Timer
Stirrer: Variable speed magnetic stirrer
With On/Off control
Burette: Pressure filling auto zero burette
With 0.05 ml resolution
Power: 230V ± 10% AC 50Hz
Size: 435 x 305 x 150 mm
Weight: 5 kg (approx.)


Bio Chemistry Analyzer

ME-0009

Method:


  • Absorbance
  • Mono-chromatic
  • Bi-chromatic
  • Endpoint with standard/factor
  • Fixed time kinetics
  • Multipoint kinetics
  • Multi-standard up to 8 standards

Measurement Apparatus:

  • Removable cuvettes (Semi-micro & micro)
  • Silicon photodiode

Optical System:

  • Principle photometry
  • Range of measurement
    - from 0-2.5A for 340 nm
    - from 0.3.0 A for 405 nm & upwards.
  • Automatic zero Setting
  • Halogen lamp 12V 20 W
  • Spectral range selection automatic via filter wheel

Display and keyboard:

  • Blue screen 4 x 20 LCD
  • PCB optimized membrane keypad.

Filters (nm)

  • 340, 405, 505, 546, 578, 630 plus 2 optional filter

Power/Dimensions:

  • Voltage 220V
  • Frequency 50Hz.
  • Maximum power < 100 VA
  • Temperature 25 °C, 30 °C, 37 °C
  • Max Relative Humidity 75 %

Thermostat System:

  • Thermostat controls 25 °C, 30 °C, 37 °C
  • Accuracy + 0.1 C

Optical Interface:

  • External dot matrix printer
  • RS 232 interface

Inbuilt Thermal Printer:

  • Graphical Thermal Printer
  • Characters per line – 384 dots/Line
  • Thermo-Sensitive 57 mm vide paper


Colony Counter, Digital

ME-0010


  • 110mm diameter magnifying glass.
  • Audible confirmation of each count.
  • Auto marker pen.
  • Wolffhuegel glass grid with the focusing facility.

Technical Specification

Digital Display: 3/4 digit. (999/9999 Max. Reading)
Dish Size: 110mm
Magnification: x1.7
Dimensions (LxBxH): 274x320x167 mm (approx.)
Weight: 3 kg (approx.)
Packaging: 23x28x20 cm
Power: 230V-10% AC, 50 Hz, 40W

Optional Accessories

  • Marking Pen (1 No.)
  • Magnifier Lens (1 No.)


Colony Counter Digital Advanced

ME-0011


  • 110mm diameter magnifying glass.
  • Audible confirmation of each count.
  • Auto marker pen.
  • Wolffhuegel glass grid with the focusing facility.


Additional Features

  • 40 Memory locations
  • Count correction
  • Hold function


Technical Specification


Digital Display: 4 digit. (9999 Max. Reading)
Dish Size: 110mm
Magnification: x1.7
Dimensions (LxBxH): 274x320x167 mm (approx.)
Weight: 3 kg (approx.)
Packaging: 23x28x20 cm
Power: 230V-10% AC, 50 Hz, 40W


Optional Accessories

  • Marking Pen (1 No.)
  • Magnifier Lens (1 No.)
