Heat Transfer Lab Equipment

Heat Transfer Lab Equipment Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Heat Transfer Lab Equipment in India,

Heat Transfer Lab Equipment and Test Rigs

Quick answer. Heat transfer rigs measure something nobody can see, and almost every wrong student result has the same cause: heat left the apparatus by a path the equation did not include. So the question to ask of a rig is not what it demonstrates, which is printed on every brochure, but how it deals with its losses - whether each one is guarded, measured, or merely ignored. After that, three things decide whether the data is usable: the thermocouple arrangement, the heater rating and how it is controlled, and flow measurement on anything with a fluid in it. This page sets out how to specify on those grounds, and ends with an honest note about this listing, which contains roughly 22 distinct experiments spread over 57 records.

The framework: account for every watt that leaves

A heat transfer experiment is an energy balance. The student measures the electrical power into a heater and some temperatures, and calculates a conductivity, a coefficient or an emissivity on the assumption that the measured power went where the theory says it went. It never all does. Some leaves through the mountings, some down the thermocouple wires, some off the back of the specimen, some by radiation when the calculation assumed only convection.

There are only three honest ways to deal with a loss, and one dishonest one.

  • Guard it. Arrange the apparatus so the loss path carries no heat, because there is no temperature difference across it. This is what the word guarded means on a guarded hot plate: a surrounding guard heater is held at the same temperature as the main heater, so no heat flows sideways and all the measured power goes through the specimen. It is the most expensive solution and the only one that removes the error rather than correcting for it.
  • Measure it. Instrument the loss path and subtract. A thermocouple at the far end of a conductivity rod tells you what is leaving the end; a thermocouple on the outside of the lagging tells you what is leaving radially.
  • Bound it. Show by calculation that the loss is small compared with the flow being measured, and quote the bound. This is legitimate and it is what good lab manuals do, but it only works if the bound is actually computed rather than asserted.
  • Ignore it. The default. It is the reason a student measuring the thermal conductivity of brass reports a value well below the book figure, concludes the apparatus is broken, and learns nothing - when in fact the apparatus behaved exactly as physics requires and the equation was the thing that was wrong.

The teaching value of this equipment is in making students confront that fourth option. A rig that hides its losses produces tidy numbers and no understanding. A rig that exposes them - by giving the student the extra thermocouples and asking for a loss estimate - produces a worse-looking result and an engineer. Specify for the second.

What each experiment actually measures, and what it loses

Read this column by column rather than row by row. The third column is the one a quotation never mentions and the one that decides your data.

ExperimentQuantity measuredLoss that dominatesHow a good rig handles it
Conduction through a composite wallThermal resistance in series; interface resistanceEdge losses radially outward from the stackGuard ring or generous lagging, plus a stated edge-loss bound
Conductivity of a metal rodAxial conductivity from a temperature gradientRadial loss along the whole rodHeavy lagging, a thermocouple on the lagging surface, and a water-cooled far end whose duty is measured
Conductivity of an insulating powderConductivity of a poor conductorDeparture from the assumed spherical or cylindrical symmetryConcentric geometry held true, and a stated fill procedure - the packing density is part of the measurement
Guarded hot plate on a slabConductivity of a slab to a recognised methodLateral flow out of the main heaterA separately controlled guard heater with its own differential thermocouple
Lagged pipeConductivity and critical thickness of laggingAxial loss along the pipe and out of the endsEnd sections heated separately, or long enough that the central section is one-dimensional
Pin finFin efficiency; natural against forced convectionConduction into the base plate, and radiation at higher temperaturesA base thermocouple so base temperature is measured rather than assumed
Natural convectionConvective coefficient on a vertical cylinder or plateRadiation from the hot surface, and any air movement in the roomA surroundings thermocouple so the radiation term can be subtracted, and an enclosure or shield
Forced convectionCoefficient against Reynolds number in a ductLoss through the duct wall; unknown velocity profile at the test sectionA lagged duct, a calibrated orifice or anemometer, and a long enough entry length
Emissivity comparisonEmissivity of a test plate relative to a referenceConvection from both plates, and any difference between them other than emissivityIdentical geometry and identical power, inside an enclosure, with the reference coating specified
Stefan-BoltzmannThe fourth-power law and the constantConduction into the test disc holder; non-black enclosureA thin, low-mass disc, a hemispherical enclosure at a measured temperature
Heat exchanger, any typeOverall coefficient, LMTD, effectivenessLoss to the room from pipework, and error in the flow measurementLagged pipework and a flow measurement whose calibration fluid and temperature are stated
Dropwise and filmwise condensationThe step change in coefficient between the two modesNon-condensable gas in the shell, which destroys the resultA venting arrangement and a procedure for purging before readings

Steady state is a decision, not an event

Almost every experiment in this listing is a steady-state measurement, and the single most common procedural failure is that readings are taken when the timetable runs out rather than when the apparatus has settled. A heavily lagged pipe or a thick insulating slab has a long time constant by design - the better the lagging, the longer the wait - so the apparatus that gives the cleanest result is the one students are most likely to read too early.

The fix is to make steady state a stated criterion rather than a judgement. A department should write a tolerance into the lab sheet: for example, no measured temperature changing by more than 0.2 °C over five minutes, on at least three consecutive readings. The particular numbers belong to your apparatus and your tolerance for lab time, and should be established once by running one experiment to true equilibrium and watching the approach; the point is that a criterion exists and is written down, so that a student who is running late has to record that the criterion was not met rather than quietly taking the reading anyway.

Two practical consequences for specification:

  • Ask for a data logger, or at least a timer and a tabulated reading sheet, on the slow experiments. A rig with a multi-channel logger lets a class start an experiment, do something else, and come back - which is the only way a two-hour time constant fits in a one-hour slot.
  • Prefer a heater with a stable, measurable input over a powerful one. Steady state is reached sooner at low power, the losses are smaller in absolute terms, and a dimmerstat plus a true-RMS wattmeter reading is worth more than a bigger element. Ask what the power measurement is: a voltmeter and ammeter on a phase-angle-controlled supply do not multiply to give the real power.

The thermocouple arrangement is the measurement

On this equipment the sensors are not an accessory. Every number the student calculates is a difference between two temperatures, so an error in one reading propagates straight into the result, and the usual errors are mechanical rather than electrical.

  • Embedded, not resting. A junction in a drilled hole with thermal paste or a press fit reads the metal. A bead taped to a surface reads something between the surface and the air, and on a hot surface in still air that can be far from the surface temperature. Ask how each junction is mounted, specimen by specimen.
  • Type, and why. Type K (nickel-chromium against nickel-aluminium) covers the whole range of this equipment comfortably and is the sensible default. Type J (iron against constantan) is cheaper and adequate at lower temperatures but the iron leg corrodes. Mixing types on one selector switch without matching the compensation is a classic source of a constant offset on some channels and not others.
  • Count the channels you actually need, including the ones for the losses: surroundings temperature for anything radiating, lagging-surface temperature for anything lagged, inlet and outlet on both sides of any exchanger, and the far end of any conductivity rod. A rig sold with six channels for an experiment that needs eight will be used with six.
  • Calibration is a purchasable experiment. A thermocouple calibration rig turns a maintenance task into a lab exercise, and it is the honest answer to a student who asks how we know the thermocouple is right. If your department is buying a set, one calibration rig serves the whole set.

Two experiments that are nearly always sited wrongly

Natural convection

A natural convection apparatus beside a door, under a ceiling fan, or in front of an air conditioner is a forced convection apparatus. The whole experiment rests on the air moving only because the surface heated it, and a draught of a fraction of a metre per second is enough to change the coefficient materially. This is worth deciding before the bench layout is fixed: the natural convection rig wants a corner away from doors and vents, and ideally a shield or enclosure. It is also the experiment where the radiation term is largest relative to the convection being measured, so the surroundings thermocouple is not optional - without it the student is attributing radiation to convection and getting a coefficient that is too high.

Dropwise and filmwise condensation

The teaching point is spectacular - the coefficient changes by an order of magnitude between the two modes on the same surface - and it is destroyed by air in the shell. Non-condensable gas blankets the condensing surface and collapses the coefficient, so a rig without a proper vent and a written purge procedure will show a difference far smaller than the real one, or none. Ask specifically how the shell is vented and what the start-up procedure is.

Heat exchangers: the energy balance is the built-in self-check

Every exchanger rig in this listing gives the student a free check on their own data, and most lab sheets do not use it. The duty calculated on the hot side and the duty calculated on the cold side are measurements of the same quantity, so they should agree within a stated tolerance.

  • If they do not agree, suspect the flow measurement first. Temperatures are easy and flows are hard. A rotameter is calibrated for a stated fluid at a stated temperature and density; running hot water through a float calibrated for cold water gives a reading that is wrong in a direction most students will not question. Ask what the calibration conditions are, and prefer a measuring tank and stopwatch as the reference method for at least one point.
  • Lag the pipework, not just the exchanger. On a small rig the pipe runs can have comparable surface area to the exchanger, and the loss from them appears as a failure of the energy balance that students will blame on the exchanger.
  • Parallel against counter flow is the experiment, not the exchanger type. A rig with valved reversal lets one unit teach both and makes the LMTD comparison immediate; two separate units teach the same thing at twice the cost and with the configurations never compared on the same day under the same conditions. If you buy one exchanger for a teaching lab, buy the one that reverses.
  • Effectiveness-NTU is the better framing for a design course, and it needs the same measurements, so a rig adequate for LMTD is adequate for both - but check that the manual actually covers it, because many do not.

Specifying a set for a class

As with any teaching laboratory, specify by ratio rather than by item. Decide the class size, the batch size at one rig, and the number of weeks in the rotation; those three numbers determine how many of each experiment you need, and the answer is almost never one of everything.

A defensible core for an undergraduate heat transfer course, in buying order:

  1. Conduction: composite wall or insulating slab, and a metal rod. These establish the series-resistance idea and the loss problem.
  2. Convection: natural and forced, and the pin fin which bridges the two. Duplicate these first when the class grows, because they are the most used.
  3. Radiation: emissivity comparison and Stefan-Boltzmann. One of each is usually enough.
  4. Application: one reversible exchanger, plus a shell-and-tube or plate unit if the course covers industrial equipment.
  5. Everything else - evaporators, heat pipe, unsteady state, critical radius, agitated vessel - is a second phase, bought against specific syllabus requirements rather than to fill a lab.

Shared services matter more than any single rig: a stable supply, a reliable cooling-water supply at a known temperature, and a data logger used across rigs. See shared engineering lab instruments for the pumps, gauges and general instruments these rigs assume you already have.

What a quotation must state

  • Heater rating and how power is measured - element wattage, the controller type, and whether the instrument reads true power.
  • Thermocouple type, count, and mounting method for each junction, including any channel provided for losses or surroundings.
  • The guard arrangement, where the method depends on one, and whether the guard has independent control.
  • Insulation material and thickness, and whether the apparatus provides a means to measure the loss through it.
  • Flow measurement device, its range, and its calibration fluid and temperature.
  • Services required - supply voltage and phase, cooling water flow and pressure, compressed air, drainage.
  • Bench footprint and working height, and whether the unit is free-standing or needs a bench.
  • What is included - specimens, spare elements, the manual, and whether sample calculations with real data are provided.

About this listing - read before you order by code

We would rather say this than let you discover it halfway down page four. This listing holds 57 records, HTL-0001 to HTL-0057, which resolve to roughly 22 distinct experiments. Several experiments appear three times under different codes - the emissivity apparatus, the Stefan-Boltzmann apparatus, the pin fin, the forced convection unit and the dropwise/filmwise condensation unit each have three records. Two codes are used twice over (HTL-0039 and HTL-0045), HTL-0034 is missing, and a few names carry typing errors that have travelled with the data: Insulting Powder for insulating, Citical Radius for critical, Parrallel, and Stefan Boltzman. One record, HTL-0049 Heat Transfer Sheet, is not a product.

So do not order by code from this page. Tell us the experiment and the class size and we will quote the current model, confirm the specification in writing, and tell you which code it ships against. We have recommended internally that this listing be consolidated, and the duplicate records removed rather than renamed.

Related ranges

Within physics lab for engineering students: thermodynamics for compressors, calorimeters, steam and refrigeration-cycle rigs, hydraulics for the bench, Bernoulli and notch experiments, and analytical instruments for pH, conductivity and photometry. Momentum transfer lab equipment covers the fluid-flow side of the same transport-phenomena syllabus. The full engineering lab equipment category lists the rest.

Frequently asked questions

Why does a student measuring thermal conductivity get a value below the book figure?

Because heat left by a path the equation ignored, and almost always radially through the lagging rather than axially along the rod. The measured power is divided by a gradient that is steeper than the axial flow alone would produce, so the conductivity comes out low. The apparatus is usually working correctly. The fix is not a better rig but a better calculation: measure the lagging surface temperature and the far-end cooling duty, estimate the loss, and subtract it. That estimate is the most valuable thing in the experiment.

What does "guarded" mean on a hot plate apparatus, and is it worth paying for?

A guard heater surrounds the main heater and is held at the same temperature, so there is no sideways temperature difference and no sideways heat flow - which means all the measured power goes through the specimen. It removes the error instead of correcting for it, and it is the recognised method for insulating slabs. It is worth paying for if you need defensible conductivity values or you teach the standard method. If the aim is to show that insulation resists heat flow, an unguarded apparatus with honest loss accounting teaches that at lower cost.

How long should an experiment take to reach steady state?

Longer than the timetable allows, which is why it needs a written criterion rather than a judgement. Establish it once by running an experiment to true equilibrium and watching the approach, then write a tolerance into the lab sheet - no temperature changing by more than a stated amount over a stated interval, on several consecutive readings. Well-lagged apparatus takes longest, so your cleanest experiment is the one most likely to be read too early. Running at lower heater power shortens the wait and shrinks the losses at the same time.

Where should the natural convection apparatus be installed?

In a corner away from doors, windows, ceiling fans and air-conditioner outlets, ideally with a shield or enclosure. The experiment assumes the air moves only because the surface heated it, and a slight draught turns it into a forced convection experiment with an unknown velocity. Decide this before the bench layout is fixed, and specify the surroundings thermocouple, because radiation is a large fraction of the total here and without that channel the student attributes it to convection.

How do we know a heat exchanger rig is giving good data?

Close the energy balance. The duty on the hot side and the duty on the cold side measure the same quantity, so compute both every run; a gap beyond your stated tolerance means something is wrong before any coefficient is believable. When they disagree, suspect the flow measurement rather than the exchanger - a rotameter calibrated for cold water reads wrong on hot - and check the pipework lagging. Verify one flow point against a measuring tank and a stopwatch.

Why does this category list several records that look like the same experiment?

Because it does. The listing has grown to 57 records covering about 22 experiments, with duplicate entries for the emissivity, Stefan-Boltzmann, pin fin, forced convection and condensation units, two codes used twice, and one missing code. We have said so on the page rather than leaving you to find it, and we have recommended consolidation. In the meantime, enquire by experiment and class size rather than by code, and we will confirm the model and specification in writing.

Key takeaways

  • Account for every watt that leaves. Each loss must be guarded, measured, or bounded by calculation - and the fourth option, ignoring it, is what produces wrong student results on working apparatus.
  • The thermocouple arrangement is the measurement. Embedded junctions, one consistent type, and enough channels to instrument the losses as well as the specimen.
  • Make steady state a written criterion, not a judgement, and prefer a stable low heater power with true power measurement over a bigger element.
  • Site the natural convection rig away from every draught, and buy the surroundings thermocouple with it - radiation is a large share of the total.
  • Close the energy balance on every exchanger run. When the two sides disagree, the flow measurement is the usual culprit; buy the exchanger that reverses between parallel and counter flow.
  • Specify by ratio - class size, batch size, weeks in the rotation - and buy conduction, convection and radiation cores before the specialist units.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

The steady-state tolerance given in this page is an illustrative criterion for a department to set and verify against its own apparatus, not a measured property of any product. Thermocouple type characteristics are given at the level of standard reference practice; the applicable temperature range, tolerance class and compensation arrangement for a specific unit will be confirmed in writing on the quotation, as will heater ratings, insulation, flow-measurement calibration conditions, services and footprint. Record counts and product-name defects described above were read from this listing on 15 October 2026 and will change as the listing is corrected. No price is quoted on this page; prices for this equipment depend on specification, instrumentation and destination and are issued as dated written quotations.

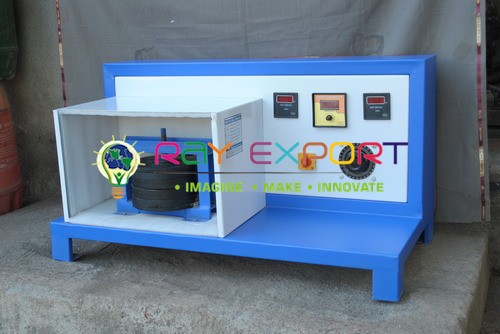

Heat Transfer Through Composite Walls

HTL-0001

The setup comprises of a radiator sandwiched between two arrangements of pieces. Three sorts of sections are given on either sides of radiator, which shapes a composite structure. A little hand squeeze outline is given to guarantee the ideal contact between the pieces. A variac is accommodated shifting the contribution to the warmer and Digital Voltmeter and Digital Ammeter show the warmth input. Warmth delivered by radiator streams pivotally on both the sides. Temperature Sensors are implanted between interfaces of sections to decide the temperature slope. The trial can be led at different estimations of information and computation can be made as needs be


Tests


To decide add up to warm protection and warm conductivity of composite divider


To plot temperature slope along composite divider structure


Utilities Required


Power Supply: 1Phase, 220 V AC, 2 Amp.


Table for set-up help

Heat Transfer Through Lagged Pipe

HTL-0002

The setup is outlined and created to contemplate slacking marvel if there should be an occurrence of funnels. It comprises of three concentric channels of little thickness when contrasted with width and are orchestrated concentrically, and shut with the assistance of two circles. Two distinctive protecting materials fill the annuli between the barrels minimally. Temperature Sensors are fitted to gauge the temperature of pipe dividers for spiral outward warmth stream estimation. Inside the inward pipe, a Nichrome wire radiator is put pivotally. Warmth contribution to the warmer is given through a variac and estimated by Digital Voltmeter and Digital Ammeter. By shifting the warmth input rates, extensive variety of tests can be performed


Tests


To evaluate the real rate of warmth exchange through the composite barrels from the deliberate interface temperature of the known estimation of warm conductivity of the two protecting materials.


To decide the viable warm conductivity of the composite chambers


To decide the hypothetical temperature profile inside the composite chambers


Utilities Required


Power Supply: 1Phase, 220 V AC, 2 Amp.


Table for set-up help

Heat Pipe Demonstrator

HTL-0003

It is a super-directing gadget and includes the exchange of warmth by bubbling and buildup of a liquid and thus exchange of warmth happens under almost isothermal condition. In this mechanical assembly the examination of warmth pipe with the copper pipe as great transmitter of warmth and with the stainless steel pipe as same material of development is made. It comprises of three indistinguishable barrel shaped conductors In regard of geometry. One end of these is warmed electrically while there are little limit tanks going about as warmth sinks at the opposite end. The unit comprises of a warmth pipe a copper pipe and a stainless steel pipe. Temperature sensors are implanted along the length to gauge the temperature dispersion and the warmth exchange rate is noted as far as the temperature ascend in the warmth sink tanks.

The execution of the warmth pipe as a super-directing gadget can be examined well as far as the temperature appropriation along the length at a given moment and can be contrasted and other two individuals. About isothermal temperature dispersion and quick ascent of temperature in warm sink tank uncovers the warmth pipe prevalence over the regular conductors

Analyses

To show the super warm conductivity of Heat Pipe and to contrast its working and best conductor i.e. Copper pipe and Stainless steel pipe as same material of development.

To plot the temperature v/s time reaction of three funnels

To plot the temperature dispersion along the length of three channels

Utilities Required

Power Supply: 1Phase, 220 V AC, 2 Amp.

Table for set-up help

Thermal Conductivity Of Insulting Powder

HTL-0004

Protecting Powder Apparatus is intended to decide the warm conductivity of protecting powder. The Apparatus comprises of two thin-walled concentric copper circles. Internal circle houses Nichrome Wire warming curl. Protecting powder is filled between the circles. Warmth streams radially outwards. Temperature sensors at legitimate positions are fitted to quantify surface temperatures of circles. Warmth contribution to the radiator is given through a variac and estimated by Digital Voltmeter and Digital Ammeter. By fluctuating the warmth input rates, extensive variety of examinations can be performed


Investigations


Assurance of warm conductivity of protecting powder


Examination of warm Conductivity of protecting powder at various temperatures


Utilities Required


Power Supply: 1Phase, 220 V AC, 2 Amp.


Table for set-up help

Thermal Conductivity Of Metal Rod

HTL-0005

The exploratory set up comprises of metal bar, one end of which is warmed by an electric radiator while the opposite end of the bar extends inside the cooling water coat. A barrel shaped shell loaded with the asbestos protecting powder encompasses the center part of the bar. The temperature of the bar is estimated at various areas. Warmth Input to the radiator is given through variac and estimated by Digital Voltmeter and Digital Ammeter. By fluctuating the warmth input rates, extensive variety of examinations can be performed. Water under steady head condition is coursed through the coat and its stream rate and temperature rise is noted.


Trials


To plot the temperature appropriation along the length of Bar


To decide the warm conductivity of given bar at different temperatures


Utilities Required


Water supply 3 lit/min (approx.)


Deplete


Power Supply: 1 Phase, 220 V AC 2 Amp.


Table for set-up help

Thermal Conductivity Of Liquids

HTL-0006

The present mechanical assembly is intended to decide warm conductivities of various fluids. The mechanical assembly comprises of a warmer. The radiator warms a thin layer of fluid. A cooling plate expels warm through fluid layer, guaranteeing unidirectional warmth stream. Temperature is estimated over the fluid layer and finish get together is appropriately protected. A legitimate course of action for changing the fluids is given. The entire get together is kept in chamber.


Investigations


Assurance of Thermal conductivity of various fluids and to make a near report


Investigation of variety of warm conductivity of various fluids with temperature


Utilities Required


Water supply 5 lit/min (approx.)


Deplete.


Power Supply: I Phase, 220 V AC, 2 Amp.


Table for set-up help

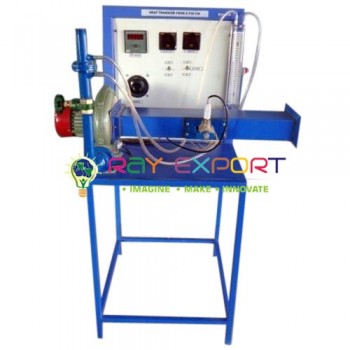

Heat Transfer From A Pin Fin

HTL-0007

The setup is intended to contemplate the warmth move in a stick blade. It comprises of stick write blade fitted in pipe. A fan is given on one side of pipe to lead tests under constrained draft conditions. Wind stream rates can be fluctuated with the assistance of damper gave in the conduit. A warmer warms one end of blade and warmth streams to another end. Warmth contribution to the radiator is given through Variac. Advanced Temperature Indicator measures temperature conveyance along the blade.


Trials


To contemplate temperature appropriation along the length of blade in both Free and constrained convection


Correlation of hypothetical temperature appropriation with tentatively acquired circulation


Utilities Required


Power Supply: 1 Phase, 220 V AC, 5 Amp.


Table for set-up help

Heat Transfer In Forced Convection

HTL-0008

The contraption comprises of Blower unit fitted with the test pipe. Nichrome wire warmer encompasses the test segment. Four Temperature Sensors are implanted on the test area, two put noticeable all around stream at the passageway and exit of the test segment to gauge the gulf and outlet air temperature. Test pipe is associated with the conveyance side of the blower alongside the Orifice to gauge stream of air through the pipe. Consistent warmth motion is given to pipe by an electric warmer through a variac and estimated by Digital Voltmeter and Digital Ammeter.


Trials


To decide normal surface warmth exchange coefficient for a pipe losing heat by constrained convection.


Examination of warmth exchange coefficient for various wind stream rates and warmth stream rates.


To plot surface temperature appropriation along the length of pipe


Utilities Required


Power Supply: 1 Phase, 220 V AC, 10Amp.


Floor region of 1.2mx 0.5m

Heat Transfer In Natural Convection

HTL-0009

The setup comprises of a metal tube fitted in a rectangular conduit in a vertical design. The channel is open at the best and base, and structures a nook and fills the need of undisturbed encompassing. One side of the conduit is fitted with a straightforward decent quality Acrylic window for representation. An electric warming component is kept in the vertical tube that in turns warms the tube surface. The warmth is lost from the tube to the encompassing air by characteristic convection. The temperature of the vertical tube is measure by Temperature Sensors and showed by a Digital Temperature Indicator with multi-channel switch. The warmth contribution to the radiator is estimated by a Digital Ammeter and a Digital Voltmeter and is differed by a variac. The tube surface is cleaned to limit the radiation misfortunes.


Investigation


To decide normal warmth exchange coefficient


Utilities Required


Power Supply: I Phase, 220 V AC, 2 Amp.


Table for set-up help

Emissivity Measurement Apparatus

HTL-0010

The present Set-up is intended to gauge the emissivity of test plate. The test plate involves a mica radiator sandwiched between two round plates. Dark plate is indistinguishable with test plate, yet its surface is darkened. As all the physical properties, measurement and temperature are equivalent; warm misfortunes from the two plates will be same aside from radiation misfortune. Thus the information distinction will be because of contrast in emissivity. The two plates are upheld on singular sections in a wooden walled in area with one side glass to guarantee consistent climatic conditions. Temperature Sensors are given to quantify the temperature of each plate and encompassing. Supply is given to radiators through independent variacs so temperatures of both can be kept equivalent and is estimated with Digital Voltmeter and Digital Ammeter.


Tests


Deciding the Emissivity of a test plate.


Concentrate the variety of emissivity of test plate regarding total temperature.


Utilities Required


Power Supply: 1Phase, 220 VAC, 4 Amp.


Table for set-up help

Supply of Heat Transfer Lab Equipment from India to Finland, France, Tanzania, Thailand, Sri Lanka, Congo, Costa Rica, Ivory Coast, Croatia, Cuba, Cyprus, Czech Republic, Denmark, Djibouti, Dominica, Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Australia, Austria, Azerbaijan, Bahamas, Bahrain, Bangladesh, Barbados, United Arab Emirates (UAE, Dubai), United Kingdom (London), United States, Uruguay, Uzbekistan, Vanuatu, Belarus, Belgium, Belize, Benin, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, Brunei, Bulgaria, Burkina Faso, Burma Myanmar, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia (Addis Ababa), Fiji, Burundi, Cambodia, Cameroon, Canada, Cape Verde, Central African Republic, Chad, Chile, Colombia. Math Teaching Kit suppliers in Luxembourg, Macedonia, Madagascar, Malawi (Lilongwe), Malaysia (Kuala Lumpur), Maldives, Mali, Malta, Marshall Islands, Mauritania, Mexico, Micronesia, Moldova, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Comoros, Congo. Math Teaching Kit manufacturers in Dominican Republic, Gabon, Gambia, Georgia, Germany, Ghana, Greece, Grenada, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hungary, Iceland, Indonesia, Iran, Iraq, Niger, Nigeria (Abuja), Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, Peru, Philippines (Manila), Poland, Ireland, Israel, Italy, Jamaica, Japan, Jordan, Kazakhstan, Kenya (Nairobi), Kiribati, Korea, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Mauritius, Nauru, Nepal, Netherlands, New Zealand, Nicaragua, Portugal, Qatar, Romania, Russia, Rwanda (Kigali). Math Teaching Kit exportets to Saint Kitts and Nevis, Saint Lucia, Saint Vincent and the Grenadines, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, Solomon Islands, Somalia, South Africa, South Sudan, Spain, Sudan, Suriname, Swaziland, Sweden, Switzerland, Syria, Tajikistan, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda (Kampala), Ukraine, Venezuela, Vietnam, Yemen , Zambia (Lusaka), Zimbabwe
