Quick answer. The key decision here is to buy a working position, not a chair. A chair, a compressor and the control unit work together, and a dental chair is quoted in very different configurations, so state which pattern you want - hydraulic (DEML-0006), physiological (DEML-0005) or electronic (DEML-0009) - and whether the delivery and assistant units, light, spittoon and foot control are included. Then size the compressor to the number of chairs it will serve and decide whether you need oil-free air. Confirm each item's registration with your own regulator before ordering.
Twenty items are catalogued in the DEML series, DEML-0001 to DEML-0020, and together they cover most of what a dental surgery is built around: three patient chairs in physiological, hydraulic and electronic patterns, compressors and air rotor control, operating light, X-ray, operator stools, a ceramic spittoon, and five magnification options from a loupe to a fibre cold light surgical microscope. A chair, a compressor and the control unit are bought together as a working position, so read the chair section first.
| Code | Chair | What the name tells you |
|---|---|---|
| DEML-0006 | Hydraulic dental chair | Positioned by a hydraulic mechanism, usually foot or lever operated. Simple, robust, no electronics to fail, and the usual economical choice. |
| DEML-0005 | Physiological dental chair | Contoured to support the patient through the full reclined range, so the body is held rather than simply tilted. Ask how the backrest and leg rest move together, because that synchronisation is the point of the pattern. |
| DEML-0009 | Electronic dental chair | Motorised positioning, normally with programmable positions recalled at a touch, which saves time on every patient. Ask how many memory positions, whether there is a manual override, and what happens on power failure. |
For any chair, ask what is actually included, because a dental chair is quoted in very different configurations: the delivery unit and its instrument connections, the assistant unit and suction, the operating light, the spittoon and the water supply arrangement, the foot control, and the upholstery. Then ask the chair's safe working load, the seat height range, the reclining range, the water and drain requirement and the electrical supply. Give the room dimensions and say whether services arrive through the floor or the wall, since that decides which plumbing version you need.
Two compressors are listed, DEML-0007 and DEML-0012, and the second is described as oil-less. This is the important distinction. An oil-free compressor cannot carry oil mist into the air line and from there into the patient's mouth, which is why oil-free is the normal specification for dental air. An oil-lubricated compressor is cheaper and quieter but needs oil changes and good filtration, and any carry-over reaches the handpiece. On either, ask for the free air delivery in litres per minute, the receiver volume, the working pressure, the noise level in decibels, and the duty cycle. Size the compressor to the number of chairs it will serve, and ask whether a dryer is fitted, because moisture in a dental air line damages handpieces.
| Option | Codes | Where it fits |
|---|---|---|
| Loupe | DEML-0004 | Head-worn, light and inexpensive, and the step most practices take first. Ask the magnification, the working distance and whether a light is included. |
| Direct halogen microscope | DEML-0003 | Lamp in the optical head. Cheapest of the microscopes, but the lamp radiates heat towards the field and lamp life is shorter. |
| Cold light and fibre cold light microscopes | DEML-0019, DEML-0020 | The lamp sits away from the head and the light travels up a fibre bundle, so much less heat reaches the patient. The usual choice for longer procedures. |
| Continuous zoom microscope | DEML-0002 | Magnification changes smoothly without losing the field or the focus, which matters when you are working in a canal and want to move in on a detail. Stepped instruments require the view to be reacquired at each jump. |
| Dental surgical microscope | DEML-0001 | Listed without a stated illumination or zoom arrangement. Ask which it is before comparing it with the others. |
For any dental microscope, ask for the magnification range, the working distance, the stand type and whether a beam splitter or camera port is available. Similar microscopes also appear under Ophthalmic Equipments, ENT Diagnostic Equipments and Surgical Lab Equipments under different codes, so compare all four listings and quote the code with the listing it came from.
DEML-0010 and DEML-0017 are dental X-ray units. These are radiation-emitting equipment, and in most countries that means obligations that sit with you as the operator rather than with the supplier: registration or licensing of the equipment and the room, a radiation protection survey, shielding appropriate to the installation, personnel monitoring, and a qualified person to commission it. Establish what your national radiation authority requires before you order, because the approvals, the room preparation and the survey often take longer than the equipment delivery. Ask the supplier for the tube specification, the kV and mA, the timer range, whether it is film or digital sensor compatible, the cone or collimator supplied, and the test and conformity documentation. Two codes are listed with no stated difference, so ask what distinguishes them. Ray Export supplies the equipment and holds no licence or approval on your behalf.
| Item | Codes | What to ask |
|---|---|---|
| Micro motor | DEML-0011 | Speed range, whether brushless, the handpiece coupling it accepts, and whether a contra-angle is included. |
| Air rotor control and control box | DEML-0014, DEML-0016 | Confirm what each controls and how many handpiece outlets it provides, and that it matches your chair and compressor. |
| Operator stools | DEML-0008, DEML-0013 | Both pneumatic. Ask the height range, whether the backrest is adjustable and whether castors suit your floor. Two codes with no stated difference, so ask. |
| Dental operating light | DEML-0015 | Illuminance in lux at a stated distance, the colour temperature, whether it is LED or halogen, and whether it mounts on the chair, a pole or the ceiling. |
| Ceramic spittoon | DEML-0018 | Whether it is supplied with the chair or separately, and the fitting and drain connection. |
Dental equipment is regulated. Confirm the registration or clearance each item holds in your country of use and verify it with your own regulator, and for the X-ray units also satisfy the radiation requirements above. Confirm supply voltage, frequency and plug type; whether installation, commissioning and operator training are included; and the availability of spares and service in your market, which matters more for a chair than for almost anything else because a chair out of action closes the surgery. Any performance figure quoted is confirmed in writing on the quotation; ask for its basis.
Dental trays and stainless holloware are under Hospital Holloware; sterilisers under Autoclaves and Sterilizers; gloves, masks and gowns under Hospital Wears; and theatre and examination lighting under OT Equipments and Examination Lights. Teeth and jaw teaching models, twelve of them, are under Head And Facial Models. Parent range: Medical Apparatus.
Quote a working position rather than a chair alone: say which chair pattern, whether the delivery and assistant units, light and spittoon are included, how many chairs the compressor must serve, and whether you need oil-free air. For example Electronic Dental Chair (DEML-0009) with the delivery unit, an oil-free compressor sized for two chairs, and the installation and plumbing arrangement confirmed. Contact Ray Export for prices, specifications and installation.
The hydraulic chair, DEML-0006, is positioned by a hydraulic mechanism, has no electronics to fail and is the usual economical choice. The physiological chair, DEML-0005, is contoured to hold the patient through the full reclined range; ask how the backrest and leg rest move together. The electronic chair, DEML-0009, offers motorised positioning, normally with programmable positions; ask how many memory positions it has, whether there is a manual override, and what happens on power failure. For any chair, ask the safe working load, seat height range and reclining range.
It varies widely, so ask for each element by name: the delivery unit and its instrument connections, the assistant unit and suction, the operating light, the spittoon and water supply arrangement, the foot control and the upholstery. Then ask the water and drain requirement and the electrical supply. Give us the room dimensions and say whether services arrive through the floor or the wall, because that decides which plumbing version you need. Check too that the air rotor control, DEML-0014 or DEML-0016, matches your chair and compressor.
Two compressors are listed: DEML-0007, and DEML-0012, described as oil-less. An oil-free compressor cannot carry oil mist into the air line and on to the handpiece, which is why oil-free is the normal specification for dental air. An oil-lubricated unit needs oil changes and good filtration, and any carry-over reaches the handpiece. On either, ask the free air delivery in litres per minute, receiver volume, working pressure, noise level and duty cycle; size it to the number of chairs, and ask whether a dryer is fitted.
The loupe, DEML-0004, is head-worn and the step most practices take first; ask its magnification, working distance and whether a light is included. The direct halogen microscope, DEML-0003, has its lamp in the head, which radiates heat towards the field. The cold light and fibre cold light microscopes, DEML-0019 and DEML-0020, keep the lamp away from the head, so far less heat reaches the patient. The continuous zoom microscope, DEML-0002, changes magnification without losing field or focus. DEML-0001 states no illumination or zoom arrangement, so ask which it is.
DEML-0010 and DEML-0017 are radiation-emitting equipment, and in most countries the obligations sit with you as the operator: registration or licensing of the equipment and room, a radiation protection survey, suitable shielding, personnel monitoring and a qualified person to commission it. Establish what your national radiation authority requires before ordering, since this often takes longer than delivery. Ask for the tube specification, kV and mA, timer range, film or digital sensor compatibility and the collimator supplied, and what distinguishes the two codes.
Dental equipment is regulated. Confirm the registration or clearance each item holds in your country of use and verify it with your own regulator; Ray Export holds no licence or approval on your behalf. For test and conformity documents, contact us for the latest copies of the relevant certificates. Confirm the supply voltage, frequency and plug type, whether installation, commissioning and operator training are included, and spares and service in your market - which matters most for a chair, because a chair out of action closes the surgery.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for every code, including working load, air delivery, magnification, illuminance and X-ray parameters, are confirmed in writing on the quotation. For test and conformity documents, contact us for the latest copies of the relevant certificates, and verify regulatory status with your own regulator. No price is quoted on this page. Listing notes: the two X-ray units DEML-0010 and DEML-0017 and the two operator stools DEML-0008 and DEML-0013 are listed with no stated difference; DEML-0001 states neither its illumination nor its zoom arrangement; and similar microscopes are listed under different codes in three other ranges.
Dental careful magnifying instrument
amplification is utilized for dental careful procedures. It encases fiber optic
light framework with splendor alteration handle. It gives accommodation to
altering the splendor as per the need. It clarifies picture of the affected
part. It is lightweight and adaptable, can likewise be utilized as a part of
microscopy and finding of sicknesses. It has channel with the chilly light
source that influences the light to get in to the objective and the make an
unmistakable picture of the affected part.
Microscope Section
|
Specifications |
DE-01 |
DE-02 |
|
Eye Piece |
12.5x/10x/16mm (Dipptric adjustment) |
12.5x/10x/16mm (Dipptric adjustment) |
|
Total Magnification |
5x, 7.5x, 12.5x, 20x, 30x to 25x |
7.5x, 12.5x, 20x |
|
Field of View |
59 / 37.8 / 23.5 / 14.5 / 9.5mm |
37.8 / 23.5 / 14.5mm |
|
Objective Lens |
F=200 |
F=200 |
|
Working Distance |
200mm |
200mm |
|
Interpupillary Distance Adj. |
55mm to 75mm |
55mm to 75mm
|
Contact Ray Export for your School, College Civil and
Mechanical Engineering Lab Instruments. We are the best engineering educational
equipments india, engineering equipments distributors, engineering lab
instruments, engineering equipments manufacturer, thermodynamics engineering
equipment, engineering educational lab equipments in Ambala, India.
This dental working magnifying lens nonstop zoom amplification is comprising of a high power light source that can be engaged to sparkle as an opening. Dental magnifying lens is regularly utilized for normal dental medical procedures to the patient. It is lightweight and adaptable, can likewise be utilized as a part of microscopy and conclusion of ailments. It has channel with the light source as incandescent light that influences the light to get in to the objective and the make a reasonable picture of the affected part.
Technical Specifications:-
Filter | Cobalt blue, red-free, heat absorbing |
Eye Pieces | 12.5x/ 10x/ 16mm Dioptric Adjustment |
Total Magnifications | 5x to 25x |
Objective Lens | F=200mm |
Field of View | 9.5mm to 59mm |
Light Source | 15V/150Watts Halogen lamp |
Field of Illumination | 70mm |
Illumination Control | Continuous adjustment |
Base Size | 600mm X 550mm |
Dental Microscope (Direct Halogen) is utilized
for diagnosing dental ailments.Our item gives diverse methods for obsession,
working separation and amplification. This hardware is with incandescent light
for enlightenment with nonstop changes. Since it is lightweight and adaptable
it is being utilized as a part of medical procedures. It gives a superior
medium to specialists for working on quiet.
Technical Specifications:-
|
Binocular Tube |
45° inclined |
|
Eye Pieces |
12.5x/ 10x/ 16mm Dioptric Adjustment |
|
Magnification Changes |
Built in Manual 3-Step Changer |
|
Objective Lens |
F=200mm |
|
Field of View |
59mm, 37.8mm, 23.5mm |
|
Light Source |
24V/250Watts Halogen lamp |
|
Field of Illumination |
70mm |
|
Illumination Control |
Continuous adjustment |
|
Base Size |
600mm X 550mm |
|
Type |
Table Clamp |
Contact Ray Export for your School, College Civil and
Mechanical Engineering Lab Instruments. We are the best engineering educational
equipment, engineering equipments exporters, engineering equipments suppliers,
engineering equipments supplier, engineering educational equipments,
engineering equipments manufacturers in Ambala, India.

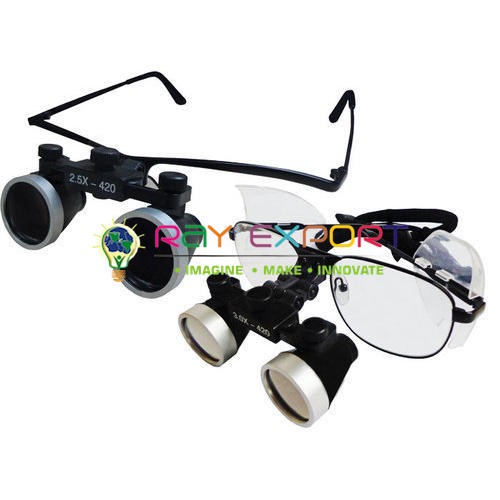

Dental Loupe have highlights of autonomous centering. These focal point are lightweight. It furnishes a high great execution with powerful casing making work nice.
Highlights
· Large field of view brilliant clear picture
· Long enduring and agreeable
· Swing out of view when not being used
· One can utilize his energy glasses in a similar edge
Technical Specifications:-
Magnification | 3.5x |
Visual Field Diameter | 30mm |
Working Distance | 300mm |
Weight | 100 Gram Without Box |
Configuration Feature: Manually worked seat having every one of the capacities up-down controlled by foot pedal and back level and up with lever fitted with the back all oright parts are chrome covered and seat has best quality paint wrap up..
Configuration Feature: Dental seat physically worked water driven seat with 'Z' base, seat has all positions, for example, up-down, back entire level and up. Headrest turns to 180 Degree and could utilized as pediatric head rest. Seat can be fitted physically worked unit or completely programmed unit as wanted. Careful stool, tallness balanced by pneumatic cylinder with movable back rest. Arrangement of Inbuilt suction unit one three way syringe and arrangement for air engine and air rotor hand piece, Halogen light having two power of 9 V and 12 Volt, spittoon and tumbler worked by solenoid esteem a x-beam see box gave the unit to see the x beam nearby, water connection with water tank gave, substantial base sheet complete with grayish powder covered paint and the shade of the seat according to decision of the client a thick overlay sheet gave on the seat to stay away from the harm because of any fluid substance amid strategy foot control pressure driven framework given smooth development to the seat for here and there..
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.

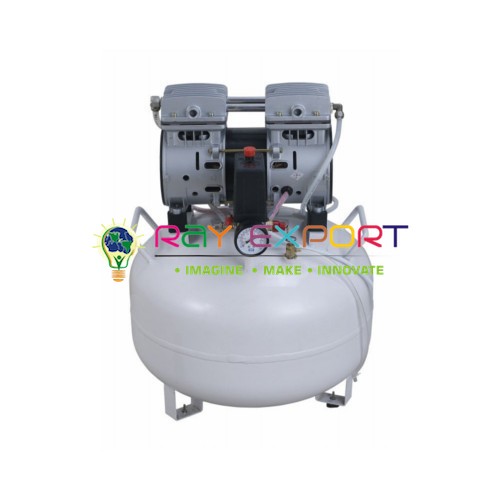

1/2 HP Dental compressor seal unit fitted with wellbeing valve for air discharge overabundance arranged, auto cut off framework, weight check and deplete valve air rotor air compressor mounted on high weight tank totally powder covered paint, Power ½ HP Amperes 4.5 Flow 40 to 50 Liter for every moment Speed 1000 rpm Noise 50 to 60 dB (A) Power supply 220V, 50 Hz Tank 25L Pressure 350 MMHG Weight 35 to 37kgs.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturers, engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.

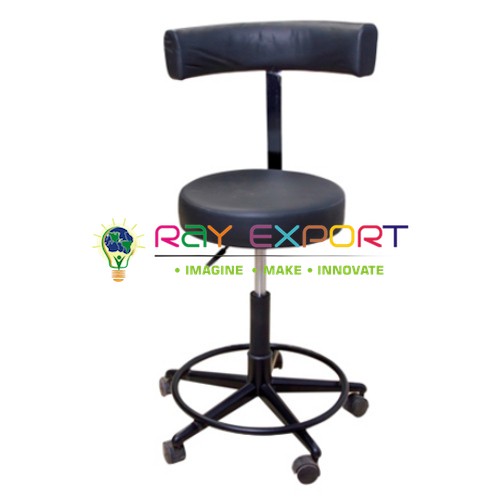

Configuration Feature: Surgical stool stature balanced by pneumatic cylinder with customizable back rest.
Configuration Feature: Electrically worked Dental seat with the principle unit one set and patient seat and Dentist stool, fundamental unit with 4 openings instruments hose , 3 Pieces and three way syringe, intra x beam film watcher electronic control box board, seat cuspidor, salivation ejector clean water bottle framework working light unit foot control, with persistent seat finish electric control dental seat 24V wellbeing low voltage engine driven left armrest, consistent upholstery headrest for grown-up and children's. Determination: Race of High speed hand piece (No heap) > 35x10/4 Min pneumatic stress of 0.22 Mpa Race of low speed hand piece (no Load) 18x10/4 min at gaseous tension of 0.33 Mpa illuminance of dental light 10,000 to 15,000 Lux Illuminance of x beam see Box 2,000 Lux Load of Motor Driven dental seat 1323 N Maximum Height of pad 800 MM Minimum stature of pad 550 MM Tilting edge of seat back 105 Degree to 170 Degree Moving scope of head rack 120 MM Max Tilting edge of seat pad 10 Degree Dimension (LXWXH) 1900x1200x2000 MM Power AC 220V 50 HZ Overall power utilization 800 W Air supply weight 0.55-0.8 Mpa water supply weight 0.2-0.4 Mpa air weariness 55L/Per minute..
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturers, engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.
The dental X-beam bundle is a genuine protection of value with every one of the advantages of the Advanced Technocracy Inc. The specialized all highlights of our tube heads make them the most secure available. A greatly high dielectric coefficient is acquired trough the utilization of uniquely treated oil. The high voltage transformer accompanies the best covers. A unique development chamber makes up for the widening of the oil caused by warm from the tube. The assurance against spillage radiation is stricter than the strictest worldwide guidelines. The hooded tube with matrix, adjusts for voltage variance. Info voltage: 230V AC single stage Timer: Electric with computerized show of mAs Output: 8 mA - 70 KVP Stand: Floor demonstrate/Wall display beam tube: 1.5mm central Spot Cone: Parallel.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturers, engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.
