Digital Electronics Lab Trainers

Gate: combinational logic, and the one exercise worth insisting on

The gate boards verify truth tables, which every digital course starts with. The exercise that earns the board, though, is universality: building AND, OR and NOT - and then something larger - out of NAND gates alone, and separately out of NOR gates alone.

It is worth insisting on because it explains something students otherwise accept as arbitrary: why real integrated circuits and real digital design are built predominantly from NAND and NOR rather than from the AND and OR of the textbook. One gate type that can do everything is cheaper to manufacture, easier to characterise and simpler to lay out. A student who has built a half adder from NAND gates understands that; a student who has only filled in truth tables does not.

Alongside it, De Morgan's theorems stop being an algebraic trick and become something you can test on the bench - build both sides, compare the outputs, and the identity is demonstrated rather than asserted.

State: where students actually get stuck

Sequential logic is the part of a digital course where confusion is normal, and three specific points cause most of it. A good trainer lets you demonstrate all three.

• Level-triggered versus edge-triggered. A latch follows its input while the enable is active; a flip-flop takes its input at a clock edge and ignores it in between. Almost every student error in counter and register work comes from treating one as the other. Demonstrate it with a slow manual clock: hold the enable and change the data, and watch the latch follow and the flip-flop refuse.
• Race conditions, and why the edge-triggered arrangement exists at all. The master-slave and edge-triggered structures were invented precisely because a transparent latch in a feedback loop can chase its own tail. Show the problem before showing the solution, or the solution looks like an arbitrary complication.
• Floating inputs are not a neutral state. An unused input left unconnected is a real fault with a confusing signature: on older bipolar logic it tends to read as a high and appears to work, while on CMOS it can drift between levels, cause erratic switching and draw excess current. Every unused input is tied high or low through an appropriate resistor - and a trainer with accessible pins is where that habit is learned, because the student has to do it themselves.

One more, which is the most satisfying experiment in a digital laboratory: connect a mechanical push-button directly to a counter. Press once and the count advances by three. The switch contacts bounce for a few milliseconds, the counter is fast enough to see each bounce, and the student has just discovered why every real design contains a debounce circuit. It costs nothing, it is memorable, and it teaches that the digital world is built on analogue behaviour.

Convert: the specifications that decide whether a converter is any good

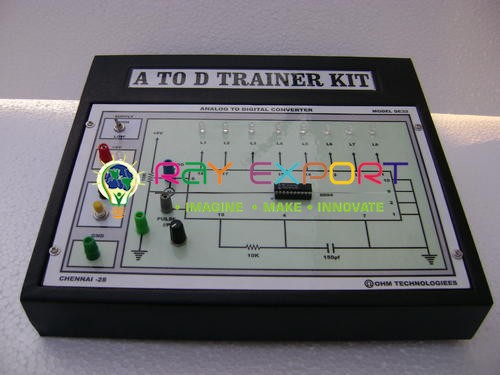

The analogue-to-digital and digital-to-analogue boards are the most valuable items in this listing and the ones most often specified badly, because the obvious number - the number of bits - is not the number that matters.

Resolution is not accuracy, and the reference is the measurement

Resolution is how finely the converter divides its range; accuracy is how close the result is to the truth. The two are limited by different things, and the thing that usually limits accuracy is the reference voltage. Every reading an ADC gives is a ratio of the input to its reference, so a twelve-bit converter working from a reference that drifts with temperature and supply is, in practice, an eight-bit converter with four decorative digits.

So when specifying: ask for the reference arrangement and its stability, not only the bit count. And in teaching terms, this is one of the best lessons the board can deliver - change the reference deliberately and watch every reading move together, which is exactly how a real instrument fails.

The conversion method decides speed, cost and noise behaviour

• Successive approximation - the method in most general-purpose converters. It tests one bit at a time against the input, so conversion time is proportional to the number of bits. The best balance of speed and resolution, and the method whose internal operation is clearest to watch on a trainer that brings out the intermediate states.
• Flash - comparators in parallel, one per level. Extremely fast and expensive in hardware, which is why it is used only where speed demands it.
• Dual-slope integrating - slow, and superbly quiet, which is why it is the method inside bench digital multimeters. And it has one property worth teaching explicitly: if the integration period is made an exact multiple of the mains period, interference at mains frequency integrates to zero and is rejected. That is a genuinely elegant piece of engineering, it explains why a bench meter reads steadily where a fast converter jitters, and it is almost never mentioned in a first course.

For a DAC: monotonicity, settling, and what "multiplying" means

Monotonicity - that increasing the input code never decreases the output - matters more than raw accuracy in any control application, because a non-monotonic converter can make a feedback loop oscillate. Settling time decides the usable update rate.

And the item in this listing that nobody explains: a multiplying DAC. In an ordinary DAC the reference is a fixed internal voltage. In a multiplying DAC the reference is an input you drive, so the output is the product of the digital word and that analogue input - which makes it a digitally controlled attenuator or gain stage, not merely a converter. That is what it is for: digitally controlled volume, programmable gain, and digitally tuned filters. Once a student has seen that, the component stops being a mystery entry in a catalogue.

The digital IC trainer: the item to buy first

If a digital laboratory can buy one thing, it should be the general-purpose digital IC trainer rather than any single experiment board. It typically provides the regulated supply, a clock with selectable frequencies including a slow manual pulse, logic-level switches, indicator displays, and a breadboard area - which together support every experiment above and every project a student will attempt afterwards.

What to ask about: the slow clock and single-shot pulse (sequential logic cannot be taught without them), the number of switches and indicators, whether the breadboard area is replaceable, and whether the supply is protected against the short circuit a student will eventually create. A trainer whose supply survives being shorted is worth paying for.

What to tell us when you enquire

• Whether you need boards students wire themselves, or fixed-function demonstration boards - this is the main difference between quotations.
• The experiments your syllabus names: gates and universality, De Morgan, adders, flip-flops, counters, shift registers, encoders and decoders, ADC and DAC.
• For converters: the resolution required and the reference stability expected.
• Whether a general-purpose digital IC trainer is included, and whether its clock offers a single-shot pulse.
• Group size and session length, and how many benches are to be equipped.
• Supply voltage and frequency, and destination country.

Related ranges: digital and analog trainer kits, IC testers and digital IC testers for checking the devices students will inevitably damage, analog electronics trainers for the reactance and oscillator experiments, microprocessor lab trainers and embedded lab trainers for the stages that follow. The full training kits and electronics lab trainer kits categories list the rest.

Frequently asked questions

Should we buy boards students wire themselves, or fixed demonstration boards?

For a course that assesses understanding, boards with accessible pins and patch leads, because building a circuit wrongly and finding the fault is the skill being taught. Fixed boards are faster to set up and better suited to a large demonstration or a very short session. If the budget allows only one approach, choose the patchable boards and a general-purpose IC trainer - you can demonstrate on those, but you cannot build on a fixed board.

Our counter advances by more than one per button press. What is wrong?

Nothing is wrong - the switch contacts are bouncing, and the counter is fast enough to count each bounce. It is the best accidental experiment in a digital laboratory. Have the students look at the switch output on an oscilloscope, then add a debounce arrangement and repeat. They will remember why every real design contains one.

Is a 12-bit converter better than an 8-bit one?

Only if its reference is stable enough to justify the extra bits. An ADC reports the ratio of its input to its reference, so a drifting reference limits accuracy regardless of resolution, and a 12-bit converter with a poor reference gives eight useful bits and four misleading ones. Specify the reference arrangement and its stability alongside the bit count, and treat a quotation that mentions only bits as incomplete.

Why do bench multimeters use a slow conversion method?

Because the dual-slope integrating method is exceptionally quiet, and because the integration period can be made an exact multiple of the mains period, which causes mains-frequency interference to integrate to zero. That is why a bench meter reads steadily in an electrically noisy laboratory while a fast converter jitters. It is worth demonstrating if your trainer supports it - it explains an instrument students use every week.

What is a multiplying DAC for?

Its reference is an input rather than a fixed internal voltage, so the output is the digital word multiplied by whatever you apply to that input. That makes it a digitally controlled attenuator or gain stage - programmable gain, digital volume control, digitally tuned filters. It is a different component from an ordinary DAC in use even though the internal structure is similar, and it is worth teaching as such.

Do unused logic inputs really need connecting?

Yes, always, and it is one of the most useful habits a laboratory can instil. A floating input is not a neutral state: on older bipolar families it tends to read high and the circuit appears to work until it does not, and on CMOS it can drift between levels, switch erratically and draw excess current. Tie every unused input high or low through an appropriate resistor, and make it part of the marking scheme.

Key takeaways

• Ask whether students can wire the board themselves. Building it wrongly and finding the fault is the employable skill.
• Insist on the universality exercise. Building everything from NAND alone explains why real logic is built that way.
• Level-triggered versus edge-triggered causes most sequential-logic confusion - demonstrate it with a slow manual clock.
• Resolution is not accuracy; the reference is the measurement. Specify reference stability, not just bit count.
• A multiplying DAC is a digitally controlled gain stage, because its reference is an input.
• Buy the general-purpose IC trainer first - with a single-shot clock and a supply that survives a short circuit.
