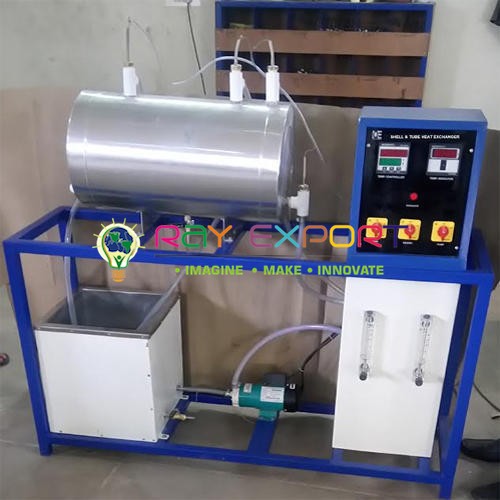

Shell and Tube Heat Exchanger are well known in enterprises since they possess less space and offer sensible temperature drop. The device comprises of created SS shell, inside which copper tubes with confuses on external side are fitted. This is two-pass warm exchanger with the goal that high temp water goes to one end of shell through the tubes and comes back to another end through outstanding tubes. The icy water is conceded at the one end of shell, which ignores the high temp water tubes. Valves are given to control the stream rates of hot and frosty water. Stream rates of hot and cool water are estimated utilizing Rotameters. An attractive drive pump is utilized to circle the boiling water from a re-cycled type water tank, which is fitted with radiators and Digital Temperature Controller.
Analyses
The principle question of the test setup is to consider the accompanying at different stream rates:
LMTD. .
Warmth exchange rate
General Heat Transfer Co-productive
Utilities Required
Water supply 20 lit/min (approx.) and deplete
Power Supply: I Phase, 220 V AC, 4 kW
Floor zone of 1.5m x 0.75 m
