Quick answer. Paper and packaging testing runs in three stages - condition, material, then package and journey - and most laboratories buy the middle stage and discover the other two later. Buy the humidity chamber first, not last. Paper and board are hygroscopic, their strength and stiffness fall as humidity rises, and test standards specify a conditioned atmosphere and conditioning period for that reason; results on unconditioned specimens cannot be compared with a customer's or with your own from another season. Then choose material tests to the specification your customer names, and add box compression, drop and vibration testing when you must prove a finished pack survives its journey.
Twenty-seven instruments for paper, board and packaging. They divide into four jobs. Basis weight and thickness: a GSM balance, a quadrant scale for substance, a round cutter for preparing specimens, a paper thickness gauge and a paper moisture meter. Strength of the material: bursting strength, Elmendorf-type tearing strength, folding endurance in two forms, crush and edge crush, puncture resistance, bending resistance, a collapse tester and a Finch-type tester for wet strength. Strength of the package: box compression, compression strength for transport packages, a drop tester and a vibration tester for transport packages. Surface and conversion: Cobb water absorptiveness in two records, scuff resistance and rolling ball tack. A humidity chamber completes the set, and as the next section explains, it is not an optional extra.
A warning about the codes in this listing, which we would rather give you than have you discover. Most records are coded PPTE, but four use a transposed prefix, PPET, and one record sits out of numerical sequence where a digit appears to have been mistyped. Three records describe bursting strength testers, two of which have spelling errors in the product name, and two records describe a rolling ball tack tester, one of them with a digit appended to the name. On this page the code alone is not a safe identifier: quote the code and the full product name together, and ask for both to be confirmed on the proforma invoice. We are having the data corrected.
Paper and packaging testing runs in three stages, and most laboratories buy the middle one and discover the other two later. Knowing the sequence tells you which of the twenty-seven instruments you actually need.
| Stage | What is tested | Instruments here |
|---|---|---|
| 1. Condition | The specimens, before anything is measured. Paper is hygroscopic, and strength, stiffness and dimensions all change with moisture content | The humidity chamber, plus the moisture meter to confirm. This stage is not optional and it is where most disputed results come from |
| 2. Material | The sheet or board itself: grammage, thickness, burst, tear, fold, crush, edge crush, puncture, stiffness, water absorptiveness | Most of this listing |
| 3. Package and journey | The made-up box or pack as it will actually ship, including its creases, flaps, print and contents | Box compression, transport package compression, drop and vibration |
The point of stage three is that a box is not its board. Creasing, slotting, print varnish, stacking pattern, pallet overhang and the contents all change how a package performs, and a board that passes every material test can still produce a box that collapses in a warehouse.
Paper and board are hygroscopic: they take up and give off moisture until they balance with the air, and their properties move as they do. The strength and stiffness of board fall substantially as humidity rises, which is why a box that stacks safely in a dry laboratory can fail in a humid port warehouse, and why transport specifications care about climate at all.
The test standards deal with this by specifying a conditioned atmosphere - commonly twenty-three degrees Celsius and fifty per cent relative humidity, with a tropical alternative in some standards; confirm the figure in the standard you work to - and a conditioning period before testing. The consequences are practical. A result measured on unconditioned specimens cannot be compared with a customer's result or with your own from another season. And for board specifically, it is worth testing at the humidity your product will actually see as well as at the standard condition, because the two numbers are both true and only one of them predicts the warehouse. Ask us about the chamber capacity, temperature and humidity range, uniformity, how conditions are recorded, and the water quality the humidifier needs.
Stacking failure is the commonest packaging complaint, and there are two ways to predict it. The expensive way is a box compression tester, which crushes the finished box and gives a direct answer for that box with its print, creases and flaps. The cheap way is an edge crush tester plus a thickness gauge: edge crush resistance, caliper and box perimeter together predict box compression strength well enough for day-to-day specification work, which is why edge crush is the test most board specifications are written around.
So the sensible route for most converters is: buy the edge crush tester and the thickness gauge first, because they are quick, cheap and run on small specimens; add the box compression tester when you need to certify a finished pack, prove a stacking height to a customer, or investigate a failure. Ask of the box compression tester: the platen size against your largest box, the maximum load, the rate of platen approach, whether the platens are rigid or floating and whether the machine records the full load-deflection curve rather than just the peak - the curve shows whether the box failed by panel buckling or by crease collapse, which is what tells you how to fix it.
Several tests here come in incompatible versions, and the version has to be matched to the specification.
Folding endurance. Two records are listed, and folding endurance exists in more than one instrument geometry with different tension and fold angles. Results from different folding instruments are not comparable with each other, so buy the one your specification names and record which it was.
Tearing strength. The pendulum method reports tear on a specified number of plies, and the ply count and the pendulum capacity are part of the result. Ask which capacities are available, since a pendulum too large for a light paper gives poor resolution, and confirm how the instrument is checked. Note that the product name in our listing has the method name misspelled; the instrument is the standard pendulum tearing tester.
Water absorptiveness by the Cobb method. Two records are listed. The contact time is part of the result - sixty seconds, one hundred and twenty seconds and longer times are all in use and give different figures - so a Cobb value quoted without its time means little. Ask which times the apparatus supports, the test area and the roller arrangement for removing surface water, since that step is where operators differ.
Bursting strength. Covered in more detail on our hardness testing machines page, where a fourth bursting record sits: the diaphragm is a consumable, a fatigued diaphragm reads low, and clamping that is too loose lets the specimen slip. Prefer a digital instrument that captures the peak if results go onto certificates.
Drop, vibration and compression exist as a set because a journey applies all three, and the recognised transport test protocols specify them in a defined order with conditioning between stages. Buying one of the three answers one third of the question, and a package that survives a drop test can still fail from hours of resonant vibration on a lorry bed.
So decide first which protocol your customer or carrier requires, then buy to it. For the drop tester, ask the maximum package mass and dimensions, the drop height range, and how face, edge and corner drops are set up repeatably. For the vibration tester, ask the motion type and frequency range, the payload, and how the package is restrained without being over-restrained. For transport package compression, ask platen size, maximum load and whether the machine can hold a load for a long duration, since a stacking test is often a hold rather than a crush. A vibration table also appears in our wood testing machines listing, where it sits a little oddly; it is the same class of instrument.
Grammage is mass per unit area, so it needs a specimen of known area, which is what the round cutter is for, and a balance reading in the right units, which is what a GSM balance is. The quadrant scale is an older direct-reading arrangement for the same purpose. Ask which specimen area each instrument is built for and make sure the cutter and the balance agree, because a mismatch between cutter area and balance scaling produces a grammage that is wrong by a constant factor and looks entirely plausible.
Thickness is the other one. Board is compressible, so the presser foot area and the applied pressure are specified by the standard, and a general-purpose dial gauge will read differently from a paper micrometer. For corrugated board, ask whether the gauge is intended for single sheets or for combined board, since the specified foot and load differ.
The standard and version each instrument implements, with the specimen size and ply count it requires; test ranges and resolutions, and for pendulum instruments the available capacities; presser foot area and pressure for thickness gauges; contact times supported for the Cobb apparatus; platen sizes, maximum loads, approach rates and whether the full curve is recorded for the compression machines; drop height range and package capacity; vibration motion type, frequency range and payload; chamber capacity, ranges, uniformity, recording and water quality for the humidity chamber; calibration certificate, traceability, parameters certified and recalibration interval; consumables with prices - diaphragms, cutting dies and blades, pendulum parts, chart or data media; services at the position, including water and drainage; nominal voltage, frequency and plug pattern; and the warranty, commissioning and local service position. For any certification stated here, contact us for the latest copies of the relevant certificates before you rely on it in a tender or an accreditation file.
Related ranges: plastic testing equipment for films, laminates and seal testing, fabric testing equipment for the conditioning and colour disciplines that apply here too, universal testing machines and tensile testing machines for tensile and ring crush work, and hardness testing machines for the fourth bursting strength record. The full set is listed under raw products testing. For a quotation, tell us the destination country, the standards and transport protocol your customers name, whether you make paper, board or finished packaging, and your expected sample throughput.
Because conditioning is where most disputed results come from. Paper and board take up and give off moisture until they balance with the air, and strength, stiffness and dimensions all move as they do; a box that stacks safely in a dry laboratory can fail in a humid port warehouse. Standards therefore specify a conditioned atmosphere and conditioning period - confirm the exact figures in the standard you work to. For board, test at the humidity the product will actually see as well as the standard condition. Ask the chamber capacity, temperature and humidity range, uniformity, recording, and humidifier water quality.
For most converters, start with the edge crush tester and a thickness gauge. Edge crush resistance, caliper and box perimeter together predict box compression strength well enough for day-to-day specification work, which is why most board specifications are written around edge crush; both instruments are quick and use small specimens. Add the box compression tester when you must prove a finished pack, a stacking height, or investigate a failure. Then ask the platen size against your largest box, maximum load, approach rate, rigid or floating platens, and whether the full load-deflection curve is recorded, since it shows how the box failed.
Usually because the test version differs. Folding endurance exists in more than one instrument geometry, with different tension and fold angles, and results from different folding instruments are not comparable, so buy the one your specification names and record which it was. Pendulum tearing reports tear on a specified number of plies, and ply count and pendulum capacity are part of the result; a pendulum too large for a light paper gives poor resolution. Cobb water absorptiveness depends on contact time, with sixty, one hundred and twenty seconds and longer all in use, so a Cobb value without its time means little.
Decide which protocol your customer or carrier requires, then buy to it. Drop, vibration and compression exist as a set because a journey applies all three, and recognised transport protocols run them in a defined order with conditioning between stages; a package that survives a drop can still fail from hours of resonant vibration on a lorry bed. For the drop tester, ask package mass and size limits, drop height range and how face, edge and corner drops are set up repeatably. For vibration, ask motion type, frequency range, payload and restraint. For transport compression, ask whether the machine can hold a load over a long duration.
Grammage is mass per unit area, so it needs a specimen of known area from the round cutter and a balance reading in the right units, the GSM balance; the quadrant scale is an older direct-reading alternative. If the cutter area and the balance scaling do not match, every grammage is wrong by a constant factor and still looks plausible, so confirm both are built for the same specimen area. Thickness is the other trap: board is compressible, so the presser foot area and applied pressure are specified, and a general dial gauge reads differently from a paper micrometer. Corrugated single sheets and combined board need different settings.
Quote the code and the full product name together, and ask for both to be confirmed on the proforma invoice. Most records are coded PPTE, but four use a transposed PPET prefix and one sits out of sequence after an apparent mistyped digit. Three records describe bursting strength testers, two with spelling errors, and a fourth is on the hardness testing machines page. For bursting strength itself, the diaphragm is a consumable, a fatigued diaphragm reads low and loose clamping lets the specimen slip, so prefer a digital instrument that captures the peak where results go onto certificates.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for each instrument - the standard and version implemented, specimen size and ply count, ranges, resolutions and capacities, presser foot and pressure, Cobb contact times, platen size and load, drop and vibration ranges, and chamber performance - are confirmed in writing on the quotation. For calibration certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing note: four records use a transposed PPET prefix instead of PPTE and one sits out of sequence; three bursting strength records, two misspelt, with a fourth on the hardness testing page; two rolling ball tack records, one with a digit appended; the tearing tester's method name is misspelt; and a vibration table also appears in the wood testing listing.
Particular:
· CPU innovation brings speedy reaction and high precision.
· Large LCD show.
· Low power utilization.
· Compact plan.
· Suitable for testing 3 kind paper:
Container, copperplate paper, composing paper.
· Range 0 ~ 40%
· Resolution 1%
· Accuracy ±1%
· Power 1 x 9V (6F22 Batteries)
· Size 70x126x29mm
· Weight Approx.150g
· Packing Plastic Box
· Guarantee 6 Months
· Calibration Optional
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.

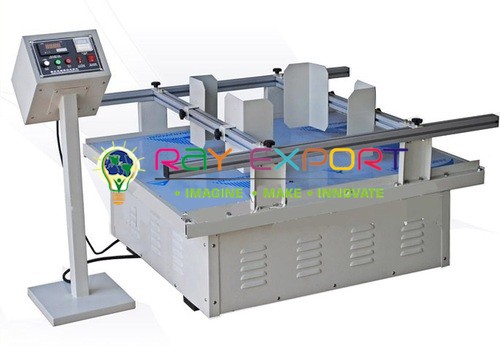

Vibration Tester For Transport Packages - The impact of vibrations experienced amid transport on bundled materials is typically controlled by subjected them to a reenacted vibration test. In this test, the bundle under test is put over a vibrating table equipped for moving about a vertical hub by a settled plentifulness at a settled recurrence. The impact of a predetermined number or time of vibrations on the stuffed materials is seen to assess the obstruction gave by bundling to such vibrations. The Globe Vibration Tester for transport bundles comprises of level table mounted over a swaying square and unbendingly associated with it. This table is given oscillatory development of a settled plentifulness by the development of the square, which is thusly held more than two solidified and ground carbon steel bars and is given an oscillatory development with the assistance of an electric engine coupled to a V-belt and speed lessening pulley course of action. The square has two gunmetal brambles to give it a long working life. The revolving development of the pulley is changed over into straight development of the square with the assistance of an erratic stick and a linkage instrument. The whimsical stick is settled to a plate mounted on the pole on which the pulley is mounted. In the settled recurrence model of the analyzer, the recurrence of vibrations is set at 4 Hz. In the variable recurrence display it can be set at any coveted an incentive in the scope of 1 to 8 Hz with the assistance of a variable recurrence inverter drive provided with the hardware. A six digit electronic counter with non-contact infrared sensor is given to record the aggregate number of motions experienced by the segments under test. The counter has a memory reinforcement to hold the tally of number of motions experienced in the event of unplanned turning off of energy supply to the gear. A key-worked reset change is given to reset the tally to zero toward the finish of test span. The bundle under test is put on the vibration table. It is kept from dropping around a low level protect along the outskirts of the table. The table is square fit as a fiddle with the goal that the bundle can be turned through 90° after each 25% of aggregate number of indicated motions. common lab types of gear makers. Paper Testing Lab hardware manufacturers, exporters and Paper Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.

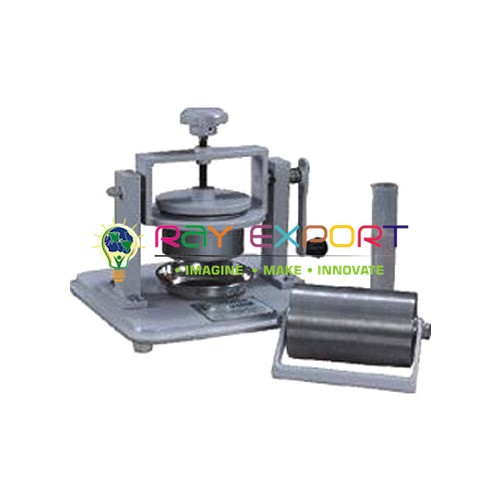

Measuring Tester For Paper (COBB Tester) - The measure of water consumed by any paper is reliant on different attributes, for example, its estimating and porosity and so forth. The estimating of paper can be dictated by directing a water ingestion test with the assistance of a Cobb analyzer. In this test the heaviness of water consumed by a known region of the paper under test in a predetermined length of time is resolved, from which the measuring trademark is assessed. In any case, this strategy isn't prescribed for assurance of measuring normal for composing paper. common lab supplies makers. Paper Testing Lab hardware manufacturers ,exporters and Paper Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.

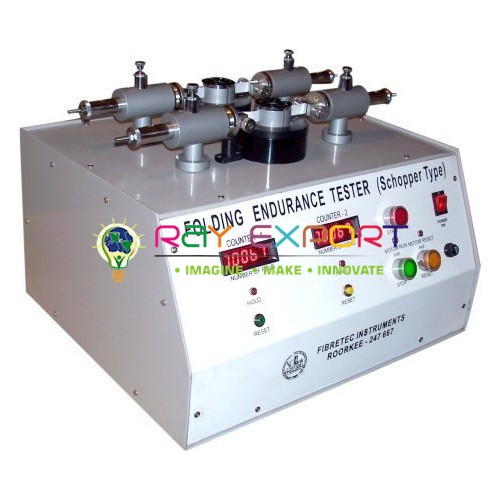

Schopper Folding Endurance Tester - Folding or wrinkling has an imperative impact in life of paper. All assortments of paper are subjected to either single or rehashed creases over the span of their application. Assurance of collapsing opposition is hence of prime significance in evaluating reasonableness of any paper for the end utilize. and Folding obstruction is normally dictated by either the MIT collapsing continuance technique or by the Schopper collapsing perseverance strategy. While the previous is suited for any thickness of paper up to 1.25 mm, the last is for the most part utilized when the thickness of paper is under 0.25 mm. &civil lab types of gear producers. Paper Testing Lab gear manufacturers, exporters and Paper Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.
Quadrant Scale For GSM (Substance Indicator) - The weight per unit territory or grammage of any material in type of sheets is typically communicates as its GSM, that is its weight in grams per square meter of its zone. It is a standout amongst the most imperative parameters to decide the nature of any paper. Notwithstanding paper, it can likewise be utilized for assessment of grammage of textures, covered textures, felt, plastic movies and sheets, and so on common lab types of gear producers and. Paper Testing Lab gear manufacturers,exporters and Paper Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.
Drop Tester - The drop analyzer is utilized for assurance of impact of dropping on transport bundles. This test decides the capacity of the bundles and pressing material set inside them for padding to give assurance to its substance and to gauge the capacity of the holder to withstand harsh taking care of. In this test the bundle to be tried is set on a casing having two swivable entryways. The stature of the casing is acclimated to the coveted esteem. The entryways are opened all of a sudden, the bundle is dropped on to a steel stage, and the degree of harm caused assessed. The& Drop Tester for transport bundles comprises of a dropping system and a substantial manufactured base plate fitted with an overwhelming vertical pipe for directing the dropping instrument. common lab supplies makers. Paper Testing Lab hardware manufacturers,exporters and Paper Testing Lab providers
Advanced Brust Strength Tester - is the analyzer used to quantify the quality under multi-directional power. common lab types of gear makers. Paper Testing Lab gear manufacturers,exporters and Paper Testing Lab providers
Pulverize Tester - The& Crush Strength Tester is intended to test Concora Medium Test - Buckling Strength, longitudinal in fluting and Flat Crush Testamp; Edge Crush Test in creased fiberboard. It can likewise be utilized for testing Corrugated Crush Test, Ring Crush Test and Pin Adhesion Test with the assistance of extra adornments, which are accessible on particular request. The hardware comprises of two level platens; one of which is settled and the other can be moved towards or far from it with the assistance of a screw plan driven through engine and diminishment gearbox at a steady speed. The heap applied on the example held between platens is estimated on an advanced load marker through strain check compose stack cell. The heap marker is prepared to demonstrate greatest load achieved amid test and it additionally control the engine to stop the development when the heap connected accomplishes the most extreme limit of the heap cell.. Paper Testing Lab gear manufacturers,exporters and Paper Testing Lab providers
Pressure Strength Tester For Transport Packages - Transport bundles should have adequate pressure quality with the goal that they don't get distorted or smashed when stacked one over the other, either amid travel or away. The pressure quality of transport bundles is controlled by putting the bundle on a level stage and squeezing it down from top with the assistance of another level plate, either by an engine or by manual game plan. The& Compression Strength Tester for transport bundles is manufactured out of inflexible gentle steel areas and plates. The lower platen on which the crate is kept for squeezing is settled on the edge of the analyzer. The bundle under test is set over this platen and pushed down from top with the assistance of another platen. The upper platen is moved around methods for a screw game plan. This platen is rotated so that is can tilt to adjust its lower look with the highest point of the bundle, if the best and base appearances of the bundle are not parallel. For leading the edge and corner stacking tests the upper platen can be held unbendingly with the goal that it doesn't tilt. The heap cell utilized for estimation of compressive power following up on the bundle under test is mounted over the upper platen. The heap is shown on a microchip based advanced pointer. The heap pointer has crest constrain memory to demonstrate the most extreme load at which the bundle fizzled, and a transfer with over-burden assurance to stop the engine if the heap surpasses the greatest limit of the heap cell. The development to the upper platen is given through an engine and gearbox game plan. The separation moved by the upper platen is demonstrated on a different advanced show equipped for estimating the separation to the closest 1 mm. The gear has over-fly out security course of action to stop the engine at outrageous cutoff points of platen development. common lab types of gear makers. Paper Testing Lab gear manufacturers, exporters and Paper Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments india, engineering equipments distributors, engineering lab instruments, engineering equipments manufacturer, thermodynamics engineering equipment, engineering educational lab equipments in Ambala, India.
The moving ball attach analyzer is utilized to test the glue properties of a sticky material with the utilization of moving ball guideline. A steel ball is moved over a layer of a cement and the separation went by the ball gives the glue quality of the test. The shorter the separation went by the ball, more noteworthy the cement energy of the test sample.Ray Export is a main maker of moving ball tack analyzer that is utilized as a part of an assortment of ventures, for example, paint and covering industry, bundling businesses et cetera. The instruments offered by Presto present a productive and reasonable method for testing the glue quality of the sticky materials for better quality affirmation.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments manufacturer, engineering educational equipments in india, physics lab engineering equipment suppliers, civil engineering lab equipments, civil engineering lab instruments, engineering equipment manufacturer in Ambala, India.
