Quick answer. Before choosing any of the sixteen instruments coded LTE-0001 to LTE-0016, settle who cuts specimens, from where on the hide, and how that is recorded. Leather is not uniform: thickness, fibre structure, stretch and strength vary from the firm butt through the flanks to the loose belly and neck, so a result reported without its sampling position and cutting direction cannot be reproduced. That means press dies rather than scissors, specimens from matched positions when comparing two leathers, and a thickness gauge whose presser foot and pressure match your standard. Then choose instruments for the failure modes your customers specify.
Sixteen instruments, coded LTE-0001 to LTE-0016, for a tannery or leather testing laboratory. They cover the four things that decide whether a leather is fit for its purpose: how the finish survives flexing - a flexometer, a crackness tester and a folding tester; how the leather behaves with water - a spray tester, a waterproofness tester, a dynamic waterproofness tester and two water vapour permeability instruments; how the surface wears - two abrasion testers, one specifically for sole leather, a crockmeter for rub fastness and a finish film adhesion tester; and the properties that have to be measured before any of the rest means anything - a bench thickness gauge, a Lasto-meter for grain distension and a light fastness tester.
Leather differs from every other material in this part of the catalogue in one way that governs the whole laboratory: it is not uniform. Thickness, fibre structure, stretch and strength all vary across a hide, from the firm butt through the flanks to the loose belly and neck. The test standards therefore specify where on the hide a specimen is taken from and in which direction it is cut, and a result reported without a stated sampling position is not reproducible - not by your customer, and not by you next month. Before buying an instrument, settle who cuts specimens, from where, and how that is recorded.
Three practical consequences follow from that, and they are worth more than any single instrument specification.
| Consequence | What to do about it |
|---|---|
| Position and direction must be recorded with every result | Use the sampling diagram in the standard you work to; record butt, flank, belly or neck and the cutting direction on the worksheet, not in someone memory |
| Specimens must be cut accurately and identically | Press dies rather than scissors. Ask us which dies each test needs, what they cost and what the resharpening arrangement is - a blunt die rounds an edge and a rounded edge changes a tear or tensile result |
| Comparisons need specimens from matched positions | When comparing two leathers or two processes, take specimens from the same position on each hide. Otherwise you are measuring the hide, not the process |
The same logic applies to the thickness gauge, LTE-0011, which looks like the simplest instrument here and is not. Leather is compressible, so a thickness reading depends on how hard the gauge presses and over what area. The standards specify a presser foot diameter and an applied pressure for exactly that reason. Ask what foot and what pressure the gauge applies, and whether both match your standard; a general-purpose dial gauge will give readings that are precise, repeatable and not comparable with anyone else.
Finished leather rarely fails by breaking. It fails because the finish cracks where the material folds - across the vamp of a shoe, at the fold of an upholstery panel, along the crease of a bag. Three instruments address that, and the questions are the same for all three: how many flexes the test specifies and whether the counter stops automatically; at what temperature, because a finish that is sound at room temperature can crack at low temperature and the standard may specify a cold test; how the specimen is clamped, since a clamp that grips the finish damages it before the test starts; and how cracking is assessed afterwards - under what magnification and against what scale.
The Lasto-meter, LTE-0005, belongs with them in spirit even though it does not flex. It presses a ball into the grain side of upper leather and records the load and the distension at which the grain cracks - which is, in effect, a laboratory prediction of what will happen when that leather is pulled over a last in a shoe factory. For anyone supplying shoe uppers it is the single most relevant instrument in the range, and it is worth asking whether the result is read as load, as distension or as both, and what specimen size and clamping ring the standard requires. Footwear-specific instruments are listed under footwear testing equipment.
Four instruments here deal with water, and they answer two separate questions that together define comfort in a shoe or a glove.
Does liquid water get in? That is the spray tester and the two waterproofness instruments. Note the word dynamic on LTE-0012: a static test holds leather against water and waits, while a dynamic test flexes the leather while it is wet, which is what a shoe actually experiences and is much the harsher test. If your customer specifies dynamic waterproofness, a static instrument will not satisfy them. Ask what water head or immersion the test applies, how penetration is detected and how many specimens can run at once.
Does water vapour get out? That is water vapour permeability, and it is why leather is used at all in place of a sealed synthetic. Two records in this listing cover it - LTE-0003 and LTE-0015 - with nothing in the listing to separate them, so ask which method each implements before choosing: the cup methods and the dish methods are not interchangeable and give different numbers for the same leather. Ask also what conditioning and what air movement the method requires, because both change the answer.
The crockmeter, LTE-0007, measures rub fastness dry and wet, and its consumable is the specified crocking cloth; the result is a rating against grey scales rather than a number, so the assessment needs controlled light and a trained observer in the same way fabric colour work does. Ask what the cloth costs, how many rubs the method specifies and whether wet rubbing is included.
The finish film adhesion tester asks whether the finish stays on the leather - a failure mode that shows up as peeling at a seam or an edge. Ask how the adhesive bond to the test strip is made, since that is where the method is fiddly and where results scatter.
The light fastness tester, LTE-0016, raises the same questions as any artificial-light exposure instrument: what the source is, what filters are fitted, how lamp hours are logged and what a lamp and filter set costs, and whether the method uses blue wool references so that the rating is anchored to something external. A light fastness result produced without reference standards is a comparison with nothing.
Two abrasion instruments are listed, one for sole leather and one general. Ask which abradant and which standard each follows, what the specimen size is, and what the consumable abradant costs per test - as with textiles, the running cost of an abrasion test is the abradant, not the machine.
LTE-0010 is listed only as "Auxiliary Apparatus", which tells you nothing, and we would rather say so than let you order it blind: ask us exactly what it contains and for which test, and have the contents listed on the proforma invoice. There are also two pairs of records with near-identical names - two water vapour permeability instruments and two waterproofness testers - and one record called "Crackness Tester Apparatus", where the test is crack resistance of the finish. In every case, quote the code and the full product name together and ask for the test method and specimen size to be confirmed in writing. If a name looks wrong or incomplete, ask; it is more likely to be our catalogue data than your reading of it.
The standard and version each instrument is built to, named explicitly; the test method where several exist, especially for water vapour permeability; specimen size, cutting die and clamping arrangement; presser foot diameter and pressure for the thickness gauge; temperature capability for the flexing instruments; number of specimens or stations per run; reference materials each test needs - grey scales, blue wool references, crocking cloth, standard abradant - with prices and local availability; calibration certificate, traceability and recalibration interval; services required at the position, including water and drainage; nominal voltage, frequency and plug pattern; and the warranty, commissioning and local service position. For any certification stated here, contact us for the latest copies of the relevant certificates before you rely on it in a tender or an accreditation file.
Related ranges: footwear testing equipment, fabric testing equipment, coated fabric testing equipment, rubber testing equipment for soling materials, and universal testing machines for tensile and tear strength. The full set is listed under raw products testing. For a quotation, tell us the destination country, the standards your customers name, whether the leather is for footwear, upholstery or leather goods, and your expected sample throughput.
Because the hide varies. Thickness, fibre structure, stretch and strength change from the butt through the flanks to the belly and neck, which is why the standards specify where on the hide a specimen is taken and in which direction it is cut. Record butt, flank, belly or neck and the cutting direction on the worksheet with every result, cut specimens with press dies rather than scissors, and when comparing two leathers or two processes take specimens from the same position on each hide - otherwise you are measuring the hide, not the process.
The presser foot diameter and the applied pressure. Leather is compressible, so a thickness reading depends on how hard the gauge presses and over what area, and the standards specify both for exactly that reason. Ask what foot and what pressure LTE-0011 applies and whether both match the standard you work to. A general-purpose dial gauge will give readings that are precise and repeatable but not comparable with anyone else's - which defeats the point when thickness is a measurement that so many other results depend on.
The Lasto-meter, LTE-0005. It presses a ball into the grain side of upper leather and records the load and the distension at which the grain cracks - in effect a laboratory prediction of what happens when the leather is pulled over a last in a shoe factory. Ask whether the result is read as load, as distension or both, and what specimen size and clamping ring your standard requires. For the flexing instruments beside it, ask the number of flexes and automatic stop, the test temperature - a finish sound at room temperature can crack in the cold - the clamping, and how cracking is assessed.
A static test holds leather against water and waits; a dynamic test flexes the leather while it is wet, which is what a shoe actually experiences and is much the harsher test. LTE-0012 is the dynamic instrument, and if your customer specifies dynamic waterproofness, a static instrument will not satisfy them. For the spray tester and both waterproofness instruments, ask what water head or immersion the test applies, how penetration is detected and how many specimens can run at once. Liquid water getting in and water vapour getting out are separate questions, answered by separate instruments.
Nothing in the listing separates the two records, so ask which method each implements before choosing. The cup methods and the dish methods are not interchangeable and give different numbers for the same leather, so the right instrument is the one that matches the method your customer names. Ask also what conditioning and what air movement the method requires, because both change the answer. Water vapour permeability is the property that explains why leather is used at all in place of a sealed synthetic, so it is worth getting the method right before the order.
The crockmeter, LTE-0007, uses the specified crocking cloth and gives a rating against grey scales, so assessment needs controlled light and a trained observer; ask how many rubs the method specifies and whether wet rubbing is included. The light fastness tester, LTE-0016, needs lamp hours logged, a lamp and filter set, and blue wool references - a light fastness result without reference standards is a comparison with nothing. For the two abrasion testers, one for sole leather, ask which abradant and standard each follows: the running cost of an abrasion test is the abradant, not the machine.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications - test method and standard version, specimen size, cutting die, clamping, presser foot and pressure, temperature capability and stations per run - are confirmed in writing on the quotation. For calibration certificates, standards or approvals, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: LTE-0010 is named only Auxiliary Apparatus and does not say what it contains; two water vapour permeability records (LTE-0003, LTE-0015) and two waterproofness records have near-identical names with nothing to separate them; and one record is called Crackness Tester Apparatus where the test is crack resistance of the finish.
Seat Thickness Gauge - Accurate assurance of thickness of calfskin is critical in itself for its end use, and additionally to evaluate other physical properties of cowhide under test. The Bench Thickness Gauge for cowhide is utilized for estimating thickness of calfskin tests with the assistance of a weight foot applying a predefined weight on it. It is likewise reasonable for estimating thickness of calfskin test examples whose measurements are utilized for deciding the consequences of physical tests or concoction investigation. The thickness measure comprises of a dial micrometer mounted over a metallic base. The micrometer has a level roundabout weight foot or indentor. A predefined drive is connected on the calfskin test by the weight foot by methods for dead weights set vertically above it. The example whose thickness is to be estimated is kept on a level iron block having its upper face anticipating 3 mm from the surface of a level roundabout stage. The tomahawks of the weight foot, the stage, and the anticipating iron block concur with each other common lab supplies makers. Cowhide Testing Lab hardware manufacturers, exporters and Leather Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments india, engineering equipments distributors, engineering lab instruments, engineering equipments manufacturer, thermodynamics engineering equipment, engineering educational lab equipments in Ambala, India.Â
Seat Thickness Gauge - Accurate confirmation of thickness of calfskin is basic in itself for its end utilize, and also to assess other physical properties of cowhide under test. The Bench Thickness Gauge for cowhide is used for assessing thickness of calfskin tests with the help of a weight foot applying a predefined weight on it. It is in like manner sensible for assessing thickness of calfskin test cases whose estimations are used for choosing the results of physical tests or blend examination. The thickness measure contains a dial micrometer mounted over a metallic base. The micrometer has a level indirect weight foot or indentor. A predefined drive is associated on the calfskin test by the weight foot by strategies for dead weights set vertically above it. The illustration whose thickness is to be assessed is kept on a level iron square having its upper face foreseeing 3 mm from the surface of a level circuitous stage. The tomahawks of the weight foot, the stage, and the foreseeing iron square agree with each other basic lab supplies creators. Cowhide Testing Lab equipment manufacturers,exporters and Leather Testing Lab suppliers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.
Collapsing Tester - The capacity of cowhide utilized as a part of bookbinding to effectively withstand without breaking rehashed opening and shutting of the book is determiÂned by subjecting the calfskin to a rehashed collapsing test. and In this test the test example in type of a rectangular segment of cowhide is bowed over and again for one hundred times through 180°, the collapsing being done at a similar area each time. Toward the finish of this test, grain break might not happen on the external collapsed surface of the cowhide example under test. and The& Folding Tester for bookbinding cowhide comprises of a settled grasp for holding one end of test example, a wavering arm which can travel through an edge of 180° about a level hub, and a level sharp edge held in an even plane with its front edge agreeing with the rotating hub of the swaying arm. common lab supplies producers. Calfskin Testing Lab hardware manufacturers,exporters and Leather Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments, engineering equipment manufacturer india, engineering equipment india, chemical engineering lab equipments, control engineering laboratory equipments, control engineering laboratory equipment, control engineering lab equipment in Ambala, India.
Water Proofness Tester - Water Proofness of calfskin utilized for fabricate of gloves is dictated by setting a test example taken from the example of cowhide under test on a wetted surface of a metal blacksmith's iron. The upper surface of the test example is tapped discontinuously by a mallet, which falls on it. The quantity of taps required to create infiltration of water through the test example is found to decide its water proofness. Additionally, the expansion in weight of the test example is found to decide the mass of water it retains amid this task. common lab types of gear makers. Calfskin Testing Lab hardware manufacturers, exporters and Leather Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments india, engineering equipments distributors, engineering lab instruments, engineering equipments manufacturer, thermodynamics engineering equipment, engineering educational lab equipments in Ambala, India.

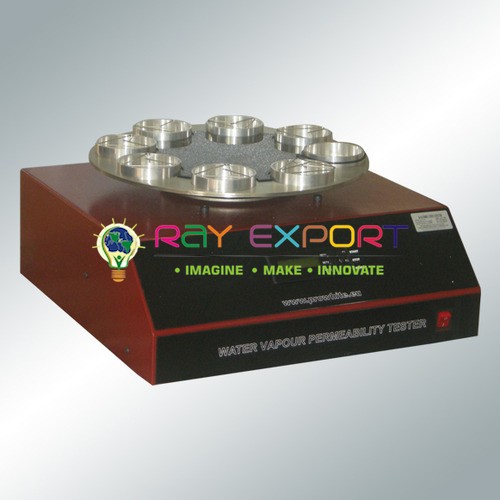

Water Vapor Permeability Tester - The Water Vapor Permeability of cowhide, that is its capacity to enable dampness to go through it, is of impressive significance, particularly when the calfskin under test is being utilized for produce of clothes. and Water vapor penetrability of calfskin is assessed by cinching a roundabout test example over the mouth of a container containing a strong desiccant and subjecting it to a quick momentum of air. The air inside the jug is flowed by keeping the desiccant in movement. The expansion in weight of the jug over a predetermined interim of time gives the quantitative measure of the water vapor penetrability of the cowhide test, under test. common lab types of gear producers. Cowhide Testing Lab hardware manufacturers,exporters and Leather Testing Lab providers
