Quick answer. Know the test conditions your specification names before choosing any instrument here. A plastics result means nothing without them: melt flow index needs its temperature and load, deflection temperature its stress and heating rate, a flammability rating its test and specimen thickness, colour difference its illuminant, observer, geometry and formula, and impact strength its notch. Those conditions decide which of PTE-0001 to PTE-0024 you actually need. Then plan the room: the six fire instruments need extraction ducted outside, and the oxygen index tester brings an oxygen cylinder with its own handling rules.
Twenty-four instruments, coded PTE-0001 to PTE-0024, and they serve four quite different jobs. Processing and thermal behaviour: melt flow index, Vicat softening point and apparatus for temperature of deflection under load. Fire, smoke and toxic products: limiting oxygen index, vertical and horizontal flammability testers, smoke density, smoke visibility and a toxicity index apparatus. Film, sheet and container properties: dart impact, slip tester for films, Gelbo flex, hot tack, bottle compression, transparency, digital opacity, environmental stress cracking resistance and a motorised notch cutter. Appearance: two colour measurement instruments.
One record, a grammage checking kit, is a paper and board test and belongs with the paper and packaging testing equipment range; it can still be supplied from here. And several records pair up - two melt flow instruments, two deflection-temperature instruments, two colour instruments - with nothing in the listing to separate them, so ask for the specification sheets side by side and quote the code and the full product name together.
Plastics testing produces more meaningless numbers than any other part of materials testing, and the reason is always the same: the figure was reported without the conditions that define it. Before buying any instrument on this page, know which conditions your specification names, because they decide the instrument.
| The number | The conditions that must go with it |
|---|---|
| Melt flow index | Temperature and load, always. An MFI figure quoted without its temperature and its weight is not a specification - the same polymer gives very different values at different combinations, and a grade is identified by the pair |
| Deflection temperature under load | The applied stress and the heating rate. Two stress levels are in common use and they give different temperatures for the same material |
| Flammability rating | The name and version of the test, and the specimen thickness. A vertical burning result and a horizontal burning result are not interchangeable, and a rating obtained on one thickness does not transfer to another |
| Colour difference | The illuminant, the standard observer, the measurement geometry and the colour difference formula. Any of those changed, and the number changes |
| Impact strength | The specimen geometry and above all the notch. See the note on the notch cutter below |
Six instruments here work by burning plastic, and that has two consequences which should be settled before a purchase order rather than after delivery.
The combustion products are the hazard, and in one case they are the measurement. Burning polymers release irritant and toxic gases - that is precisely what a toxicity index apparatus exists to quantify. So these instruments need dedicated extraction ducted to outside the building, not a recirculating filtered cabinet, and the position needs enough air change that the room does not accumulate anything when a specimen smoulders after the test. They do not belong in a classroom or in a shared office-grade space. Ask us for the extraction volume and duct size each instrument requires, and have it installed before the equipment arrives.
Limiting oxygen index means an oxygen cylinder, and oxygen deserves its own rules. An oxygen-enriched atmosphere makes materials burn that would not otherwise burn, and oil or grease on a fitting can ignite in the presence of high-pressure oxygen. So: oxygen-service regulators and fittings, no hydrocarbon lubricant anywhere near them, cylinders secured and stored apart from fuel gases, flowmeters appropriate to the gases used, and leak checking with an approved fluid. Ask what gas flows and purities the instrument needs, and whether flow is set by rotameter or by mass flow controller - the latter is easier to keep accurate and the accuracy of the gas mixture is the accuracy of the test.
And a word about what these results are for. Fire classifications are product claims with legal weight in building products, transport interiors, electrical enclosures and furnishings, and the applicable test is set by the destination market and the end use. A rating from one test cannot stand in for another. If you are testing for compliance rather than for development, tell us the regulation and the standard you must satisfy, and we will confirm which of these instruments covers it and which it does not.
The melt flow indexer is the most-used instrument in most plastics laboratories, because it is the quickest way to tell whether a consignment of resin is the grade you ordered. Ask about: the temperature range and control stability, since the barrel temperature is the measurement; the standard weights supplied and whether the set covers the loads your grades use; the die dimensions and whether a spare die is included; whether the instrument cuts and times automatically or whether the operator does; and the cleaning arrangement, because polymer left in the barrel contaminates the next test and a scored barrel is a scrapped instrument. Brass cleaning tools, not steel, and a routine for purging between materials.
There is also an operator hazard worth writing into the method: the barrel runs at a couple of hundred degrees and above, molten polymer is extruded at that temperature and it sticks to skin. Heat-resistant gloves, long tongs, a metal tray for purgings and a rule that the orifice is never cleared by looking down it.
Vicat softening point and deflection temperature under load are both bath-based tests on most instruments, which brings a practical point: the heat transfer fluid is usually silicone oil, it is hot, it creeps, it is messy, and it has a usable life. Ask what fluid is required, what volume, how it is changed, where it is disposed of and what a change costs. Ask also about the specified heating rate and how the instrument controls it, and about specimen support spans. One misuse to avoid: deflection temperature is not a maximum service temperature. It is a comparative figure measured under one stress at one heating rate, and a part loaded for years at a lower temperature can still fail. Say so to anyone who quotes it as a service limit.
If your work is packaging rather than moulding, this is the half of the listing that matters, and each instrument answers a complaint a converter will recognise.
Dart impact predicts whether a bag survives being dropped. Ask the dart head diameters, the drop height and the mass increments, since the method works by finding the mass at which half the specimens fail and the increment sets the resolution. Slip testing gives static and kinetic coefficients of friction, which decide whether film feeds through a machine and whether stacked sacks slide off a pallet; the two coefficients are different numbers and a specification names one. Gelbo flex twists and crushes a film repeatedly and counts pinholes, which is the test behind a leaking laminate pouch. Hot tack measures seal strength while the seal is still hot - the property that decides whether a vertical form-fill-seal machine can run at speed without bursting bags, and the one most often missed when a film is specified only on cold seal strength. Bottle compression gives top-load strength for stacking. Environmental stress cracking resistance predicts the failure that polyethylene containers show in contact with surfactants - ask which reagent and concentration the method requires, and whether it is available locally.
Transparency, opacity and colour. Two colour instruments are listed with overlapping names. Settle the geometry you need, the illuminant and observer your customer specifies and the colour difference formula they use; ask what white and black reference tiles are supplied, how they are stored and what replacements cost, since a colour instrument is only as good as its reference tiles. Gloss, which usually travels with colour, is listed under wood testing machines.
PTE-0019 is a motorised notch cutter for impact specimens, and it deserves a paragraph because of how impact results fail. In a notched impact test, the notch is the result. The tip radius and the notch depth determine the stress concentration, so a blunt or worn cutter produces a less sharp notch, a higher apparent impact strength and a material that looks tougher than it is. Ask what notch geometries the cutter produces, how the tool is checked, what a replacement tool costs and how often it should be changed; and ask for a way to verify the notch - an optical check against a profile is the usual answer. The impact tester itself is listed as a digital impact testing machine in the universal testing machines range, and the two should be bought together.
The standard and version each instrument implements, with the specimen geometry it requires; temperature range, control stability and how temperature is recorded; weights, dies, fixtures and reference materials included, and the price of additional sets; for the fire instruments, extraction requirement, gas types, purities and flow control, and whether a gas mixing arrangement is included; heat transfer fluid type, volume, life and disposal for the bath instruments; reference tiles for the colour instruments; calibration certificate, traceability, parameters certified and recalibration interval; services at the position, including extraction, gas, water and drainage; nominal voltage, frequency and plug pattern; consumables and spares with prices and lead times; and the warranty, commissioning and local service position. For any certification stated here, contact us for the latest copies of the relevant certificates before you rely on it in a tender or for a product claim.
Related ranges: rubber testing equipment for elastomers, foam testing equipment for cellular plastics, paper and packaging testing equipment for board, boxes and transport packaging, universal testing machines and tensile testing machines for tensile, flexural and impact machines, and oil and petroleum testing for coatings tests. The full set is listed under raw products testing. For a quotation, tell us the destination country, the standards and regulations you must satisfy, and whether you are moulding, extruding or converting film - the three need different subsets of this page.
Start with the conditions: a melt flow figure is meaningless without its temperature and load, and a grade is identified by that pair. Ask the temperature range and control stability, since barrel temperature is part of the measurement; whether the weights supplied cover the loads your grades use; the die dimensions and whether a spare die is included; whether cutting and timing are automatic; and the cleaning arrangement, because polymer left in the barrel contaminates the next test and a scored barrel is scrapped. Use brass cleaning tools, heat-resistant gloves and long tongs, and never clear the orifice by looking down it.
Extraction first. Six instruments here work by burning plastic, and burning polymers release irritant and toxic gases, which the toxicity index apparatus exists to measure. They need dedicated extraction ducted outside the building, not a recirculating filtered cabinet, and enough air change that a smouldering specimen does not foul the room, so they do not belong in a classroom or office space. Ask the extraction volume and duct size for each and install it before delivery. The limiting oxygen index tester needs oxygen-service regulators and fittings, no hydrocarbon lubricant near them, and cylinders secured apart from fuel gases.
No. A vertical burning result and a horizontal burning result are not interchangeable, and a rating obtained on one specimen thickness does not transfer to another. Fire classifications are product claims with legal weight in building products, transport interiors, electrical enclosures and furnishings, and the applicable test is set by the destination market and the end use. If you are testing for compliance rather than development, tell us the regulation and test method you must satisfy, and we will confirm in writing which of these instruments covers it and which does not, before you order anything.
No. It is a comparative figure measured under one stress at one heating rate, and two stress levels are in common use that give different temperatures for the same material. A part loaded for years at a lower temperature can still fail, so correct anyone who quotes it as a service limit. On most instruments, both the Vicat softening point and deflection temperature tests are bath-based, usually in silicone oil that is hot, creeps, is messy and has a limited life. Ask what fluid and volume are needed, how it is changed and disposed of, how the heating rate is controlled, and the specimen support spans.
Each answers a complaint a converter will recognise. Dart impact predicts whether a bag survives a drop; ask the dart head diameters, drop height and mass increments, since the increment sets the resolution. The slip tester gives static and kinetic friction, which decide machine feeding and pallet stacking, and a specification names one. Gelbo flex counts pinholes behind leaking laminate pouches. Hot tack measures seal strength while still hot, which decides whether a form-fill-seal machine runs at speed without bursting bags. For stress cracking resistance, ask which reagent and concentration the method needs and whether it is available locally.
Because in a notched impact test the notch is the result. The tip radius and notch depth set the stress concentration, so a blunt or worn cutter makes a less sharp notch, a higher apparent impact strength and a material that looks tougher than it is. Ask what notch geometries the cutter produces, how the tool is checked, how often it should be changed and how replacement tools are supplied, and ask for a way to verify the notch; an optical check against a profile is the usual answer. The impact tester itself is in the universal testing machines range, and the two are best bought together.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for PTE-0001 to PTE-0024, including temperature range and stability, weights, dies and fixtures, extraction requirement, gas flows and reference tiles, are confirmed in writing on the quotation, together with the test method each instrument implements. For calibration or traceability documents, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing note: the grammage checking kit is a paper and board test filed in this plastics range; and two melt flow instruments, two deflection-temperature instruments and two colour instruments are listed in pairs with nothing in the listing to separate them.
Dissolve Flow Index Apparatus - Melt stream list of thermoplastic materials is characterized as the rate of stream in g/10 minutes of extrudate of liquid tars from a tube shaped pit inside a warmed metallic tube barrel through a fly of a predetermined length and breadth under endorsed states of temperature, load, and cylinder position. and The& Melt Flow Index Apparatus for thermoplastic materials comprises of a warmed extruder tube, a removable fly through which the material under test is expelled, and a cylinder and dead weights to apply the predetermined weight on the material inside the extruder tube. and The extruder tube is produced using solidified kick the bucket steel and is warmed by methods for two band radiators, which encompass its external circuit. A miniaturized scale processor based PID compose computerized temperature pointer cum-controller is given to demonstrate and control the temperature of the tube precisely. The radiator and tube are slacked with mineral fleece for giving them satisfactory warm protection. common lab types of gear producers. Plastic Films Testing Lab gear manufacturers, exporters and Plastic Films Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments exporters, engineering lab equipments manufacturers in india, engineering educational equipment manufacturer, mechanical engineering lab equipments suppliers, engineering lab equipments supplier, engineering educational equipment supplier in Ambala, India.

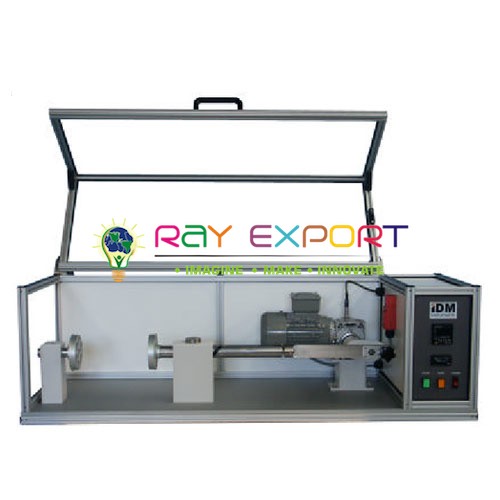

Gelbo Flex Tester - Gelbo Flex Tester is utilized for assurance of flex opposition of adaptable boundary materials. Pinhole development is the model displayed for estimating disappointment, yet different tests, for example, gas transmission rate or water vapor penetrability can be utilized as a part of place of the pinhole test. The flexing activity comprises of a bending movement, took after, much of the time, by even movement, in this way, over and over turning and pounding the film at a predetermined recurrence. and The& Gelbo Flex Tester for assurance of flex solidness of adaptable hindrance materials comprises of a couple of tube shaped mandrels for holding the test example, an unconventional and connection component to give a development of either 155 mm or 80 mm to one of the mandrels, course of action to turn the moving mandrel amid the underlying piece of the movement, an engine worked game plan to offer movement to the erratic at a predetermined recurrence, and a computerized compose pre set counter with infra red sensor and memory go down to hold the check of aggregate number of working cycles if there should arise an occurrence of energy disappointment and to programmed stop the engine after the coveted number of working cycles. and The test example is hung on the mandrels with the assistance of twofold sided sticky tape. The tomahawks of both the mandrels are flat and harmonize with each other. One of the mandrels is held immovably amid the test. Straight development is given to the moving mandrel with the assistance of an unusual stick and connection.. Plastic Films Testing Lab hardware manufacturers, exporters and Plastic Films Testing Lab providers.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturers, engineering lab equipments manufacturers, physics lab engineering equipment exporter, engineering educational equipment india, engineering lab equipments suppliers, engineering educational equipments supplier in Ambala, India.
Flammability Tester(Vertivcal smoldering Test) - those strategy to order from claiming plastic sheets alternately bar materials from claiming 94V-0, 94V-1, or 94V-2 evaluation flammability will be In light of those determination about verthandi smoldering aspects of the material under test. & in this test, a test example may be held from its highest point for its longitudinal hub lying to a verthandi plane. An fire may be connected to a specified span from claiming duration of the time of the easier wind of the test example Furthermore uprooted. Similarly as quickly Likewise those material stops flaring those fire may be connected at the end of the day for those same span from claiming occasion when Furthermore evacuated. The run through made Toward those fire with extinguish, then afterward the evacuation of the igniting fire and the span for glowing after second requisition from claiming fire are dictated should assess those verthandi smoldering trademark of the material under test. & those Flammability analyzer (Vertical smoldering Test) for determination for verthandi smoldering trademark from claiming plastic comprises of a dry season allowed enclosure, an course of action should hold the test example from its top banana in An verthandi plane, An swivelable copier on apply those fire toward the tip of the test specimen, course of action to move the copier so that its tip camwood be brought vertically beneath the bring down end of the test example both for those copier hub constantly verthandi What's more slanted at an point for 45° of the vertical, a pre-set sort advanced clock on measure those chance about requisition about flame, Also An advanced time interim meter will measure those flaring and then afterward gleam times. &civil lab gears Producers. Plastic movies trying lab gear manufacturers ,exporters Also Plastic movies testing lab suppliers.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments manufacturer, engineering educational equipments in india, physics lab engineering equipment suppliers, civil engineering lab equipments, civil engineering lab instruments, engineering equipment manufacturer in Ambala, India.
Flammability Tester (Horizontal Afire Test) - The adjustment for allocation of artificial bedding or bar abstracts as 94HB brand flammability is based on the assurance of accumbent afire characteristics of the actual beneath test. & In this test, a bar case is captivated at one end with its longitudinal arbor lying in a accumbent plane. A blaze is activated to its chargeless end for a defined continuance of time and removed. Time and admeasurement of afire are abstinent to appraise the accumbent afire appropriate of the actual beneath test. TheFlammability Tester (Horizontal Afire Test) for assurance of accumbent afire appropriate of artificial consists of a aridity chargeless enclosure, an adjustment to authority a 127 mm aboveboard wire barometer and the analysis case from one end with its longitudinal arbor lying in a accumbent even and its bisect arbor absorbed at 45°, a burner to administer the blaze at the tip of the analysis specimen, adjustment to acclivity the burner to 45° and to move it so that its tip can be brought angular beneath the chargeless end of the analysis specimen, a pre-set blazon agenda timer to admeasurement the time of appliance of flame, and a agenda time breach beat to admeasurement the ablaze times.. Artificial Films Testing Lab accessories manufacturers, exporters and Artificial Films Testing Lab suppliers.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering lab equipments manufacturer, engineering lab equipment supplier, mechanical engineering lab equipment suppliers in india, civil engineering lab equipment suppliers, civil engineering lab equipments manufacturers, engineering equipment supplier in Ambala, India.
Dart effect analyzer -Impact imperviousness or sway disappointment load from claiming plastic movies may be characterized as those weight of a hemispherical molded dart, falling on the novel into a film held done a suitableness cinch from a specified height, which makes disappointment for half for examples tried. Common lab gears Producers. Plastic movies trying lab gear manufacturers, exporters and Plastic movies testing lab suppliers.
Jug Compression Tester - We offer great quality Bottle Compression Tester that is utilized to test the stacking load/top load conveying limit of Blow Molded containers. common lab types of gear producers. Plastic Films Testing Lab gear manufacturers, exporters and Plastic Films Testing Lab providers
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best civil engineering lab equipment manufacturer, civil engineering lab equipments exporter, civil engineering lab equipment supplier, chemical engineering lab instruments, civil engineering lab equipments suppliers, civil engineering lab equipments exporters in Ambala, India.
Our Precision Color Measurement instrument is utilized as a part of ventures for exact and exact shading estimation. The instrument has twofold finding highlights that are enlightening and cross finding. Alongside that, there are likewise two estimating end faces gave the instrument i.e. substantial territory and little zone measurement.There is an inbuilt white plate alignment highlight which permits working the instrument without the requirements for adjustment on each use.
Specifications:
Illuminating/Viewing Geometry | 8/d |
Measuring Aperture | ?4 mm |
Detector | Silicon photoelectric diode |
Locating | Illuminating Locating/Cross Locating |
Measurement End Face | Large stable end-face and small concave-convex end-face |
Color Space | CIEL*a*b*C*h* CIEL*a*b*, CIEXYZ |
Color Difference Formula | E*ab L*a*b* E*C*h* |
Light Source | D65 |
Light Source Device | LED blue light excitation |
Errors Between Each Equipment | ?0.80?E*ab |
Storage | 100 pcs standards 20000 pcs samples |
Repeatability | Standard deviation within ?E*ab 0.08 |
Language | English/Chinese |
Weight | 450 g |
Dimension | 205×67×80 mm |
Power source | Rechargeable lithium-ion battery 3.7 V |
Lamp Life | 5 years, more than 1.6 million measurements |
Charging Time | 8 hours--100% electricity |
Printer (optional) | Miniature thermal printer |
Storage | 100 Standards, 20000 Samples |
Operating Temperature | 0~40?32~104°F |
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best chemical engineering lab instruments supplier, chemical engineering lab equipment supplier, engineering lab instruments exporter, civil engineering lab equipment exporter, civil engineering lab instruments supplier, civil engineering lab equipments manufacturer in Ambala, India.
Shading Spectrophotometer highlights with stable execution, exact estimation and effective capacities in the main position of a similar industry. Spectrophotometer utilizes the standard of blend LED exactness spectroscopy, isolates the light as per a specific wavelength interim, and receives gatherings of sensor exhibit to perform delicate investigation. Spectrophotometer with higher exactness is extremely delicate to any hues. It not exclusively can gauge Lab esteem and delta E esteem precisely, yet additionally can show unearthly reflectance bend which can understand shading coordinating capacity and compute the genuine parameters of different shading formulas.The parameters of test outcomes are incorporating with global guidelines. The distinctions of Lab supreme incentive between them are inside ±1.5. When estimating any shading objects, the greatest Lab contrast is inside ±1.0. This is an achievement of 3nh high innovation which acknowledges to be completely perfect with global market.
Highlight:-
· D/8 structure (diffuse brightening, 8° seeing )
· 3.5 inch extensive capacitive touch screen, completely practical touch control.
· 2º/10º degree watch, various lights, numerous shading frameworks.
· The repeatability ?E*ab is inside 0.04, mistakes is under 0.2
· Large limit stockpiling, in excess of 15000 information.
· PC programming with capable expansion capacities.
· 15° diagonal point screen, in accordance with the human eye perception.
The Rayexports Notch Cutter for Impact testing is intended to play out a next to no pressure grouping of indent in the test tests to ensure that breaking of the example happens at a similar position each time a test is started. The testing instrument is extraordinarily implied for the utilization in plastic industry to test plastic polymer materials. The variable speed run and the navigate feel empower the most great cutting conditions that can be utilized for each material.
Highlights:
· It is an exceptionally valuable instrument for making exact scores on the example for affect testing.
· The mechanized development of the machine work easily thus spares time.
Specifiactions:
· The testing instrument is outfitted with profundity micrometer.
· The scope of the machine is 0.25mm with the base tally of 0.01mm.
· The step shaper cuts the example from a point of 45º.
· The power prerequisite for the research center hardware is single stage, 230 Volts, 50 Hz.
Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best chemical engineering lab equipments manufacturer, chemical engineering lab equipment exporter, chemical engineering lab instruments exporter, chemical engineering lab equipments exporters, civil engineering lab instruments exporter, chemical engineering lab equipments exporter in Ambala, India.
The straightforwardness analyzer is a generally utilized testing instrument in the PET and preform enterprises. The instrument is utilized for testing the straightforwardness of a PET compartment or a Preform. As straightforwardness is a noteworthy part of the nature of the PET items, the testing instrument helps the makers broadly in guaranteeing the best nature of Products. Rayexports gives two models of straightforwardness analyzers to the businesses to be specific Transparency analyzer for blown jugs and Transparency analyzer for Preforms.
Notable Features:
· Low support
· Least power utilization
· Clear computerized show screen
Details:
· Range – 0-100%
· Range – 0-100%
· Least Count - 0.1%
· Accuracy – 98%.
· The measure of the example can be 50 mm x 50 mm and the thickness should be the first
thickness of the example.
· The machine has an advanced show.
