Electrical, Electronic and Electricity Workshop Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Electrical, Electronic and Electricity Workshop in India,

Quick answer. Before comparing a single trainer in EWL-0001 to EWL-0049, settle the electrical supply at each bench. Every item is built to a nominal voltage and frequency: a trainer built for 110 V 60 Hz teaches nothing useful on a 230 V 50 Hz supply, and a three-phase machine trainer needs a three-phase outlet at the bench, not a wall socket. Confirm voltage, frequency, phases and current per bench position in writing, with us and with your electrician, before ordering - it is the most common reason a delivered workshop sits unused. Then buy in order: room, bench, board.

What this range covers, and the one thing to settle first

This listing is the equipment range for fitting out an electrical, electronic and electricity training workshop: forty-nine items coded EWL-0001 to EWL-0049. It spans electrical machines and motor control, protection and relay work, transmission and distribution, transformers and measuring instruments, building wiring and switchboards, bench power supplies and loading units, and a complete electronics bench from basic kits through semiconductor, microcontroller, microprocessor and FPGA trainers. It is a workshop fit-out range rather than a shelf of individual trainers, which is why bench supplies, loading units and a PCB facility sit in it alongside the teaching boards.

Before you compare a single trainer, settle your electrical supply. Every item here is built to a nominal voltage and frequency. A bench supply or machine trainer built for 110 V 60 Hz teaches nothing useful on a 230 V 50 Hz supply, and a three-phase machine trainer needs a 400 V three-phase outlet at the bench rather than a wall socket. Confirm voltage, frequency, number of phases and the current available at each bench position in writing, with us and with your own electrician, before an order is placed. This is the most common reason a delivered workshop sits unused.

What is in the range

GroupCodesWhat it is for
Workshop facility packageEWL-0001A room-level package rather than one trainer; ask for the item list in writing, because what a package contains varies
Protection and relaysEWL-0002, EWL-0003Protection schemes and relay characteristics, with faults introduced deliberately
Power electronicsEWL-0004Converters, inverters and drives at training power levels
Electrical machines and motor controlEWL-0005 to EWL-0014DC series and shunt, three phase, alternator and parallel operation, inverter-fed AC control, motor-generator sets and a sectioned cutaway unit
Transmission and distributionEWL-0015, EWL-0016Line models, loading and distribution behaviour
Transformers and instrumentsEWL-0017, EWL-0018Transformer tests and the use of electrical measuring instruments
Building wiring and switchboardsEWL-0019 to EWL-0021In-house installation practice, switchboard demonstration and an illuminated fault-finding system
Bench supplies, loading and power factorEWL-0022 to EWL-0026Single and three phase bench supplies, a mobile loading unit and automatic power factor correction
Applied machine workEWL-0027, EWL-0028Refrigeration compressor analysis and single-phase motor and starter testing
Renewable energyEWL-0029Solar and wind fundamentals as an alternative-energy trainer
Basic electricity and electronics kitsEWL-0030 to EWL-0034, EWL-0037, EWL-0041, EWL-0042First-year fundamentals, electromagnetics and modular electronics, including a PC-based trainer
Digital, analog and semiconductorEWL-0035, EWL-0036, EWL-0038Sixteen-bit digital logic and analog-digital trainers, and semiconductor device characteristics
SensorsEWL-0043Sensor types, signal conditioning and interfacing
Microcontroller, microprocessor and FPGAEWL-0039, EWL-0040, EWL-0045 to EWL-0049PIC, 8051, 8088/8086, universal microcontroller, FPGA and application modules
PCB drafting and fabricationEWL-0044Board design through to etched, drilled and populated boards

The Room, Bench, Board order of buying

Most workshops are bought in the wrong order. A list of trainers is approved first, the trainers arrive, and only then does anyone discover that the room has four usable outlets, no three-phase supply at bench level, nowhere to stand a motor-generator set and no extraction over the soldering positions. Buying in the order below costs nothing extra and prevents that.

StageWhat is decidedItems in this range
1. RoomSupply voltage, frequency and phases; current at each bench; earth-leakage protection per bench; isolation and lockout; one emergency stop that kills every bench; floor area and anchoring for rotating machines; extraction over soldering and etchingNone - this is your electrician and your building
2. BenchHow many students work at once, and therefore how many bench supplies, meters and loading units; storage; what each bench must provide before a board is placed on itEWL-0018, EWL-0022 to EWL-0026
3. BoardWhich trainers the syllabus actually requires, and how many of each a class size needsEverything else in the range

The practical test of stage 2: count the students in one practical session, divide by the group size the syllabus allows, and buy that many of each core item. One trainer and thirty students is a demonstration, not a practical class, and no amount of equipment quality fixes it.

Machines, protection and transmission

The machines group is the heaviest part of the range and the part with the most physical requirements. A motor-generator set, or an alternator with parallel-operation capability, needs floor space, a stable base and in most cases anchoring; it is not a bench item. Ask for the mass, the footprint and whether the base is supplied. Ask what guards cover the coupling and the shaft ends, because an exposed coupling on a student machine is the most predictable injury in an electrical workshop. The cutaway unit, EWL-0014, is the exception and is worth having for exactly that reason: a sectioned machine teaches construction with nothing turning.

For the protection and relay trainers, the question to ask is how a fault is introduced. A trainer that only shows a relay sitting quietly under normal conditions teaches very little; the value is in a fault-insertion facility that lets a student create an overcurrent, an earth fault or a phase loss in a controlled way, read what the relay did and explain why. The illuminated fault system kit, EWL-0021, is the same principle applied to building wiring, and the switchboard demonstrator, EWL-0020, exists so that a student can see inside a board that would be sealed and live anywhere else.

One question matters more on the installation trainers than on anything else in the range: which wiring code do they teach? An in-house electrical system training kit is wired to the conventions of a particular country - cable colours, protective device types, earthing arrangement and socket pattern. A kit built to one code and installed in a country with another teaches a student to do the wrong thing correctly. Tell us the destination country before these items are quoted, and ask for the code or standard the kit follows to be stated on the quotation.

The electronics half of the workshop

From EWL-0030 onwards the range turns into an electronics bench. The basic kits are deliberately simple: fundamentals, electromagnetics, modular construction, with a PC-based option for classes that record and plot results. Above them sit sixteen-bit digital logic and analog-digital trainers, semiconductor characteristics, sensors and signal conditioning, and then the programmable devices.

An honest word about the processor families. The 8051 and the 8088/8086 are legacy architectures, and they are here on purpose: they are small enough to be taught completely, their instruction sets fit a syllabus and their documentation is settled. If your curriculum specifies them, that is the right choice. But check the syllabus before you buy, because a programme that has moved to a current microcontroller or to an FPGA flow is not served by an 8086 trainer, however well built. Three further questions apply to every programmable trainer here: what the development toolchain is, whether it still installs and runs on a current operating system, and whether the programming interface uses a port your laboratory computers actually have. A trainer whose software only runs on an operating system you no longer have is a paperweight. Ask for the toolchain, the interface and the supported operating systems in writing.

If a dedicated teaching board is what you need rather than a workshop fit-out, the same subjects are listed separately under microprocessor trainer kits, power electronics trainers and electrical engineering trainers. Compare the two routes on specification and price before deciding; they are different ranges, and the right answer depends on whether you are equipping a room or filling a gap.

The two items that bring other hazards into an electrical workshop

PCB drafting and fabrication, EWL-0044. This is the one item in the range that introduces chemistry and fumes. Before it is installed, three things need to exist: extraction over the soldering and etching positions, eye protection and gloves appropriate to the etchant, and a route for the spent etchant. Used etchant carries dissolved copper and must not go to the drain - it needs collection and disposal through a licensed route, and in most jurisdictions that is a legal requirement rather than good practice. Ask which etching process the setup uses, what the consumables are, what they cost per board and how the waste is intended to be handled. If a hazardous chemical is supplied with the equipment, ask for the safety data sheet with the quotation and confirm the material can be imported into your country.

Combined refrigeration compressor analyzer, EWL-0027. A refrigeration trainer contains a refrigerant charge, and refrigerants are regulated. Ask which refrigerant the unit is charged with before ordering. Ozone-depleting refrigerants are being withdrawn under the Montreal Protocol and high global-warming refrigerants are being phased down under its Kigali Amendment, on timetables that differ by country. A trainer charged with a refrigerant that is no longer importable or no longer serviceable where you are will be difficult to recharge for the whole of its working life, whatever it costs today. Ask also who in your institution is qualified to handle refrigerant, because a trainer that students can open unsupervised will be vented.

Alternative renewable energy trainer, EWL-0029. Two safety points catch new users. A photovoltaic module produces voltage whenever light falls on it and cannot be switched off; it is isolated by covering or disconnecting it, and students should be taught that before anything else. And if the trainer includes a battery, ask what type: a vented lead-acid battery gives off hydrogen and needs ventilation with no ignition sources nearby, while lithium cells are a dangerous good for shipping and need their test documentation for export. Related material is listed under green technology trainers.

Three items in this listing belong elsewhere

Three products appear in this electrical listing that are not electrical equipment, and we would rather tell you than have you find out after ordering. MW-0009, a PLC application board, and MW-0033, a basic hydraulic trainer, belong with the mechatronics workshop range; the hydraulic trainer is closer still to the hydraulics bench workshop. FM-0022, a tilting flow channel 150 mm wide, is a fluid mechanics item and belongs with flow measurement workshop equipment. All three can be supplied, but quote the full product name as well as the code when you enquire about them.

More generally: quote the code and the full product name together, and ask for both to be confirmed on the proforma invoice. Product codes on this site are not unique across the whole catalogue, and a code on its own is not enough to identify what will be shipped.

Export, documentation and what to ask for on the quotation

Ask forWhy it matters
Nominal voltage, frequency, phases and plug pattern, item by itemThe commonest cause of a workshop that cannot be commissioned
Mass, packed dimensions and whether a base or trolley is includedMachines in this range are floor items, and freight is charged on volume
The wiring code or standard the installation trainers followA kit built to another country code teaches the wrong practice
Guarding on couplings and shaft endsThe most predictable injury risk in the range
Development toolchain, interface and supported operating systemsDecides whether the programmable trainers are still usable in five years
Refrigerant type, and safety data sheets for any chemical suppliedImportability and long-term serviceability
Spares and consumables with prices, and lead time for eachLoading resistors, lamps, fuses, etchant and soldering tips are the running cost
Warranty terms, and who carries out commissioning and trainingA workshop handed over without commissioning is rarely used fully

For any certification stated for an item here, contact us for the latest copies of the relevant certificates before you publish or tender on it. For a tendered purchase, send us the technical specification sheet with the enquiry so that compliance can be answered line by line rather than by brochure.

Related workshop ranges

This page is one of the workshops in the workshop training equipment range. The closest neighbours are the test and measurement workshop for instruments and calibration, the consumer electronics workshop for appliance and audio-video servicing, the communications workshop for transmission and signalling, and the information technology workshop where a programme covers computing alongside the electrical trades.

For a quotation, tell us the destination country, the supply available in the room, the number of students in one practical session and the syllabus or tender specification you are working to. We will quote against that rather than against a catalogue list.

Frequently asked questions

In what order should an electrical workshop be equipped?

Room, then bench, then board. The room is your electrician's work: supply voltage, frequency and phases, current at each bench, earth-leakage protection per bench, isolation and lockout, one emergency stop that kills every bench, floor area and anchoring for rotating machines, and extraction over soldering and etching. The bench comes next - how many students work at once, and so how many bench supplies, meters and loading units (EWL-0018, EWL-0022 to EWL-0026). Only then choose the trainers the syllabus requires. Buying in this order costs nothing extra and prevents a room of trainers with nowhere to plug them in.

How many trainers does a class need?

Count the students in one practical session, divide by the group size your syllabus allows, and buy that many of each core item. One trainer and thirty students is a demonstration, not a practical class, and no amount of equipment quality fixes it. The same arithmetic sets the number of bench supplies and loading units. For EWL-0001, the workshop facility package, ask for the item list in writing, because what a room-level package contains varies, and check it against the same count before comparing it with buying trainers individually.

What should I check on the machines and protection trainers?

Motor-generator sets and the alternator with parallel operation are floor items, not bench items: ask the mass, the footprint, whether a base is supplied and whether anchoring is needed. Ask what guards cover the coupling and shaft ends, because an exposed coupling is the most predictable injury in an electrical workshop; the sectioned cutaway unit, EWL-0014, teaches construction with nothing turning. For the protection and relay trainers (EWL-0002, EWL-0003), ask how a fault is introduced - the value is in creating an overcurrent, earth fault or phase loss in a controlled way and explaining what the relay did.

Which wiring code do the building wiring trainers follow?

Ask before ordering. An in-house electrical system training kit is wired to the conventions of a particular country - cable colours, protective device types, earthing arrangement and socket pattern - and a kit built to one code and installed in a country with another teaches a student to do the wrong thing correctly. Tell us the destination country before EWL-0019 to EWL-0021 are quoted, and ask for the code the kit follows to be stated on the quotation. The illuminated fault system kit (EWL-0021) and switchboard demonstrator (EWL-0020) let students see faults and board interiors safely.

Are the 8051 and 8086 microprocessor trainers still worth buying?

If your curriculum specifies them, yes. They are legacy architectures included on purpose: small enough to be taught completely, with instruction sets that fit a syllabus and settled documentation. But a programme that has moved to a current microcontroller or an FPGA flow is not served by an 8086 trainer, however well built, so check the syllabus first. For every programmable trainer here, ask in writing what the development toolchain is, whether it installs and runs on a current operating system, and whether the programming interface uses a port your laboratory computers actually have.

What extra hazards come with the PCB, refrigeration and renewable energy items?

The PCB facility (EWL-0044) brings chemistry: it needs extraction over soldering and etching, eye protection and gloves suited to the etchant, and a licensed route for spent etchant, which carries dissolved copper and must not go to the drain. The refrigeration compressor analyser (EWL-0027) contains a regulated refrigerant, so ask which one and whether it is importable and serviceable where you are. On the renewable energy trainer (EWL-0029), a solar module produces voltage whenever light falls on it and is isolated only by covering or disconnecting it; ask the battery type, because lead-acid and lithium bring different hazards.

Key takeaways

  • Settle the supply first - voltage, frequency, phases and current at each bench, confirmed in writing.
  • Room, bench, board - buy in that order and the trainers will have somewhere to work.
  • Divide the class by the group size - one trainer for thirty students is a demonstration.
  • Guard every coupling and shaft end on the machine sets; the cutaway EWL-0014 teaches construction with nothing turning.
  • Match the wiring code to the destination country on the installation trainers.
  • Check the toolchain still installs before buying any programmable trainer.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications - nominal voltage, frequency, phases and plug pattern per item, mass and packed dimensions, wiring code, guarding, development toolchain and interface, refrigerant type and package contents - are confirmed in writing on the quotation. For certificates, standards or approvals, contact us for the latest copies of the relevant certificates; for a tender, send the technical specification sheet so compliance can be answered line by line. No price is quoted on this page. Listing notes: three items filed here are not electrical equipment and carry other categories' codes - MW-0009 PLC application board and MW-0033 basic hydraulic trainer (mechatronics workshop) and FM-0022 tilting flow channel (flow measurement workshop); product codes are not unique across the catalogue; and the contents of the workshop facility package EWL-0001 are not itemised.

In-House Electrical System Training Kit

EWL-0019

In-House Electrical System Training Kit

Switchboard Demonstrator Unit

EWL-0020

Switchboard Demonstrator Unit

Illuminated Fault System Kit

EWL-0021

Illuminated Fault System Kit

Three Phase Bench Power Supply

EWL-0022

Three Phase Bench Power Supply

Single Phase AC Bench Power Supply

EWL-0023

Single Phase AC Bench Power Supply

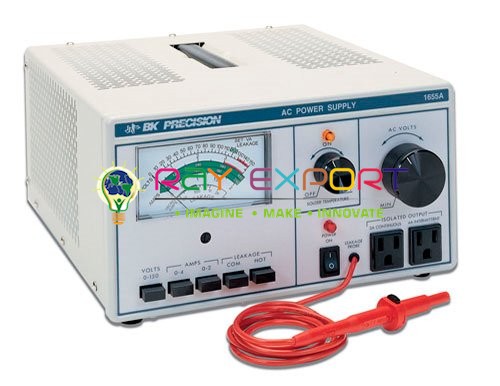

Single Phase AC/DC Power Supply

EWL-0024

Single Phase AC/DC Power Supply

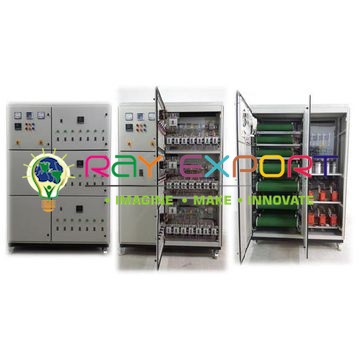

Mobile Electrical Loading Unit

EWL-0025

Mobile Electrical Loading Unit

Automatic Power Factor Correction Unit

EWL-0026

Automatic Power Factor Correction Unit

Combined Refrigeration Compressor Analyzer

EWL-0027

Combined Refrigeration Compressor Analyzer

Single Phase Motor Analyzer And Starter Trainer

EWL-0028

Single Phase Motor Analyzer And Starter Trainer
