Quick answer. Ask first where the energy comes from while the class is running. Sunlight, wind, hydrogen and biogas are not available on demand in a laboratory, and how each trainer solves that decides whether a practical can be timetabled at all. For the solar trainer (GT-0001), is an artificial light source supplied? For wind (GT-0003) and hybrid (GT-0004), is a variable-speed blower included? For the fuel cell (GT-0002), is hydrogen made on demand by an electrolyser or taken from a cylinder? For bio energy (GT-0006), does it actually produce gas? The answer also sets the hazards you take on.
Six trainers are catalogued here: solar energy (GT-0001), fuel cell (GT-0002), wind energy (GT-0003), hybrid solar and wind (GT-0004), solar cooker demonstrator (GT-0005) and bio energy (GT-0006). Renewable energy trainers raise a question that bench electronics never does: where does the energy come from while the class is running? Sunlight, wind, hydrogen and biogas are not available on demand in a laboratory, and how each trainer solves that is the single thing that decides whether a practical can be timetabled. Three of the six also bring real hazards, set out below.
| Code | Trainer | The source question to settle |
|---|---|---|
| GT-0001 | Solar energy trainer | Is an artificial light source supplied, or must the module go outdoors or to a window? |
| GT-0003 | Wind energy trainer | Is a variable-speed blower supplied, and what air speed range does it give? |
| GT-0004 | Hybrid solar and wind trainer | Both of the above, plus what the hybrid controller actually does |
| GT-0002 | Fuel cell trainer | Is hydrogen generated on demand by an electrolyser, or supplied from a cylinder? |
| GT-0005 | Solar cooker demonstrator | Box type or concentrating, which changes the hazard entirely |
| GT-0006 | Bio energy trainer | Does it actually digest feedstock and produce gas, or is it a model? |
A current-voltage characteristic measured without recording the irradiance and the module temperature at the same moment cannot be interpreted, because both change the curve. That makes the sensors, not the panel, the thing to specify. Ask for:
If the trainer is used indoors with a lamp, ask what spectrum and irradiance the lamp provides and how uniform it is across the module, because an uneven or unlike-sunlight source makes efficiency figures meaningless. If the module goes outside or onto a roof, plan the mounting, the cable route, weatherproofing and surge protection, and remember the practical then depends on the weather.
For the wind trainer, ask whether a blower is supplied, its air speed range and whether it is variable, and whether an anemometer is included, since the power curve needs wind speed on one axis. Ask the rotor type, horizontal or vertical axis, the generator type, whether more than one blade set is supplied so blade number and pitch can be compared, and what load is used. Ask also about noise and about guarding, because an exposed rotor at speed in a teaching room needs a guard and a means of stopping it.
For the hybrid trainer, the teaching content is the controller: ask whether it manages the two sources and a battery, whether the source priority and thresholds can be changed, and whether the switching between sources is observable rather than hidden. Ask also whether GT-0004 is separate hardware or the two individual trainers plus a controller, so you do not buy the panel and turbine twice.
This is the item to be most careful about. Ask, before anything else, whether hydrogen is produced on demand by an electrolyser within the trainer, or taken from a cylinder. The two are not comparable purchases. An electrolyser making a small quantity as it is used keeps the inventory tiny; a cylinder brings gas storage obligations that a teaching laboratory may not be set up for.
Whichever it is, hydrogen is flammable across a wide range of concentrations in air and ignites very easily, so ask for the supplier's own safety instructions and confirm with your safety officer that the room suits them: ventilation at high level, no ignition sources, a leak check procedure before each use, and no cylinder kept or restrained improperly. Ask also what water the electrolyser requires, since de-ionised water is usually specified and tap water will shorten its life; the stack rating and whether the arrangement is reversible, so electrolysis and generation can both be demonstrated; and what load and meters are supplied for plotting a polarisation curve.
A box cooker is a glazed insulated box and is comparatively benign. A concentrating or parabolic cooker brings the sun to a focus, and that focus will char or ignite material and can injure eyesight. If the demonstrator is a concentrating type, it must be supervised whenever it is in the sun, never left unattended, kept away from anything combustible, and used with eye protection and an instruction not to look toward the focus. Ask which type is supplied, the aperture area, whether a thermometer or data logger is included, and on what basis any stagnation temperature or cooking power figure is quoted, since such numbers depend entirely on the test conditions.
Ask first whether the trainer actually digests feedstock and generates biogas, or demonstrates the process without producing any. If it does produce gas, the purchase carries obligations: biogas is largely methane and is flammable, so ventilation and the exclusion of ignition sources apply; it also contains hydrogen sulphide, which is toxic and corrodes fittings, so ask how the gas is handled and whether any scrubbing is provided. Ask what feedstock is intended, the retention time before gas appears, which in practice determines whether the experiment fits a teaching term, how the gas volume is measured, whether burning the gas is part of the demonstration and if so what burner and extraction are used, and how the digester effluent is to be disposed of.
Whether the supplied sensors are calibrated and traceable, because an efficiency figure computed from uncalibrated readings teaches the wrong lesson; the data logging arrangement and whether readings can be exported for students to process; the experiment manual with expected results; the quantity per student group; the battery chemistry if a battery is included, with its ventilation and disposal requirements; the supply voltage, frequency and plug type for your country; and the warranty. Every product name in this range ends with "Green Energy Training Labs", which is a naming convention on this site rather than a specification. Any performance figure quoted is confirmed in writing on the quotation; ask for the test conditions behind it.
Generators, machines and three-phase measurement are under Electrical Engineering Trainers; converters, inverters and maximum power point tracking circuits under Power Electronics Trainers. Sensors, transducers and data logging are under Instrumentation Trainers and instruments under Testing and Measuring Lab Trainers. Thermal and fluid apparatus is under Mechanical Engineering Trainers and Other Engineering Lab Trainers. Parent range: Electronics Lab Trainer Kits.
Tell the supplier whether the trainers will be used indoors or outdoors, and ask for a quote stating the energy source arrangement and the sensors supplied against each code. For example Solar Energy Trainer (GT-0001), four sets, with the irradiance sensor, module temperature sensor and variable load confirmed in writing, and for the fuel cell trainer the hydrogen arrangement stated explicitly. Contact Ray Export for prices, manuals and lead times.
The sensors matter more than the panel. A current-voltage curve measured without recording the irradiance and the module temperature at the same moment cannot be interpreted, because both change the curve. Ask for an irradiance measurement from a pyranometer or calibrated reference cell, a temperature sensor on the module itself, since output falling as the cell warms is one of the main lessons, and a variable load that sweeps from short circuit to open circuit so the maximum power point can be found. Tilt and azimuth adjustment make the orientation experiment possible.
Yes, if a lamp is supplied, but ask what spectrum and irradiance the lamp provides and how uniform it is across the module, because an uneven or unlike-sunlight source makes efficiency figures meaningless. If the module goes outside or onto a roof instead, plan the mounting, cable route, weatherproofing and surge protection, and remember the practical then depends on the weather. If a standalone system is to be taught, ask whether a charge controller, battery and inverter are included, and whether the controller is the maximum power point tracking type with observable behaviour.
Ask whether a blower is supplied, its air speed range and whether it is variable, and whether an anemometer is included, since the power curve needs wind speed on one axis. Ask the rotor type, horizontal or vertical axis, the generator type, the load used, and whether more than one blade set is supplied so blade number and pitch can be compared. Ask also about noise and guarding: an exposed rotor at speed in a teaching room needs a guard and a means of stopping it.
Ask, because the listing does not say whether GT-0004 is separate hardware or the two individual trainers plus a controller, and you do not want to buy the panel and turbine twice. The teaching content of a hybrid trainer is the controller. Ask whether it manages the two sources and a battery, whether the source priority and switching thresholds can be changed by the student, and whether the switching between sources is observable rather than hidden inside a box. Then apply the solar and wind questions above to its sources.
Establish the hydrogen arrangement first. An electrolyser making a small quantity as it is used keeps the inventory tiny, while a cylinder brings gas storage obligations a teaching laboratory may not be set up for. Either way, hydrogen is flammable across a wide range of concentrations in air and ignites very easily, so ask for the supplier's safety instructions and confirm with your safety officer: high-level ventilation, no ignition sources and a leak check before each use. Ask what water the electrolyser needs, since de-ionised water is usually specified.
For the solar cooker, ask which type. A box cooker is comparatively benign; a concentrating or parabolic cooker brings the sun to a focus that can char or ignite material and injure eyesight, so it must be supervised, kept from combustibles and used with eye protection. For the bio energy trainer, ask whether it actually produces gas. If it does, biogas is largely methane and flammable, and it contains hydrogen sulphide, which is toxic and corrodes fittings, so ask how the gas is handled and what retention time to expect.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications, the sensors supplied and the energy source arrangement for each code are confirmed in writing on the quotation; for certificates, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: every product name in this range ends with Green Energy Training Labs, a site naming convention rather than a specification; and the listing does not say whether GT-0004 is separate hardware or GT-0001 and GT-0003 with a controller.

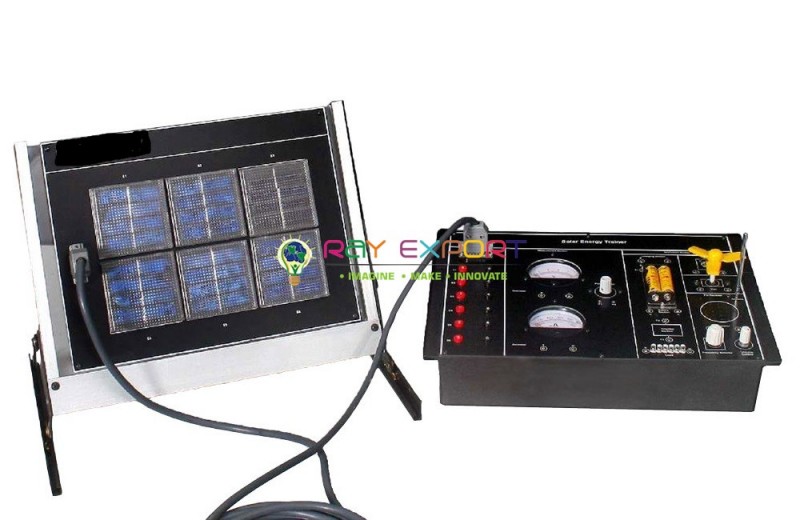

Solar Energy Trainer - Complete training system to study the fundamentals of photovoltaic system. The system has two modes for study: Characteristics and Application Modes.
Fuel Cell Trainer - Complete Training System to study the Solar-Hydrogen cycle. Measurement and Application Modes.
Wind Energy Trainer - Complete setup to study the fundamentals of wind based DC power generator. On board voltmeter and ammeter are provided.
Hybrid Solar and Wind Energy Training System - Complete Training System, On-board Voltmeter and Ammeter.
Solar Cooker Demonstrator - Study the Construction of Solar Cooker.Measurement of Temperature difference at various section of Solar Cooker.

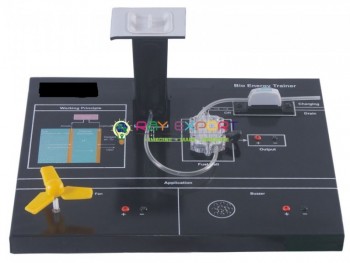

Bio Energy Trainer - Easy illustration of energy generation using Bio Energy. Complete set up. Provided with Bio fuel.
