Testing & Measuring Lab Trainers Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Testing & Measuring Lab Trainers in India,

Quick answer. Because these fourteen items are measuring instruments rather than trainers, the data sheet and the calibration behind it are the product. Neither appears in the listing, so ask for both with the quotation: the actual figures, such as sample rate and record length as well as bandwidth for the storage oscilloscope TMLT-0002, with the conditions they hold under; and whether calibration is traceable, with the recalibration interval and who performs it in your country. Then check the accessories - probes, pods and attenuators - because they limit the measurement and are the parts students break.

Fourteen items are listed here, TMLT-0001 to TMLT-0014. Unlike the rest of this range these are not trainers but measuring instruments, and that changes what you are buying: with a trainer the experiment list is the specification, while with an instrument the specification is the product. Two things therefore decide an instrument order, and neither appears in the listing: the numbers on the data sheet, and whether the instrument comes with a traceable calibration certificate.

What is in the range

GroupCodesInstruments
OscilloscopesTMLT-0001, TMLT-0002Analogue oscilloscope, digital storage oscilloscope
AnalysersTMLT-0003, TMLT-0004Logic analysers, spectrum analysers
Passive standardsTMLT-0005, TMLT-0006, TMLT-0007Decade inductance, resistance and capacitance boxes
MetersTMLT-0008, TMLT-0009, TMLT-0010, TMLT-0011Vacuum tube voltmeter, output power meter, LCR and Q meter, AC millivoltmeter
Device test and programmingTMLT-0012, TMLT-0013, TMLT-0014Digital integrated circuit tester, universal integrated circuit tester, universal programmer

Calibration: the question that makes the rest meaningful

An accuracy figure with nothing behind it cannot be defended, and a teaching laboratory that reports measurements should be able to say where its accuracy comes from. For every instrument here, ask:

  • Is a calibration certificate supplied, and is it traceable to a national standard? Ask to see a specimen certificate before ordering.
  • What is the recommended recalibration interval, who can perform it in your country, how long the instrument is away and what it costs. This is a recurring cost that an initial quotation never shows.
  • Under what conditions does the accuracy specification hold - temperature range and warm-up time - because a figure quoted without conditions is not a specification.

Oscilloscopes: ask for the sample rate as well as the bandwidth

For the digital storage oscilloscope (TMLT-0002) ask the bandwidth, the real-time sample rate, the record length, the number of channels and the vertical resolution. Bandwidth alone is misleading: an instrument advertised with a high bandwidth but a modest sample rate cannot faithfully capture a single fast event, so ask for both and ask which applies when all channels are in use, since on many instruments the sample rate is shared. Ask what mathematics and transform functions are included, how waveforms are exported, and in what format.

Then ask about the probes, which is where oscilloscope orders most often disappoint. Confirm how many probes are supplied, their bandwidth and whether it matches the instrument, and their attenuation. A set of probes of lower bandwidth than the oscilloscope limits the whole measurement, and probes are a consumable in a student laboratory, so ask the price of replacements.

For the analogue oscilloscope (TMLT-0001), ask the bandwidth, channel count, vertical sensitivity and timebase range. Buy one only if your syllabus specifically calls for an analogue instrument or you want students to understand the cathode-ray display; for everything else the storage oscilloscope does the same work and more.

One safety point applies to both. An oscilloscope probe screen is connected to the instrument's protective earth, so it must not be clipped to a circuit node that is not at earth potential, which is the normal situation in mains-referenced power circuits. Isolate the circuit or measure differentially, and never defeat the instrument's earth pin. This is set out at more length under Power Electronics Trainers.

Analysers: the accessories are a large part of the cost

Logic analysers (TMLT-0003). Ask the channel count, the maximum sampling rate, the memory depth per channel, the trigger capability, and critically the threshold voltage settings, since a laboratory working with three-point-three volt logic needs adjustable thresholds and not a fixed five-volt one. Ask which protocol decoders are included and whether they are licensed separately. Ask what probe pods are supplied and what spares cost, because pods are expensive and are the part students break.

Spectrum analysers (TMLT-0004). Ask the frequency range, the resolution bandwidth range, the displayed average noise level and the amplitude accuracy. Then ask the maximum safe input power and whether an input attenuator is fitted, because connecting a transmitter output to an analyser input is the usual way a teaching laboratory destroys one, and an external attenuator or a direct-current block may be needed in your practicals. Ask whether a tracking generator is included or available, since it is what allows filter and amplifier response measurements.

Decade boxes and meters

For the decade resistance, capacitance and inductance boxes (TMLT-0005 to TMLT-0007), ask the range and step size, the tolerance of each decade, the power or voltage rating, and the residual values of the switches and wiring, which set the lowest usable value and matter at higher frequencies. Ask whether they are supplied with a calibration certificate, since these are used as reference values in bridge and network experiments.

For the LCR and Q meter (TMLT-0010), ask at which frequencies it measures and whether more than one is available, because inductance and capacitance both vary with frequency and a single-frequency instrument will not match a component data sheet measured elsewhere. Ask the ranges, the accuracy and whether four-terminal leads are supplied for low-resistance work. For the alternating-current millivoltmeter (TMLT-0011) ask the frequency range, the lowest full-scale range and whether the reading is true root-mean-square or average-responding, which decides whether it can be trusted on anything but a sine wave. For the output power meter (TMLT-0009) ask the frequency range, the power ranges and the load impedances it provides.

The vacuum tube voltmeter (TMLT-0008) is a historical instrument. Its purpose, a very high input impedance, is met by any modern digital meter, so buy it only if your syllabus names it or you teach valve equipment servicing, and if you do, ask whether replacement valves are still available.

Device testers: check the sibling categories before ordering

TMLT-0012, TMLT-0013 and TMLT-0014 overlap two other listings on this site, IC Tester and Digital IC Tester and EPROM Programmer and Programmer Tester. Quote the code and ask which product is current. For any of them ask the device library and how it is updated, how many pins the socket takes and whether adapters are needed for other packages, whether the unit works standalone or needs a computer, and if a computer is needed, which operating system, which software and what licence.

Also worth confirming

Whether a model number quoted in a product name refers to an instrument made by another manufacturer, in which case ask who supports it; the manual, in English and complete with specifications; the supply voltage, frequency and plug type for your country; spare fuses and probes; the service arrangement in your country and the typical turnaround; and the warranty. Any specification quoted is confirmed in writing on the quotation; ask for the data sheet rather than relying on a catalogue line.

Related ranges on this site

The experiments these instruments serve are under Basic Electronics Trainers, Digital and Analog Trainers and Kits and Communication and RF Trainers. Mains-level measurement is under Electrical Engineering Trainers and Power and Instrumentation Lab, and transducers and calibration practice under Instrumentation Trainers. Parent range: Electronics Lab Trainer Kits.

Request a quote

Ask for the data sheet and a specimen calibration certificate with the quotation, not after it. For example Digital Storage Oscilloscope (TMLT-0002), eight benches, with the bandwidth, real-time sample rate, record length and the bandwidth of the supplied probes stated in writing. Contact Ray Export for prices, data sheets and lead times.

Frequently asked questions

Why is bandwidth not enough when choosing the oscilloscope?

An instrument with a high bandwidth but a modest sample rate cannot faithfully capture a single fast event. For the digital storage oscilloscope, TMLT-0002, ask the bandwidth, the real-time sample rate, the record length, the number of channels and the vertical resolution, and which sample rate applies when all channels are in use, since it is often shared. Then check the probes: how many are supplied, their attenuation, and whether their bandwidth matches the instrument, because lower-bandwidth probes limit the whole measurement.

Should we buy the analogue oscilloscope?

Only if your syllabus specifically calls for an analogue instrument or you want students to understand the cathode-ray display; for everything else the storage oscilloscope does the same work and more. If you do buy TMLT-0001, ask the bandwidth, channel count, vertical sensitivity and timebase range. One safety point applies to both: the probe screen is connected to protective earth, so never clip it to a node that is not at earth potential, as in mains-referenced power circuits. Isolate the circuit or measure differentially, and never defeat the earth pin.

What should we ask about the logic and spectrum analysers?

For the logic analyser, TMLT-0003, ask the channel count, maximum sampling rate, memory depth per channel, trigger capability and threshold settings, since 3.3 volt logic needs adjustable thresholds rather than a fixed five-volt one, and ask whether protocol decoders are licensed separately. For the spectrum analyser, TMLT-0004, ask the frequency range, resolution bandwidth range, displayed average noise level and amplitude accuracy, the maximum safe input power, whether an input attenuator is fitted, and whether a tracking generator is available.

What matters in the decade boxes and the LCR and Q meter?

For the decade resistance, capacitance and inductance boxes, TMLT-0005 to TMLT-0007, ask the range and step size, the tolerance of each decade, the power or voltage rating, and the residual values of the switches and wiring, which set the lowest usable value. Because they serve as reference values in bridge and network experiments, ask how they are calibrated. For the LCR and Q meter, TMLT-0010, ask at which frequencies it measures, since a single-frequency instrument will not match a data sheet measured elsewhere, and whether four-terminal leads are supplied.

Is the vacuum tube voltmeter still worth buying?

TMLT-0008 is a historical instrument. Its purpose, a very high input impedance, is met by any modern digital meter, so buy it only if your syllabus names it or you teach valve equipment servicing, and in that case ask whether replacement valves are still available. For the AC millivoltmeter, TMLT-0011, ask whether the reading is true RMS or average-responding, which decides whether it can be trusted on anything but a sine wave; for the output power meter, TMLT-0009, ask the frequency range and the load impedances it provides.

How do the IC testers and programmer relate to other listings?

TMLT-0012, TMLT-0013 and TMLT-0014 overlap two other listings on this site, IC Tester and Digital IC Tester, and EPROM Programmer and Programmer Tester, so quote the code and ask which product is current. For any of them, ask about the device library and how it is updated, how many pins the socket takes, whether adapters are needed for other packages, and whether the unit works standalone or needs a computer - and if it does, which operating system, which software and what licence.

Key takeaways

  • The data sheet is the product: ask for actual figures and the conditions they hold under, not a catalogue line.
  • Calibration makes accuracy defensible: ask whether it is traceable, the recalibration interval and who performs it locally.
  • Sample rate with bandwidth: for TMLT-0002, ask both, and which sample rate applies with all channels in use.
  • Probes set the limit: lower-bandwidth probes cap the whole oscilloscope measurement.
  • Protect the analyser input: ask the maximum safe input power of TMLT-0004 and whether an attenuator is fitted.
  • Check sibling listings: TMLT-0012 to TMLT-0014 overlap the IC tester and programmer ranges.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

Specifications for every code, including bandwidth, sample rate, ranges, tolerances and accuracy conditions, are confirmed in writing on the quotation, together with the data sheet. For calibration certificates, contact us for the latest copies of the relevant certificates and ask for a specimen before ordering. No price is quoted on this page. Listing notes: the range is named as trainers but holds measuring instruments, and TMLT-0012 to TMLT-0014 overlap products in the IC tester and programmer listings.

Millivoltmeter AC (AE 493 )

TMLT-0011

Voltmeter that can quantify voltages in milivolt range.This gadget can gauge little scope of voltages at high frequency.It is utilized for compo-nent level testing.This gadget is very requested in electronic industry.


Determinations :


Voltage Range from 0.1mV to 300 V AC,Covered in 12 territories with full scale redirection of 1, 3, 10, 30, 100, 300 millivolts and 1, 3, 10, 30, 100, 300 volts,Decibel Range (from-60 to + 50 dB) in 10dB steps,Frequency Range from 5 Hz to 1MHz, Measurement : 1 mV to 30 mV Ranges, Accuracy : + 3% of FSD from 30 Hz to1 MHz, 100 mV to 3 V Ranges + 5% of FSD 30 Hz to 500 KHz, + 1% of FSD 20 Hz to 1 MHz,10 V and above Ranges + 5% of FSD upto 100 KHz.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers  in Ambala, India.


Digital IC Tester

TMLT-0012

The advanced IC analyzer gave by us is utilized to test Integrated Circuits (ICs).One can without much of a stretch test any computerized IC with the assistance of this IC analyzer. The IC analyzer which we offer, is solid and substantially less demanding than other IC testers.Using an IC analyzer lessens the unpredictability of meandering in equipment to test a basic IC.


Determinations:


Computerized ICs upto 40 sticks in DIP package,IC Type : Tri-state, open gatherer and bidirectional ICs ,ZIF : 20 and 40 stick DIP ZIF sockets,KEY : 16 keys, Display: 16 x 1 line LCD display,Supply Voltage : 230V AC.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipment, engineering equipments exporters, engineering equipments suppliers, engineering equipments supplier, engineering educational equipments, engineering equipments manufacturers in Ambala, India.

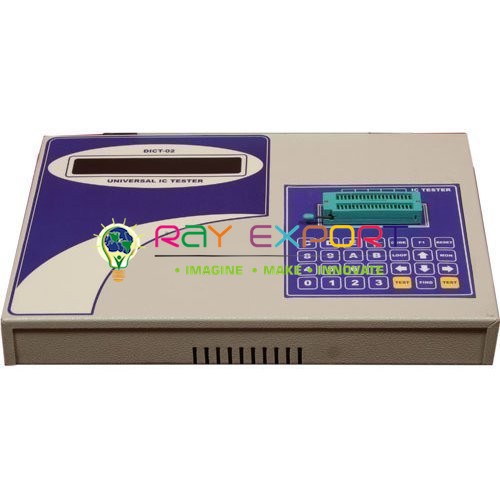

Universal IC Tester

TMLT-0013

The offered scope of all inclusive IC analyzer gave by us is accessible in various modified particulars according to the different necessities of the clients. Alongside this,we at Ray Export ,offers extensive variety of widespread IC analyzer kept an eye on various attributes to keep up its quality.


Details:


It can test in excess of 450+ ICs,a extensive variety of Digital IC's, for example, 74 Series, 40/45 Series, 8085, 8086, Z80,8255, 8279, 8253, 8259, 8251, 8155, 6264, 62256, 8288, 8284.One can without much of a stretch test operation amp, 555, Transistor Arrays, Analog switches, opto couplers ,7-Segment show of basic cathode and regular anode type,Auto look office of all Digital ICs,40 stick DIP ZIF sockets,28 Keys Touch Keypad and 9 Digit Seven Segment Display utilizing this IC analyzer.


Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments manufacturer, engineering educational equipments in india, physics lab engineering equipment suppliers, civil engineering lab equipments, civil engineering lab instruments, engineering equipment manufacturer in Ambala, India.

Universal IC Programmer

TMLT-0014

Highlights 1. USB Interfaces.2. Gadget List Supported 6000+.3. Simple interface to LAPTOP & PC.4. Mouse bolster, easy to understand menu driven programming interface5. Fast programming, Cost powerful Hardware and Flexible Software6. Backings standard 5V and low voltage gadgets down to 1.5V7. 48 Pin ZIF attachment with all inclusive stick drivers. to underpins 8-stick to 48-stick DIP bundle device8. Backings Devices extending including :1. Most (E) PROM, Series (E) PROM.Flash2. Lady, Place, PLD9. Miniaturized scale controllers 87xx/89xx, PIC16Cxx/17Cxx9. Test: TTL/CMOS Test, Memory Test, Vector Test, Test Pattern Edit, Auto Identify TTL/CMOS Device10. Others: Macro, Options, Environment; 11. Naturally Identifies the producer and sort of E(E)PROMs12. Gadget inclusion and poor stick contact check13. Bolster all activities, for example, program,verify, limitless ticket to ride, read, secure, eradicate and soon.14. Support of Binary, Intel Hex, Motorola S,Tektronix , arrangements and auto find format15. Bolster Universal DIP, PLCC, SOIC, SSO Padapters Socket.16. Programming Support: Windows-98, XP, 2000, NT.17. Power supply : Input AC 100 to 240V , Output :DC 12V/1.5Amp ..

Contact Ray Export for your School, College Civil and Mechanical Engineering Lab Instruments. We are the best engineering educational equipments india, engineering equipments distributors, engineering lab instruments, engineering equipments manufacturer, thermodynamics engineering equipment, engineering educational lab equipmentsr in Ambala, India.
