Thermodynamics Lab Equipment Manufacturer, Supplier and Exporter in India

Ray Export is a leading manufacturer and supplier of Thermodynamics in India,

Thermodynamics Lab Equipment and Test Rigs

Quick answer. One decision governs almost every purchase in thermodynamics teaching equipment, and it is usually made by accident: do you want a cycle the student can see, or a cycle the student can measure? A demonstrator shows the phenomenon cheaply and fits a one-hour slot. A test rig is instrumented so the student computes a performance figure and closes an energy balance, which is a different experiment, a different price and a different set of services. The test is simple - ask what the student will hand in. A description means a demonstrator; a calculated efficiency with an error estimate means a test rig. Two further warnings this page does not bury: much of this equipment is a pressure vessel or a running engine, and must be sited before it is ordered; and this listing holds about 89 records that resolve to roughly 40 products, including two live test records, so do not order from it by code.

The framework: a cycle you can see, or a cycle you can measure?

Thermodynamics is the subject where the gap between demonstrating and measuring is widest. The phenomena are easy to show and hard to quantify, so the same topic is sold at three very different levels, and the brochures describe all three in the same language.

TierWhat it isWhat the student producesWhat it needs from you
DemonstratorShows the phenomenon with the minimum instrumentation needed to see it - Marcet boiler, Boyle's law unit, perfect gas laws unit, a sectioned engine modelA description, a sketch, a trend, a verified relationshipA bench and a supply. Fits a one-hour slot. Survives a large class.
Test rigInstrumented so a performance figure can be computed and a balance closed - engine test rig with dynamometer, compressor test rig, bomb calorimeter, separating and throttling calorimeterA calculated efficiency, specific fuel consumption or dryness fraction, with an error estimateServices, siting, consumables, calibration, and more lab time than you think
Instrumented / PC-linked unitUsually the test-rig hardware plus multi-channel acquisitionA dataset, and analysis away from the benchThe same services, plus a commitment to software that will outlive its support

Buy the tier your assessment requires, not the tier the syllabus title suggests. A department that wants students to understand the Rankine cycle does not necessarily need a steam power plant trainer; it may need a Marcet boiler, which gives the saturation line directly, costs a fraction as much, and has no statutory burden beyond its own pressure certificate. Equally, a department whose students must compute a heat balance cannot do it on a demonstrator, however good the pictures are.

On PC-linked units, one caution. The hardware will last fifteen years and the software will not. Ask what happens when the supplied application stops installing on a current operating system: whether the data acquisition presents itself as a standard serial or USB instrument that any logger can read, whether the file format is documented or exported as CSV, and whether the unit can be used manually with its own gauges if the software is gone. A rig that can be read by hand is a rig you still own in ten years.

The engine test rig is a different purchase from everything else here

If one item on this page justifies a site visit before an order, it is the engine test rig. It is the only teaching apparatus in the range that is simultaneously a fuel store, a noise source, a hot exhaust and a rotating machine.

Site it before you buy it

  • Exhaust to outside, ducted, with the run length agreed. This is the constraint that most often makes a chosen room impossible, and it is discovered after delivery.
  • Noise. A single-cylinder diesel on a rope brake in a room adjoining a lecture theatre will not be run during teaching hours, which means it will not be run.
  • A rigid base. A reciprocating engine on a light floor transmits into the building; ask for the foundation or anti-vibration requirement in writing.
  • Fuel storage and handling to your local requirement, and a decision on who fills it.
  • Guarding on every rotating element, and an emergency stop the student can reach from the reading position rather than from the engine.

What decides the quality of the data

  • The dynamometer type. A rope brake is cheap, robust and teaches the principle, but it dissipates into cooling water and its readings drift as it heats. An eddy-current or hydraulic dynamometer holds a set point, which is what you need to take a proper load characteristic at constant speed. If the exercise is a performance curve, the brake type is the specification that matters most.
  • Fuel measurement. A graduated burette and a stopwatch is the classic method and is honest: the student sees the volume go and times it. Ask for the burette volumes provided, because a burette sized for idle takes an impractical time at full load.
  • Air measurement, and why the air box exists. A reciprocating engine draws air in pulses, and an orifice plate in a pulsating flow gives a reading that means nothing. The air box is a damping volume that turns the pulsating draw into a steady flow across the orifice. So the air box volume and the orifice diameter must both be stated, and a rig without an air box cannot give a credible air-fuel ratio.
  • The full heat balance needs the exhaust side too. Brake power, cooling water duty and exhaust loss are the three legs; without an exhaust gas calorimeter the student is left attributing the remainder to radiation and unaccounted losses, which is a legitimate exercise but a weaker one. Decide which you are teaching before you choose.
  • Morse test and motoring methods need a multi-cylinder engine - the four-cylinder rig, not the single. If the syllabus names the Morse test, the cylinder count is not negotiable.

Pressure vessels: the question nobody puts in a brochure

Several items in this category are pressure vessels, not merely heated apparatus: the Marcet boiler, the separating and throttling calorimeter with its boiler, the steam power plant trainer, and the bomb calorimeter.

  • Ask for the design pressure, the relief device and its set pressure, and the hydraulic test certificate, named on the quotation and supplied with the unit.
  • Check your own jurisdiction's requirement for pressure vessels in an educational building before ordering. Requirements and exemption thresholds differ by country and sometimes by state, and this is a question for your institution's safety officer rather than for a supplier.
  • Plan the periodic inspection, not just the purchase. A vessel with no inspection regime becomes an apparatus nobody is willing to authorise, which is the most common way good equipment stops being used.

The bomb calorimeter deserves two specific questions of its own. It is charged with oxygen at high pressure, so ask how the oxygen supply is specified and what the filling procedure and pressure limit are. And its result is only as good as its water equivalent, which is not a property you can look up - it is determined by burning a standard. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation is set out in the manual. A bomb calorimeter delivered without a standardisation procedure will produce numbers that look precise and are not traceable to anything.

Air compressor test rigs: the receiver is the experiment

Volumetric efficiency on a teaching compressor rig is usually obtained by timing the pressure rise in the receiver, which means the receiver volume is not a detail of the apparatus - it is a term in the student's equation. Ask for it to be stated on the quotation, and ask for the receiver's own pressure certificate while you are asking.

  • Two-stage with an intercooler is where the teaching is. The single-stage rig shows the principle; the two-stage rig lets the student measure the work saved by intercooling, which is the point of the topic. If you buy one, buy the two-stage.
  • Indicator diagrams. If the course requires a p-V diagram, ask explicitly whether an indicator or pressure transducer and crank-angle encoder are provided, because most teaching rigs do not include them and the omission is not obvious from a specification sheet.
  • Rotary and centrifugal units measure something different. A rotary compressor or centrifugal blower rig gives a characteristic curve rather than an indicated cycle, so it serves a fluid-machinery syllabus more than a thermodynamics one. See momentum transfer lab equipment if that is the course you are equipping.

What a quotation must state

  • For any vessel: design pressure, relief device and set pressure, hydraulic test certificate.
  • For an engine rig: dynamometer type and its control method, fuel measurement arrangement and burette sizes, air box volume and orifice diameter, whether an exhaust gas calorimeter is included, cooling water flow and temperature required, exhaust duct size and permissible run, noise level, and the foundation or anti-vibration requirement.
  • For a compressor rig: receiver volume and certificate, number of stages, whether an intercooler is fitted, and whether indicator instrumentation is included.
  • For a bomb calorimeter: oxygen filling pressure and procedure, whether benzoic acid standard is supplied, and the water-equivalent determination method.
  • For any instrumented unit: sensor types and counts, the acquisition interface, the data format, and whether the unit can be read manually without its software.
  • Services for every item: supply voltage and phase, water flow and pressure, drainage, compressed air, extraction.
  • Footprint, working height, weight, and whether a bench is required or the unit is free-standing.
  • What is included: the manual with worked sample calculations and real data, consumables, spares, and commissioning.

Specifying a set for a class

Specify by ratio, not by item: class size, batch size at one rig, and weeks in the rotation. Thermodynamics has one feature that distorts this calculation and should be planned for - the test rigs are slow. An engine performance curve at five load points, each run to thermal stability, does not fit a single short slot, so a rotation built around one engine rig will quietly become a demonstration.

A defensible order of purchase:

  1. Demonstrators first, in quantity. Marcet boiler, perfect gas laws, Boyle's law. Cheap, fast, and they carry the large first-year classes.
  2. One calorimeter - bomb for fuels, or separating and throttling for steam quality, according to the syllabus.
  3. One two-stage compressor test rig.
  4. One engine test rig, sited properly - multi-cylinder if the Morse test is required. Budget the exhaust, the base and the fuel handling as part of the purchase, not as an afterthought.
  5. Steam plant and specialist cycle units last, and only where the course genuinely requires a working plant rather than a cycle analysis.

Shared instruments carry more of this subject than any single rig: thermometry, pressure gauges, flow measurement and a logger used across benches. See shared engineering lab instruments for those, and analytical instruments where fuel or water analysis is part of the course.

About this listing - read before you order by code

We would rather say this plainly than let you find it on page five. This listing holds about 89 records, T-0001 to T-0087, which resolve to roughly 40 distinct products. Specifically:

  • Eight products are each listed three to five times under different codes with a digit appended - the cross flow heat exchanger, heat transfer bench, mixed flow module, methods of pressure measurement and fluidisation unit each appear five times; the direct expansion coil element four times; the Marcet boiler three times.
  • Ten records are named "Cooling Column Type 4" through "Type 13" - a type number is not a product name, and types 1 to 3 do not exist in the listing at all.
  • Three codes are each used for two different products (T-0032, T-0046 and T-0052), and T-0082 is missing.
  • Four codes are malformed: T0007 has no hyphen, and T-00010, T-00011 and T-00012 carry five digits where the rest of the listing uses four, so the codes do not sort.
  • Two live test records are published in this category, named "test" and "test222". They are visible to anyone browsing the listing and they should be deleted.
  • Name errors: "Tow Stage" for two-stage on the very record a buyer would search for by name; "Plate Heat Exchange" for exchanger; "Colorimeter Bomb" where a bomb calorimeter is meant; "Nozzle Pressure Distributing" for distribution; a petrol engine rig whose cylinder count has dropped out of its name; and the suffix "for engineering schools" on the first four records and nowhere else.
  • About thirty records are heat transfer equipment rather than thermodynamics - heat exchangers, conduction units, convection and radiation apparatus - and several of them also appear in our heat transfer lab equipment listing. Two records are solar and photovoltaic units, which belong with renewable energy trainers, and one is an absorption refrigeration unit, which belongs with refrigeration and air conditioning.

So enquire by experiment and class size, not by code. Tell us the syllabus topic, the assessment the students will produce and the room you have, and we will quote the current model against it, confirm the specification and certificates in writing, and tell you which code it ships under. We have recommended internally that this listing be consolidated, the duplicates deleted rather than renamed, the test records removed, and the heat transfer, solar and refrigeration records moved to the categories they belong in.

Related ranges

Within physics lab for engineering students: heat transfer lab equipment for conduction, convection, radiation and exchanger rigs, hydraulics for the bench, Bernoulli and notch experiments, and analytical instruments. Elsewhere: momentum transfer lab equipment for fluid machinery characteristics, renewable energy trainers and refrigeration and air conditioning. The full engineering lab equipment category lists the rest.

Frequently asked questions

Do we need an engine test rig, or will a sectioned model do?

It depends entirely on what students must hand in. A sectioned or cutaway model teaches the mechanism and the valve timing, and it costs a fraction as much with no services and no hazards. A test rig is the only way to obtain brake power, specific fuel consumption, a performance curve or a heat balance. If the assessment asks for a calculated figure with an error estimate, you need the rig; if it asks for an explanation of how the engine works, the model is the better buy and the better teaching aid.

Why does an engine test rig need an air box?

Because a reciprocating engine draws air in pulses, and an orifice plate measuring a pulsating flow gives a reading that means nothing. The air box is a damping volume that converts the pulsating draw into steady flow across the orifice, which is what makes the air-fuel ratio measurable. Ask for the air box volume and the orifice diameter to be stated: a rig without an air box cannot give a credible air measurement, and the air-fuel ratio is usually the point of the exercise.

What should we ask about pressure vessels in a teaching lab?

For every vessel - Marcet boiler, throttling calorimeter with boiler, steam plant, bomb calorimeter - ask for the design pressure, the relief device and its set pressure, and the hydraulic test certificate, named on the quotation. Then check your own jurisdiction's requirement for pressure vessels in an educational building with your institution's safety officer, because thresholds differ by country and sometimes by state. Plan the periodic inspection at the same time: a vessel with no inspection regime becomes apparatus nobody will authorise.

How do we know a bomb calorimeter is giving a traceable result?

By its water equivalent, which is not a published property of the instrument but a value determined by burning a standard - normally benzoic acid - and recalculated periodically. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation procedure is set out in the manual. Also ask how the oxygen filling is specified and what the pressure limit is. Without a standardisation procedure the instrument produces precise-looking numbers that are traceable to nothing.

Is a PC-linked unit worth the extra cost?

For a slow experiment with many channels, often yes - logging lets a class start a run, leave it, and return, which is the only way a long thermal settling time fits a short lab slot. But ask the questions that decide whether you still own it in ten years: does the acquisition present itself as a standard serial or USB instrument any logger can read, is the data format documented or exported as CSV, and can the unit be used manually with its own gauges if the software stops installing? The hardware will outlive the application.

Why does this category list the same equipment several times over?

Because it does, and we have set it out above rather than leave you to discover it. About 89 records resolve to roughly 40 products; five items appear five times each under appended digits; ten records are named only by a type number; three codes are used twice; two live test records are published; and roughly thirty records are heat transfer equipment rather than thermodynamics. Enquire by topic and class size and we will quote against that, with the specification and certificates confirmed in writing.

Key takeaways

  • Ask what the student will hand in. A description needs a demonstrator; a calculated efficiency with an error estimate needs an instrumented test rig. They are different purchases at different prices.
  • Site the engine rig before ordering it - ducted exhaust, noise, a rigid base and fuel handling decide the room, and they are discovered after delivery if they are not settled before.
  • The dynamometer type decides the data. A rope brake teaches the principle; an eddy-current or hydraulic brake holds a set point, which is what a load characteristic needs.
  • Treat pressure vessels as pressure vessels: design pressure, relief device, hydraulic test certificate, your jurisdiction's rules, and a periodic inspection plan.
  • Two numbers belong in the student's equation, so get them on the quotation - the compressor receiver volume, and the engine air box volume with its orifice diameter.
  • On PC-linked units, buy hardware you can still read by hand. Documented format, standard interface, manual gauges - the software will not last as long as the rig.

About this page

Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.

Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.

This page gives specification guidance and no prices; prices for this equipment depend on specification, instrumentation, certification and destination, and are issued only as dated written quotations. Design pressures, relief settings, test certificates, dynamometer types, receiver and air box volumes, orifice sizes, sensor counts, interfaces, services and footprints will be confirmed in writing on the quotation before order; for certificates, contact us for the latest copies of the relevant certificates. Statements about pressure vessel requirements are general: the applicable rules differ by jurisdiction and must be confirmed with your own institution's safety officer and local authority, not with a supplier. Record counts, duplicate records, malformed codes, test records and product-name defects described above were read from this listing on 16 October 2026 and will change as the listing is corrected.

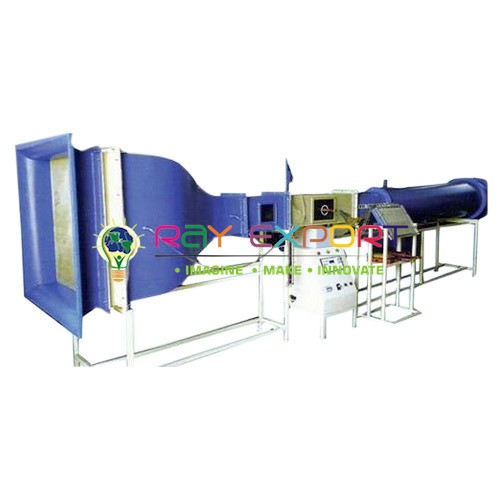

Open Wind Tunnel Apparatus

T-00011

Being dedicated quality suppliers and exporters, we are aimed to deliver best quality open wind tunnel apparatus. Wide-ranging accessories allow an assortment of experiments, for example lift measurements, pressure distributions, boundary   layer analysis or visualisation of streamlines. The properly designed instructional material provides a step-by-step guide through the experiments.

Features:

1. The model being studied remains at rest while the flow medium is set in motion, and thus the desired flow around the model is generated.

2. Open wind tunnel used to establish and measure the aerodynamic properties of various models. For this purpose, air is drawn in from the environment and augmented.

3. The air flows around a model, such as an aerofoil, in a measuring section. The air is then decelerated in a diffuser and pumped back into the open by a fan.

4. The trainer is equipped with an electronic two-component force                                                                                                     sensor.

5. The tube manometers are recommended for measuring the pressure curves in drag bodies.

Thin Cylinder Apparatus

T-00012

With sincere intentions to uplift the bar of quality, we carry a comprehensive array of thermodynamics apparatuses including thin cylinder apparatus. Thin Cylinder apparatus is a heavy bench top unit for studying the stress and strain in a thin walled cylinder under internal pressure.

Salient Features

1. A thin walled cylinder is mounted between two support blocks.

2. Internal pistons and seals create oil sealing.

3. A hand wheel at one end of the apparatus enables the cylinder end conditions to be adjusted to either open or closed.

4. The internal pressure is adjusted by means of a hydraulic hand pump on the apparatus. An analogue pressure gauge displays the internal pressure whilst a pressure transducer gives feedback to the

5. Strain gauges are arranged on the external surface of the cylinder to measure the radial and circumferential surface strain. The strain gauges are at various angles.


Fluidisation and Heat Transfer

T-0013

Specialized Description A fluidised bed is shaped when a mass of particles is suspended by going gas through them. The thermodynamic and liquid mechanical properties of the strong interpretation of the character of a liquid. The warmth exchange from a warmed barrel to the fluidised bed can be examined utilizing the benchtop unit. The glass estimating chamber with foundation lighting empowers the liquid quaint little inn fluidisation procedure to be plainly watched. A warming component that can be brought down into the reactor empowers the move of warmth in the fluidised bed to be researched. Temperatures are estimated with sensors at the air bay of the reactor, at the surface of the warming component and in the fluidised bed. A security valve restricts the reactor weight. A supply of packed air is required..

Heat Exchanger Element Direct Expansion Coil

T-0014

Specialized Description The warmth exchange component empowers examinations to be performed on a refrigerant evaporator in the unit. For this reason the part is embedded noticeable all around channel in the base unit utilizing speedy activity clasp. The refrigerant associations on the evaporator are self-fixing with the goal that no refrigerant can get away. The Refrigerant Condensing Unit is important for the activity of the evaporator. Refrigerant condenser and evaporator together frame a total refrigerant circuit. The temperatures at the evaporator channel and outlet are estimated utilizing dial thermometers..

Methods of Pressure Measurement

T-0015

Specialized Description The manometer board contains 2 tube and 2 dial manometers for the show of elective estimation strategies. Test weights in the millibar run are produced with the guide of the provided syringe. All manometers can be joined with each other utilizing associating hoses. It is conceivable to quantify measure weight and vacuum. Dial and Bourdon tube manometers can be adjusted with a dead-weight cylinder measure..

Cooling Column Type 4

T-0016

Specialized Description The manometer board contains 2 tube and 2 dial manometers for the show of elective estimation strategies. Test weights in the millibar run are produced with the guide of the provided syringe. All manometers can be joined with each other utilizing associating hoses. It is conceivable to quantify measure weight and vacuum. Dial and Bourdon tube manometers can be adjusted with a dead-weight cylinder measure..

Cooling Column Type 5

T-0017

Specialized Description The 4 extra cooling sections accessible as assistants to the Water Cooling Tower contrast in the differing extent of the pressing thickness and the related shifting cooling execution. The Cooling Column, Type 5 has a variable cooling body course of action. What's more, merchant bases are fitted. A temperature sensors included with the unit empowers the water temperature in the wholesaler bases to be estimated. The Cooling Tower, Type 5 is higher than the other cooling towers..

Cross Flow Heat Exchanger

T-0018

Specialized Description The 4 extra cooling sections accessible as assistants to the Water Cooling Tower contrast in the differing extent of the pressing thickness and the related shifting cooling execution. The Cooling Column, Type 5 has a variable cooling body course of action. What's more, merchant bases are fitted. A temperature sensors included with the unit empowers the water temperature in the wholesaler bases to be estimated. The Cooling Tower, Type 5 is higher than the other cooling towers..

Fluidisation and Heat Transfer 2

T-0019

Specialized Description A fluidised bed is framed when a mass of particles is suspended by going gas through them. The thermodynamic and liquid mechanical properties of the strong interpretation of the character of a liquid. The warmth exchange from a warmed barrel to the fluidised bed can be explored utilizing the benchtop unit. The glass estimating chamber with foundation lighting empowers the liquid quaint little inn fluidisation procedure to be unmistakably watched. A warming component that can be brought down into the reactor empowers the move of warmth in the fluidised bed to be explored. Temperatures are estimated with sensors at the air bay of the reactor, at the surface of the warming component and in the fluidised bed. A wellbeing valve constrains the reactor weight. A supply of packed air is required..

Heat Transfer Bench

T-0020

Specialized Description A fluidised bed is framed when a mass of particles is suspended by going gas through them. The thermodynamic and liquid mechanical properties of the strong interpretation of the character of a liquid. The warmth exchange from a warmed barrel to the fluidised bed can be explored utilizing the benchtop unit. The glass estimating chamber with foundation lighting empowers the liquid quaint little inn fluidisation procedure to be unmistakably watched. A warming component that can be brought down into the reactor empowers the move of warmth in the fluidised bed to be explored. Temperatures are estimated with sensors at the air bay of the reactor, at the surface of the warming component and in the fluidised bed. A wellbeing valve constrains the reactor weight. A supply of packed air is required..
