Quick answer. One decision governs almost every purchase in thermodynamics teaching equipment, and it is usually made by accident: do you want a cycle the student can see, or a cycle the student can measure? A demonstrator shows the phenomenon cheaply and fits a one-hour slot. A test rig is instrumented so the student computes a performance figure and closes an energy balance, which is a different experiment, a different price and a different set of services. The test is simple - ask what the student will hand in. A description means a demonstrator; a calculated efficiency with an error estimate means a test rig. Two further warnings this page does not bury: much of this equipment is a pressure vessel or a running engine, and must be sited before it is ordered; and this listing holds about 89 records that resolve to roughly 40 products, including two live test records, so do not order from it by code.
Thermodynamics is the subject where the gap between demonstrating and measuring is widest. The phenomena are easy to show and hard to quantify, so the same topic is sold at three very different levels, and the brochures describe all three in the same language.
| Tier | What it is | What the student produces | What it needs from you |
|---|---|---|---|
| Demonstrator | Shows the phenomenon with the minimum instrumentation needed to see it - Marcet boiler, Boyle's law unit, perfect gas laws unit, a sectioned engine model | A description, a sketch, a trend, a verified relationship | A bench and a supply. Fits a one-hour slot. Survives a large class. |
| Test rig | Instrumented so a performance figure can be computed and a balance closed - engine test rig with dynamometer, compressor test rig, bomb calorimeter, separating and throttling calorimeter | A calculated efficiency, specific fuel consumption or dryness fraction, with an error estimate | Services, siting, consumables, calibration, and more lab time than you think |
| Instrumented / PC-linked unit | Usually the test-rig hardware plus multi-channel acquisition | A dataset, and analysis away from the bench | The same services, plus a commitment to software that will outlive its support |
Buy the tier your assessment requires, not the tier the syllabus title suggests. A department that wants students to understand the Rankine cycle does not necessarily need a steam power plant trainer; it may need a Marcet boiler, which gives the saturation line directly, costs a fraction as much, and has no statutory burden beyond its own pressure certificate. Equally, a department whose students must compute a heat balance cannot do it on a demonstrator, however good the pictures are.
On PC-linked units, one caution. The hardware will last fifteen years and the software will not. Ask what happens when the supplied application stops installing on a current operating system: whether the data acquisition presents itself as a standard serial or USB instrument that any logger can read, whether the file format is documented or exported as CSV, and whether the unit can be used manually with its own gauges if the software is gone. A rig that can be read by hand is a rig you still own in ten years.
If one item on this page justifies a site visit before an order, it is the engine test rig. It is the only teaching apparatus in the range that is simultaneously a fuel store, a noise source, a hot exhaust and a rotating machine.
Several items in this category are pressure vessels, not merely heated apparatus: the Marcet boiler, the separating and throttling calorimeter with its boiler, the steam power plant trainer, and the bomb calorimeter.
The bomb calorimeter deserves two specific questions of its own. It is charged with oxygen at high pressure, so ask how the oxygen supply is specified and what the filling procedure and pressure limit are. And its result is only as good as its water equivalent, which is not a property you can look up - it is determined by burning a standard. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation is set out in the manual. A bomb calorimeter delivered without a standardisation procedure will produce numbers that look precise and are not traceable to anything.
Volumetric efficiency on a teaching compressor rig is usually obtained by timing the pressure rise in the receiver, which means the receiver volume is not a detail of the apparatus - it is a term in the student's equation. Ask for it to be stated on the quotation, and ask for the receiver's own pressure certificate while you are asking.
Specify by ratio, not by item: class size, batch size at one rig, and weeks in the rotation. Thermodynamics has one feature that distorts this calculation and should be planned for - the test rigs are slow. An engine performance curve at five load points, each run to thermal stability, does not fit a single short slot, so a rotation built around one engine rig will quietly become a demonstration.
A defensible order of purchase:
Shared instruments carry more of this subject than any single rig: thermometry, pressure gauges, flow measurement and a logger used across benches. See shared engineering lab instruments for those, and analytical instruments where fuel or water analysis is part of the course.
We would rather say this plainly than let you find it on page five. This listing holds about 89 records, T-0001 to T-0087, which resolve to roughly 40 distinct products. Specifically:
So enquire by experiment and class size, not by code. Tell us the syllabus topic, the assessment the students will produce and the room you have, and we will quote the current model against it, confirm the specification and certificates in writing, and tell you which code it ships under. We have recommended internally that this listing be consolidated, the duplicates deleted rather than renamed, the test records removed, and the heat transfer, solar and refrigeration records moved to the categories they belong in.
Within physics lab for engineering students: heat transfer lab equipment for conduction, convection, radiation and exchanger rigs, hydraulics for the bench, Bernoulli and notch experiments, and analytical instruments. Elsewhere: momentum transfer lab equipment for fluid machinery characteristics, renewable energy trainers and refrigeration and air conditioning. The full engineering lab equipment category lists the rest.
It depends entirely on what students must hand in. A sectioned or cutaway model teaches the mechanism and the valve timing, and it costs a fraction as much with no services and no hazards. A test rig is the only way to obtain brake power, specific fuel consumption, a performance curve or a heat balance. If the assessment asks for a calculated figure with an error estimate, you need the rig; if it asks for an explanation of how the engine works, the model is the better buy and the better teaching aid.
Because a reciprocating engine draws air in pulses, and an orifice plate measuring a pulsating flow gives a reading that means nothing. The air box is a damping volume that converts the pulsating draw into steady flow across the orifice, which is what makes the air-fuel ratio measurable. Ask for the air box volume and the orifice diameter to be stated: a rig without an air box cannot give a credible air measurement, and the air-fuel ratio is usually the point of the exercise.
For every vessel - Marcet boiler, throttling calorimeter with boiler, steam plant, bomb calorimeter - ask for the design pressure, the relief device and its set pressure, and the hydraulic test certificate, named on the quotation. Then check your own jurisdiction's requirement for pressure vessels in an educational building with your institution's safety officer, because thresholds differ by country and sometimes by state. Plan the periodic inspection at the same time: a vessel with no inspection regime becomes apparatus nobody will authorise.
By its water equivalent, which is not a published property of the instrument but a value determined by burning a standard - normally benzoic acid - and recalculated periodically. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation procedure is set out in the manual. Also ask how the oxygen filling is specified and what the pressure limit is. Without a standardisation procedure the instrument produces precise-looking numbers that are traceable to nothing.
For a slow experiment with many channels, often yes - logging lets a class start a run, leave it, and return, which is the only way a long thermal settling time fits a short lab slot. But ask the questions that decide whether you still own it in ten years: does the acquisition present itself as a standard serial or USB instrument any logger can read, is the data format documented or exported as CSV, and can the unit be used manually with its own gauges if the software stops installing? The hardware will outlive the application.
Because it does, and we have set it out above rather than leave you to discover it. About 89 records resolve to roughly 40 products; five items appear five times each under appended digits; ten records are named only by a type number; three codes are used twice; two live test records are published; and roughly thirty records are heat transfer equipment rather than thermodynamics. Enquire by topic and class size and we will quote against that, with the specification and certificates confirmed in writing.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
This page gives specification guidance and no prices; prices for this equipment depend on specification, instrumentation, certification and destination, and are issued only as dated written quotations. Design pressures, relief settings, test certificates, dynamometer types, receiver and air box volumes, orifice sizes, sensor counts, interfaces, services and footprints will be confirmed in writing on the quotation before order; for certificates, contact us for the latest copies of the relevant certificates. Statements about pressure vessel requirements are general: the applicable rules differ by jurisdiction and must be confirmed with your own institution's safety officer and local authority, not with a supplier. Record counts, duplicate records, malformed codes, test records and product-name defects described above were read from this listing on 16 October 2026 and will change as the listing is corrected.
Specialized Description The air channel with the pipe package warm exchanger is fitted to and warmed electrically. The warmth exchange between the pipe divider and medium can be examined. Confuses manage the air through the pipe package in a cross-stream. The quantity of diversions can be fluctuated by evacuating and including astounds. The power and surface temperature at the radiator are estimated and shown on the base unit..
Specialized Description The warmth move in and around funnels can be explored utilizing. The warmth exchange from the pipe divider to the medium is watched. A ring warmer recreates the stream inside the pipe, while a pole radiator mirrors the conditions in the stream around a pipe. The power and surface temperature of the two electrical radiators are estimated and shown on the base unit..
Specialized Description The immediate change of light vitality into electrical vitality is named the photovoltaic impact. Since photovoltaic frameworks principally utilize the unmistakable range of light they additionally work in diffuse light, for example, when the sky is cloudy. The framework contains two sun powered cell exhibits on a swiveling bolster mounted on castors. A heap is recreated utilizing a rheostat. Illuminance, surface temperature and the current and voltage produced are shown carefully on an estimating unit. The unit is intended for use in sunlight. .
Specialized Description In this framework a level plate authority transmits the transmitted warmth of the sun to a warmth exchange medium. The vitality is exchanged to a high temp water circuit in a warmth exchanger. A differential temperature controller with indoor regulator keeps the boiling water temperature in the store consistent. The sun based circuit is ensured with an extension vessel and a wellbeing valve. This framework is constructed utilizing economically accessible segments. For satisfactory execution the framework ought to be worked with coordinate light by the sun..
Specialized Description The is a completely practical exhibit model of a framework for warming local water utilizing radiation vitality. A powerful light mimics characteristic daylight. Thusly, the unit can likewise be utilized as a part of shut rooms. The light is changed over into warm in a safeguard and exchanged to a warmth exchange medium, for this situation water. A circling pump conveys the warmth exchange medium through a warm water store. In the repository, the warmth is exchanged to the put away water by a warmth exchanger. Extra warmth can be scattered utilizing 2 tap water associations. The unit is furnished with sensors to record temperatures, light and stream rate. The deliberate qualities are demonstrated on shows. Utilizing an information securing card, they can be exchanged to a PC for additionally preparing. Can be utilized to explore different points of occurrence and irradiances. To do this, the level safeguard can be set to various edges and the stature of the light is ceaselessly flexible.
Technical Description Quantitative investigations on a water -to-air heat exchanger can be performed using this trainer. The trainer consists of a closed hot water circuit with heater, tank, pump and flow meter. Air is forced through the heat exchanger using a radial fan. Water and airflow rate are adjustable. The flow rate of water is measured using an electromagnetic flow sensor and an orifice plate flow meter is used for the airflow measurement. Energy balances can be established by measuring inlet and outlet temperatures. A pressure transducer in the water circuit enables the pump characteristic to be recorded. The measured data can be processed and displayed on a PC using the data acquisition card and software supplied..

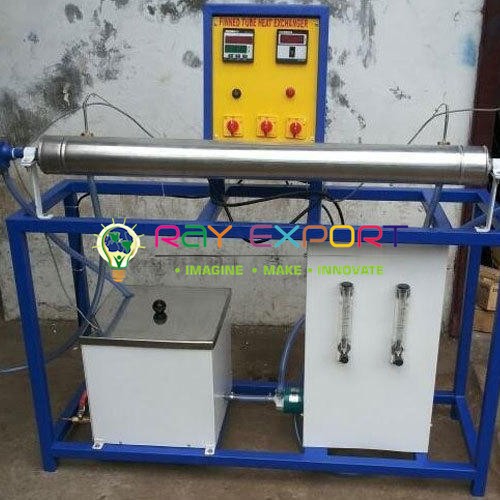

Specialized Description The unit involves a protected pipe through which air is drawn with the guide of a fan. The wind current produced is homogeneous because of an exceptionally molded delta territory. Distinctive warmth exchanger components can be embedded in the channel: Plain Tubes, Finned Tubes, Direct Expansion Coil. Speed disseminations and weight misfortune are estimated with a Pitot tube and a slanted tube manometer. Temperature and stickiness sensors are incorporated. The accompanying embellishments are prescribed for providing the warmth exchanger: Hot Water Bench, Cold Water Bench, Condensing Unit.
Specialized Description This coach analyzes tubular, shell & tube, finned cross-stream (water-to-air) and plate warm exchangers. A blending tank with coat warmer and radiator loop is additionally included. To play out the tests the individual warmth exchangers can be helpfully chosen utilizing valves on the front of the coach. Far reaching instrumentation gives temperature and stream rate information. The framework is prepared for handling the deliberate information on a PC utilizing an information securing card and programming. A supply of hot and icy water is vital for activity. This can be given from the provisions in the lab or utilizing the embellishments. High temp Water Bench and Cold Water Bench.
Specialized Description The trademark properties of the warmth move in turbulent stream in a pipe warm exchanger are shown utilizing this unit. It is conceivable to show both parallel and counterflow activity. The non-direct temperature conveyance along a warmth exchanger can be shown by estimating temperatures at the gulf, outlet and most of the way along the pipe. Amid this procedure the water temperature in the internal and external funnels are estimated. An extra estimation of the pipe divider temperature on the internal pipe empowers the warmth exchange at the divider to be explored in detail. Amid the test, key parameters, for example, warm exchange rate, warm exchange coefficient and warmth misfortune are resolved. The segments for the unit are unmistakably laid out on a board with the goal that the capacity of the warmth exchanger is anything but difficult to take after outwardly. The framework is intended to be set up on a table. A supply of cooling water is required..
Specialized Description Batches are warmed in jacketed warm exchangers. The warmth exchanger contains a stirrer for enhanced dissemination and a further sensor to quantify the clump temperature. A warmer loop is likewise included. The straightforward cover enables the procedure to be unmistakably watched. The warmth exchanger is associated. benefit unit utilizing fast activity hose couplings and star hold screws. The temperature sensors for estimating the nourish and profit temperature are for the supply associations. Associations for the extra temperature estimating point and stirrer are given on the administration unit.
