Quick answer. One decision governs almost every purchase in thermodynamics teaching equipment, and it is usually made by accident: do you want a cycle the student can see, or a cycle the student can measure? A demonstrator shows the phenomenon cheaply and fits a one-hour slot. A test rig is instrumented so the student computes a performance figure and closes an energy balance, which is a different experiment, a different price and a different set of services. The test is simple - ask what the student will hand in. A description means a demonstrator; a calculated efficiency with an error estimate means a test rig. Two further warnings this page does not bury: much of this equipment is a pressure vessel or a running engine, and must be sited before it is ordered; and this listing holds about 89 records that resolve to roughly 40 products, including two live test records, so do not order from it by code.
Thermodynamics is the subject where the gap between demonstrating and measuring is widest. The phenomena are easy to show and hard to quantify, so the same topic is sold at three very different levels, and the brochures describe all three in the same language.
| Tier | What it is | What the student produces | What it needs from you |
|---|---|---|---|
| Demonstrator | Shows the phenomenon with the minimum instrumentation needed to see it - Marcet boiler, Boyle's law unit, perfect gas laws unit, a sectioned engine model | A description, a sketch, a trend, a verified relationship | A bench and a supply. Fits a one-hour slot. Survives a large class. |
| Test rig | Instrumented so a performance figure can be computed and a balance closed - engine test rig with dynamometer, compressor test rig, bomb calorimeter, separating and throttling calorimeter | A calculated efficiency, specific fuel consumption or dryness fraction, with an error estimate | Services, siting, consumables, calibration, and more lab time than you think |
| Instrumented / PC-linked unit | Usually the test-rig hardware plus multi-channel acquisition | A dataset, and analysis away from the bench | The same services, plus a commitment to software that will outlive its support |
Buy the tier your assessment requires, not the tier the syllabus title suggests. A department that wants students to understand the Rankine cycle does not necessarily need a steam power plant trainer; it may need a Marcet boiler, which gives the saturation line directly, costs a fraction as much, and has no statutory burden beyond its own pressure certificate. Equally, a department whose students must compute a heat balance cannot do it on a demonstrator, however good the pictures are.
On PC-linked units, one caution. The hardware will last fifteen years and the software will not. Ask what happens when the supplied application stops installing on a current operating system: whether the data acquisition presents itself as a standard serial or USB instrument that any logger can read, whether the file format is documented or exported as CSV, and whether the unit can be used manually with its own gauges if the software is gone. A rig that can be read by hand is a rig you still own in ten years.
If one item on this page justifies a site visit before an order, it is the engine test rig. It is the only teaching apparatus in the range that is simultaneously a fuel store, a noise source, a hot exhaust and a rotating machine.
Several items in this category are pressure vessels, not merely heated apparatus: the Marcet boiler, the separating and throttling calorimeter with its boiler, the steam power plant trainer, and the bomb calorimeter.
The bomb calorimeter deserves two specific questions of its own. It is charged with oxygen at high pressure, so ask how the oxygen supply is specified and what the filling procedure and pressure limit are. And its result is only as good as its water equivalent, which is not a property you can look up - it is determined by burning a standard. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation is set out in the manual. A bomb calorimeter delivered without a standardisation procedure will produce numbers that look precise and are not traceable to anything.
Volumetric efficiency on a teaching compressor rig is usually obtained by timing the pressure rise in the receiver, which means the receiver volume is not a detail of the apparatus - it is a term in the student's equation. Ask for it to be stated on the quotation, and ask for the receiver's own pressure certificate while you are asking.
Specify by ratio, not by item: class size, batch size at one rig, and weeks in the rotation. Thermodynamics has one feature that distorts this calculation and should be planned for - the test rigs are slow. An engine performance curve at five load points, each run to thermal stability, does not fit a single short slot, so a rotation built around one engine rig will quietly become a demonstration.
A defensible order of purchase:
Shared instruments carry more of this subject than any single rig: thermometry, pressure gauges, flow measurement and a logger used across benches. See shared engineering lab instruments for those, and analytical instruments where fuel or water analysis is part of the course.
We would rather say this plainly than let you find it on page five. This listing holds about 89 records, T-0001 to T-0087, which resolve to roughly 40 distinct products. Specifically:
So enquire by experiment and class size, not by code. Tell us the syllabus topic, the assessment the students will produce and the room you have, and we will quote the current model against it, confirm the specification and certificates in writing, and tell you which code it ships under. We have recommended internally that this listing be consolidated, the duplicates deleted rather than renamed, the test records removed, and the heat transfer, solar and refrigeration records moved to the categories they belong in.
Within physics lab for engineering students: heat transfer lab equipment for conduction, convection, radiation and exchanger rigs, hydraulics for the bench, Bernoulli and notch experiments, and analytical instruments. Elsewhere: momentum transfer lab equipment for fluid machinery characteristics, renewable energy trainers and refrigeration and air conditioning. The full engineering lab equipment category lists the rest.
It depends entirely on what students must hand in. A sectioned or cutaway model teaches the mechanism and the valve timing, and it costs a fraction as much with no services and no hazards. A test rig is the only way to obtain brake power, specific fuel consumption, a performance curve or a heat balance. If the assessment asks for a calculated figure with an error estimate, you need the rig; if it asks for an explanation of how the engine works, the model is the better buy and the better teaching aid.
Because a reciprocating engine draws air in pulses, and an orifice plate measuring a pulsating flow gives a reading that means nothing. The air box is a damping volume that converts the pulsating draw into steady flow across the orifice, which is what makes the air-fuel ratio measurable. Ask for the air box volume and the orifice diameter to be stated: a rig without an air box cannot give a credible air measurement, and the air-fuel ratio is usually the point of the exercise.
For every vessel - Marcet boiler, throttling calorimeter with boiler, steam plant, bomb calorimeter - ask for the design pressure, the relief device and its set pressure, and the hydraulic test certificate, named on the quotation. Then check your own jurisdiction's requirement for pressure vessels in an educational building with your institution's safety officer, because thresholds differ by country and sometimes by state. Plan the periodic inspection at the same time: a vessel with no inspection regime becomes apparatus nobody will authorise.
By its water equivalent, which is not a published property of the instrument but a value determined by burning a standard - normally benzoic acid - and recalculated periodically. Ask whether benzoic acid standard is supplied, in what quantity, and how the standardisation procedure is set out in the manual. Also ask how the oxygen filling is specified and what the pressure limit is. Without a standardisation procedure the instrument produces precise-looking numbers that are traceable to nothing.
For a slow experiment with many channels, often yes - logging lets a class start a run, leave it, and return, which is the only way a long thermal settling time fits a short lab slot. But ask the questions that decide whether you still own it in ten years: does the acquisition present itself as a standard serial or USB instrument any logger can read, is the data format documented or exported as CSV, and can the unit be used manually with its own gauges if the software stops installing? The hardware will outlive the application.
Because it does, and we have set it out above rather than leave you to discover it. About 89 records resolve to roughly 40 products; five items appear five times each under appended digits; ten records are named only by a type number; three codes are used twice; two live test records are published; and roughly thirty records are heat transfer equipment rather than thermodynamics. Enquire by topic and class size and we will quote against that, with the specification and certificates confirmed in writing.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
This page gives specification guidance and no prices; prices for this equipment depend on specification, instrumentation, certification and destination, and are issued only as dated written quotations. Design pressures, relief settings, test certificates, dynamometer types, receiver and air box volumes, orifice sizes, sensor counts, interfaces, services and footprints will be confirmed in writing on the quotation before order; for certificates, contact us for the latest copies of the relevant certificates. Statements about pressure vessel requirements are general: the applicable rules differ by jurisdiction and must be confirmed with your own institution's safety officer and local authority, not with a supplier. Record counts, duplicate records, malformed codes, test records and product-name defects described above were read from this listing on 16 October 2026 and will change as the listing is corrected.
4 Cylinder 4 Stroke Petrol Engine Test Rig We offer 4 Cylinder 4 Stroke Petrol Engine Test Rig to our significant clients. The offered testing gear is made from four chambers, four strokes and an oil motor, which are acquired from surely understood merchants. Accessible with us at exceptionally reasonable market costs, this hardware is generally utilized for examining the motor execution. Determinations: Electric supply: Provide 230 +/ - 10 VAC, 50 Hz, single stage electric .
Colorimeter Bomb-Engineering Lab Training Systems Bomb Calorimeter Outfit give a straightforward and reasonable technique for assurance of warmth of ignition of natural issue and the calorific esteem & sulfur substance of strong & fluid fuel. The outfit provided is finished for investigation according to the technique prescribed by British Standard Institution . All parts of the outfit have been done and tried by the detail set around Institute of oil and British Standard Institute. It accompanies every basic extra like, Bomb, Calorimeter vessel with bomb bolster, water coat, stirrer, electronic terminating unit with advanced backman thermometer and so forth.
Diesel Engine Test Apparatus - Engineering Lab Training Systems Avail far reaching scope of from us. Our scope of Diesel Engine Test Rigs is comprehensive of Multi Cylinder Four Stroke Diesel Engine Test Rigs, Single Cylinder Four Stroke Diesel Engine Test Rigs and Twin Cylinder Four Stroke Diesel Engine Test Rigs. Diesel Engine Test Rigs offered by us are as per the set mechanical models and are requested because of their flawlessness..
Electrically Heated Absorption Refrigeration Unit - Engineering Lab Training Systems Unlike mechanically determined pressure refrigeration frameworks, ingestion frameworks utilize warm vitality straightforwardly. There are three circuits in the framework: a water circuit, a smelling salts circuit and a hydrogen circuit. The framework contains a generator, a condenser, an evaporator with a downstream gas warm exchanger, a safeguard and a fluid warmth exchanger. A cooling burden can be recreated at the evaporator utilizing an electrical radiator..
Motor Test Apparatus-Engineering Lab Training Systems This test stand measures the power yield of inside ignition motors conveying up to 2.2kW. The total test stand comprises of three primary components: The CT159 for mounting of the motor and as a control unit, the general drive and brake unit HM365 as a heap unit and a decision of motor: four-stroke diesel motor (CT151), two-stroke oil motor (CT153) and two four-stroke oil motors (CT150 or CT152 with variable pressure)..
Marcet Boiler Apparatus - Engineering Lab Training Systems Malaysia Boiler, Choose Quality Malaysia Boiler Products from Large Database of Malaysia Boiler Manufacturers, Malaysia Boiler Suppliers on Alibaba. This research center is for understudies to direct the calorimeter tests. Marcet evaporator: It is around an instrument for estimating the vapor weight of water. A little round evaporator is fitted with a thermometer and a long mercury manometer. This is maybe an ordinary point for a CEO gathering, however we appear to have a lot of offers promoting types here. As the finish of 2008 rapidly approaches, now is an incredible time to put the completing addresses essential devices that you will requirement for your advertising endeavors in 2009. Since 1986, Tally Solutions Pvt. Ltd. has concentrated on creating ‘usable’ programming answers for organizations in India and different topographies around the globe..
Spout Pressure Distributing - Engineering Lab Training Systems Convergent spouts are utilized as a part of the subsonic range. Speeds in the supersonic range can be accomplished in de Laval spouts; their spout geometry is a mix of merged and disparate forms. De Laval spouts are utilized as a part of supersonic breeze burrows, steam turbines, stream motors and rocket innovation. Weight bends are a decent method for speaking to the diverse speed extends in the spout, for example, subsonic, supersonic and stun wave..
Single Cylinder Steam Engine - Engineering Lab Training Systems The unit contains the key segments of a steam control plant: a gas-warmed kettle, a twofold acting single-barrel cylinder steam motor with generator, a condenser and a sustain water supply with tank and pump. All essential security gadgets are fitted..

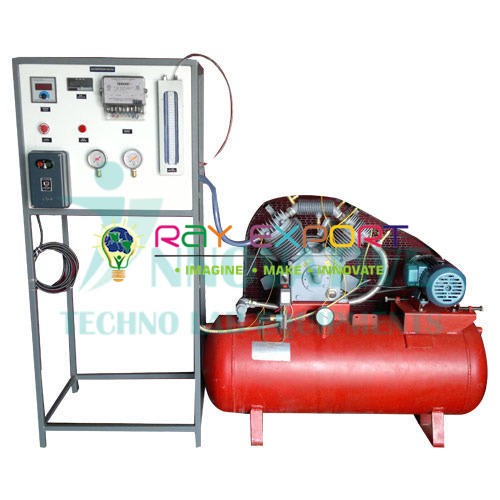

Two Stage Piston Compressor Unit - Engineering Lab Training Systems The mentor gives every vital datum to recording the compressor trademark and to delineate the pressure procedure on a p-V outline. The weights and temperatures for the two phases are recorded utilizing sensors and showed on computerized shows. The air throughput and the electrical power utilization are additionally estimated. The deliberate qualities can be perused on computerized shows. In the meantime, the deliberate qualities can likewise be transmitted straightforwardly to a PC through USB. The information securing programming is incorporated..
