Quick answer. The decision on this page is to order by syllabus, not by code. The listing holds several hundred records, many of them copies of products filed elsewhere on the site, usually recognisable by a digit on the end of the name, and the codes will change as those duplicates are consolidated. Most core mechanical operations units - the roll crusher, trommel, vibrating screen, and the sedimentation and filtration units - are filed in other ranges. Send your experiment list, and ask for every line to be confirmed by full name and by type (model, demonstration unit or instrumented test set) on the proforma invoice.
This is one of the largest listings on the site - several hundred records over more than fifty pages - and we would rather be straight with you about it than let you page through it.
If you came looking for mechanical operations in the chemical engineering sense - size reduction, screening, mixing, filtration, sedimentation and solids handling - the main items are not here. The roll crusher, the trommel and the vibrating screen are currently filed under structural mechanics lab, and the sedimentation, fluidisation and filtration units are under chemical reaction engineering and mass transfer lab equipment. Tell us which unit operations your syllabus examines and we will quote them from wherever they sit; the section below sets out what to ask for.
What this listing actually contains is a large general collection of mechanics and workshop teaching equipment: mechanism and gear models, machine element models such as couplings, foundation bolts and locking arrangements for bolts, working models of cranes and winches, pumps and turbines, manometers and pitot tubes, and a quantity of physics laboratory apparatus - pendulums, Young modulus and rigidity of wires experiments, barometers and Hooke's law apparatus.
A warning that applies to this listing more than to any other. Many of its records are copies of products that also appear elsewhere on this site, and most of the copies can be recognised by a digit on the end of the name - for example a Bernoulli theorem apparatus, a metacentric height apparatus and a piezometer tube that duplicate items in hydraulics and fluid mechanics trainers, and gear and turbine records that duplicate items in engineering training models. So on this listing: do not order by code, ask for the full product name and specification, and ask us to confirm both on the proforma invoice. We are consolidating the duplicate records, and the codes will change when we do.
Since the category name is what brought most visitors here, here is the subject itself - the three jobs mechanical operations equipment does, and what to ask for in each. Send us the rows that match your syllabus and we will quote against them.
| Job | Typical teaching equipment | What to settle before ordering |
|---|---|---|
| Size reduction | Jaw crusher, roll crusher, ball mill, hammer mill, pulveriser | Feed size and product size range; the energy measurement, because the experiment is usually the energy law - the relation between energy input and size reduction - and that needs a power measurement on the mill, not just a stopwatch; noise, dust and guarding; and the sieve set needed to measure the product |
| Separation | Vibrating screen, trommel, sieve shaker, cyclone, plate and frame filter press, leaf filter, thickener, centrifuge, elutriator | How the result is quantified: a screening experiment is only as good as the sieve set and the balance behind it, and a filtration experiment needs a measured filtrate volume against time. Ask what slurry or feed material the exercise assumes and whether it can be sourced locally |
| Transport and handling | Belt, screw and pneumatic conveyors, bucket elevator, fluidised bed, pumps and fans | Capacity and power measurement, the material conveyed, and dust control. For pneumatic conveying ask the air supply requirement, which is usually larger than people expect |
Two requirements run across all three and are routinely left out of a quotation. A sieve set and a balance, because almost every mechanical operations result is a particle size distribution and nothing in this subject can be quantified without them. And dust control: crushers, mills, screens and conveyors generate airborne dust, some of it respirable, so extraction or enclosure, eye protection and respiratory protection belong in the specification rather than in a footnote. Ask us what each unit needs.
Mechanism, gear and machine element models. Couplings, bolt locking arrangements, foundation bolts, gear trains and epicyclic gears, cranes and winch models. These are display and tutorial items: ask what they are made of, whether moving parts actually move, whether the base can be clamped, and whether a labelled sheet comes with each. The organised version of this range, with a priority order for buying, is in engineering training models.
Pumps and turbines. Centrifugal pumps, rotary pumps, Pelton turbines, water wheels and impeller sets. For anything intended to be characterised rather than looked at, the four quantities needed are flow, head, speed and shaft torque - the reasoning is set out on our pump and turbine pages, and the units there are specified for measurement. Ask whether the record here is a working test set or a demonstration model, because the listing does not say.
Manometers, pitot tubes and fluid apparatus. Several of these duplicate the instruments in hydraulics and fluid mechanics trainers, where the fluid, datum and steady-state requirements are set out - including the question to settle before ordering any manometer, which is whether it is mercury-filled.
Physics apparatus. Pendulums, Young modulus and rigidity of wires experiments, Hooke's law apparatus and barometers belong to a physics laboratory rather than a mechanical operations one, and they are better bought from the physics ranges where they are properly described. Ask us and we will point you to the right listing.
Because of the state of this listing, the order of questions matters more than usual. First, send us your syllabus or experiment list rather than a list of codes. Second, ask us to confirm for every line: the full product name, what the item actually is - model, demonstration unit or instrumented test set - the quantities it measures and how, what is supplied with it, its mass and footprint, the services it needs, and the consumables with prices. Third, ask for the sieve set, balance and dust control provisions to be quoted with any size reduction or screening equipment. And ask for everything to be confirmed on the proforma invoice by name as well as code. For any certification stated here, contact us for the latest copies of the relevant certificates before you tender on it.
Related ranges: chemical reaction engineering for reactors, columns, sedimentation and fluidisation, mass transfer lab equipment for dryers, extraction and diffusion, momentum transfer lab equipment for packed beds and two-phase flow, machines for thermodynamics, structures and tribology, and models for theory of machines for dynamics apparatus. The full set is listed under mechanical lab equipments. For a quotation, tell us the destination country, the syllabus you teach and the class size in one practical session.
Mostly not in this listing. The roll crusher, the trommel and the vibrating screen are currently filed under the structural mechanics lab range, and the sedimentation, fluidisation and filtration units sit under chemical reaction engineering and mass transfer lab equipment. Rather than searching for them, tell us which unit operations your syllabus examines - size reduction, screening, mixing, filtration, sedimentation or solids handling - and we will quote each one from wherever it sits, confirmed by full product name.
Many records here are copies of products that also appear elsewhere on the site, and most can be recognised by a digit on the end of the name. A Bernoulli theorem apparatus, a metacentric height apparatus and a piezometer tube duplicate items in hydraulics and fluid mechanics trainers, and some gear and turbine records duplicate items in engineering training models. The duplicates are being consolidated and the codes will change when that happens, so ask for the full name and specification on every line.
Typical teaching equipment is a jaw crusher, roll crusher, ball mill, hammer mill or pulveriser. Settle the feed size and product size range first, then the energy measurement: the experiment is usually the energy law relating energy input to size reduction, which needs a power measurement on the mill, not just a stopwatch. Ask about noise, dust and guarding, and have the sieve set needed to measure the product quoted at the same time, because the result is a particle size distribution.
Almost every mechanical operations result is a particle size distribution, and nothing in the subject can be quantified without a sieve set and a balance; a screening experiment is only as good as both. Crushers, mills, screens and conveyors also generate airborne dust, some of it respirable, so extraction or enclosure, eye protection and respiratory protection belong in the specification rather than in a footnote. These items are routinely left out of quotations, so ask for them alongside any size reduction or screening unit.
The listing does not say, so ask for each record. It includes centrifugal and rotary pumps, Pelton turbines, water wheels and impeller sets. For anything you intend to characterise rather than look at, the four quantities needed are flow, head, speed and shaft torque, and the units on our dedicated pump and turbine pages are specified for that measurement. For the manometers in this listing, settle first whether the instrument is mercury-filled, as set out in the hydraulics and fluid mechanics trainers range.
Send your syllabus or experiment list rather than a list of codes. Then ask us to confirm for every line the full product name; whether it is a model, a demonstration unit or an instrumented test set; the quantities it measures and how; what is supplied with it; its mass and footprint; and the services it needs. Add the destination country and the class size in one practical session. For pneumatic conveying, also ask for the air supply requirement, which is usually larger than people expect.
Ray Export is a manufacturer and exporter of laboratory, scientific and educational equipment based at Plot No. 449, HSIIDC Industrial Area, Saha, Ambala, Haryana 133104, India. Enquiries: [email protected], +91-9817319615.
Written by Palak Mall, Senior Content Writer. Technically reviewed by Arvind Kumar, Lab Equipment Specialist, 12+ years in laboratory and testing instrumentation. Last updated: 17 October 2026.
Specifications for every line, including what the item actually is, what it measures, its mass, footprint and services, are confirmed in writing on the quotation. For any certificate, contact us for the latest copies of the relevant certificates. No price is quoted on this page. Listing notes: several hundred records spread over more than fifty listing pages; many records duplicate products in hydraulics and fluid mechanics trainers and in engineering training models, usually marked by a trailing digit in the name; the main mechanical operations units are filed in other ranges; physics apparatus is filed here; and the listing does not say whether pump and turbine records are working test sets or demonstration models.
The versatile sifter shaker is a hand worked, light weightunit intended for simple taking care of and transportation. It can beclamped to a table. The device can be utilized as a part of both fieldand research center. It has limit of 6 full stature strainers or 13 halfheight sifters with one top and collector. By essentially turning thehandle wrench at an enduring rate, administrator can create rapidsieving comes about. The few working parts of the versatile sieveshaker makes it simple to clean and keep up.

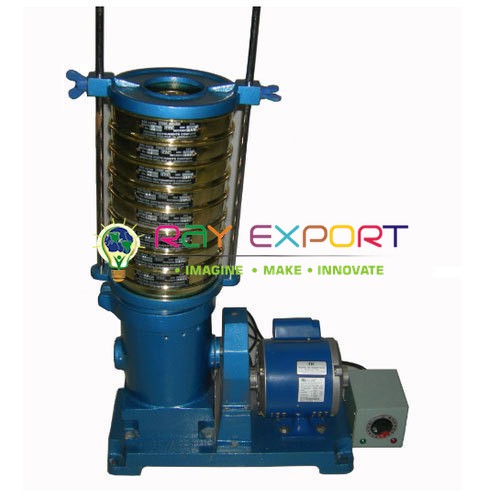

Shaker Gyratory write, driven by 1/4 H.P. engine through areduction equip. Reasonable to convey upto 7 sifters of 15 cm or 20cm width. Whenever cinched, the strainer table does not rotatebut is slanted from the vertical hub and the heading ofinclination changes dynamically in the clock savvy direction.In expansion to the gyratory movement of the Shaker, there is anupward and descending development at a recurrence ofapproximately 270 v.p.m. guaranteeing that each square inch ofthe sifter is used. The entire system keeps running in an oil bath.The table can be unclamped to give an extra rotarymotion. Finish with connector for 20 cm dia. strainer. Reasonable for use from 220/230 volts 50 cycles AC. supply. Without Test Sieve & Time Switch. (B) Adapter for 30 cm distance across sifter for use with the above..

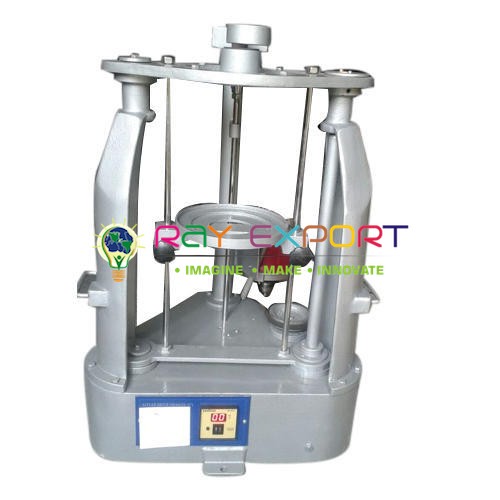

The Rotap strainer shaker replicates the roundabout and tappingmotion given to test sifters close by sieving. The uniform,mechanical activity guarantees acccurate and tried and true test.Using the consistent stature 20 cm dia. strainers one example can betested on a progression of six sifters of various openings, all withone task of machine. The Rotap sifter shaker is simpleand solidly built and is controlled by a 1/4 H.P. electricmotor. The runing parts work in oil. The machine is easilyinstalled no extraordinary establishment is required. Without timeswitch and test strainers.
This Yodar write engine driven sifter shaker is for conveying outwet strainer investigation of materials. It comprises of a water reservoirand holder for strainers, which can take upto 7 sifters of 20 cmdiameter. The snake is driven by a 1/4 H.P. engine. Thirtytappings every moment are accomplished by an arrangement of worm andgear with an upward movement of around 38 mm. Appropriate foroperation on 220 volts. 50 cycles single stage AC. supply,without sifters and so on..
Time extend 1-60 min. The pointer is set and bolted at therequired timing period. At the point when the inside push catch ispressed, the contacts change over and timing starts..
The lower example hold is mounted on a circle which pivots uninhibitedly. The dirt example is mounted on the lower example hold and the upper grasp is immovably situated over the example. The Vertical guide is customizable to control the profundity of cut. The lower circle is pivoted by hand. Extras Open compose wire saw, Trimming blade, Set of gripper plates for 38 mm. dia 75 mm. dia 100 mm dia tests
(center Cutter Method) Consists of acylindrical center shaper of a consistent genuine 10 cm interior width and 127.4 mmlong, a dolly lip to empower it to be locatedon the center shaper and a rammer with steel bar

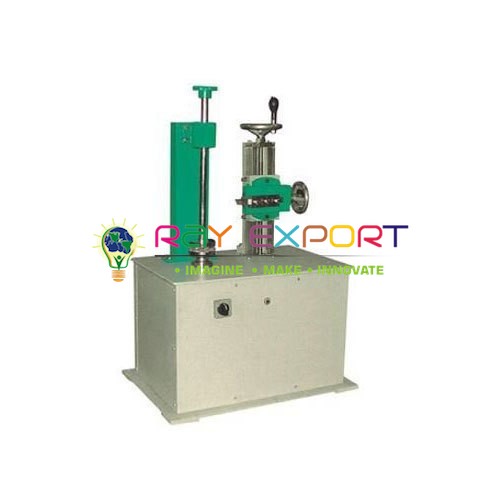

It is utilized to get ready examples of different diamente fortriaxial and unconfined pressure tests. The device isof bureau compose encasing the engine coupled to a rigging systemwith lead screw speeds as 0.8 mm/min and 1.6 mm/min.Speed of circle; 24 R.P.M. To keep running on 220/230 volts 50 cycle,A.C. supply. Gripper plates for 38 mm, 50mm, 75 mm and100m dia examples.
For gathering undisturbed examples of 38 mm. dia. fr6mborrow pits or from bigger size examples for unconfinedcompression test or triaxial shear test. The outfit comprises ofSample extractor, screw write with a wire test trimmer andJarring join, for driving the inspecting container of 38 mm dia. Anadaptor with locking screw for fitting the 38 mm dia. Anadaptor with locking screw for fitting the 38 mm dia. samplingtubes to jostling join is given. Following more accessoriesare provided Splitmould 38 mm dia x 88mm since quite a while ago gave quickrelease clips., Split form. 38 mmdia x 76 mmlong.. Split tube, 38 mmdia x 150 mmlong. Testing tube,38 mmdia x 200 mmlong..
For gathering undisturbed examples of soil at various depths.The pack incorporates all vital actualize for exhausting. drivingand liquefying wax. Tests can be associated with substantial dutyextension bars. The outfit in conjunction with the samplerscan be utilized to gather undisturbed examples to a profundity of 6meters. In the event that the site conditions allow, the profundity of operationcan be expanded by including augmentation rods.The furnish comprises off Auger head Blade compose, 150 mm dia.with 38 mm dia x 1 meter long bar, Tee-piece, and a handleExtension Rods overwhelming obligation. 1 meter long and 38 mmdiameter, five No. Set of two spanners for fixing theextension rods.Jarring Link (Large) to drive samplers. This can beconnected to the sampler or to the Extension rod.Eye snare, Wax Container, methylated soul stove, wax ladle.Complete as portrayed in conveying pack..
